Front Door Window - Snap Noise When Window Is Closed
NUMBER: 23-21-99GROUP: Body
DATE: Jul. 2, 1999
SUBJECT:
"Snap" Noise As Front Door Window Is Closed
OVERVIEW:
This bulletin involves replacing the regulator drive arm clip with a revised part.
MODELS:
1999 (LH) Concorde/Intrepid/LHS/300M
SYMPTOM/CONDITION:
"Snap" noise as front door window is closed just before the window reaches the closed position.
DIAGNOSIS:
Verify noise is coming from inside the door by cycling window. If "snap" noise is present, perform the Repair Procedure.
PARTS REQUIRED:
1 05016534AA Clip, Window Regulator Drive Arm (Black)
2 06504014 Clip, Door Panel Attaching (White)
NOTE:
LH VEHICLE DOOR TRIM PANEL CLIPS ARE NOT REUSABLE. ANYTIME A DOOR PANEL IS REMOVED THE CLIPS MUST BE REPLACED.
REPAIR PROCEDURE:
THIS REPAIR IS COMPATIBLE WITH DAIMLERCHRYSLER'S MOBILE SERVICE PROGRAM AND DOES NOT REQUIRE HOISTS OR OTHER FULL SERVICE FACILITY SPECIAL EQUIPMENT.
1. Move window to the mid position.
2. Remove flag cover or speaker, door trim panel, and water shield.
3. Replace the (2) white clips on the trim panel with p/n 06504014.

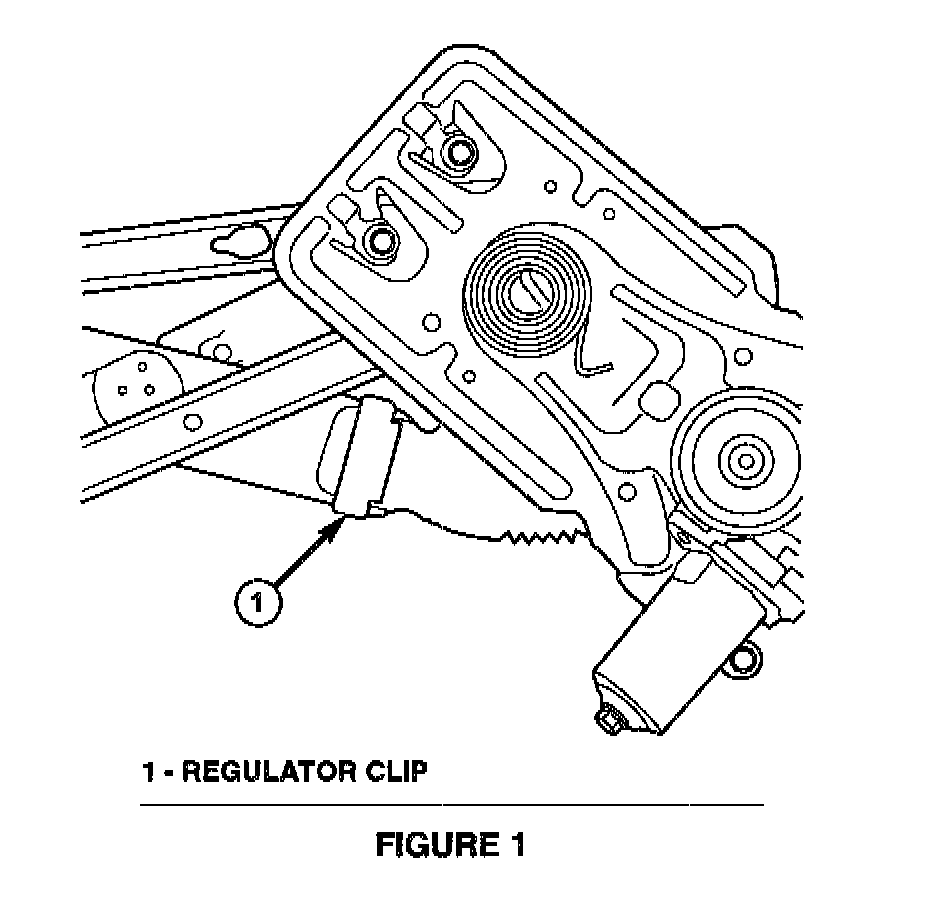

4. Remove the existing window regulator drive arm clip (white) by prying with a screw driver (Figure 1).
5. Install revised clip, p/n 0501 6534AA (black), with cut out corners pointed toward the gear (Figure 1).
6. Install water shield, door trim panel, and flag cover or speaker.
7. Repeat procedure on other front door if necessary.
POLICY: Reimbursable within the provisions of the warranty.
TIME ALLOWANCE:
Labor Operation No: 23-34-10-90 Replace Clip Each Door 0.4 Hrs.
FAILURE CODE: P8 - New Part
