Transmission Mode Switch: Service and Repair

REMOVAL
1. Disconnect the TRS connector.
2. Remove valve body assembly from vehicle. Refer to Valve Body for procedure.

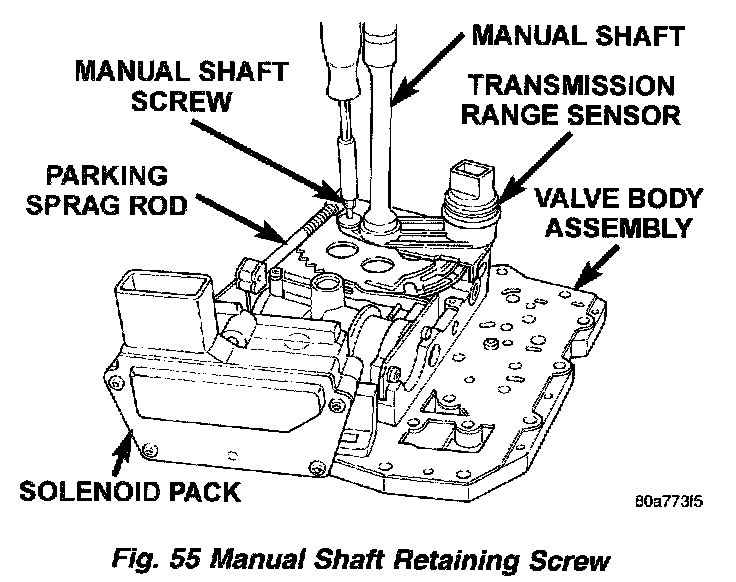

Fig. 55:

3. Remove manual shaft retaining screw (Fig. 55).
4. Slide TRS off of manual valve shaft.

INSTALLATION
1. To install, reverse removal procedure.
