Valve Body Recondition

Fig. 84:

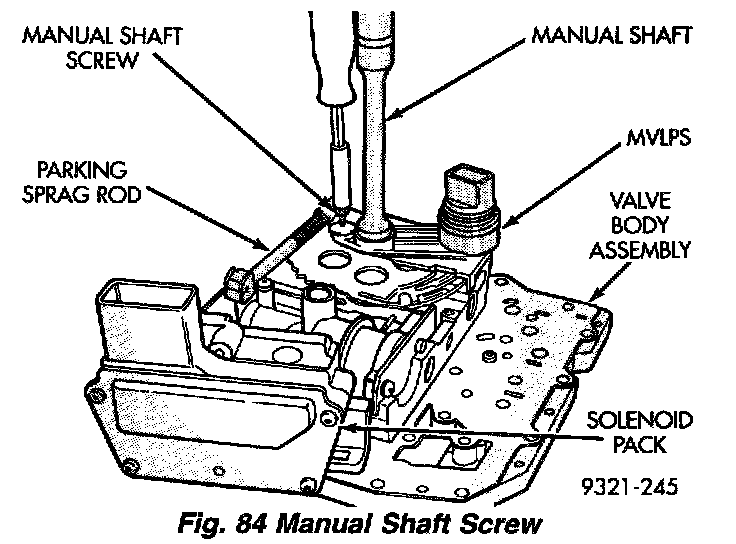

1. Remove manual shaft screw (Fig. 84).
2. Remove Transmission Range Sensor (TRS) and manual shift lever.

Fig. 85:

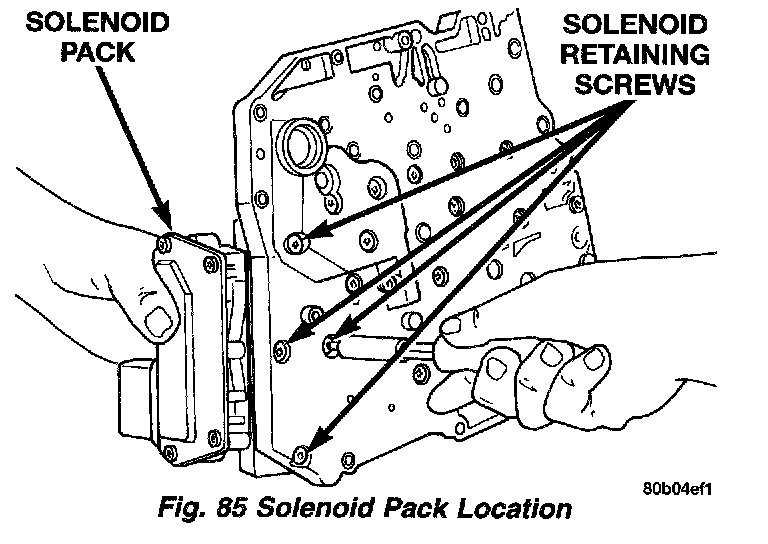

3. Remove solenoid pack from valve body (Fig. 85).

Fig. 86:

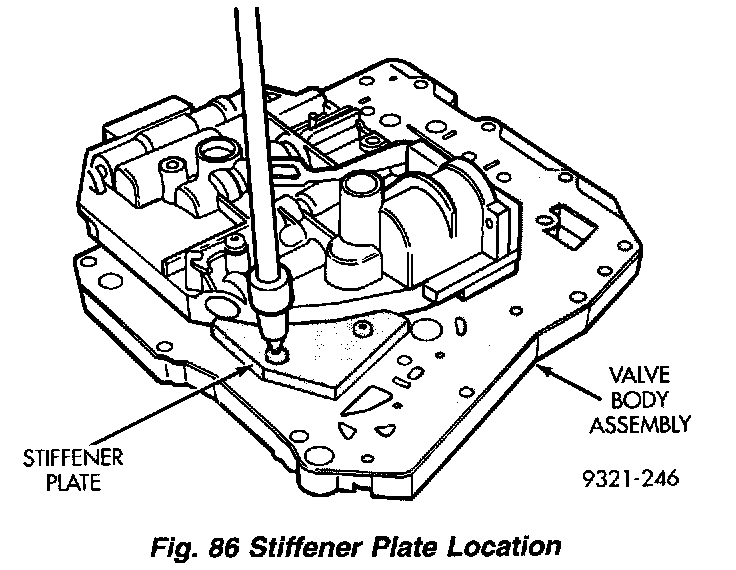

4. Remove valve body stiffener plate (Fig. 86).
5. Remove 2/4 accumulator retaining plate screws.

Fig. 88:

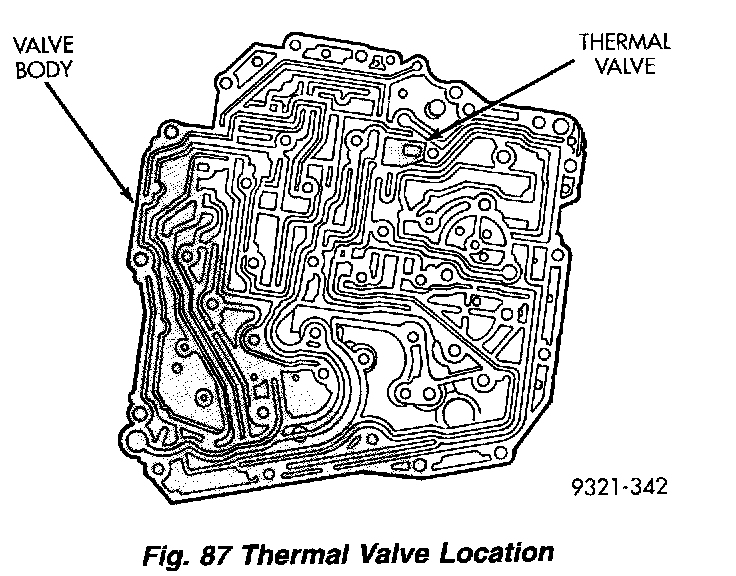

6. Remove thermal valve (Fig. 87).

Fig. 87:

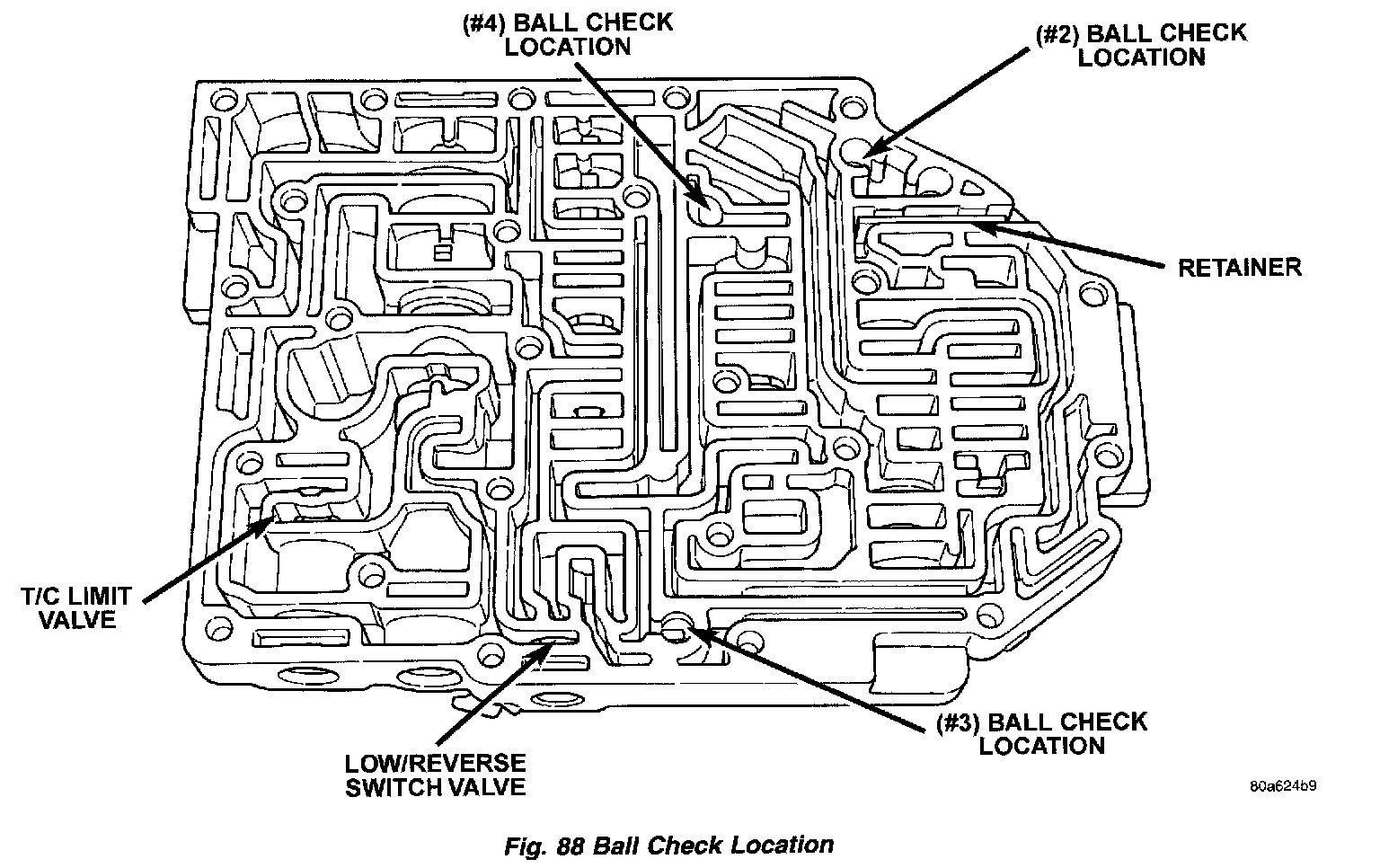

7. Remove valve body check balls. Note the location of valve body check balls (Fig. 88).

Fig. 89:

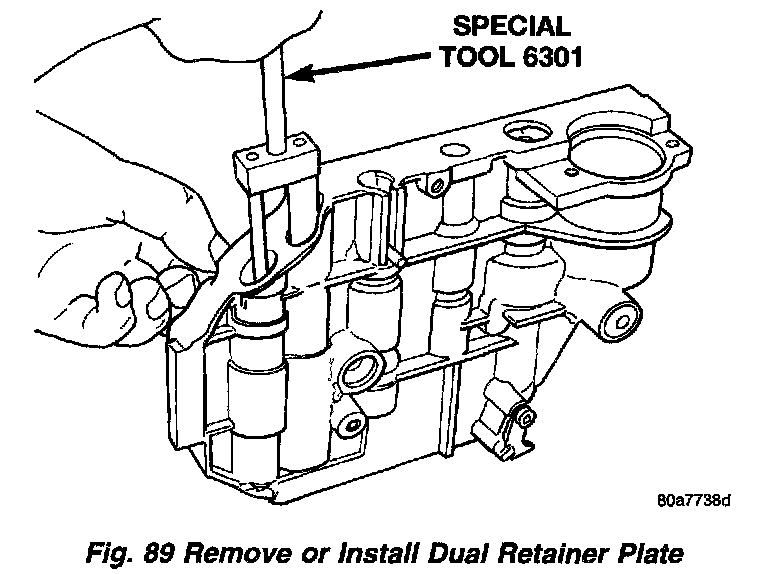

8. Remove dual retainer plate from valve body. Use special tool 6301 to remove plate (Fig. 89).

Fig. 90:

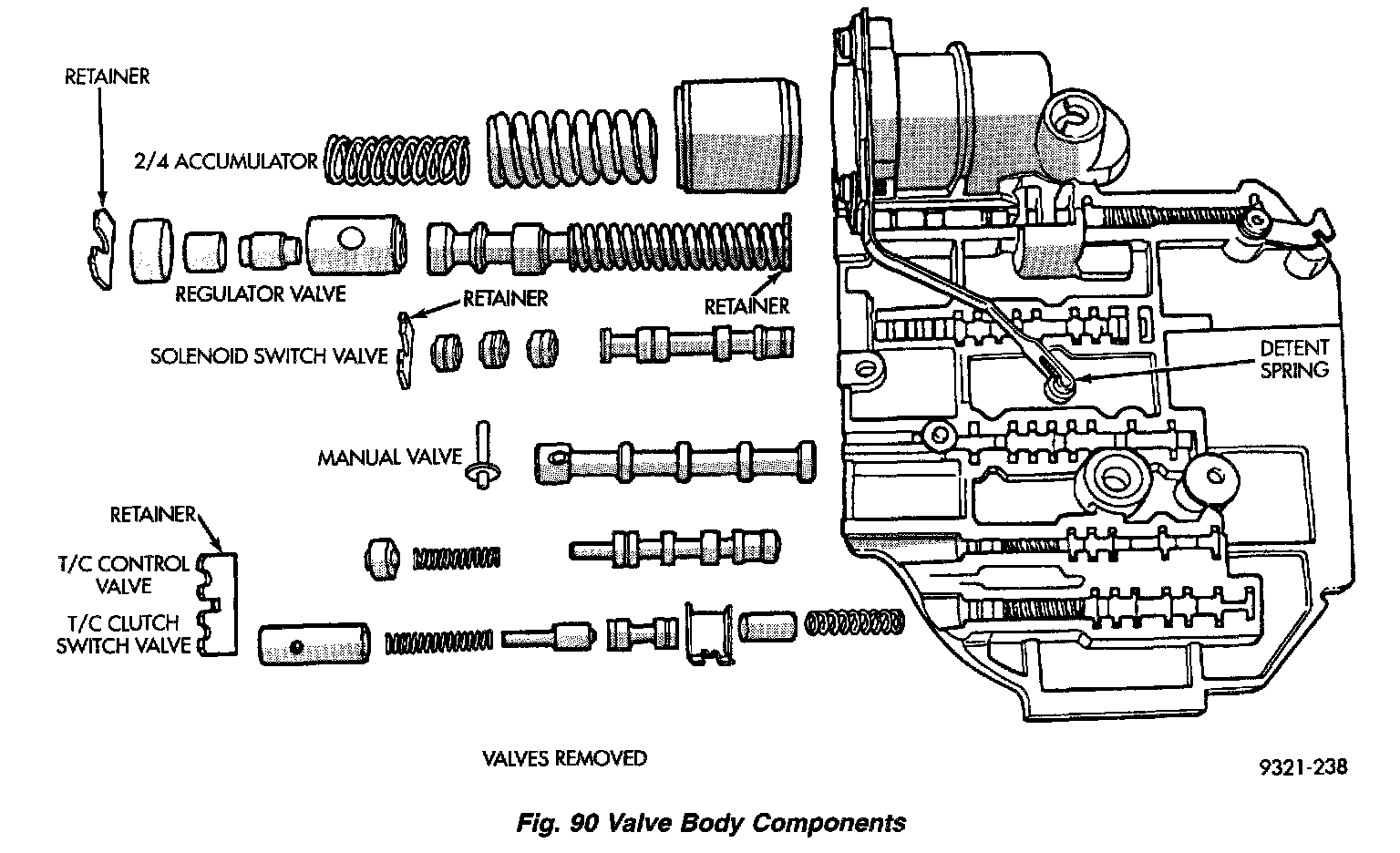

9. Tag all springs, as they are removed, for reassembly identification (Fig. 90).

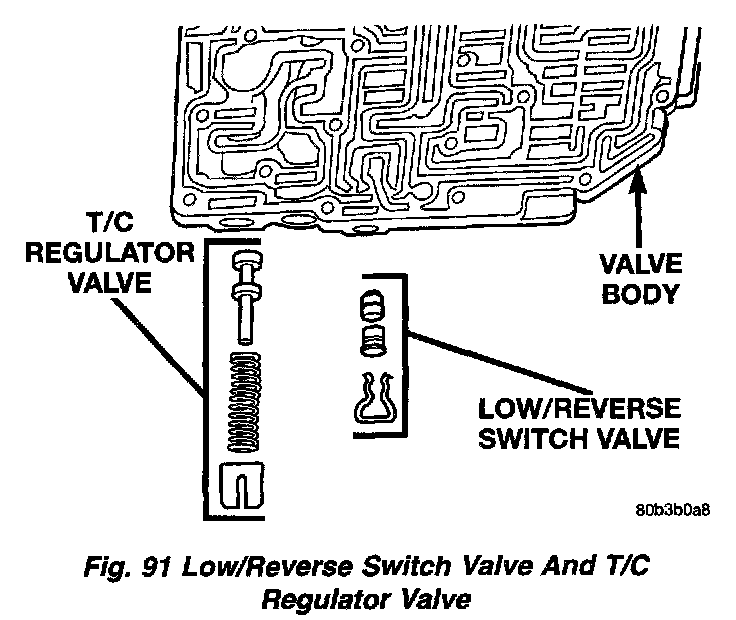

Fig. 91:

10. Cleanliness through entire disassembly and assembly of the valve body cannot be overemphasized. When disassembling, each part should be washed in a suitable solvent, then dried by compressed air. Do not wipe parts with shop towels. All mating surfaces in the valve body are accurately machined; therefore, careful handling of all parts must be exercised to avoid nicks or burrs.
11. To reassemble, reverse recondition procedure.
