Differential Carrier - Recondition

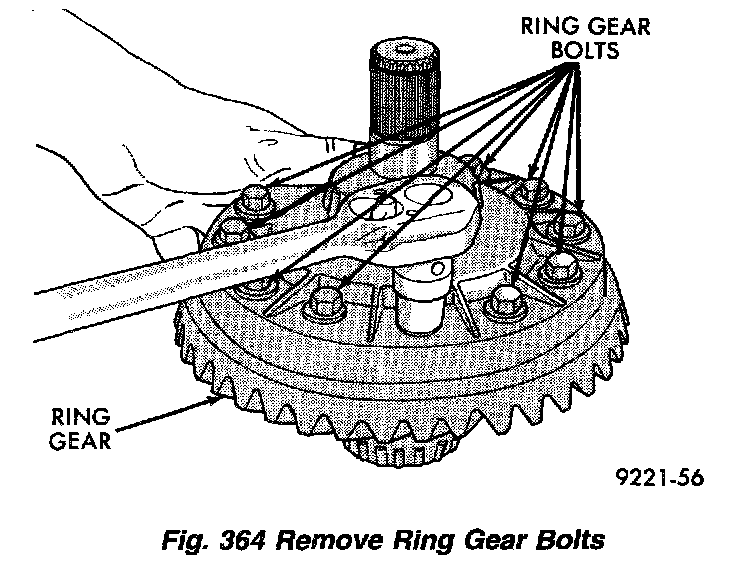

Fig. 364:

CAUTION: Ring gear bolts are not reusable. When reassembling use new bolts.

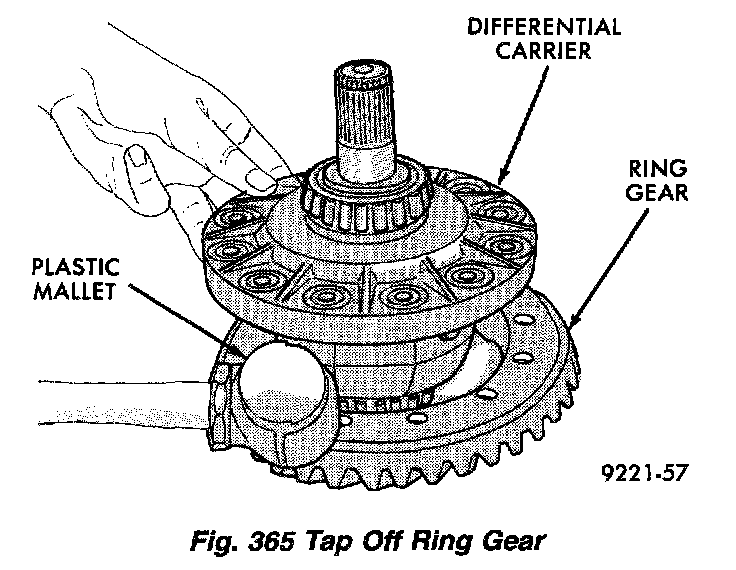

Fig. 365:

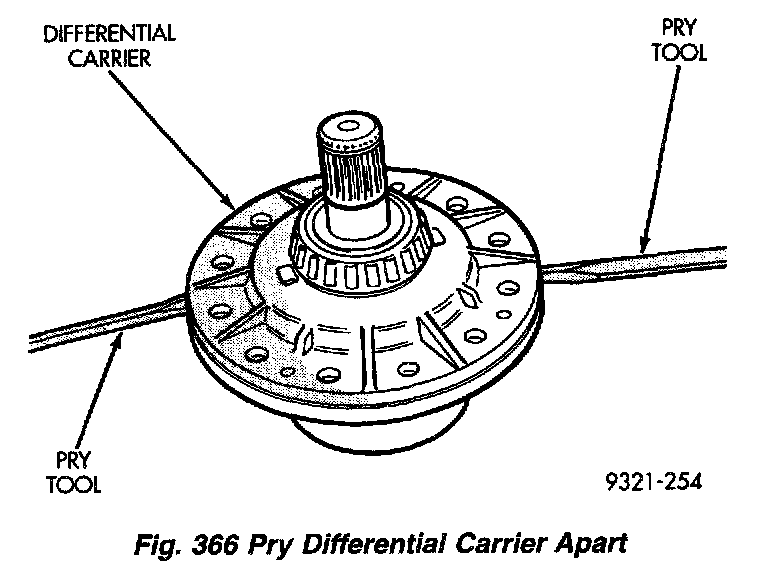

Fig. 366:

NOTE: Mark ring gear location, if reusing ring gear.

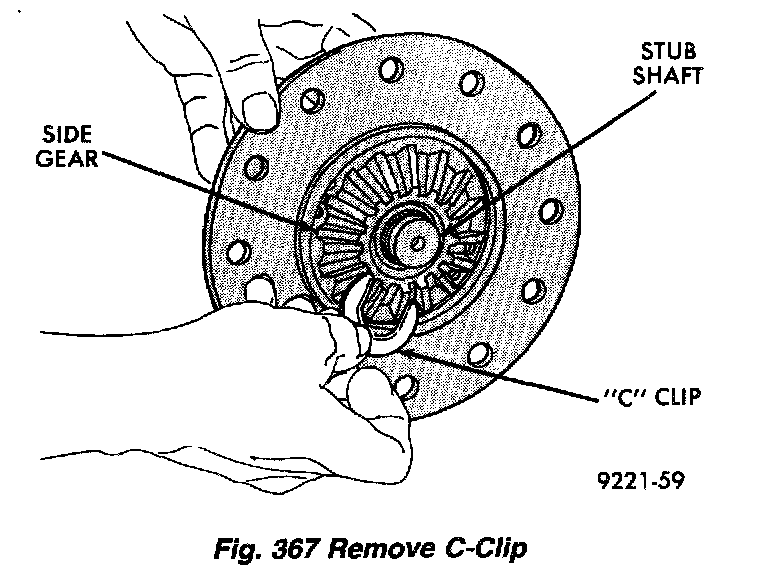

Fig. 367:

NOTE: When reassembling differential, line up notches on side of carrier.

CAUTION: When reassembling use a new roll pin.

Fig. 368:

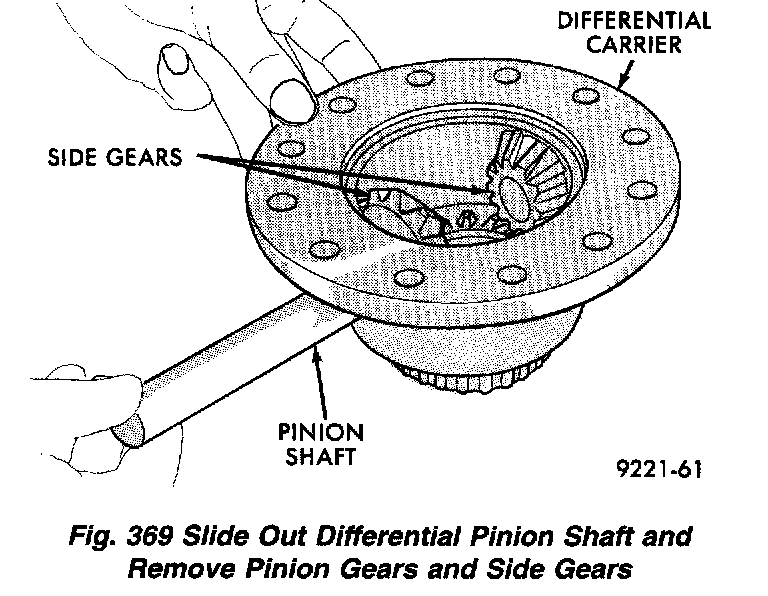

Fig. 369:

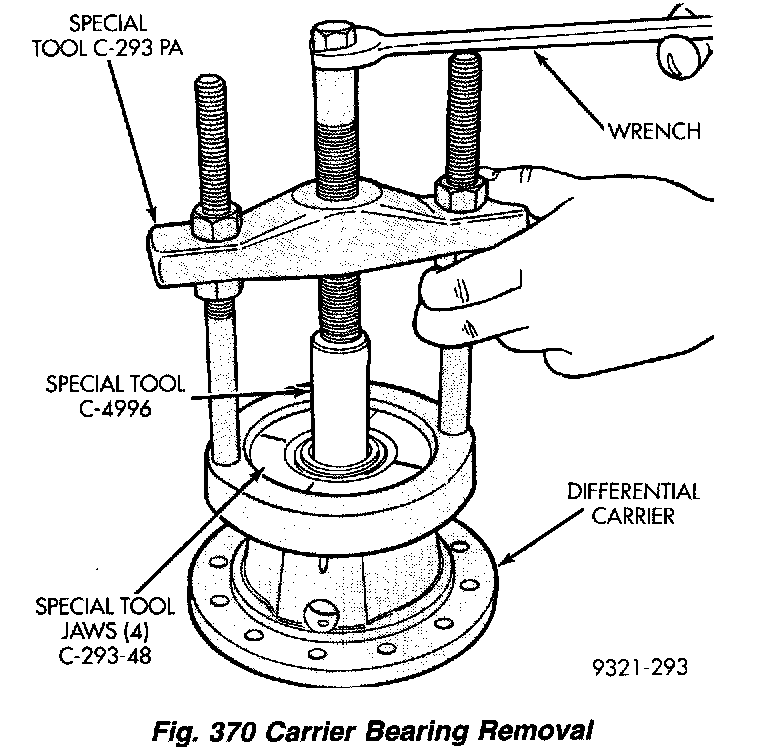

Fig. 370:

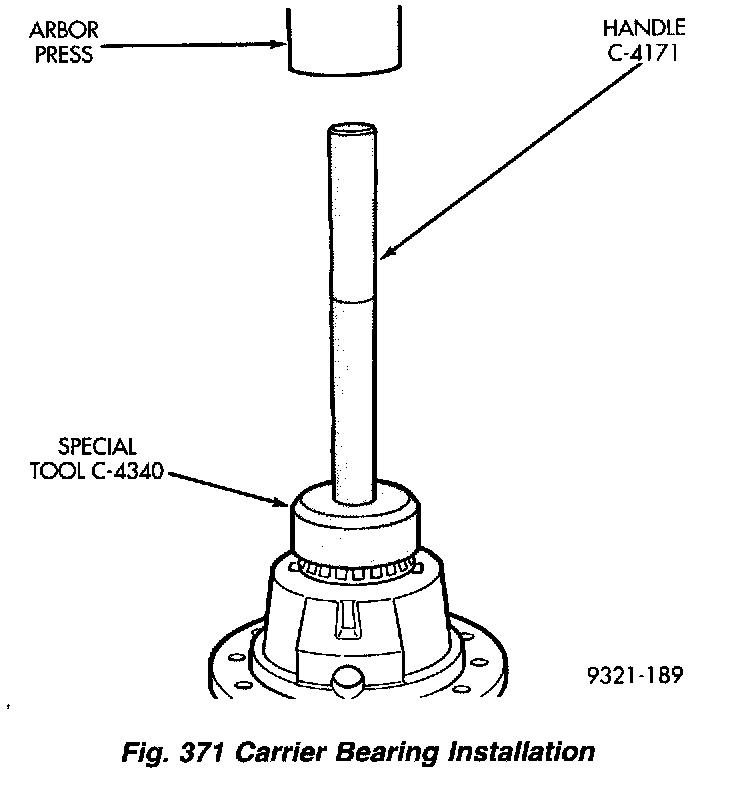

Fig. 371:

NOTE: To remove inner and outer adjuster races, use Tool 6062-A. To install inner and outer adjuster races, use Tool 6522 and Tool C-4171.
