Master Shim Chart

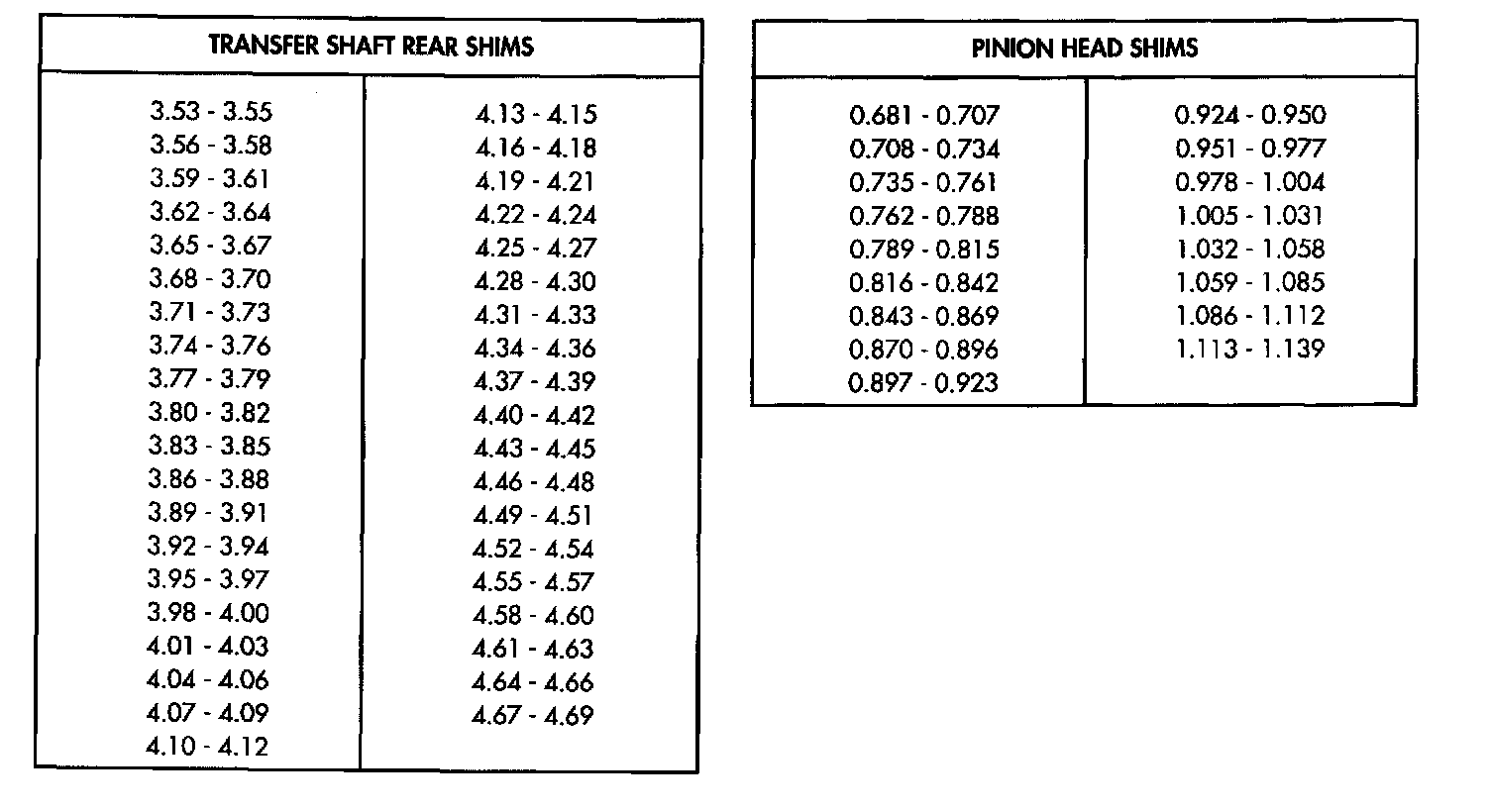

Master Shim Chart - Part 1 Of 2:

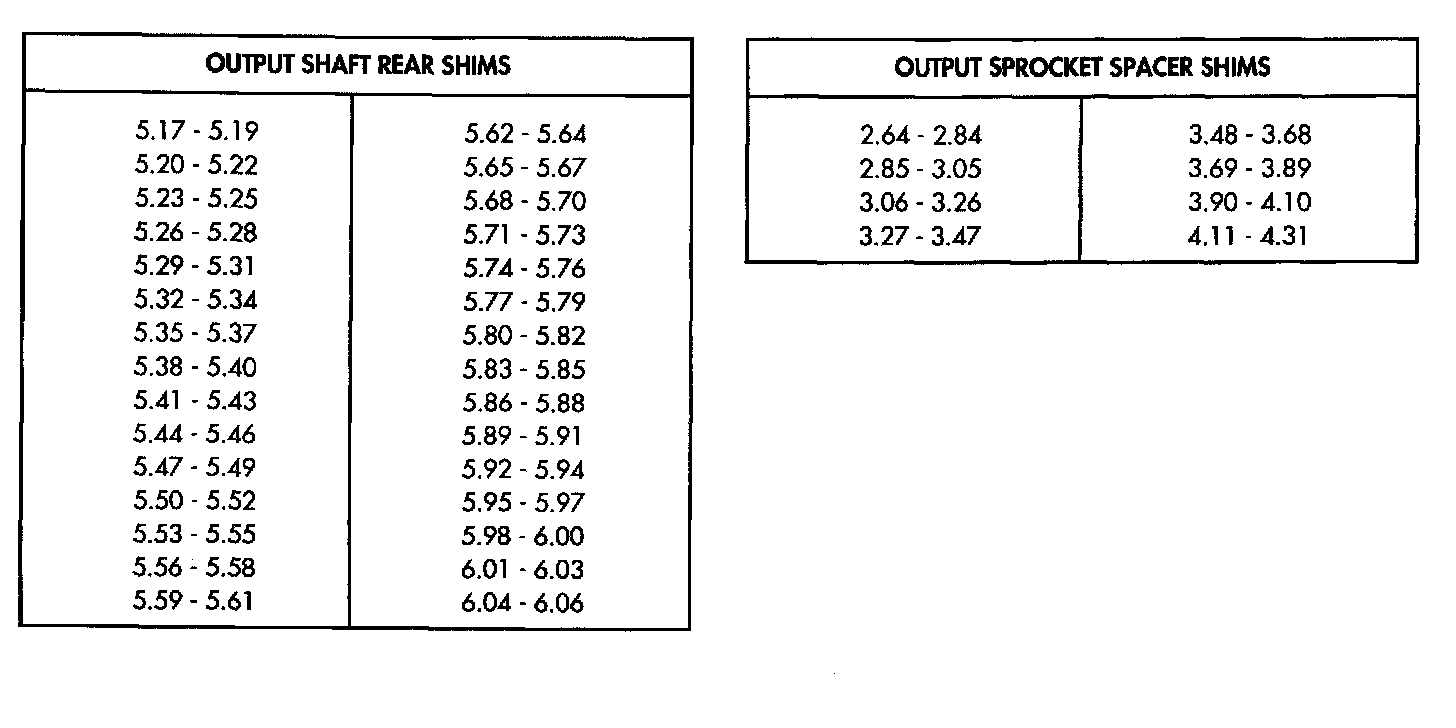

Master Shim Chart - Part 2 Of 2:
Use this chart as a reference guide when selecting the shims needed for the:
- Transfer Shaft
- Output Shaft
- Output Sprocket
- Pinion
Use this chart as a reference guide when selecting the shims needed for the:
- Transfer Shaft
- Output Shaft
- Output Sprocket
- Pinion
