Wipers/Washers/Electrical - Service Manual Updates

NUMBER: 26-03-99A

GROUP: Miscellaneous

DATE: March, 1999

REVISIONS ARE HIGHLIGHTED WITH BLACK BARS IN THE MARGIN

Models:
1999 Concorde, Intrepid, LHS, 300M Service Manual - Publication Number 81-270-9140

DESCRIPTION OF CHANGES

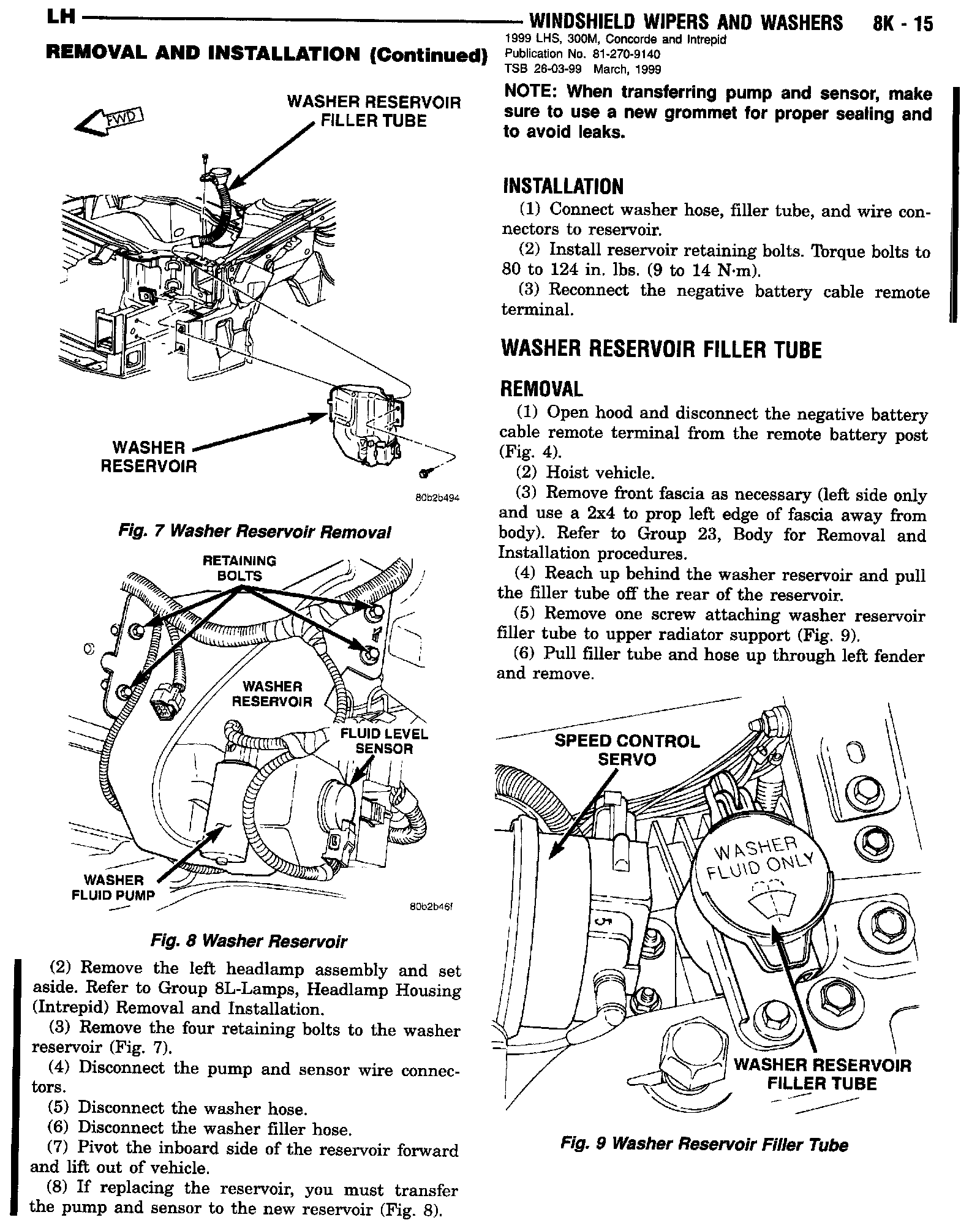

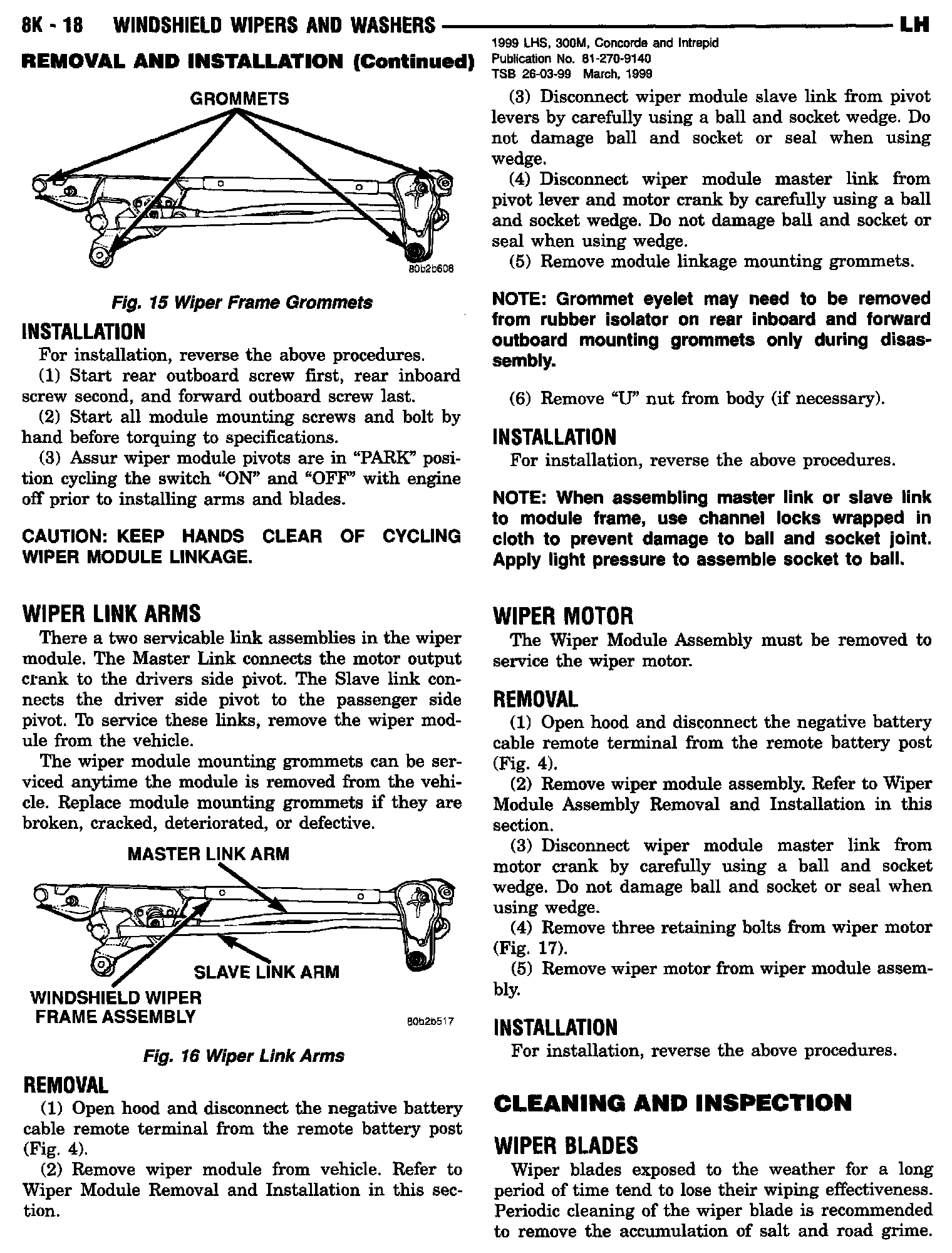

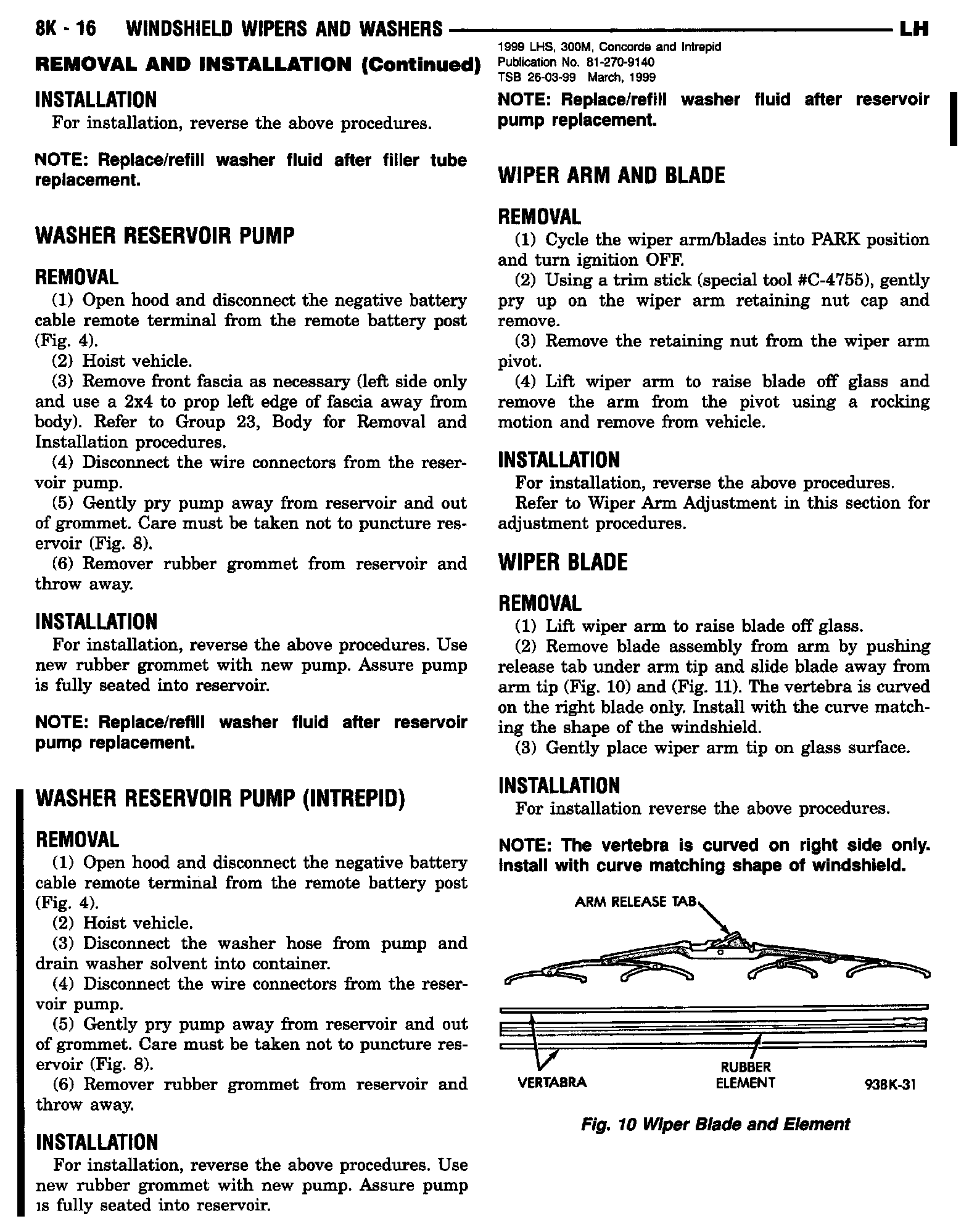

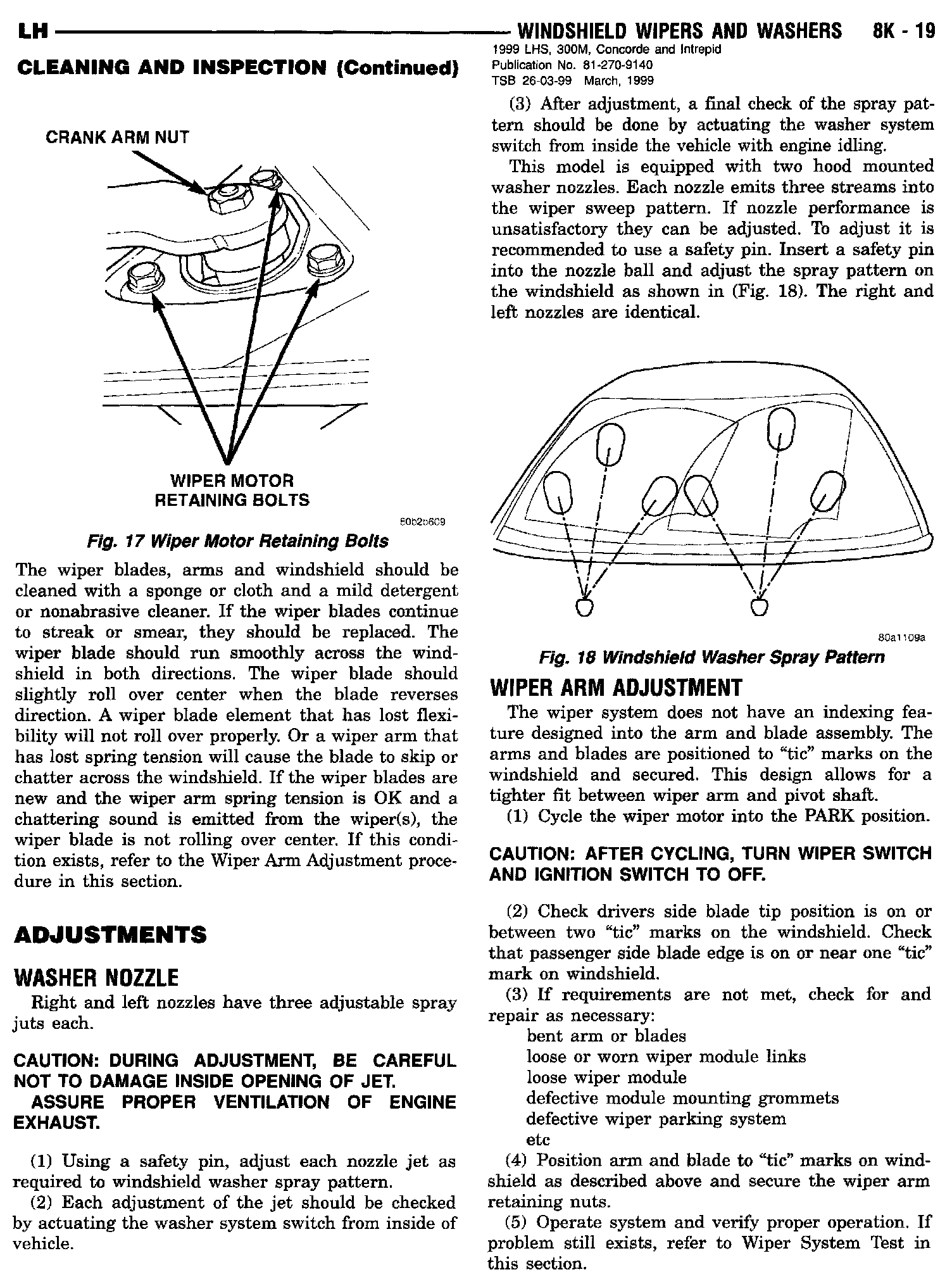

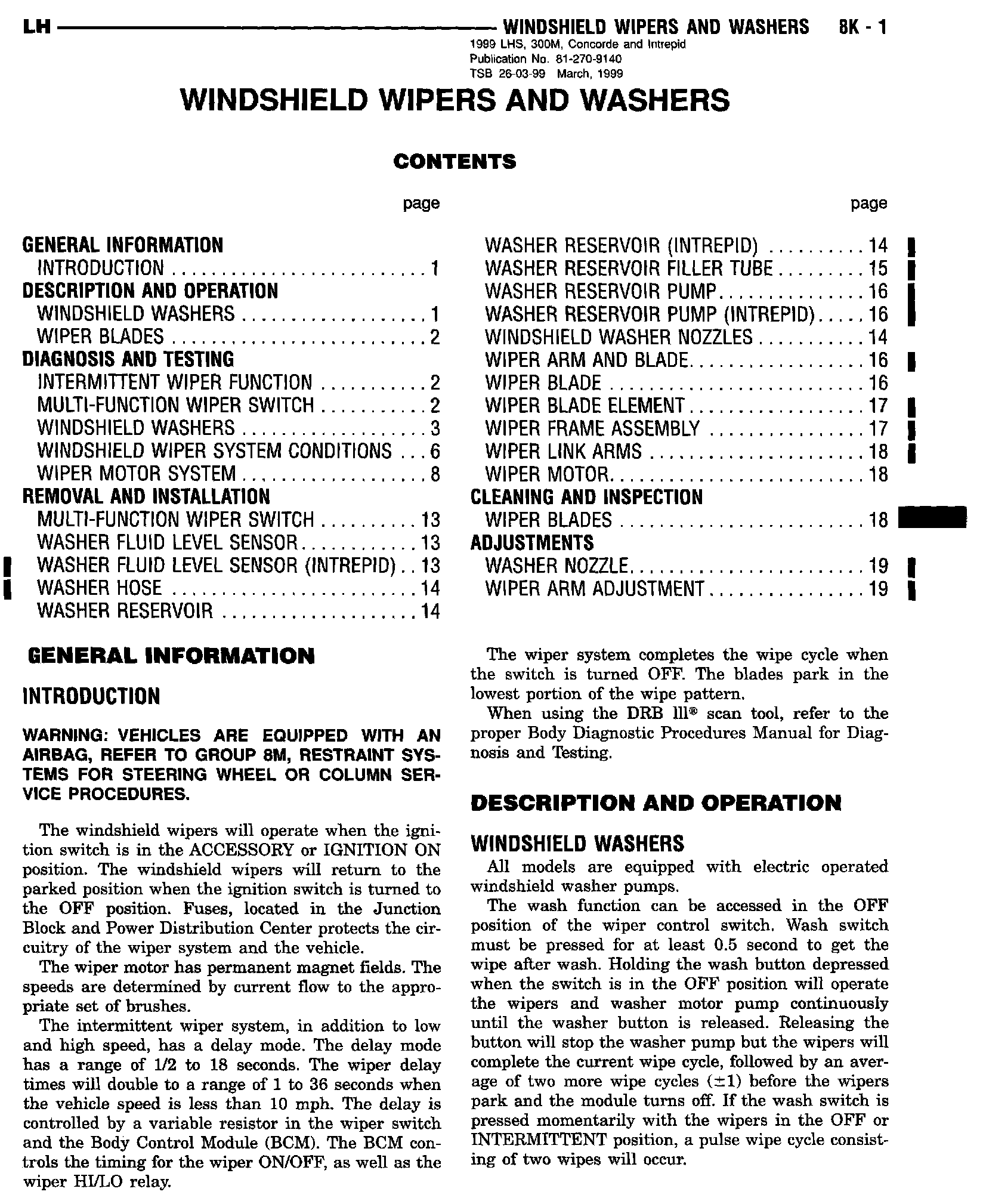

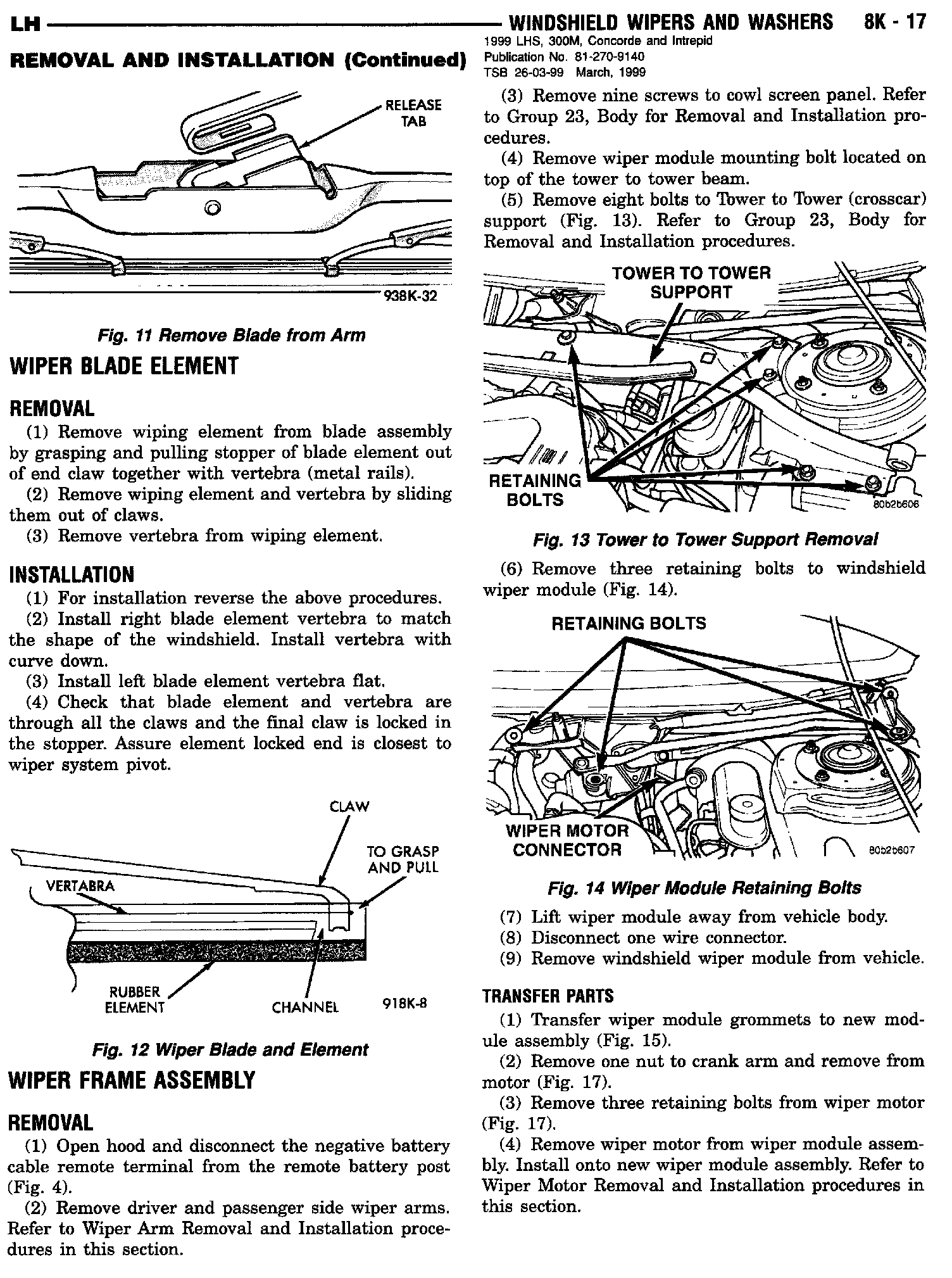

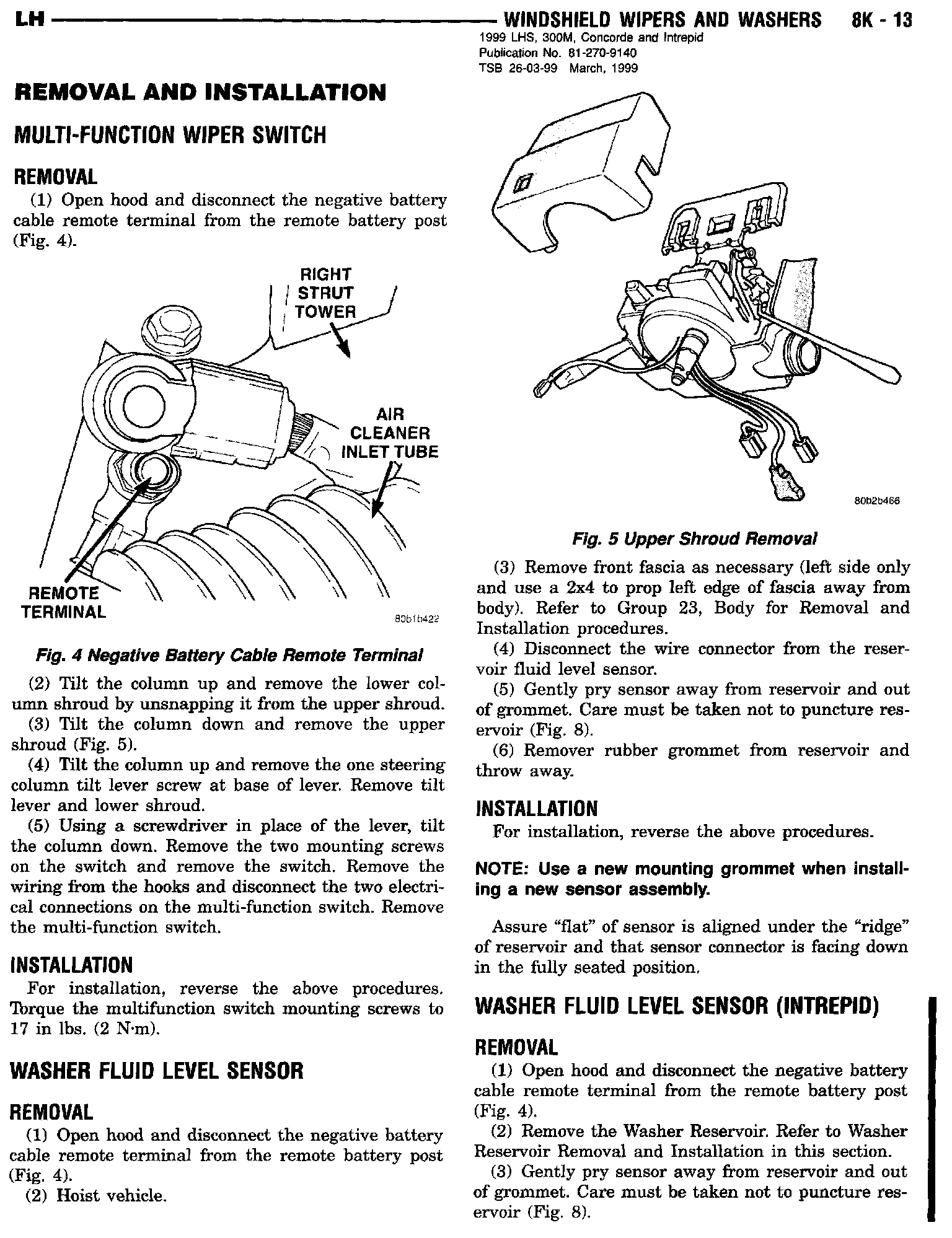

Revisions to the Windshield Wiper and Washer





8K-I





8K-13





8K-14





8K-15





8K-16





8K-17





8K-18





8K-19

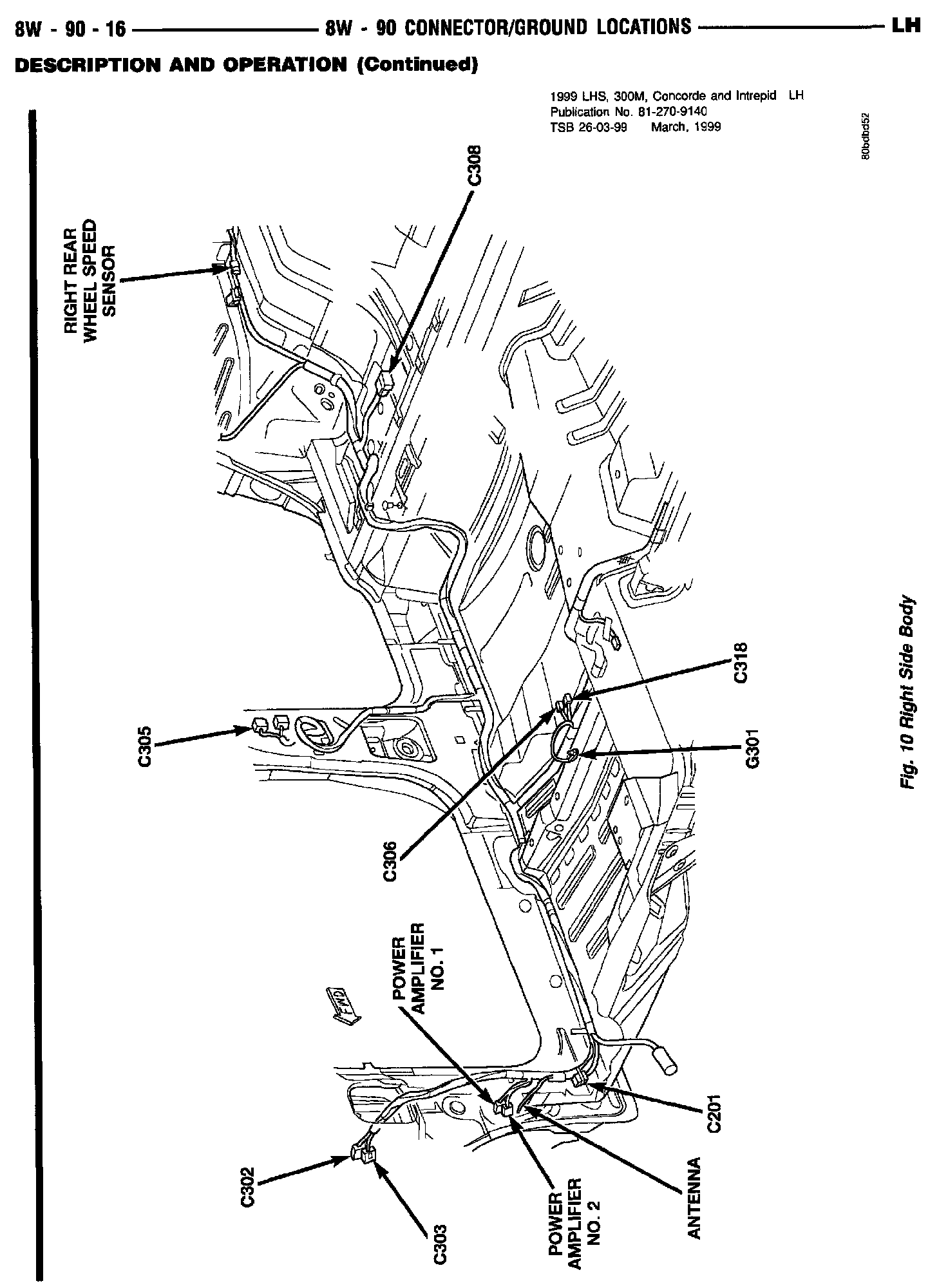

Revision to the Ground Locations





8W-90-16
