Intake Manifold

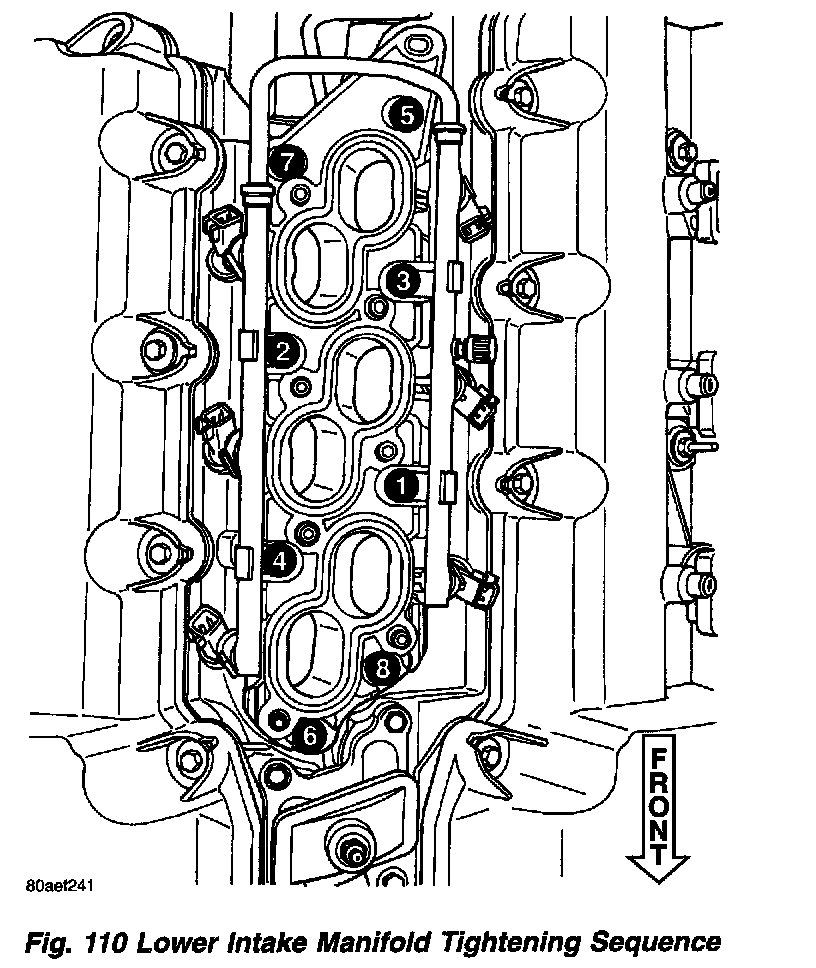

LOWER INTAKE MANIFOLD
Tighten manifold attaching bolts in sequence shown. Torque to 12 Nm (105 in. lbs.).

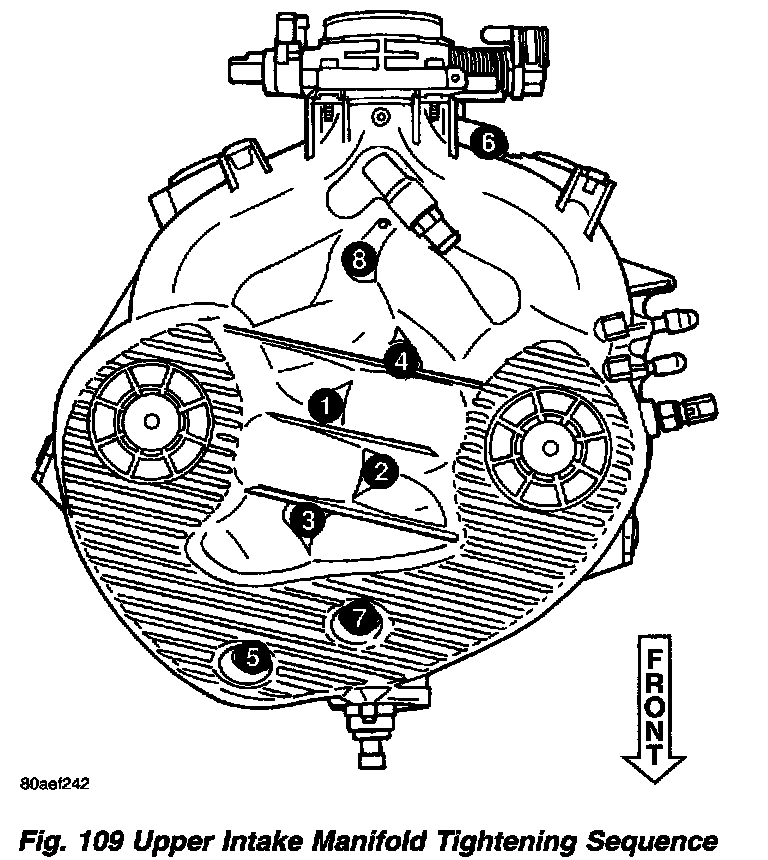

UPPER INTAKE MANIFOLD
Tighten manifold attaching bolts in sequence shown. Torque to 12 Nm (105 in. lbs.).

Throttle Body Bolts 11.9 Nm (105 in. lbs.)
