Hazard Warning Switch: Service and Repair

REMOVAL

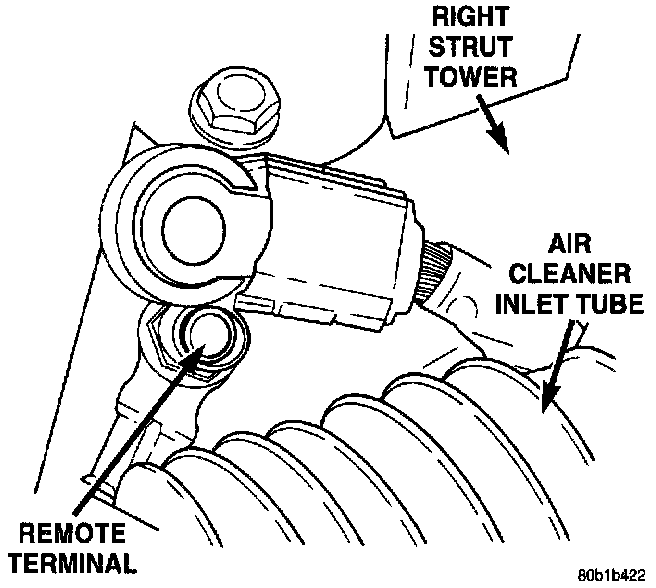

Negative Battery Cable Remote Terminal:

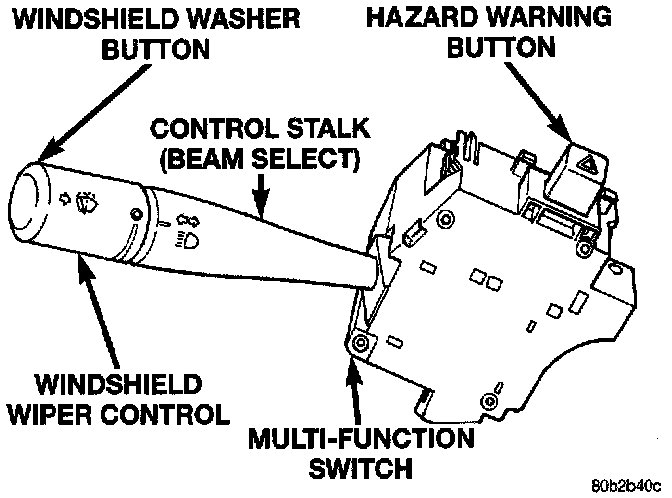

Multi-Function Switch:

1. Open hood and disconnect the negative battery cable remote terminal from the remote battery post.
2. Remove tilt lever.
3. Remove both upper and lower steering column shrouds.
4. Remove multi-function switch mounting screws and connectors.

INSTALLATION
For installation reverse the above procedures.
1. Tighten multi-function switch retaining screws to 17 in. lbs. (2 N.m) torque.
