Ambient Temperature Sensor / Switch HVAC: Service and Repair

REMOVAL

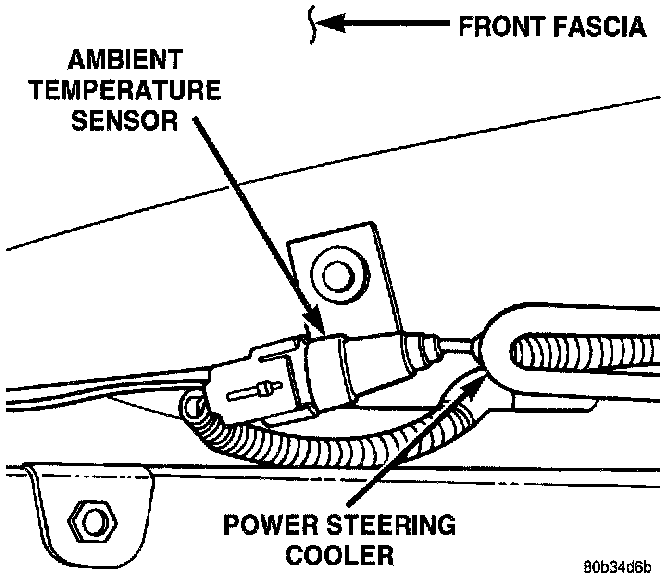

Ambient Temperature Sensor Location:

1. Remove sensor mounting screw.
2. Disconnect sensor wiring connector.

INSTALLATION
- For installation, reverse the above procedures.
