Power Seat Switch: Description and Operation

SYSTEM OPERATION

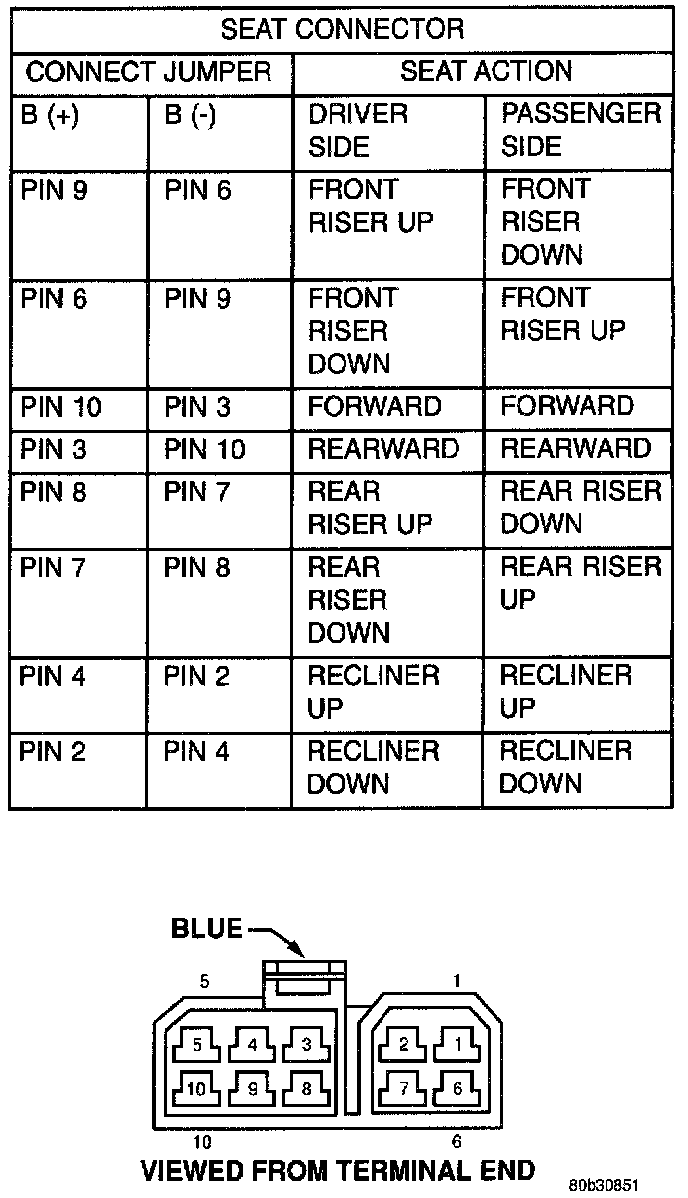

Power Seat Wire Harness Pin Call-Out:

The seat switch assembly is mounted outboard in the seat cushion side cover. Activating any seat switch will move the seat in the corresponding direction. The MHSMM will drive a maximum of two motors at a time in a given direction. If conflicting directions are requested, the priorities for responses are as follows:
- Seat Track Rearward
- Seat Front Down
- Seat Rear Down
- Seat Recliner Rearward
- Seat Track Forward
- Seat Front Up
- Seat Rear Up
- Seat Recliner Forward

Memory Selector Switch

Memory Selector Switch:

The memory selector switches are mounted on the cushion cover side shield of the driver seat within easy reach of the driver. They provide a means to set and recall either of the two positions of seat and recliner, and the side view mirror as chosen by the driver.

The proper procedure of setting and recalling a memory position using the memory switches is as follows:
1. Adjust the seat, recliner and side view mirrors to the desired position.
2. Press momentarily and release memory switch S.
3. Press momentarily and release memory switch 1 or 2.
4. To program the second driver's position, repeat the above procedure using the remaining memory switch.
5. To recall either of the programmed positions momentarily press and release either memory selector switch 1 or 2.
