Home >> Chrysler >> 1999 >> Concorde V6-2.7L VIN R >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Diagnosis Procedures >> No Manual Upshift/Downshift In Autostick

No Manual Upshift/Downshift In Autostick

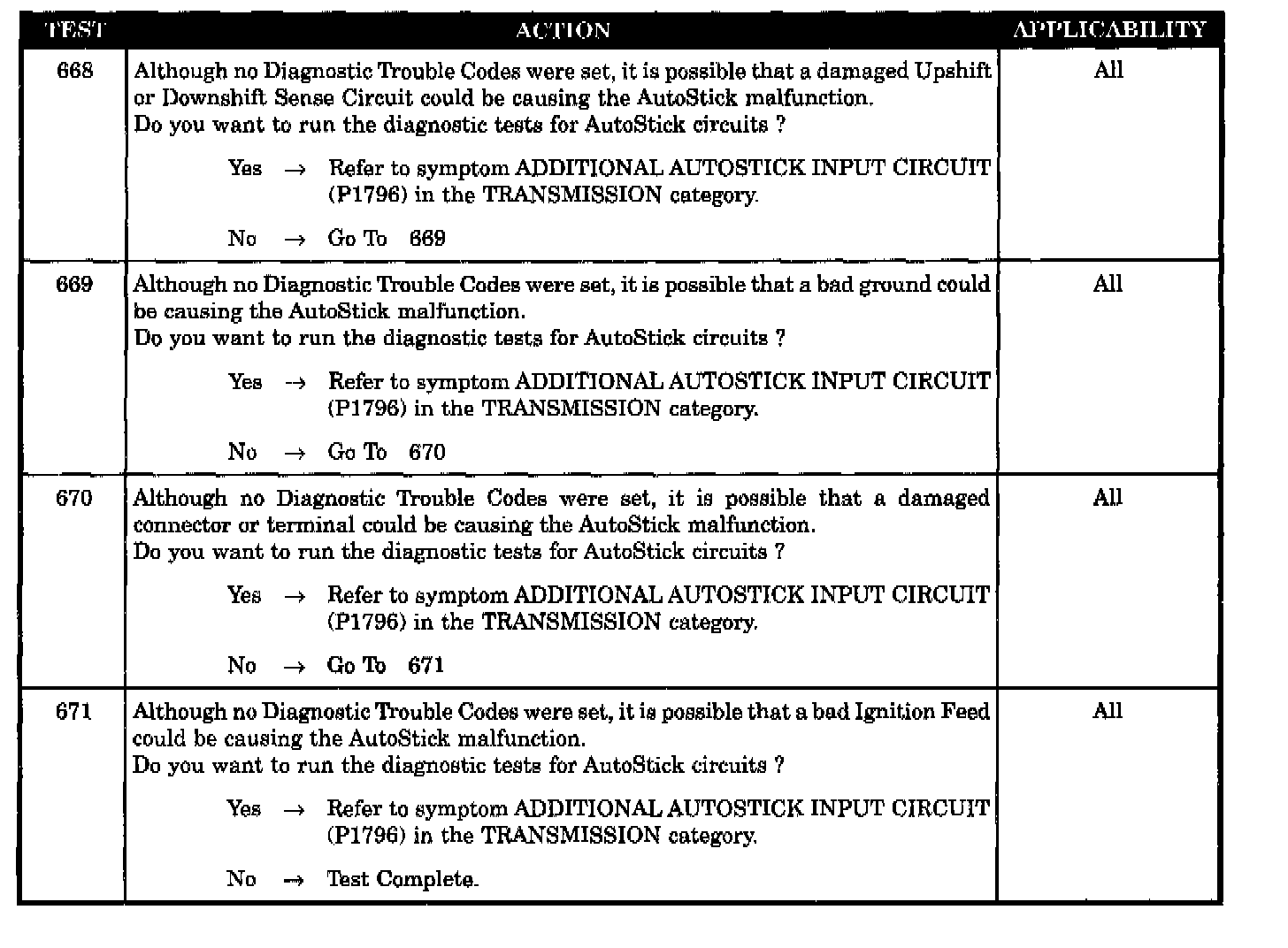

Test 668-671:






SYMPTOM:
- NO MANUAL UPSHIFT/ DOWNSHIFT IN AUTOSTICK

POSSIBLE CAUSES
- FAULTY TCM
- INCORRECT GEARSHIFT CONTROL LINKAGE ADJUSTMENT
