IGNITION SYSTEMDESCRIPTION
NOTE: All engines use a fixed ignition timing system. Basic ignition timing is not adjustable. All spark advance is determined by the Powertrain Control Module (PCM).
The distributorless ignition system used on these engines is referred to as the Direct Ignition System (DIS). The system's three main components are the coils, crankshaft position sensor, and camshaft position sensor. The coil on plug ignition system utilizes an ignition coil for every cylinder, it is mounted directly over the each spark plug.
OPERATION
The crankshaft position sensor and camshaft position sensor are hall effect devices. The camshaft position sensor and crankshaft position sensor generate pulses that are inputs to the PCM. The PCM determines crankshaft position from these sensors. The PCM calculates injector sequence and ignition timing from crankshaft position. For a description of both sensors, refer to Camshaft Position Sensor and Crankshaft Position Sensor.
COIL ON PLUG
DESCRIPTION

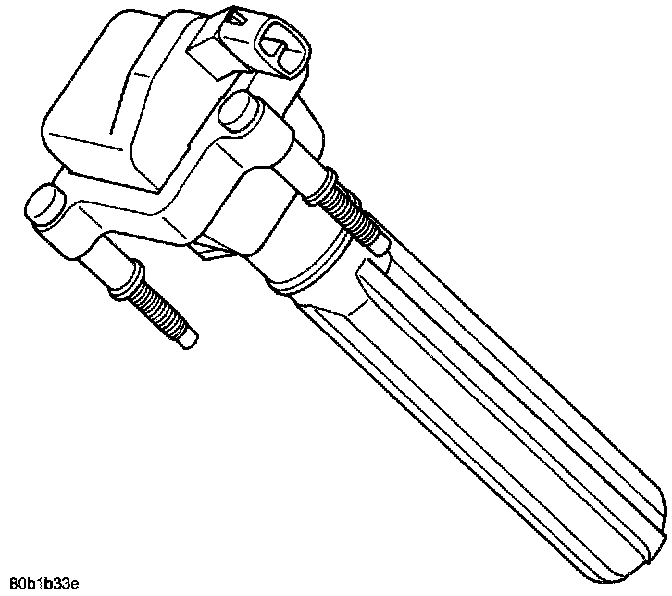

Coil (2.7L):

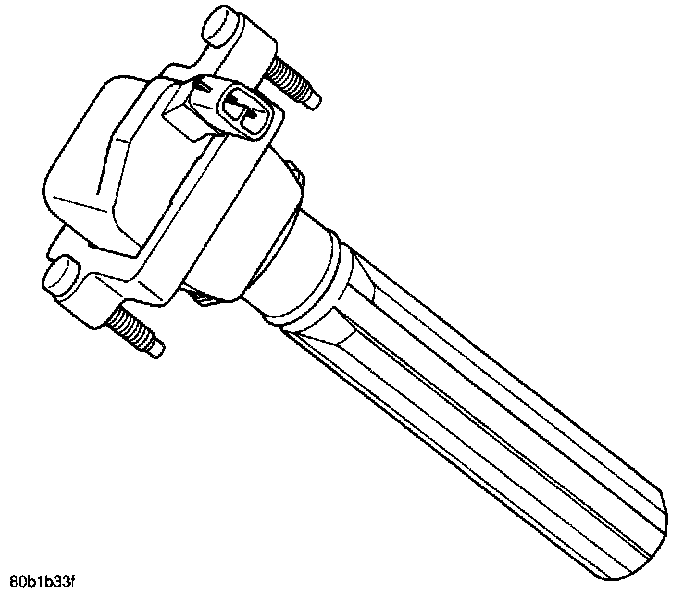

Coil (3.2/3.5L):
The engines are equipped with a coil on plug ignition system. Each cylinder has a dedicated coil that sits atop each plug. No secondary wires are required and connection from the coil to plug is made with a boot that is attached to the coil. The Powertrain Control Module (PCM) determines which coil to charge and fire at the correct time.
OPERATION
The Auto Shutdown (ASD) relay provides battery voltage to the ignition coil. The PCM provides a ground contact (circuit) for energizing the coil. When the PCM breaks the contact, the energy in the coil primary transfers to the secondary causing the spark. The PCM will de-energize the ASD relay if it does not receive the crankshaft position sensor and camshaft position sensor inputs. For limp home capability, the engine can run on crankshaft sensor input only. Refer to Auto Shutdown (ASD) Relay-PCM Output for relay operation.

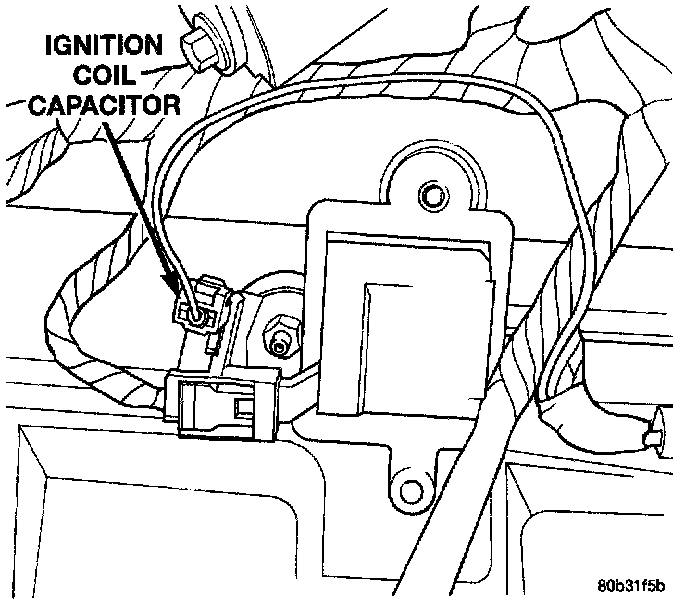

Coil Capacitor:

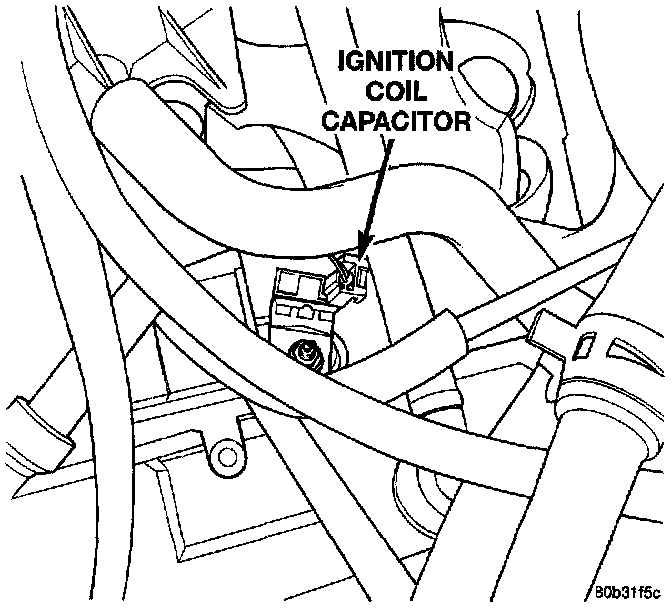

Coil Capacitor:
The coil's low primary resistance (0.4 - 0.6 ohm) allows the PCM to fully charge the coil for each firing. There is a coil capacitor added to each bank of cylinders for radio noise suppression.
IGNITION INTERLOCK
OPERATION
All vehicles equipped with automatic transaxles have an interlock system. The system prevents shifting the vehicle out of Park unless the ignition lock cylinder is in the Off, Run or Start position. In addition, the operator cannot rotate the key to the lock position unless the shifter is in the park position. On vehicles equipped with floor shift refer to the - Transaxle for Automatic Transmission Shifter/Ignition Interlock.
