Variable Induction Control Actuator: Service and Repair

Retaining Clip:

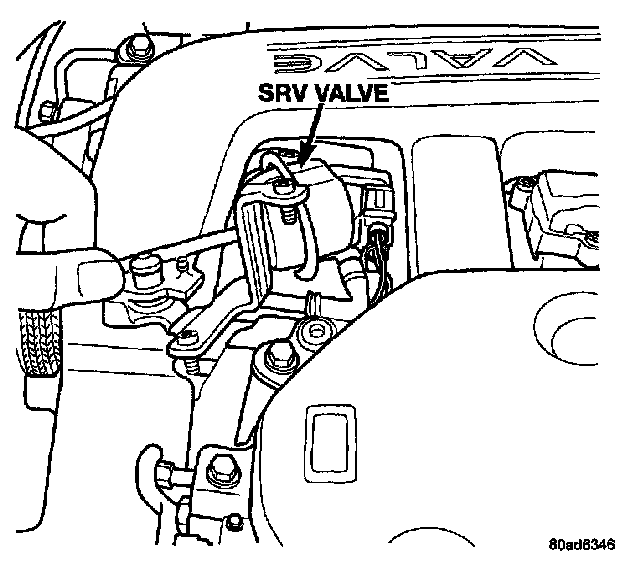

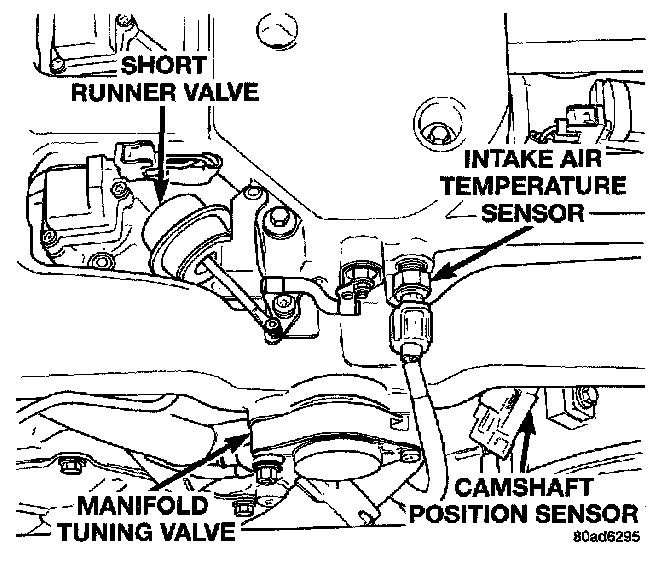

Short Runner Valve:

REMOVAL
1. Remove link.
2. Remove 2 bolts,
3. Remove vacuum hose.
4. Remove valve.

INSTALLATION
1. Install vacuum hose.
2. Install 2 bolts.
3. Install link.
