Fuel Delivery and Air Induction: Tools and Equipment

DRB (diagnostic read-out box) scan tool
Evaporative System Pressure Pump #6872A
fuel filler adapter #6922
fuel line adapter (C-6631)
fuel pressure gauge (C-4799-B)

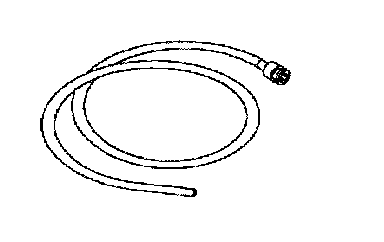

fuel release hose (C-4799-1)
flow indicator #6890
jumper wires
ohmmeter
oscilloscope
ultrasonic leak detector #6904
vacuum gauge
voltmeter
12 volt test light minimum 25 ohms resistance with probe #6801

CAUTION
A 12 volt test light should not be used for the following circuits, damage to the Powertrain Controller will occur.

^ 5 Volt Supply
^ 8 Volt Supply
^ J1850 PCI Bus
^ CCD Bus
^ CKP Sensor Signal
^ CMP Sensor Signal
^ Vehicle Speed Sensor Signal
^ 02 Sensor Signal

Extractor C-4334:

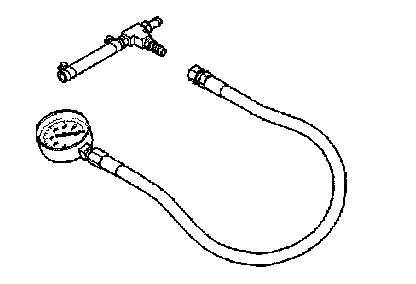

Pressure Gauge Assembly C-4799-B:

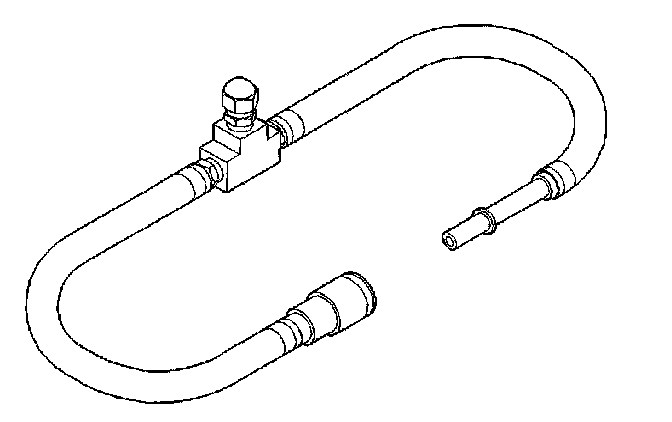

Fuel Pressure Test Adapter 6539:

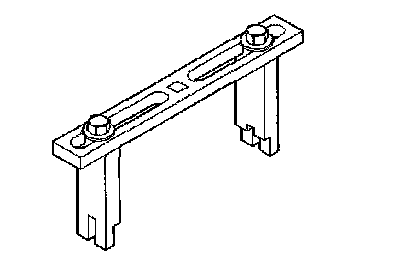

Spanner Wrench 6856:

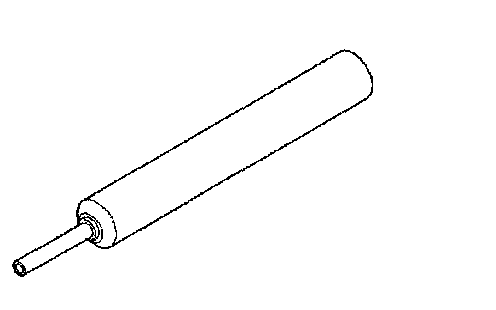

Metering Orifice:

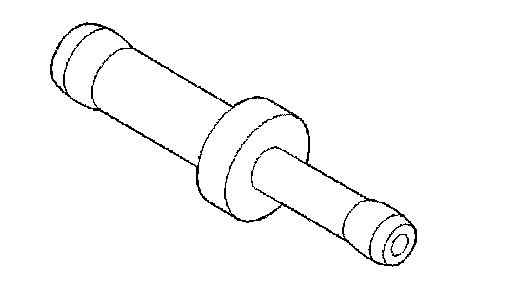

Fuel Line Adapter 1/4:

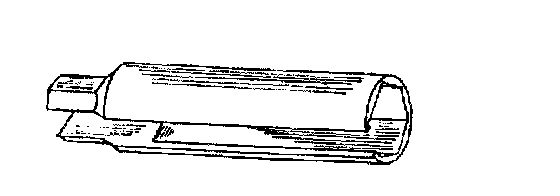

O2s (Oxygen Sensor) Remover/Installer - C-4907:
