Electrical - Wiring Schematic/Connector Pin-Out Update
NUMBER: 26-05-00GGROUP: Miscellaneous
DATE: May, 2000
REVISIONS ARE HIGHLIGHTED WITH BLACK BARS IN THE MARGIN
Models:
1999 Concorde, Intrepid, LHS, 300M and Manual - Publication Number 81-270-9140
DESCRIPTION OF CHANGES
Updates to the wiring schematics
8W-30-9

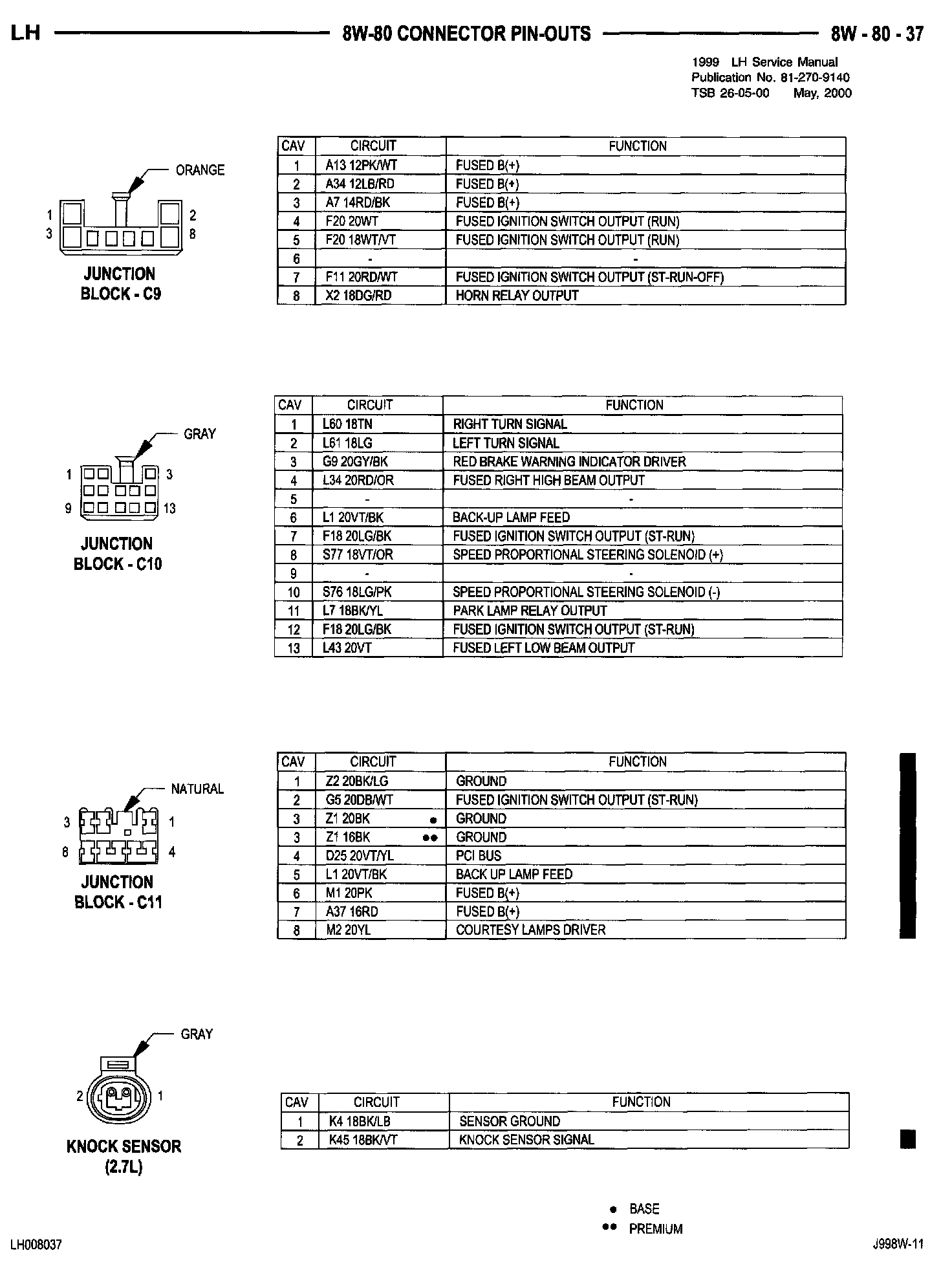

8W-80-37
