Coolant Temperature Sensor/Switch (For Computer): Description and Operation

Engine Coolant Temperature Sensor:

ENGINE COOLANT TEMPERATURE SENSOR-PCM INPUT

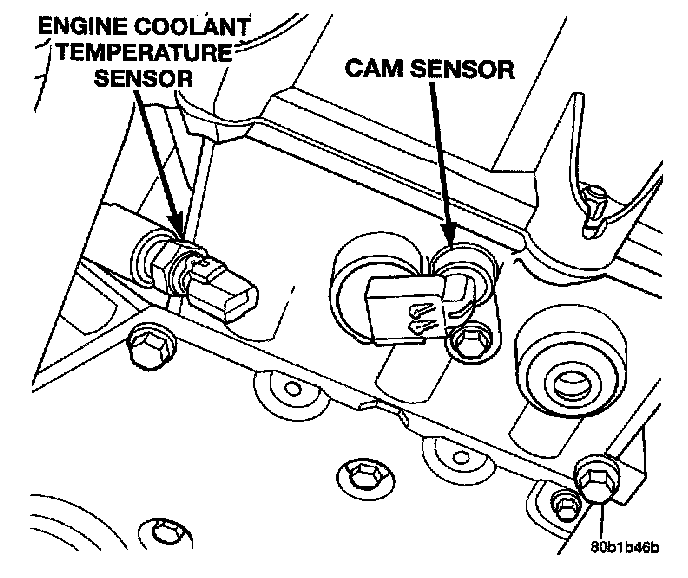

The engine coolant temperature sensor is located next to the thermostat housing.

The sensor provides an input to the Powertrain Control Module (PCM). As coolant temperature varies, the sensor resistance changes, resulting in a different input voltage to the PCM.

When the engine is cold, the PCM will demand slightly richer air-fuel mixtures and higher idle speeds until normal operating temperatures are reached.

The engine coolant sensor input also determines operation of the low and high speed cooling fans.
