Vehicle Lead Diagnosis and Correction

Vehicle Lead Diagnosis And Correction Procedure:

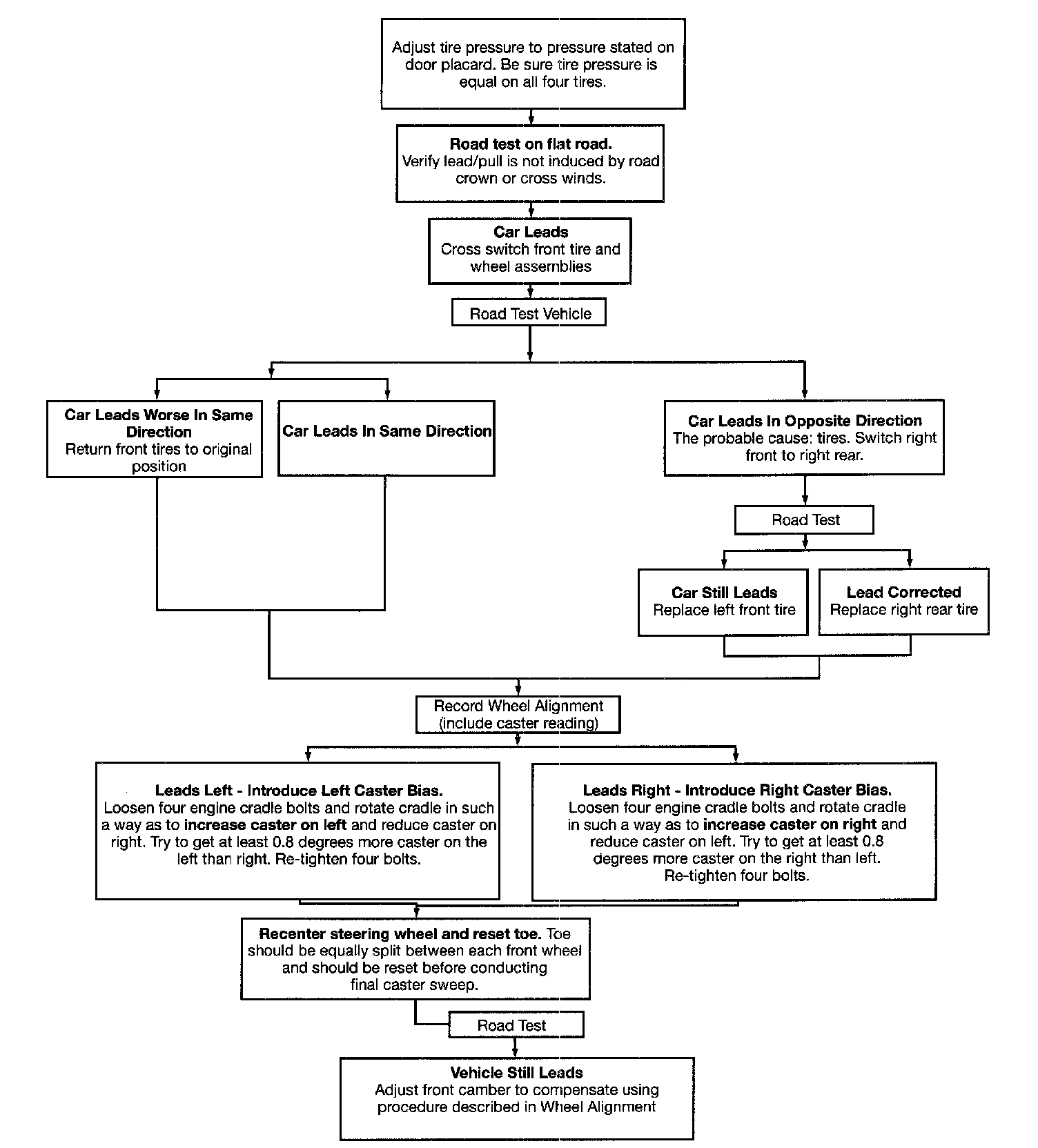

Use the provided chart to diagnose a vehicle that has a complaint of a drift or lead condition. The use of the chart will help to determine if the lead condition is the result of a bad tire or is caused by the front wheel alignment.
