License Plate Lamp: Service and Repair

REMOVAL

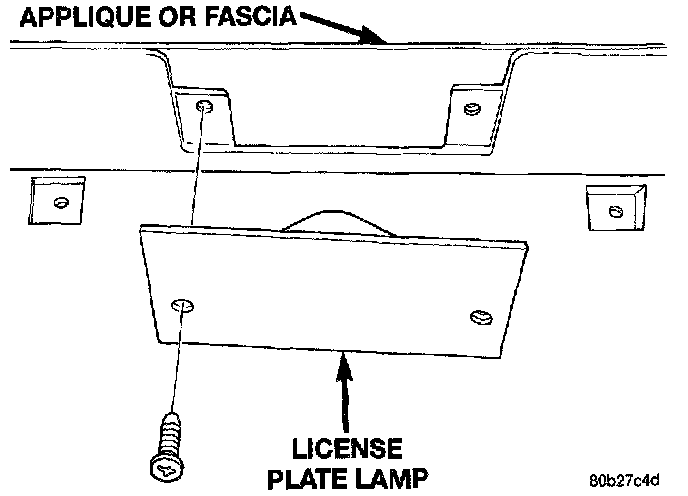

Licence Plate Lamp:




1. Remove screws holding license plate lamp to fascia.
2. Remove license plate lamp from vehicle.

INSTALLATION
1. Place license plate lamp in position on vehicle.
2. Install screws to attach license plate lamp to fascia.
