Electrical Diagrams

8w-50-2:

Body Control Module
Fog Lamp Relay
Fuse 16 (JB)
G200
Headlamp Switch
Instrument Cluster
Junction Block

8w-50-3:

Body Control Module
Fuse 7 (JB)
G106
Junction Block
Left Front Park/Turn Signal Lamp
Left Front Side Marker Lamp
Park Lamp Relay
Right Front Park/Turn Signal Lamp
Right Front Side Marker Lamp

8w-50-4:

Body Control Module
Fuse 2 (JB)
Fuse 3 (JB)
Fuse 7 (JB)
Fuse 10 (JB)
Fuse 11 (JB)
Fuse 12 (JB)
G106
G300
Headlamp Dimmer Switch
High Beam Headlamp Relay
Junction Block
Left Low Beam Headlamp
Low Beam Headlamp Relay
Right Low Beam Headlamp

8w-50-5:

G106
Left High Beam Headlamp
Right High Beam Headlamp

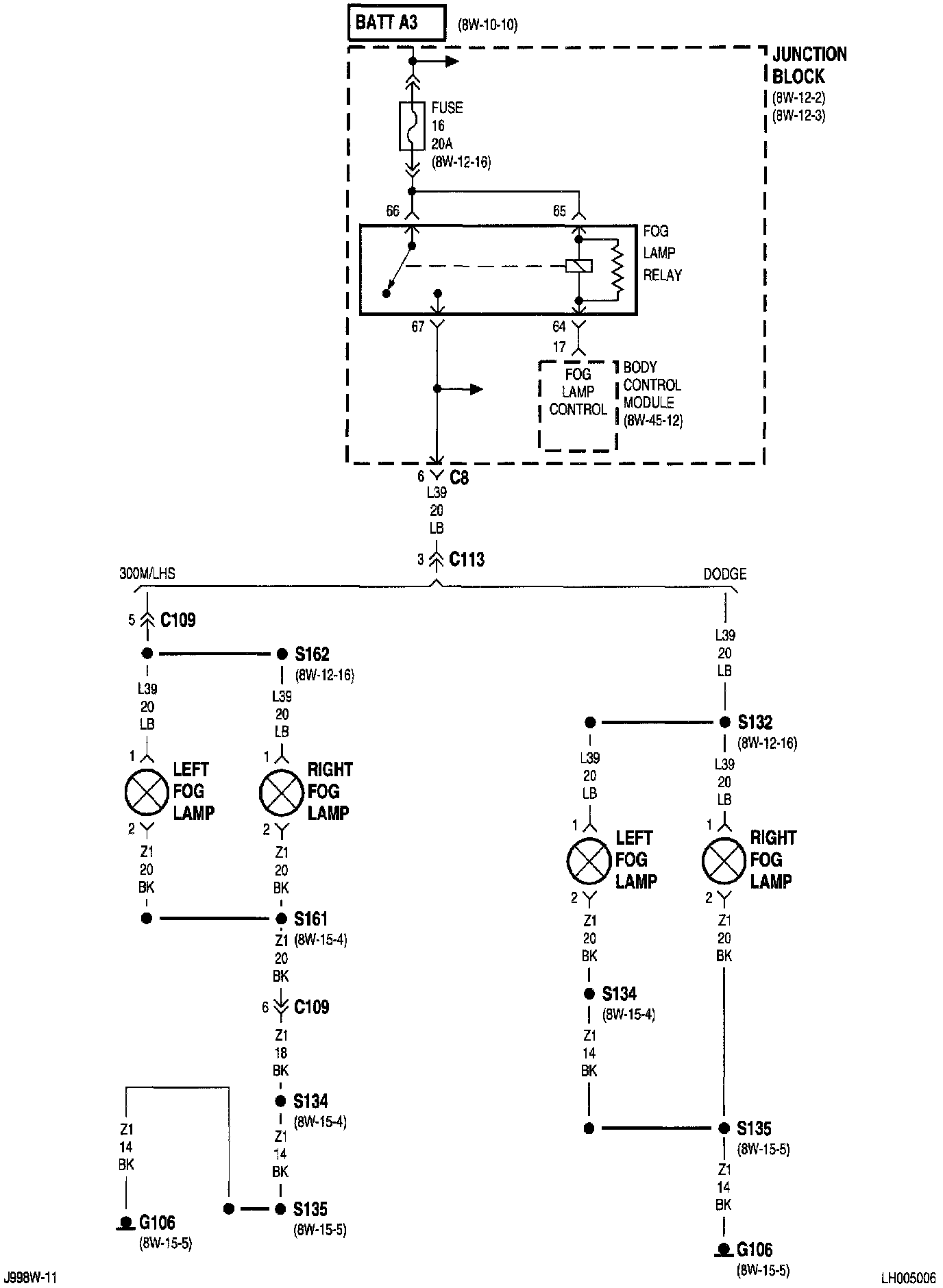

8w-50-6:

Body Control Module
Fog Lamp Relay
Fuse 16 (JB)
G106
Junction Block
Left Fog Lamp
Right Fog Lamp

8w-50-7:

G106
Junction Block
Right Front Park/Turn Signal Lamp
Turn Signal/Hazard Switch

8w-50-8:

Fuse 7 (JB)
G106
Junction Block
Park Lamp Relay
Right Front Park/Turn Signal Lamp
Right Front Side Marker Lamp

8w-50-9:

G106
Junction Block
Left Front Park/Turn Signal Lamp
Turn Signal/Hazard Switch

8w-50-10:

Fuse 7 (JB)
G106
Junction Block
Left Front Park/Turn Signal Lamp
Left Front Side Marker Lamp
Park Lamp Relay


NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams.
