Cluster Mask/Lens

The instrument cluster must be removed for mask/ lens service. Refer to Instrument Cluster Replacement Procedures.

REMOVAL

Negative Battery Cable Remote - Terminal:

1. Open hood and disconnect the negative battery cable remote terminal from the remote battery post.
2. Remove instrument cluster from vehicle. Refer to procedures.

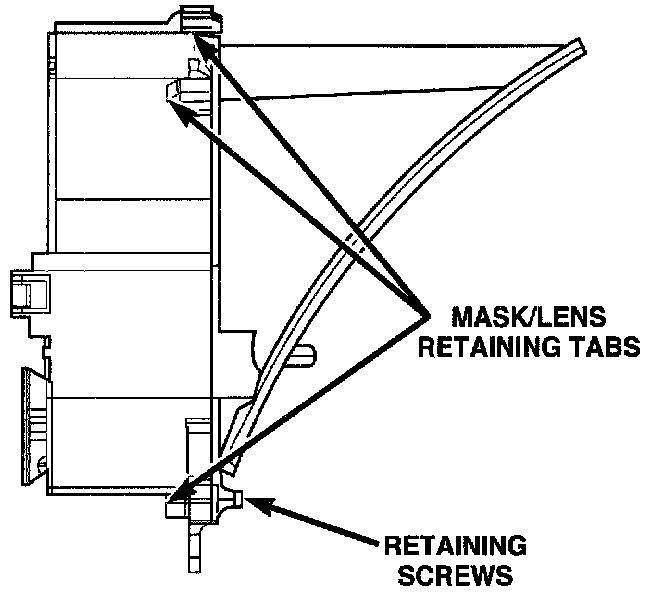

Instrument Cluster Mask/Lens Retaining Screws:

3. Remove two screws to mask/lens.

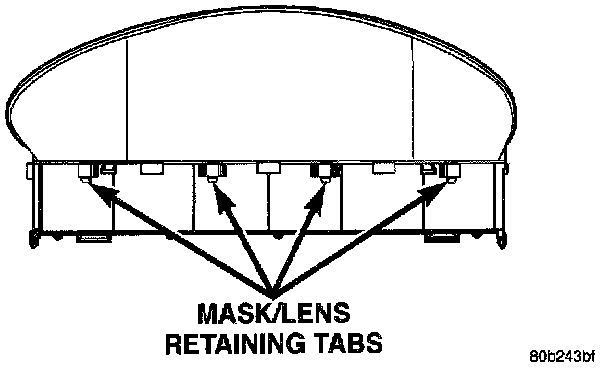

Instrument Cluster Mask/Lens Retaining Tabs - Top:

4. Unsnap seven retaining tabs holding mask/lens to cluster housing.
5. Separate mask/lens from instrument cluster and remove.

INSTALLATION
For installation, reverse the above procedures.
