Cluster Lamp

REMOVAL AND INSTALLATION
To service instrument cluster lamps, the cluster must be removed from the instrument panel. For removal and installation procedures of the instrument cluster and bezel refer to the procedures.

Indicators - Bulbs:

Cluster Lamps:

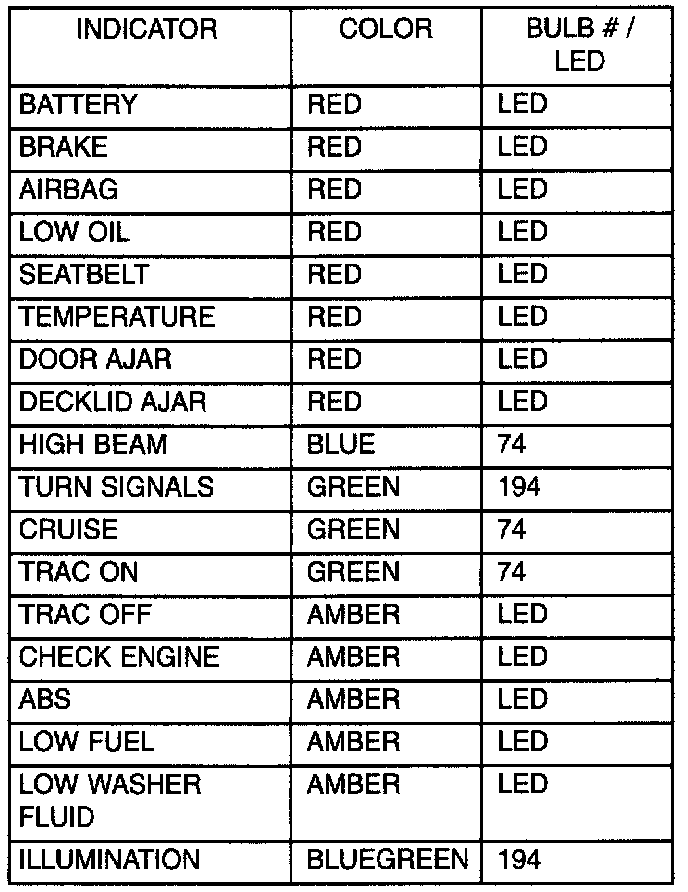

The lamps that are replaceable are called out on the back cover of the instrument cluster. All other indicators are Light Emitting Diodes (LED's), and are serviced with the cluster assembly. If a LED is non-functional, the entire instrument cluster must be replaced. Refer to the INDICATORS - BULBS table for applications.
