Midline and Premium I/II

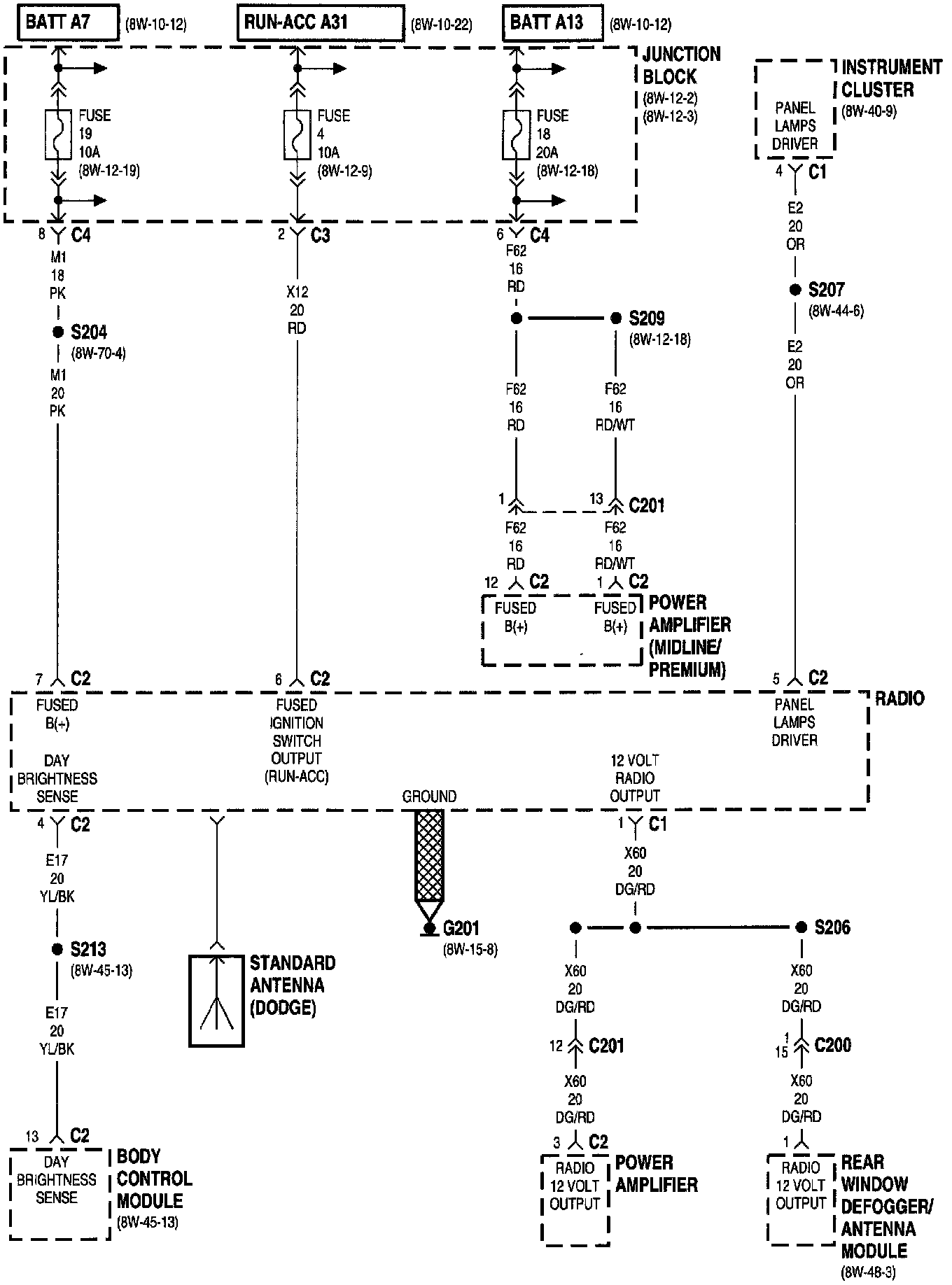

8w-47-2:

Body Control Module
Fuse 4 (JB)
Fuse 18 (JB)
Fuse 19 (JB)
Instrument Cluster
Junction Block
Power Amplifier
Radio
Rear Window Defogger Antenna Module
Standard Antenna

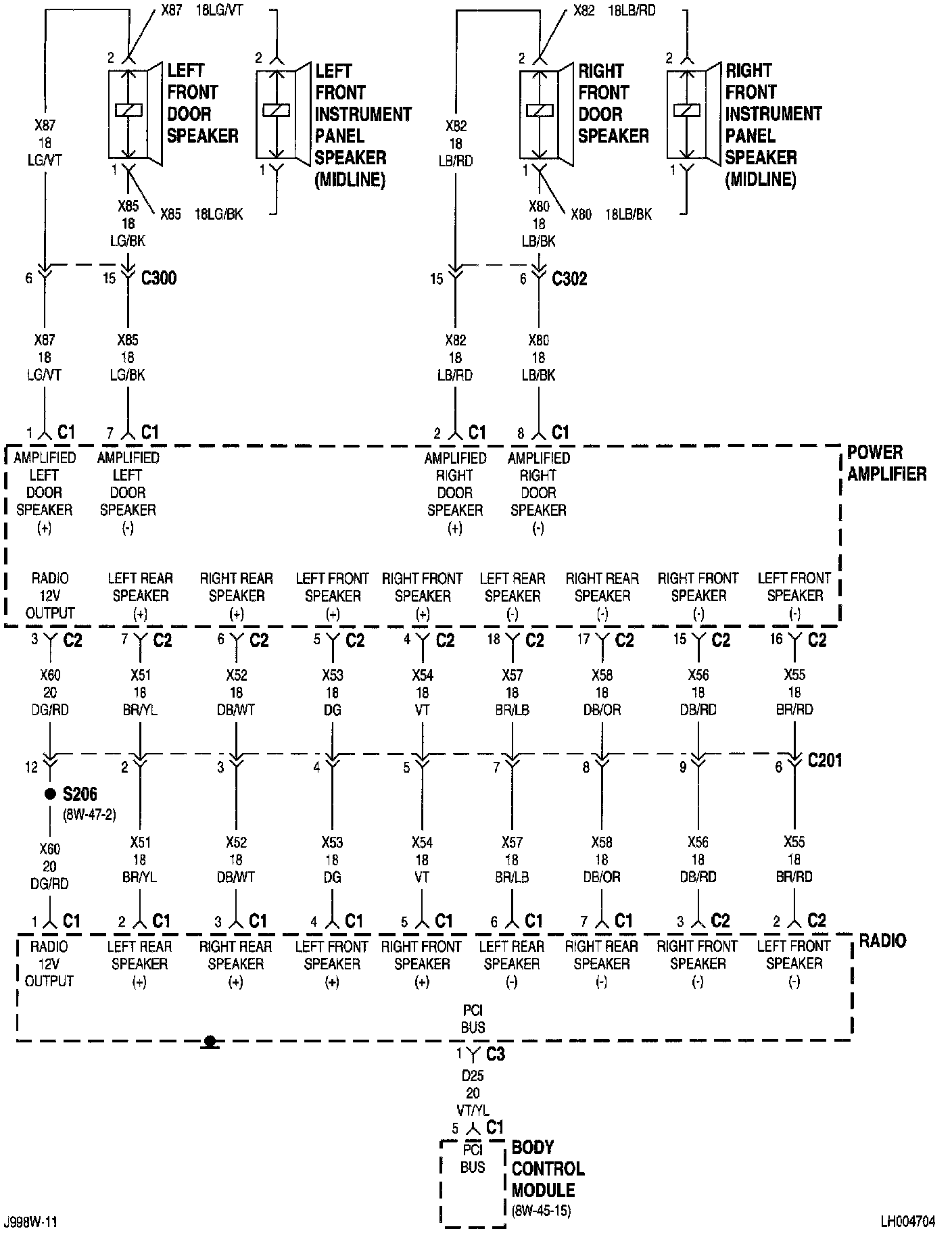

8w-47-4:

Body Control Module
Left Front Door Speaker
Left Front Instrument Panel Speaker
Power Amplifier
Radio
Right Front Door Speaker
Right Front Instrument Panel Speaker

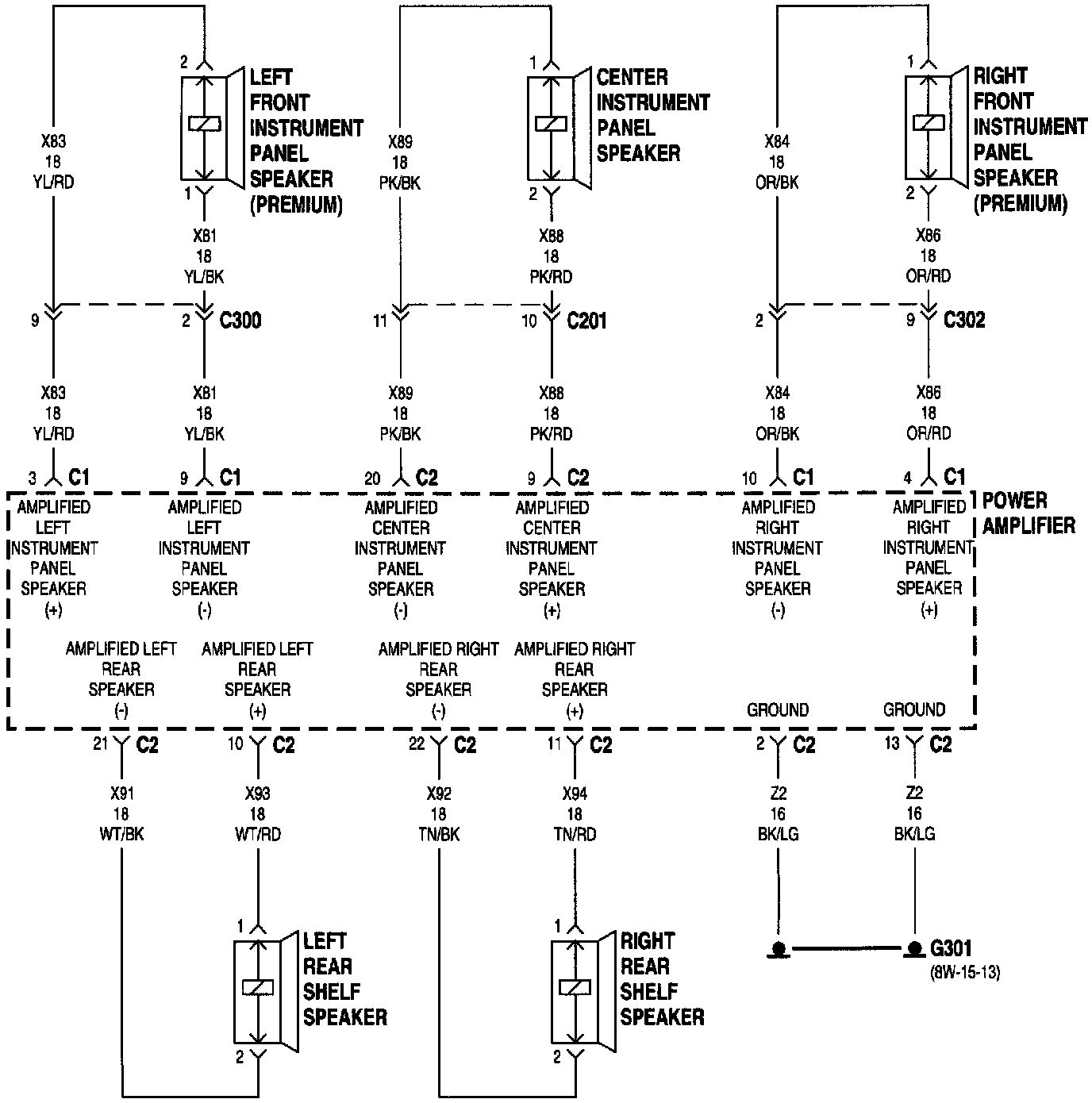

8w-47-5:

Center Instrument Panel Speaker
G301
Left Front Instrument Panel Speaker
Left Rear Shelf Speaker
Power Amplifier
Right Front Instrument Panel Speaker
Right Rear Shelf Speaker

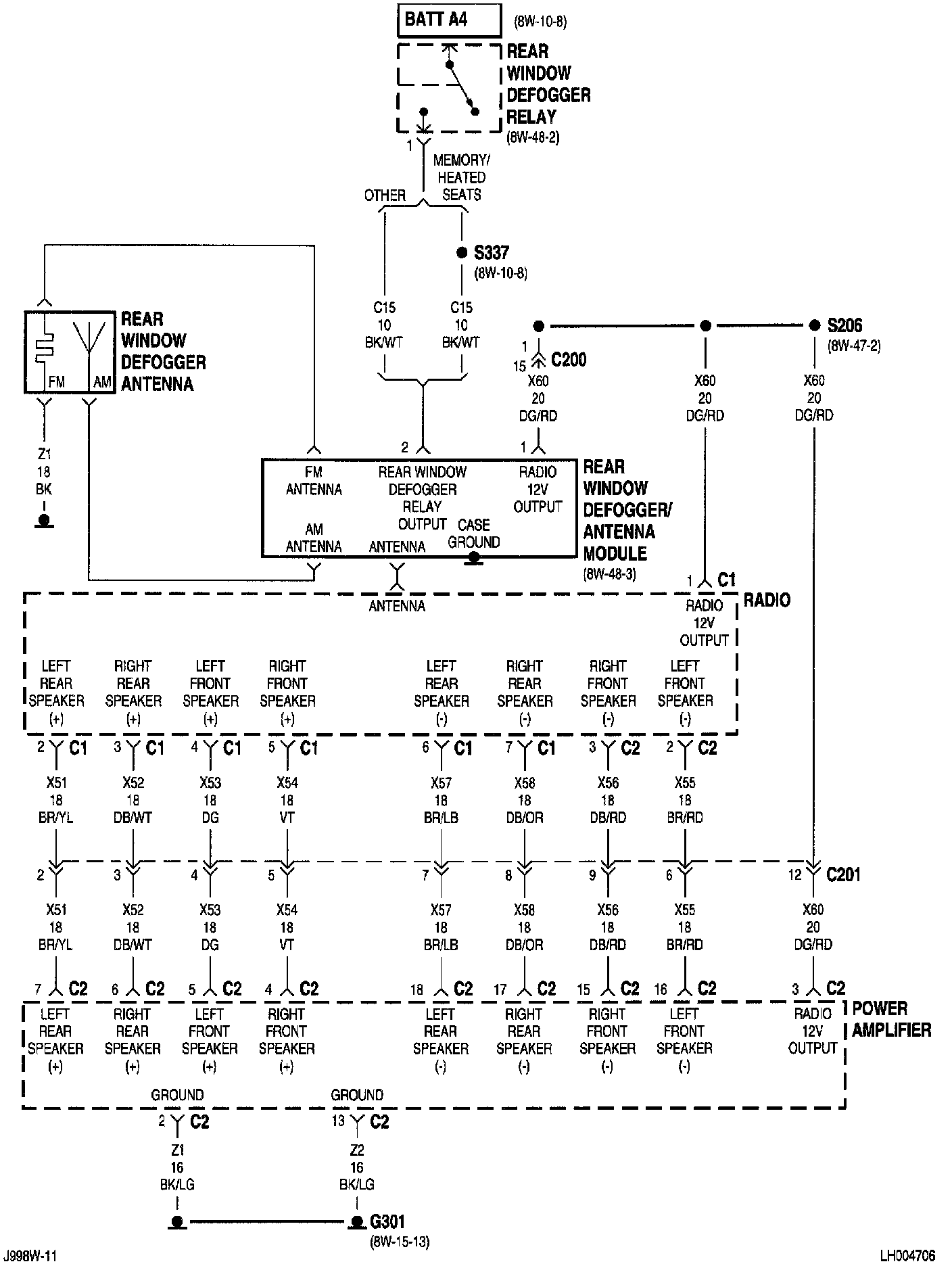

8w-47-6:

G301
Power Amplifier
Radio
Rear Window Defogger Antenna
Rear Window Defogger Relay
Rear Window Defogger Antenna Module


NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams Diagrams By Group Number.
