Wiring Diagrams

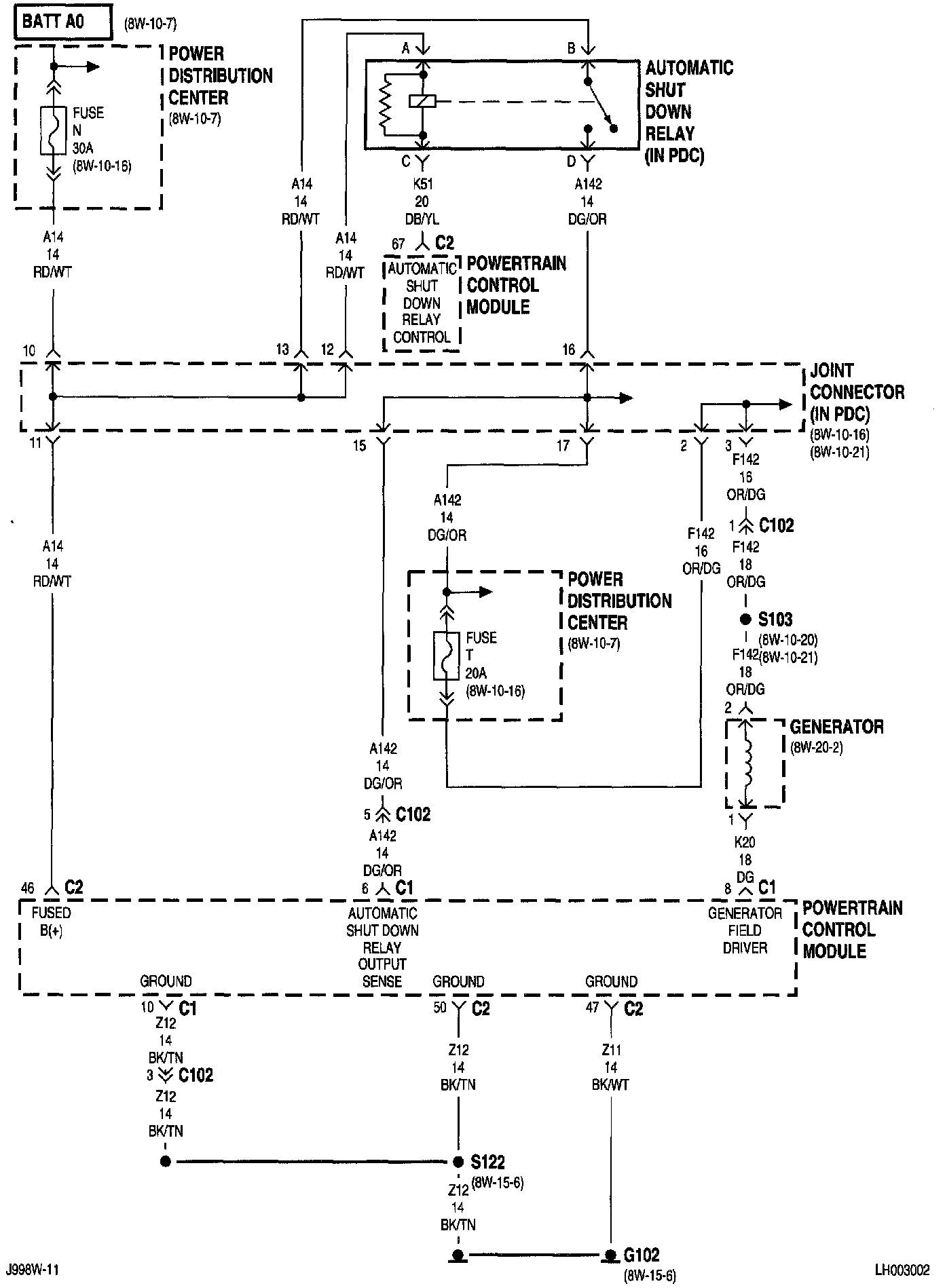

8w-30-2:
Automatic Shut Down Relay
Fuse N (PDC)
Fuse T (PDC)
G102
Generator
Joint Connector
Power Distribution Center
Powertrain Control Module

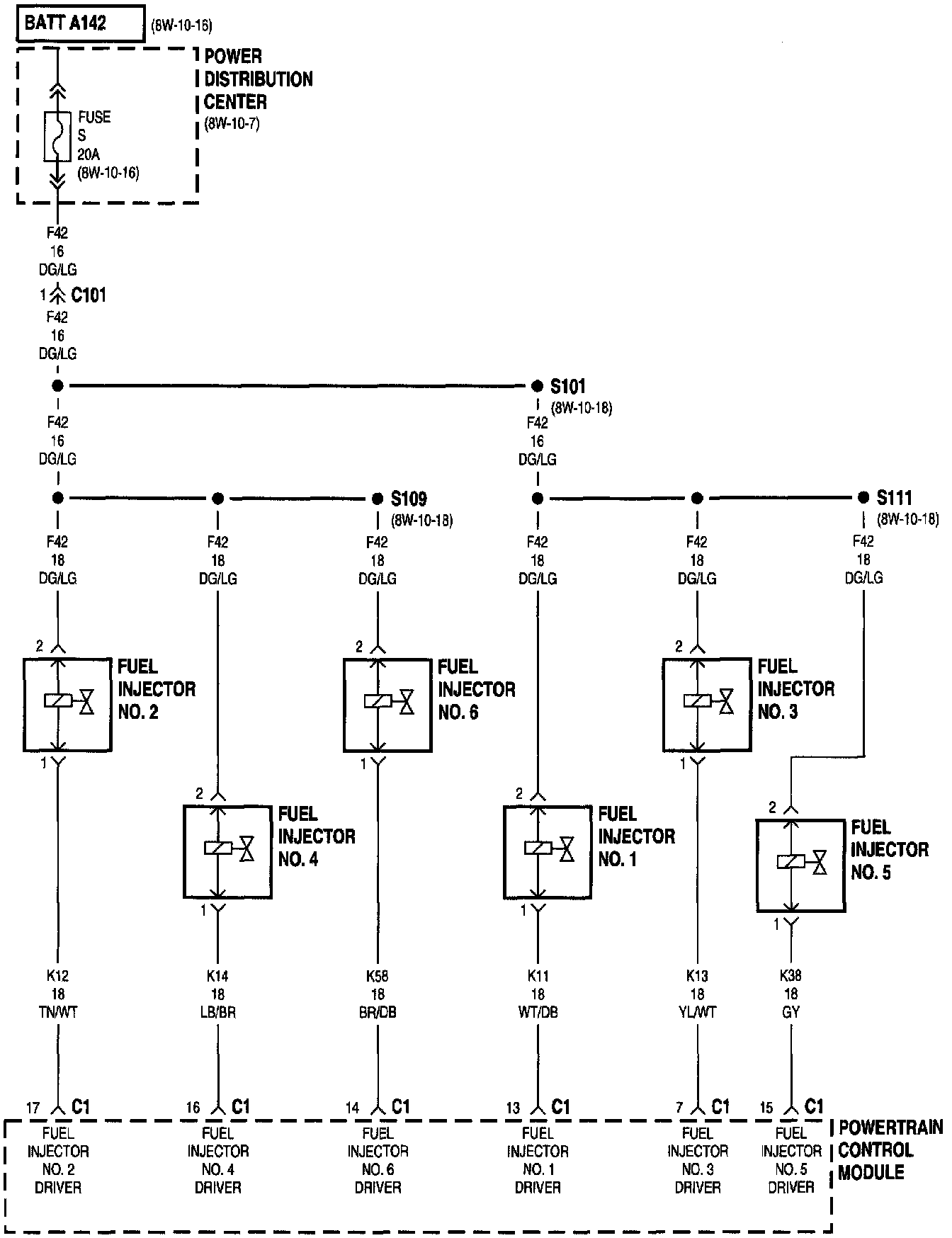

8w-30-3:
Fuel Injector No. 1
Fuel Injector No. 2
Fuel Injector No. 3
Fuel Injector No. 4
Fuel Injector No. 5
Fuel Injector No. 6
Fuse S (PDC)
Power Distribution Center
Powertrain Control Module
8w-30-4:
Automatic Shut Down Relay
Capacitor No. 1
Capacitor No. 2
Coil On Plug No. 1
Coil On Plug No. 2
Coil On Plug No. 3
Coil On Plug No. 4
Coil On Plug No. 5
Coil On Plug No. 6
Fuse S (PDC)
Joint Connector
Power Distribution Center
Powertrain Control Module

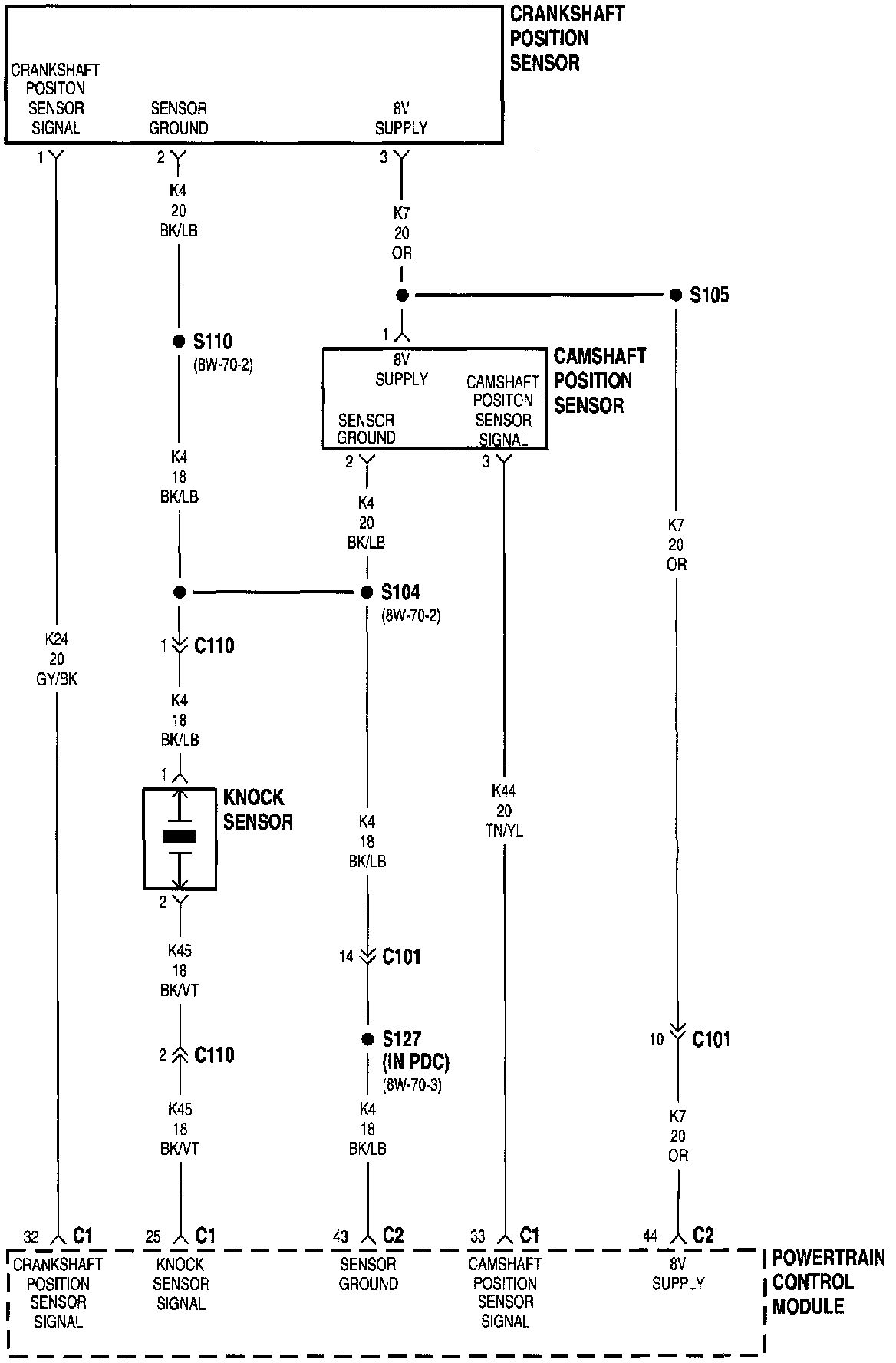

8w-30-7:
Camshaft Position Sensor
Crankshaft Position Sensor
Knock Sensor
Powertrain Control Module

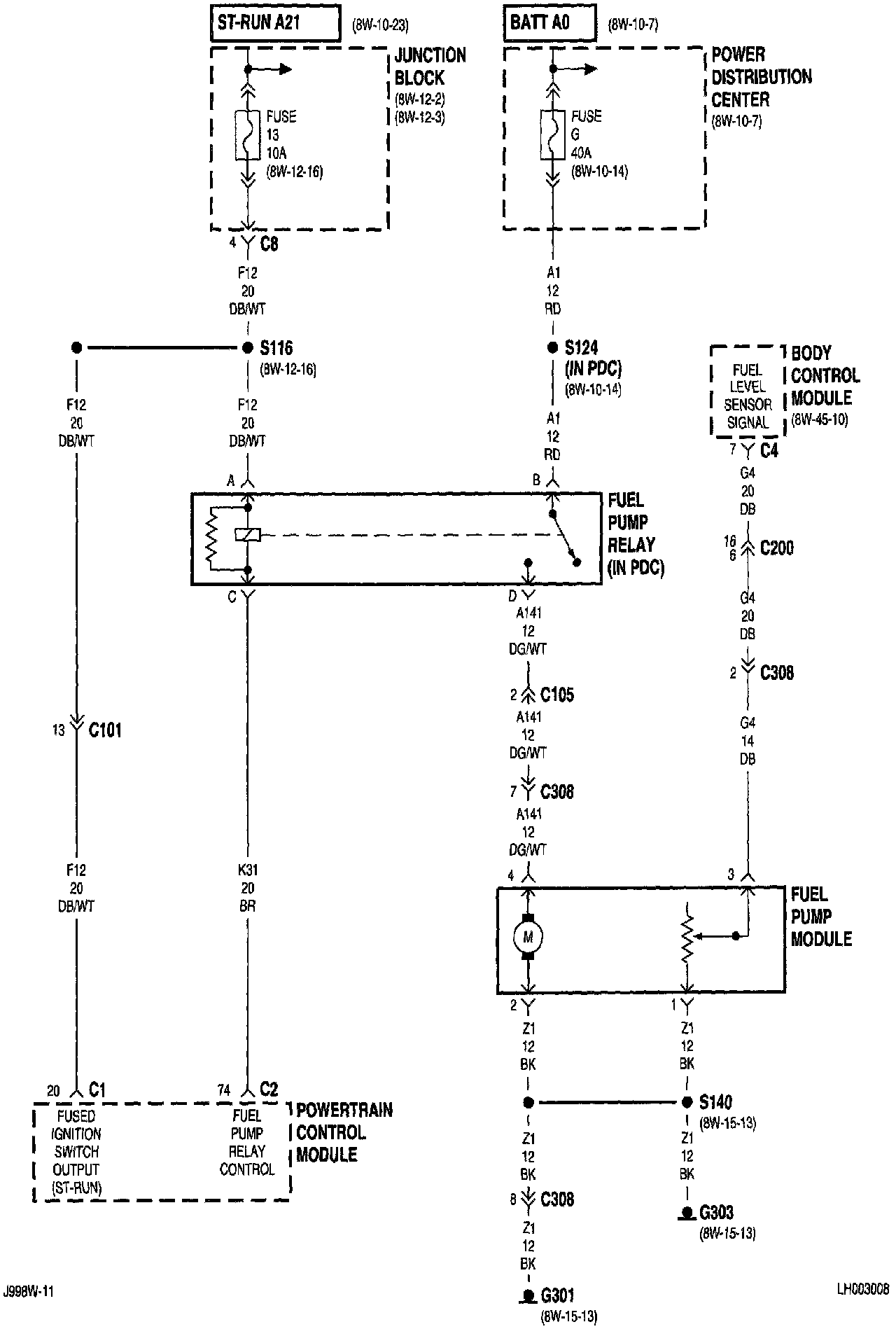

8w-30-8:
Body Control Module
Fuel Pump Module
Fuel Pump Relay
Fuse 13 (JB)
Fuse G (PDC)
G301
G303
Junction Block
Power Distribution Center
Powertrain Control Module

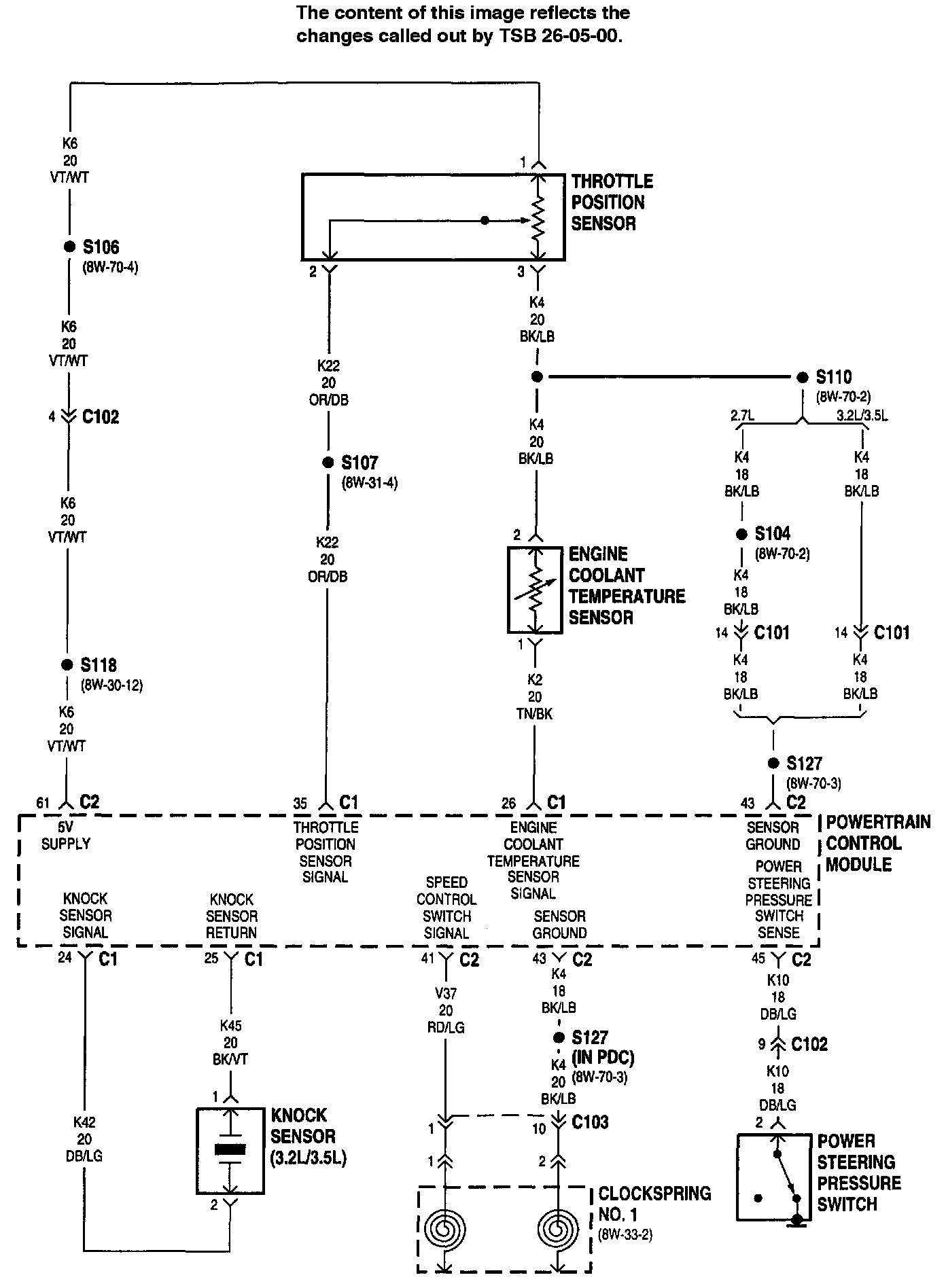

8w-30-9:
Clockspring No. 1
Engine Coolant Temperature Sensor
Knock Sensor
Power Steering Pressure Switch
Powertrain Control Module

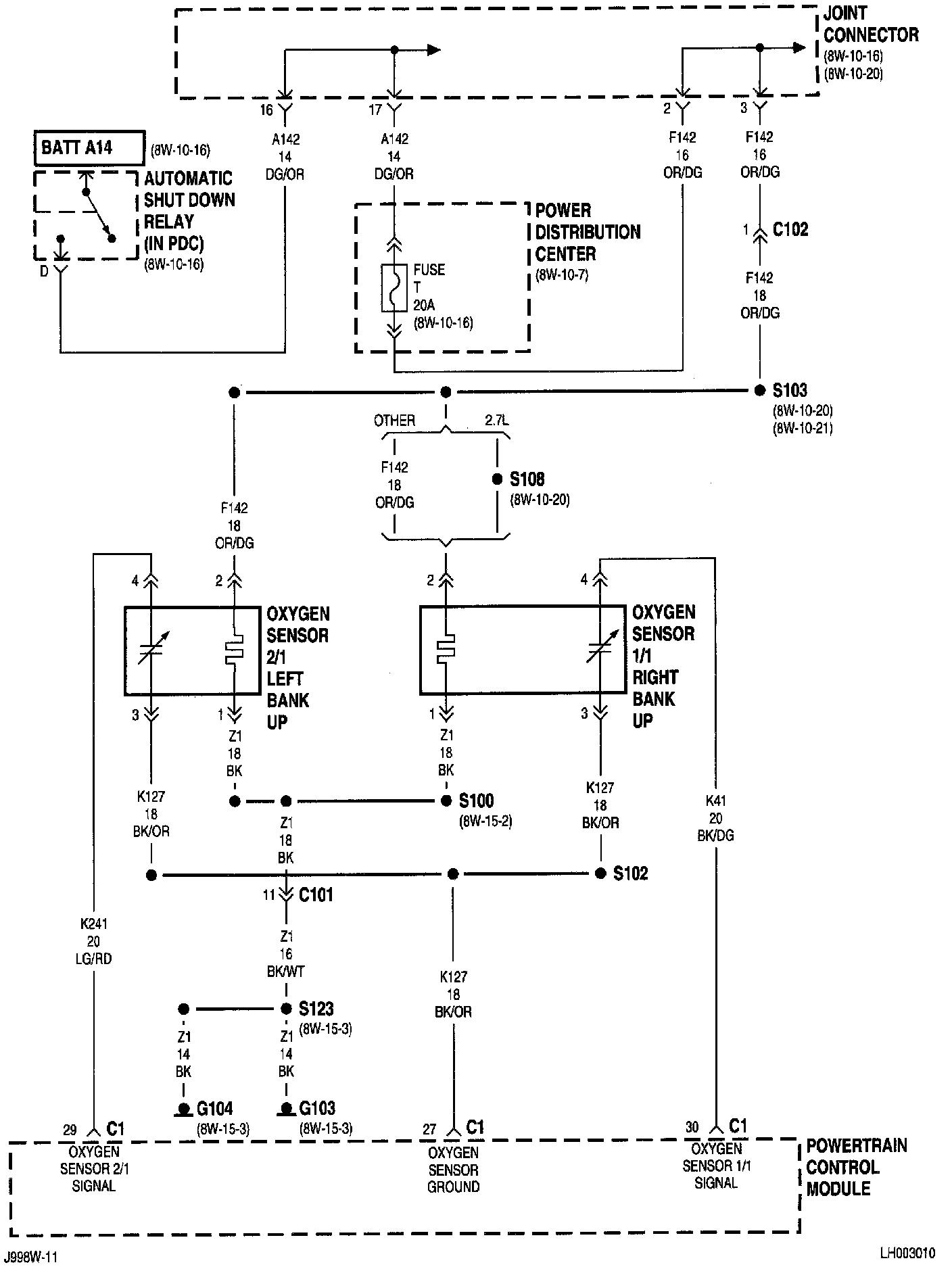

8w-30-10:
Automatic Shut Down Relay
Fuse T (PDC)
G103
Joint Connector
Oxygen Sensor 1/1 Right Bank Up
Oxygen Sensor 2/1 Left Bank Up
Power Distribution Center
Powertrain Control Module

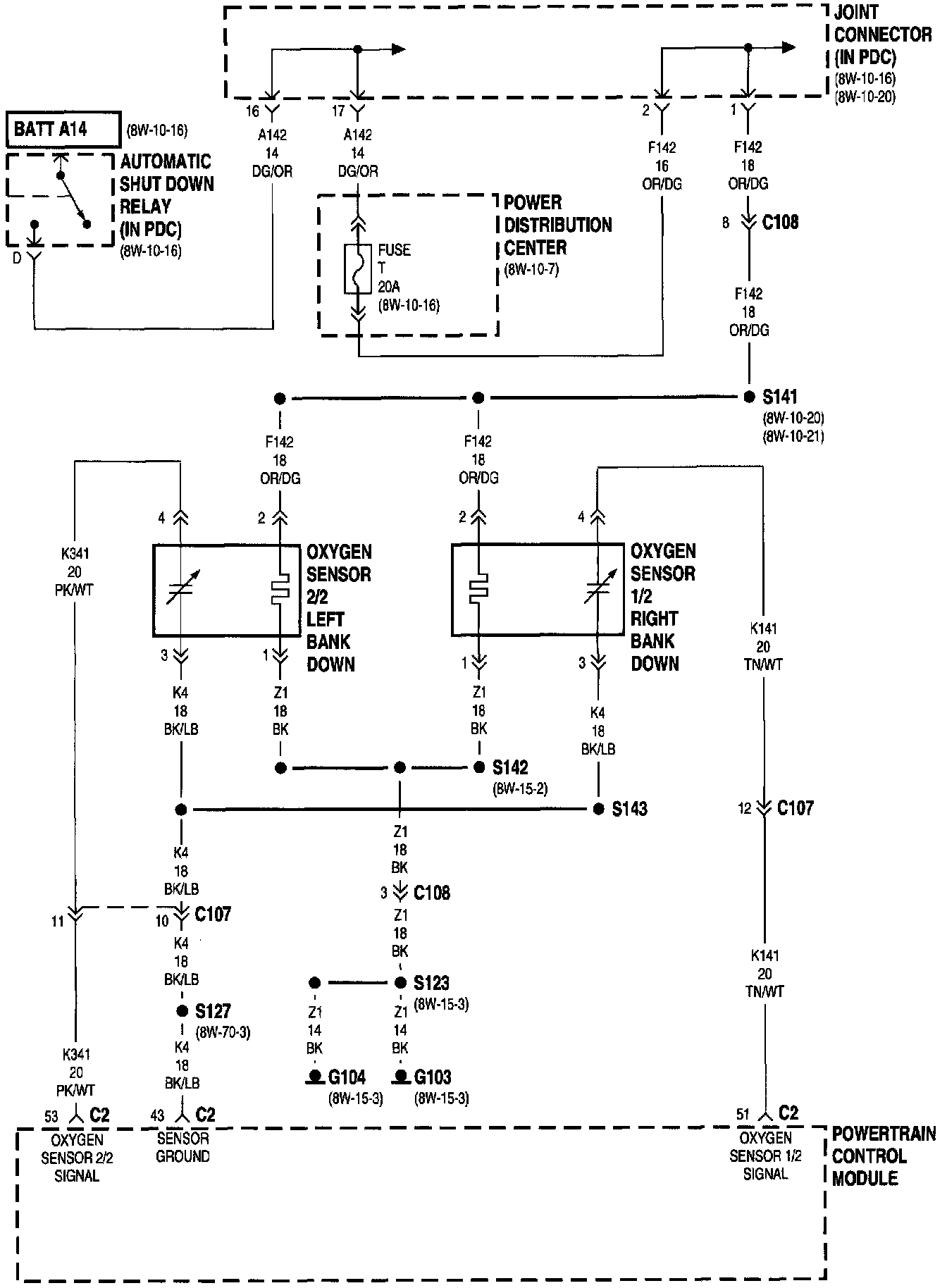

8w-30-11:
Automatic Shut Down Relay
Fuse T (PDC)
G103
Joint Connector
Oxygen Sensor 1/2 Right Bank Down
Oxygen Sensor 2/2 Left Bank Down
Power Distribution Center
Powertrain Control Module

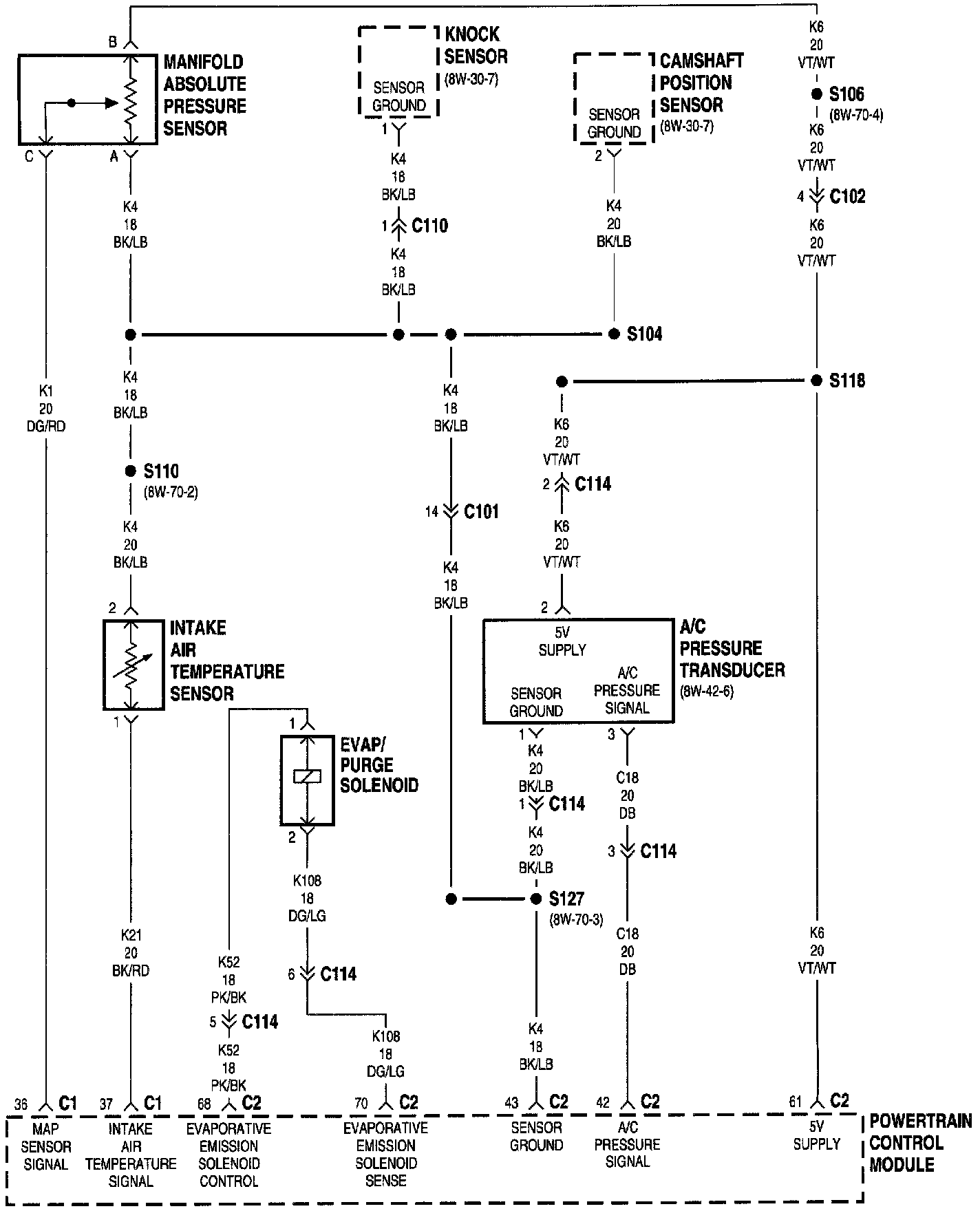

8w-30-12:
A/C Pressure Transducer
Camshaft Position Sensor
EVAP/Purge Solenoid
Intake Air Temperature Sensor
Knock Sensor
Manifold Absolute Pressure Sensor
Powertrain Control Module

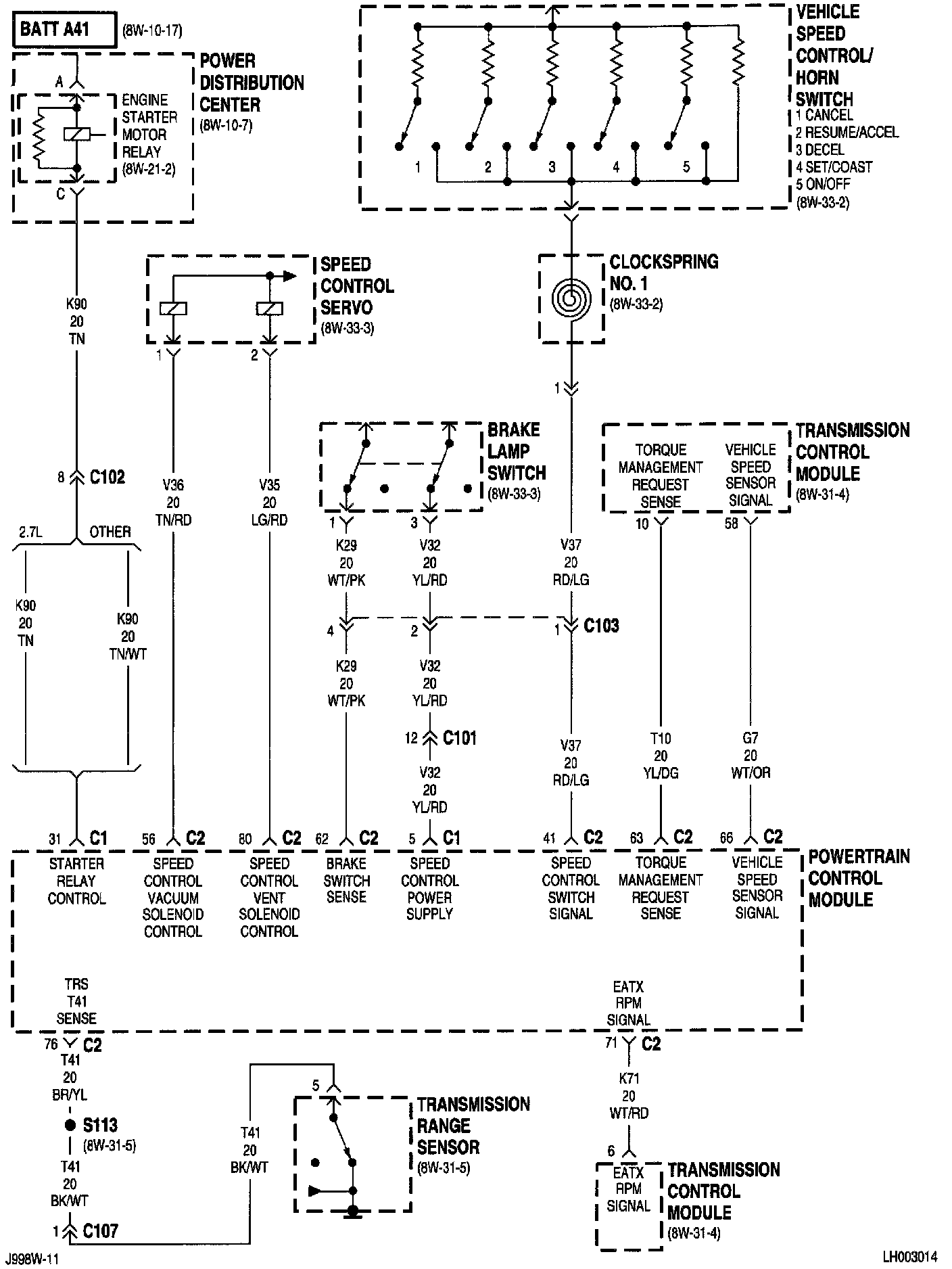

8w-30-14:
Brake Lamp Switch
Clockspring No. 1
Engine Starter Motor Relay
Power Distribution Center
Powertrain Control Module
Speed Control Servo
Transmission Control Module
Transmission Range Sensor
Vehicle Speed Control/Horn Switch

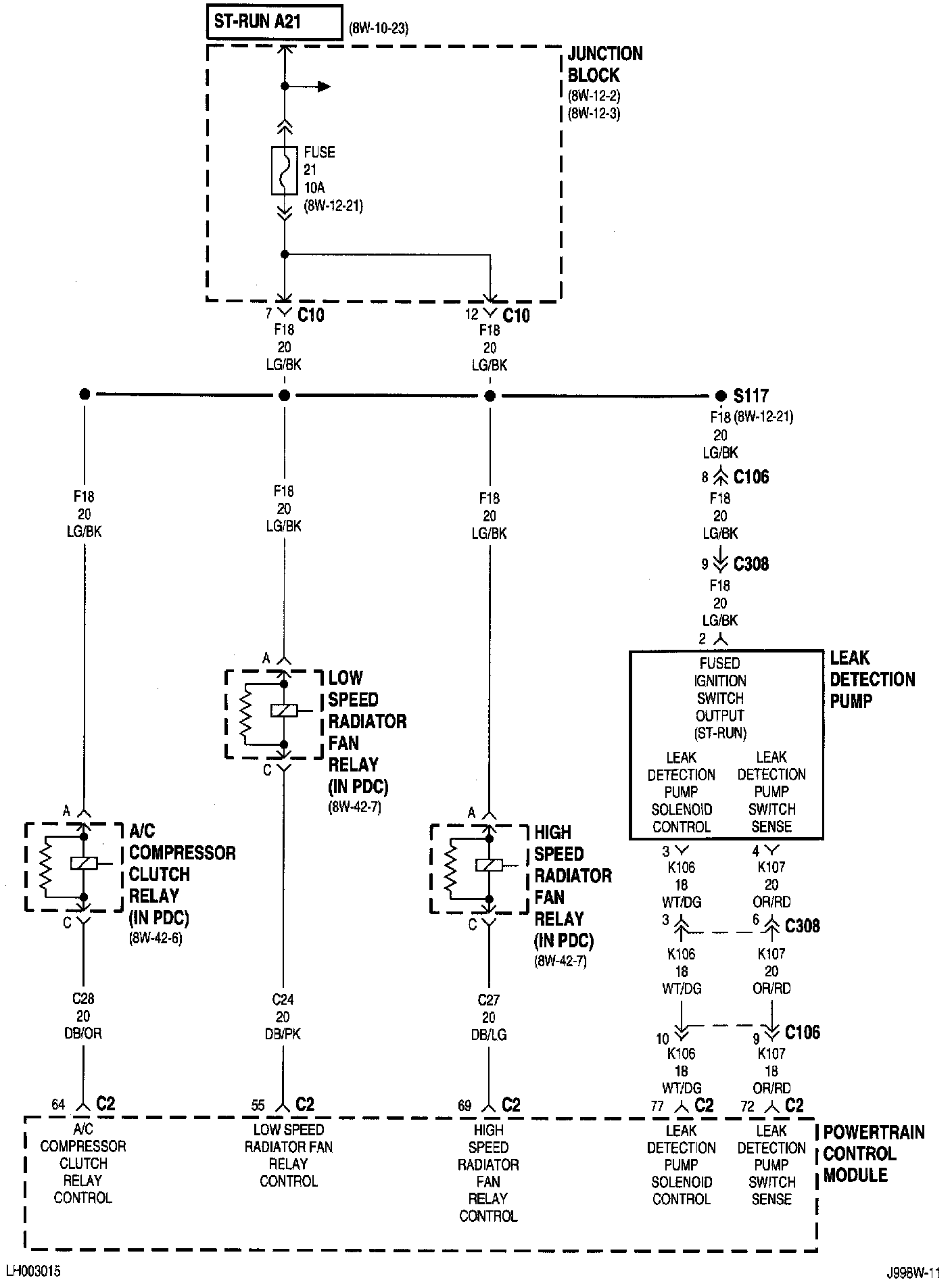

8w-30-15:
A/C Compressor Clutch Relay
Fuse 21 (JB)
High Speed Radiator Fan Relay
Junction Block
Leak Detection Pump
Low Speed Radiator Fan Relay
Powertrain Control Module

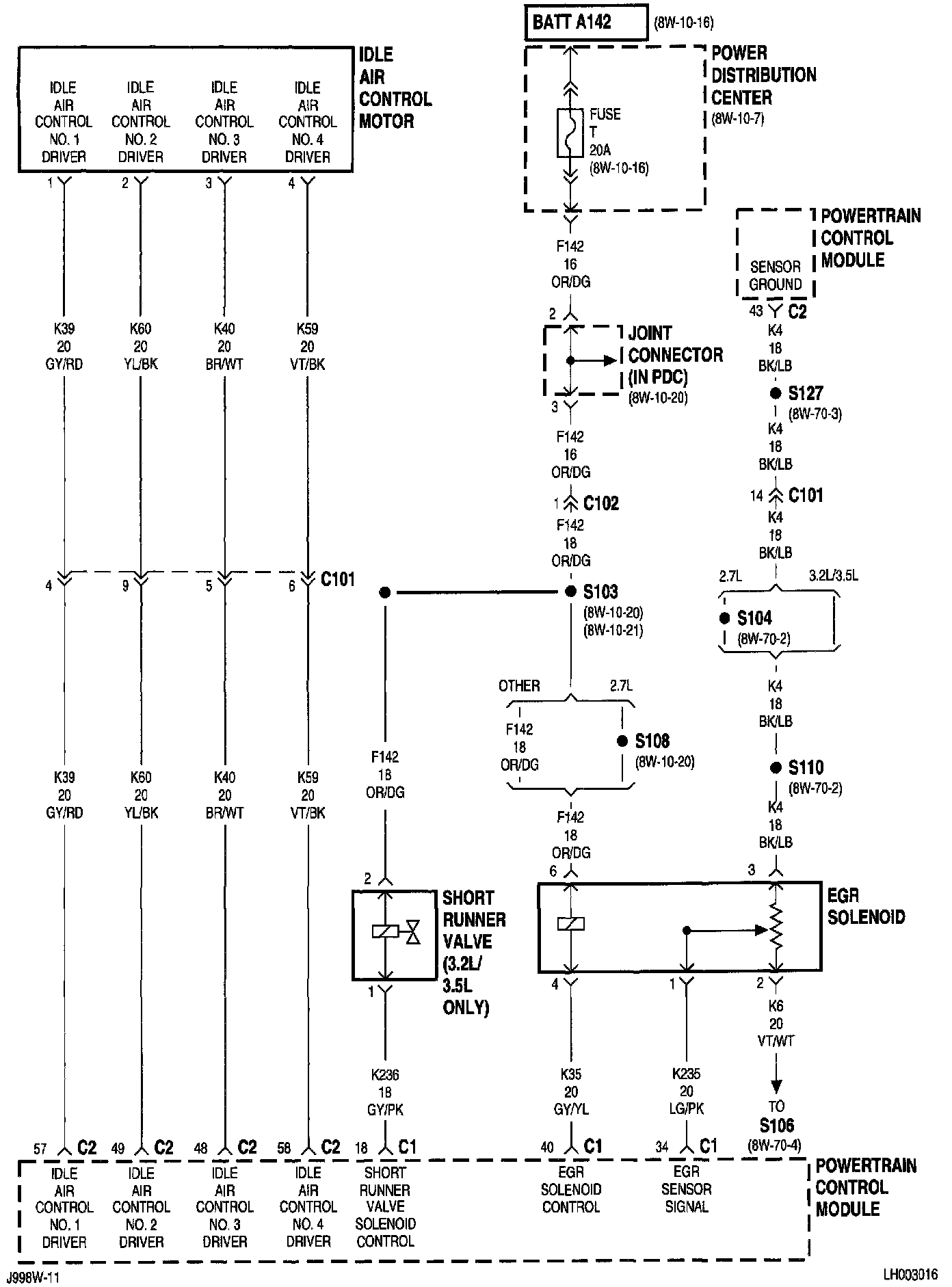

8w-30-16:
EGR Solenoid
Fuse T (PDC)
Idle Air Control Motor
Joint Connector
Power Distribution Center
Powertrain Control Module
Short Runner Valve
8w-30-17:
Body Control Module
Data Link Connector
Fuse 1 (JB)
Fuse 19 (JB)
G200
G201
Junction Block
Powertrain Control Module
Transmission Control Module
NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams Diagrams By Group Number.
