Memory Heated

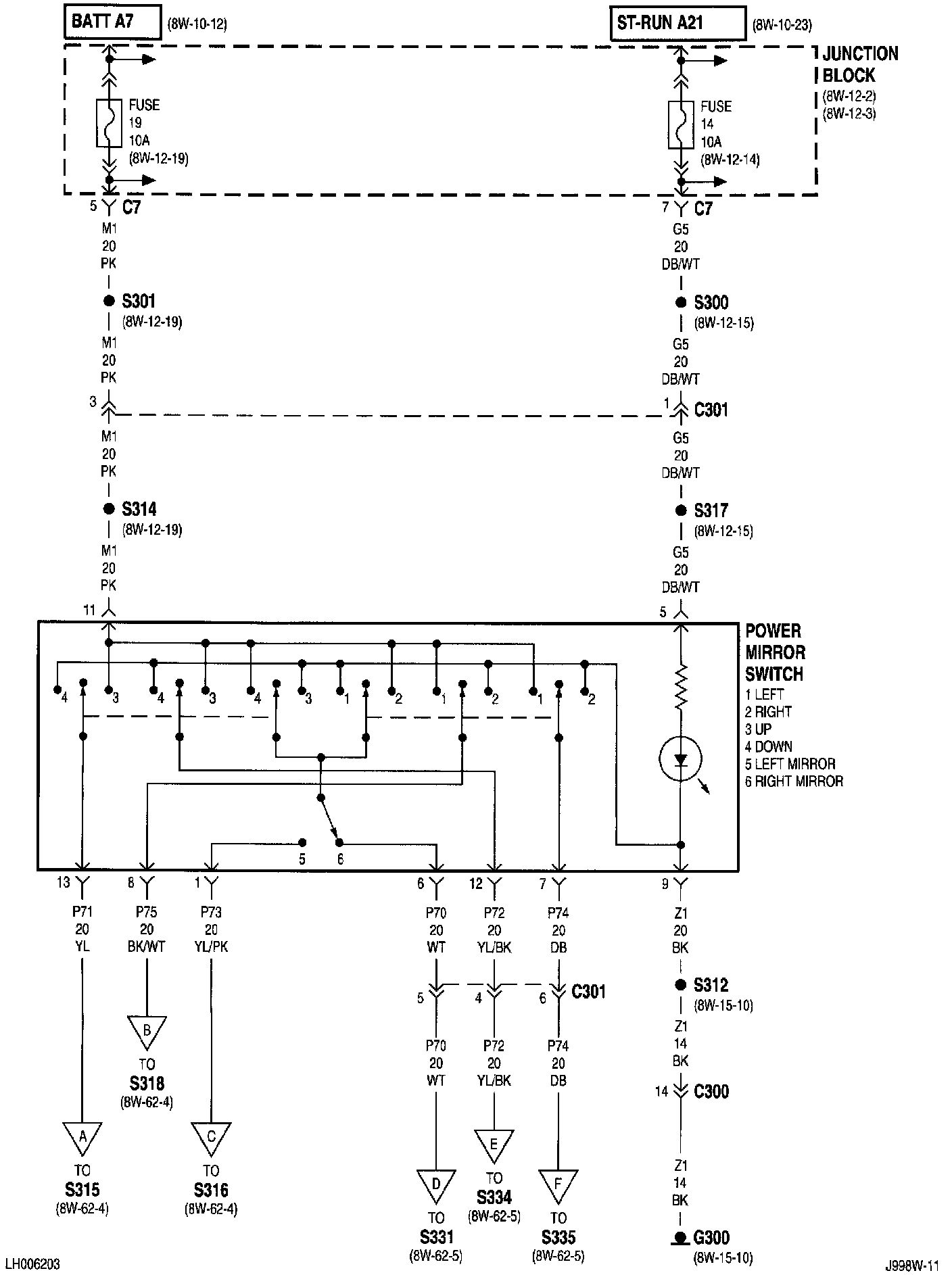

8w-62-3:

Fuse 14 (JB)
Fuse 19 (JB)
G300
Junction Block
Power Mirror Switch

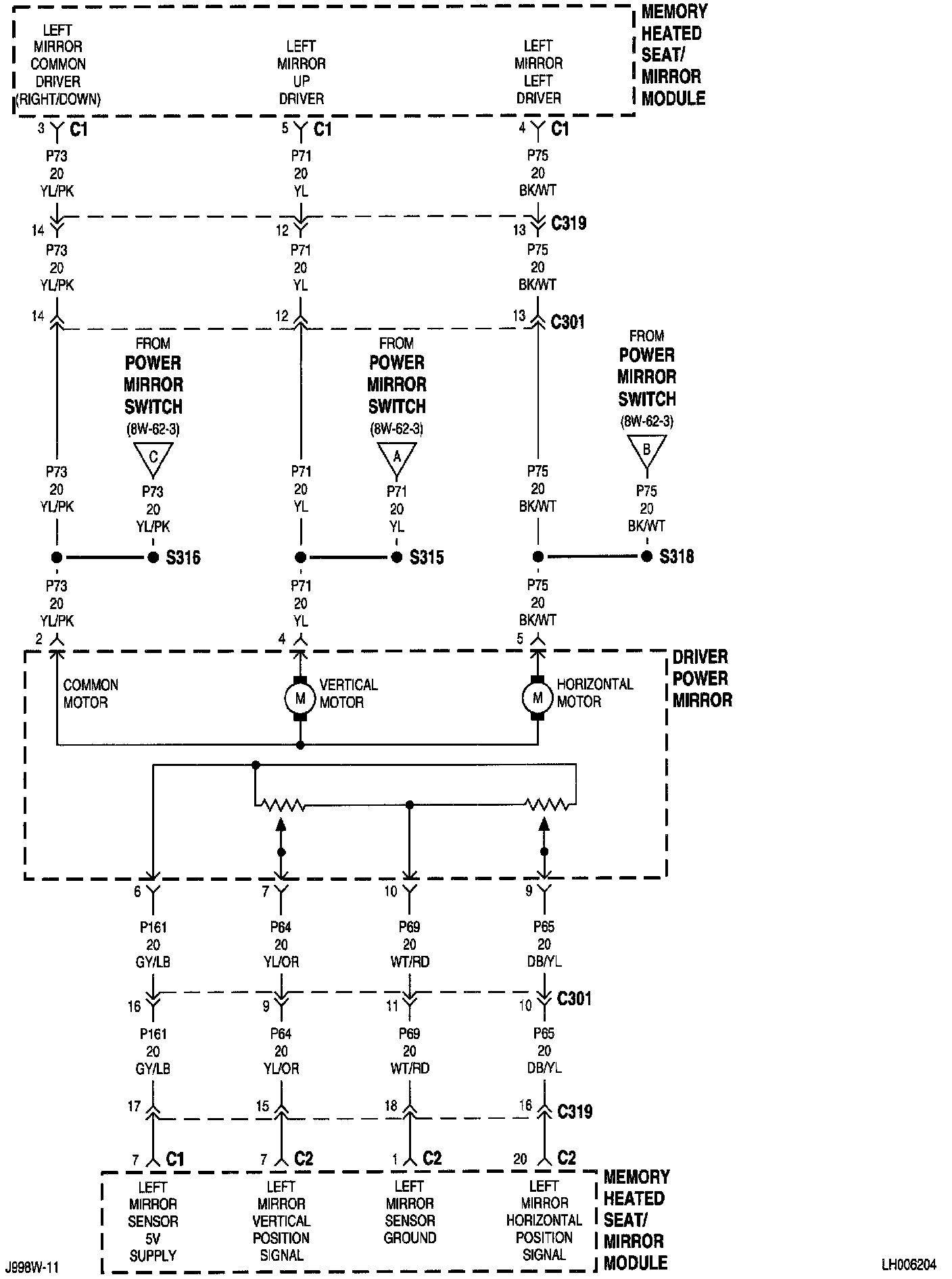

8w-62-4:

Driver Power Mirror
Memory Heated Seat/Mirror Module

8w-62-5:

Memory Heated Seat/Mirror Module
Passenger Power Mirror

8w-62-6:

Driver Power Mirror
G300
G301
Heated Mirror Fuse
Passenger Power Mirror
Rear Window Defogger Relay

8w-62-7:

G300
Memory Heated Seat/Mirror Module
Memory Set Switch


NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams Diagrams By Group Number.
