Rear Lighting

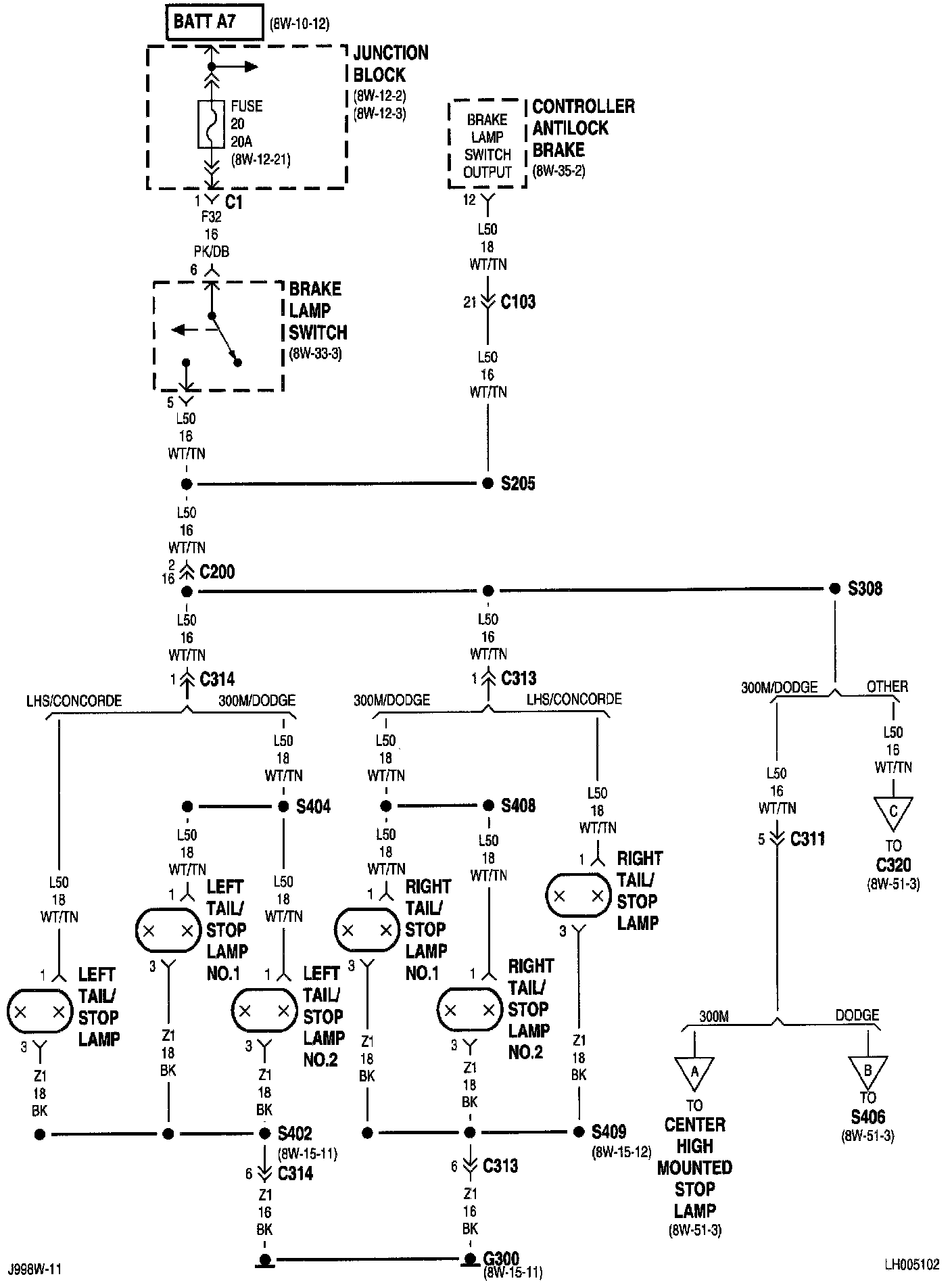

8w-51-2:

Brake Lamp Switch
Controller Antilock Brake
Fuse 20 (JB)
G300
Junction Block
Left Tail/Stop Lamp
Left Tail/Stop Lamp No.1
Left Tail/Stop Lamp No.2
Right Tail/Stop Lamp
Right Tail/Stop Lamp No.1
Right Tail/Stop Lamp No.2

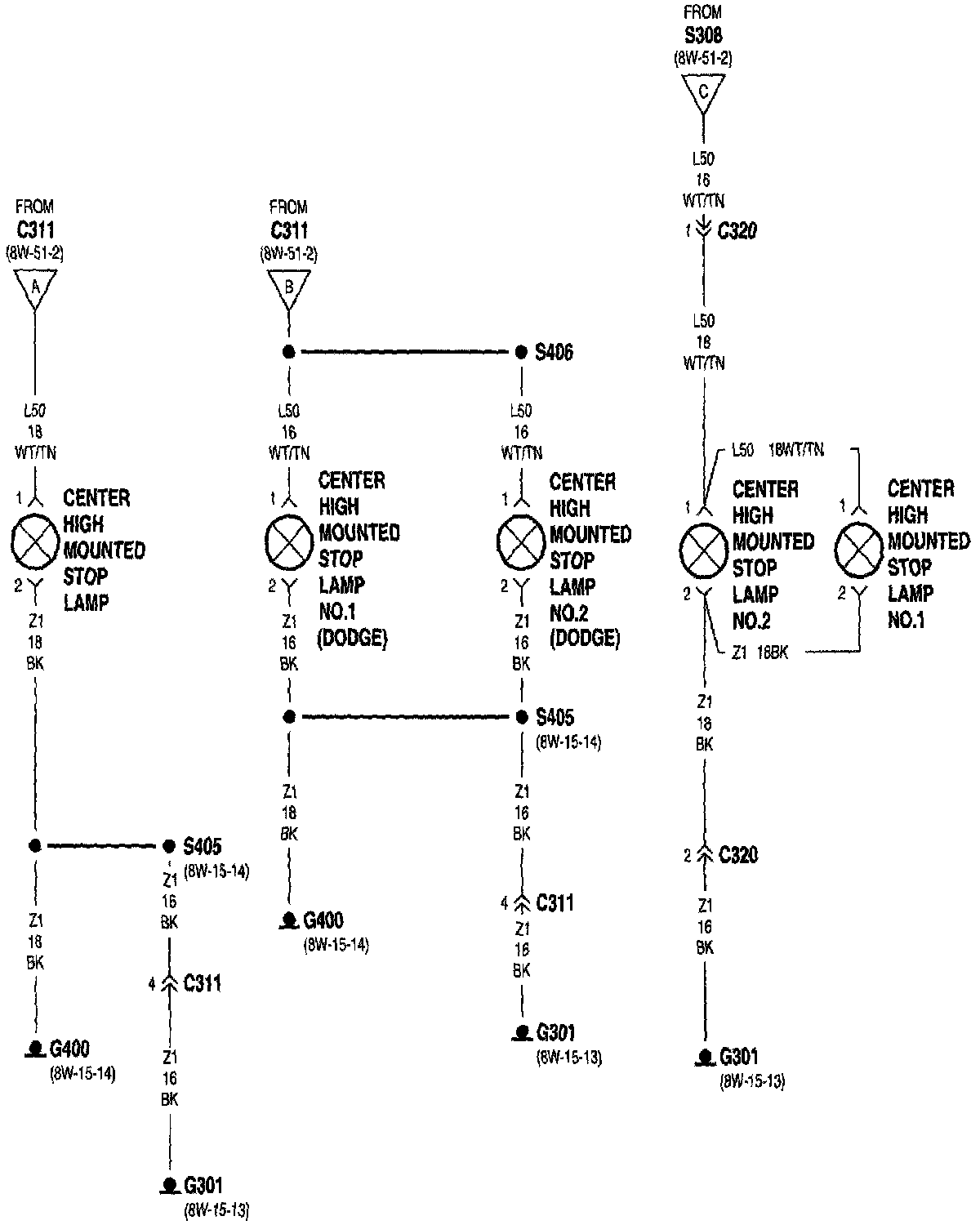

8w-51-3:

Center High Mounted Stop Lamp
Center High Mounted Stop Lamp No.1
Center High Mounted Stop Lamp No.2
G301
G400

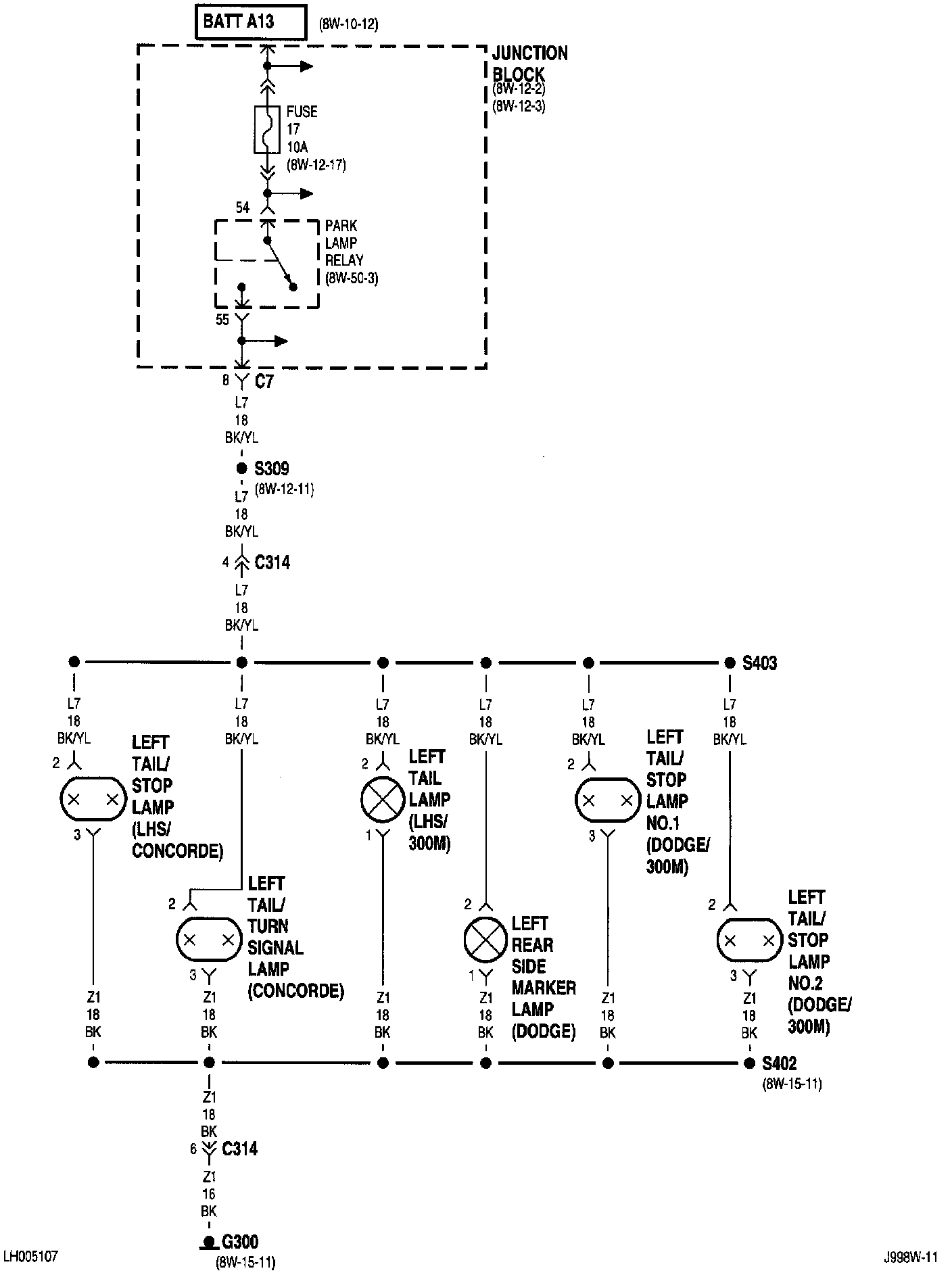

8w-51-4 (LHS):

Automatic Day/Night Mirror
Fuse 17 (JB)
G300
Junction Block
Left Back-Up Lamp
Right Back-Up Lamp
Transmission Range Sensor

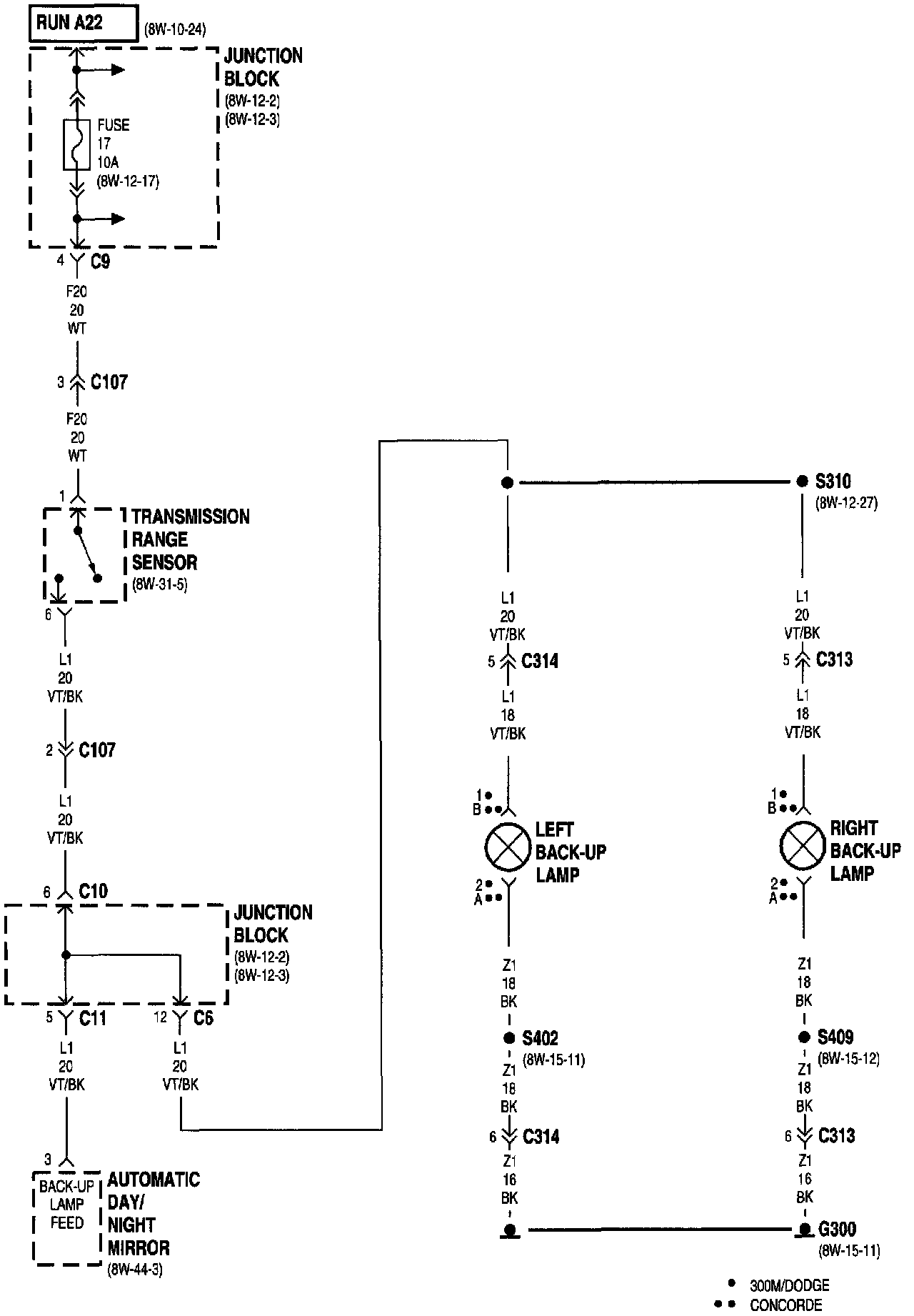

8w-51-5:

Automatic Day/Night Mirror
Fuse 17 (JB)
G300
Junction Block
Left Back-Up Lamp
Right Back-Up Lamp
Transmission Range Sensor

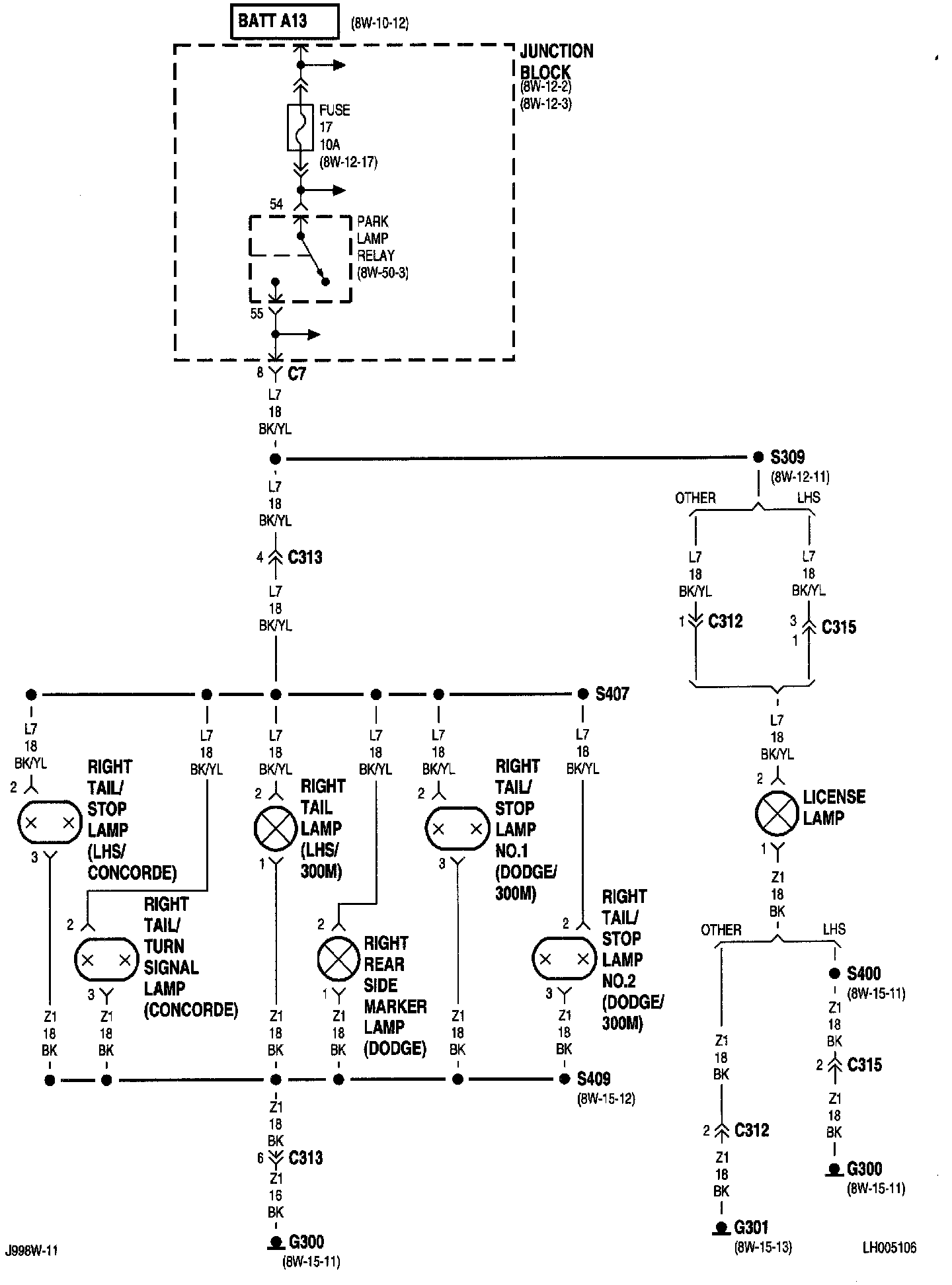

8w-51-6:

Fuse 17 (JB)
G300
G301
Junction Block
License Lamp
Park Lamp Relay
Right Rear Side Marker Lamp
Right Tail Lamp
Right Tail/Stop Lamp
Right Tail/Stop Lamp No.1
Right Tail/Stop Lamp No.2
Right Tail/Turn Signal Lamp

8w-51-7:

Fuse 17 (JB)
G300
Junction Block
Left Rear Side Marker Lamp
Left Tail Lamp
Left Tail/Stop Lamp
Left Tail/Stop Lamp No.1
Left Tail/Stop Lamp No.2
Left Tail/Turn Signal Lamp
Park Lamp Relay


NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams.
