Manual Temperature Control (MTC)

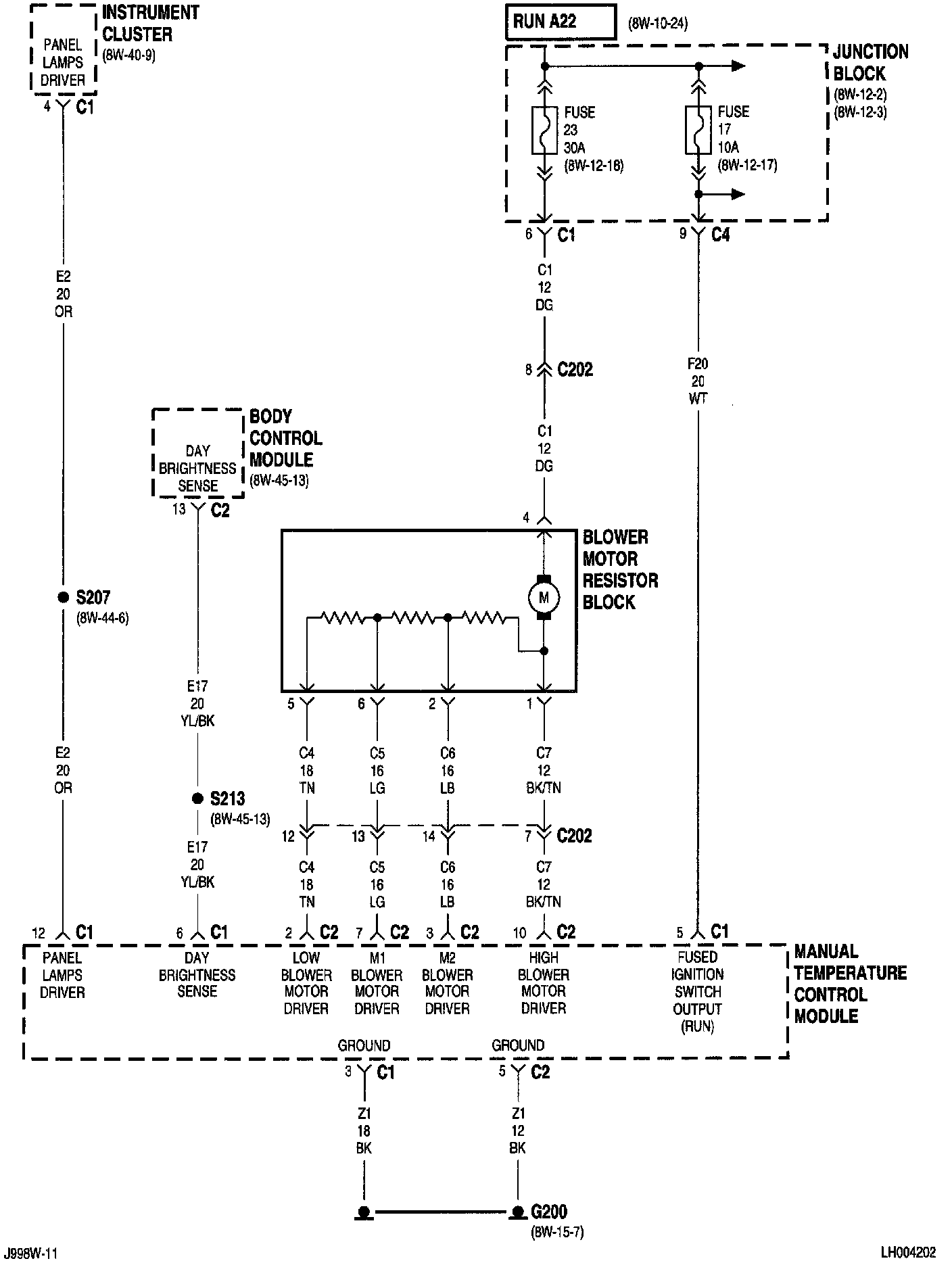

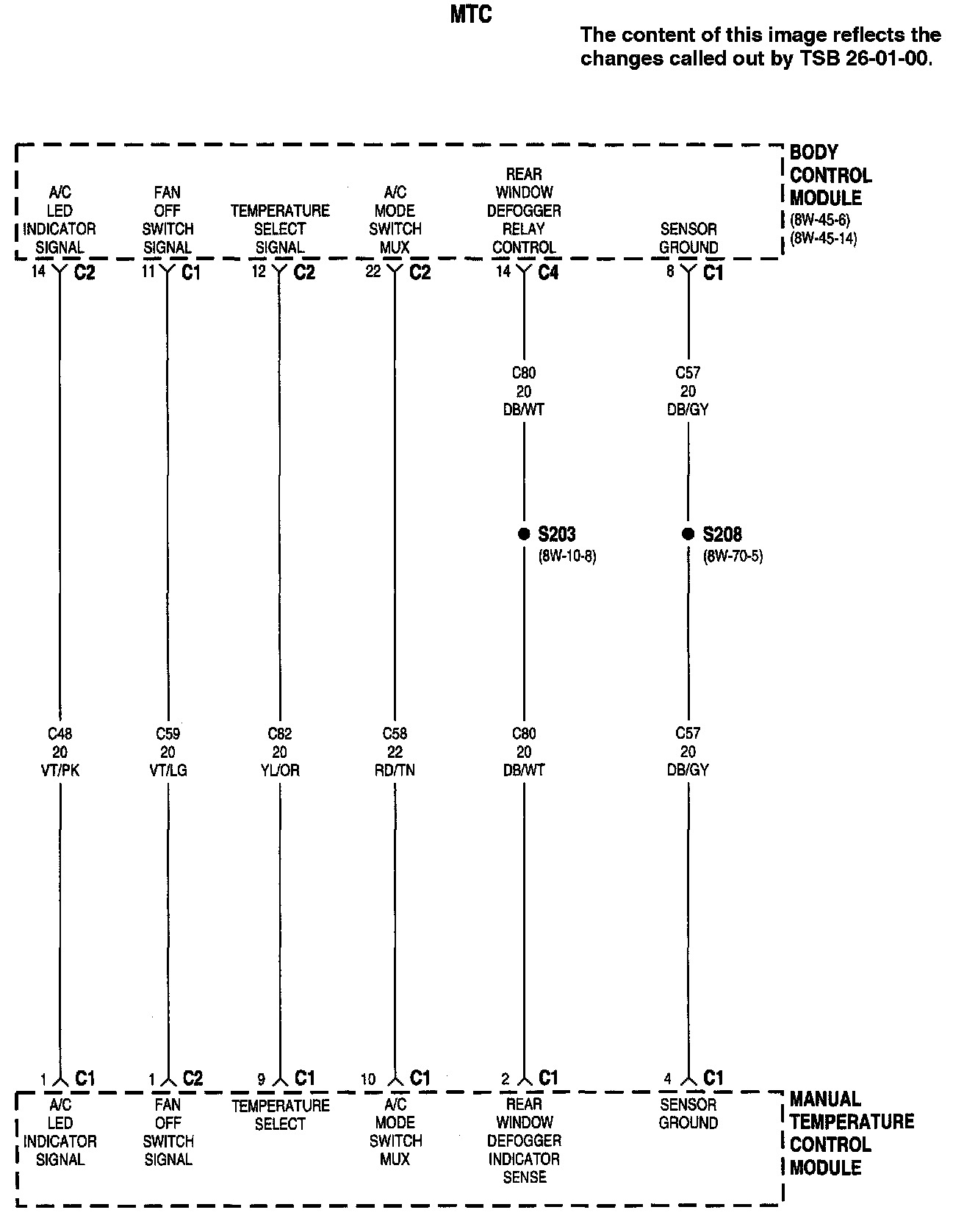

8w-42-2 Manual Temperature Control:

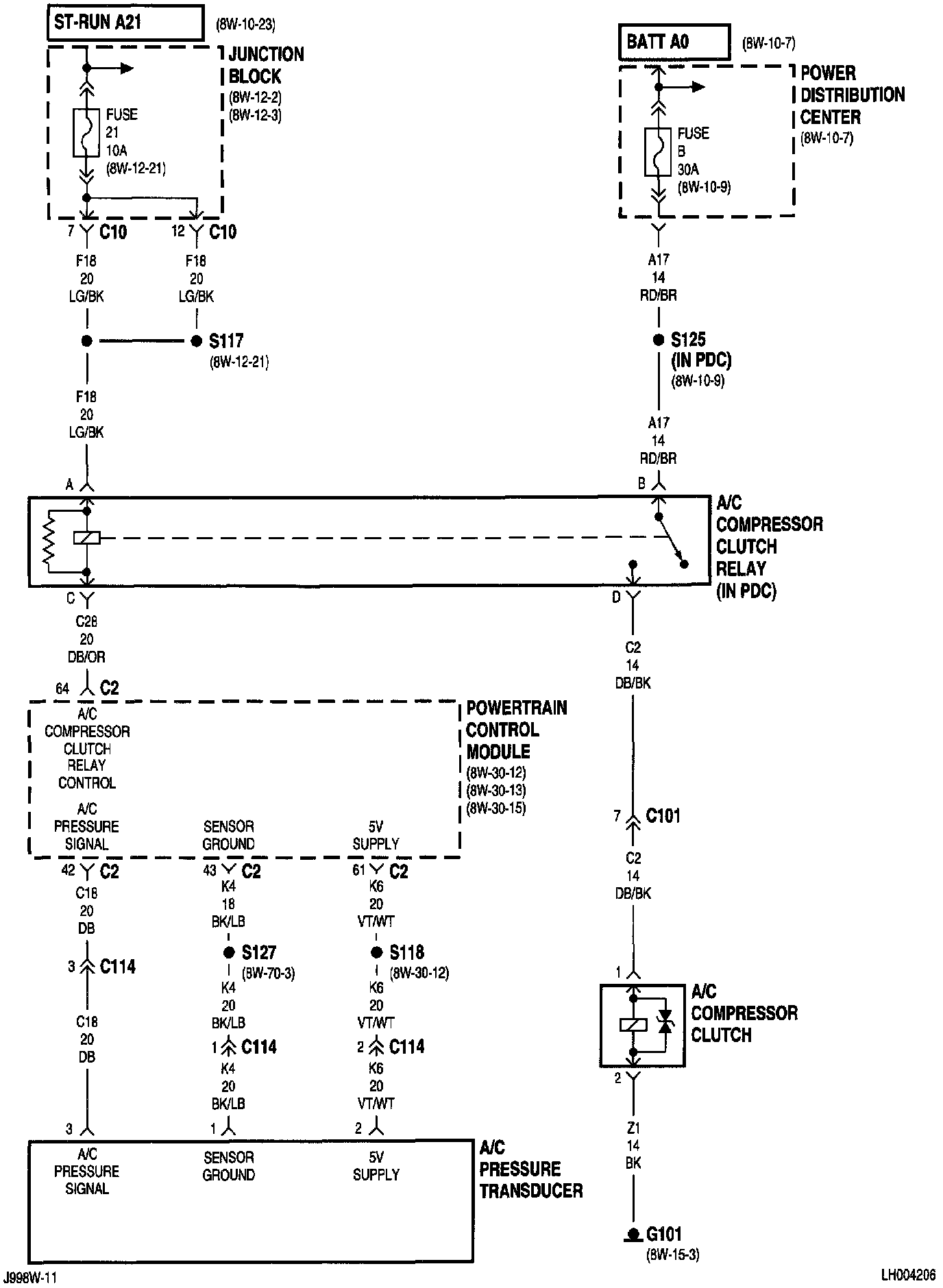

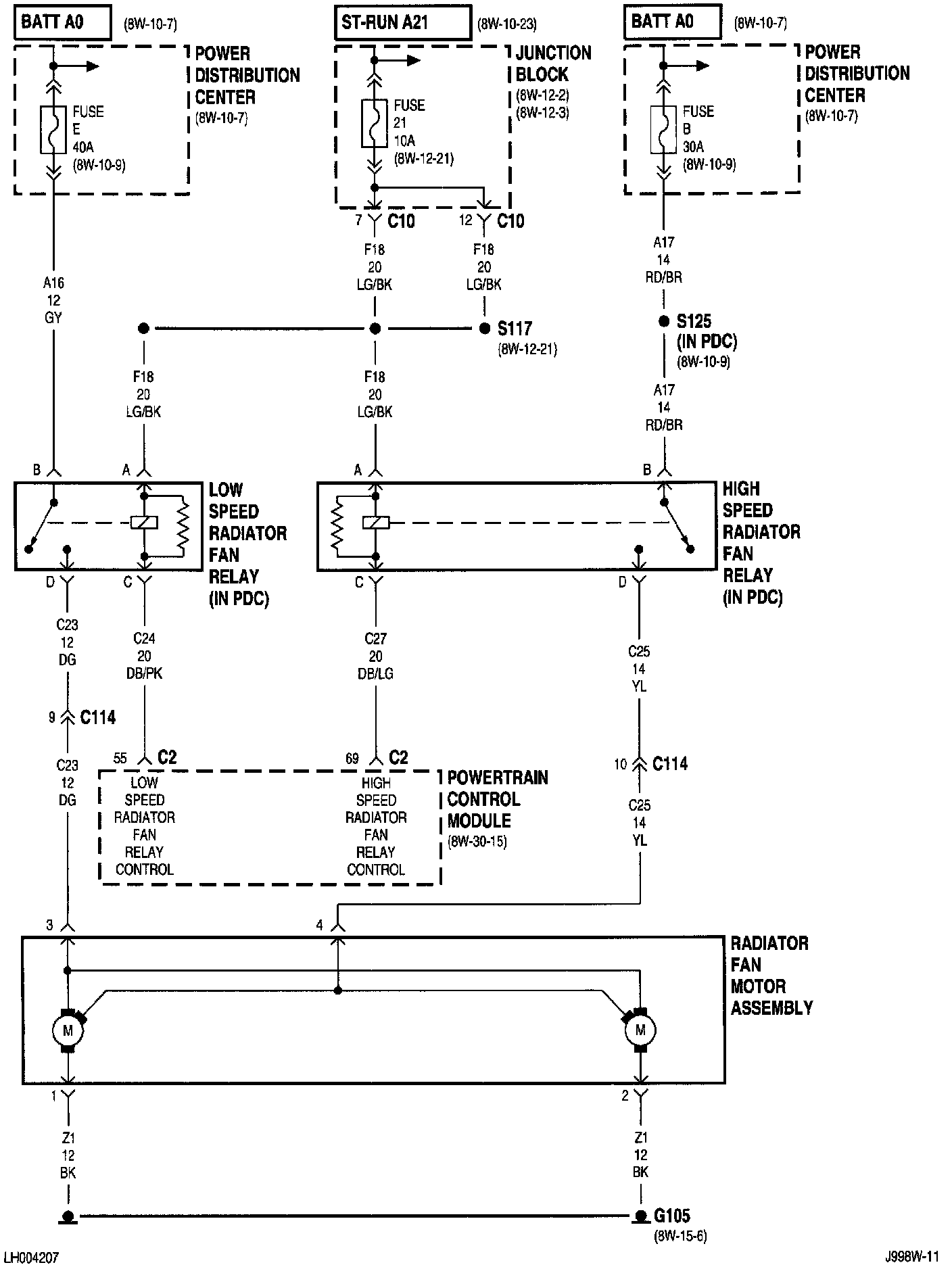

8w-42-3 A/C And Heating:

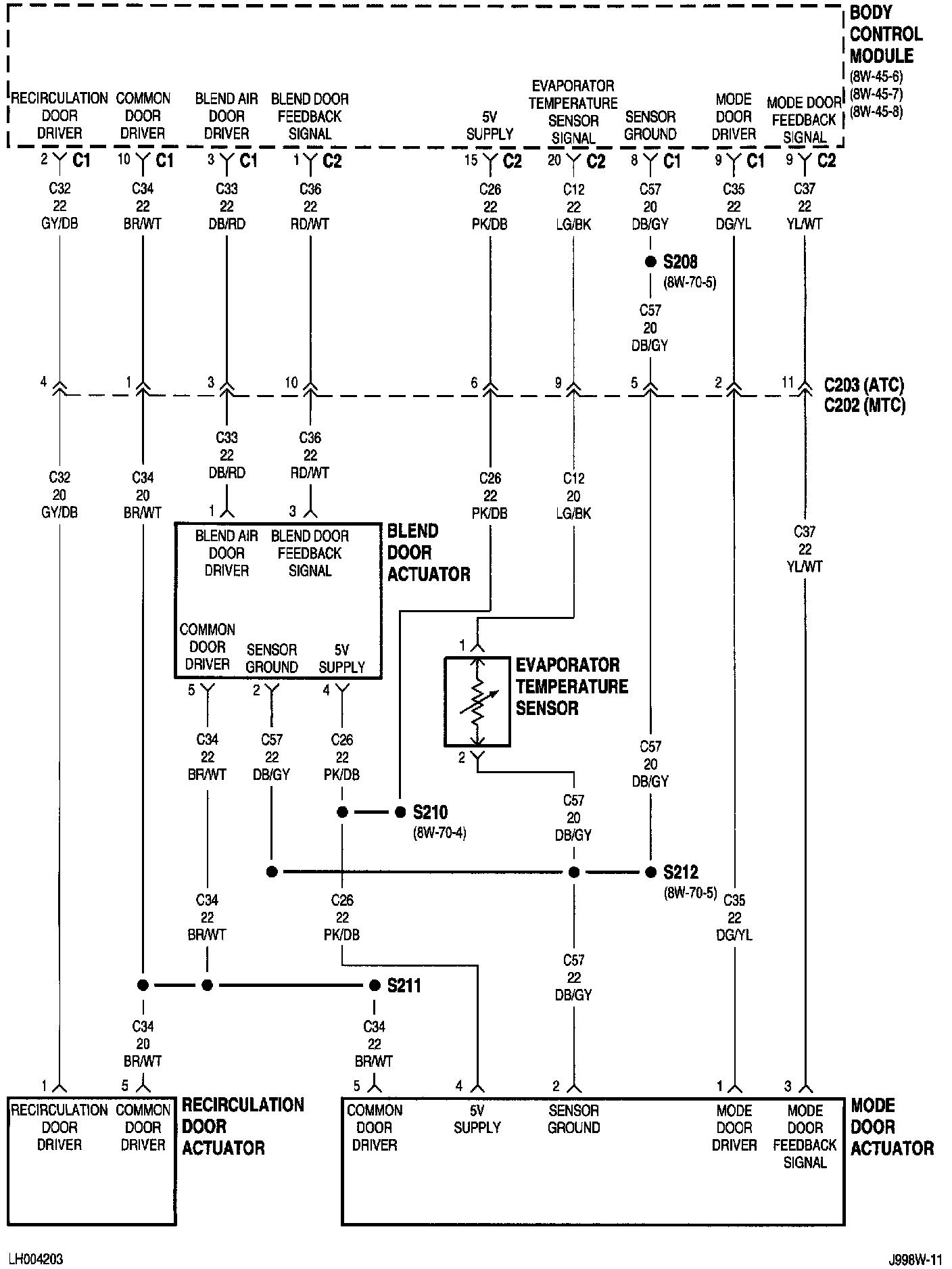

8w-42-6 With Automatic Temperature Control:



8w-42-7:



8w-42-8:
