Wiring Diagrams

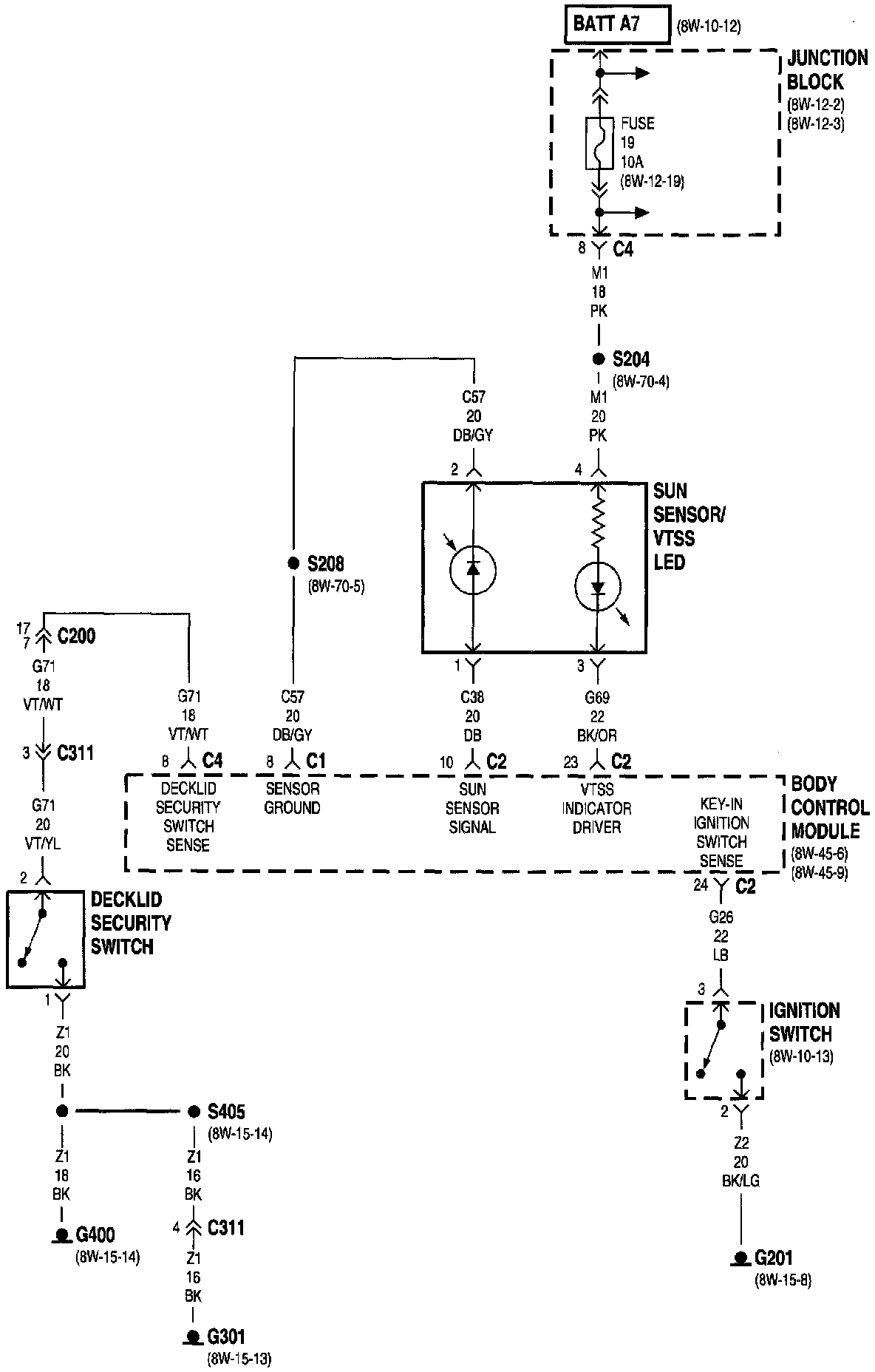

8w-39-2:

Body Control Module
Decklid Security Switch
Fuse 19 (JB)
G201
G301
G400
Ignition Switch
Junction Block
Sun Sensor/VTSS LED

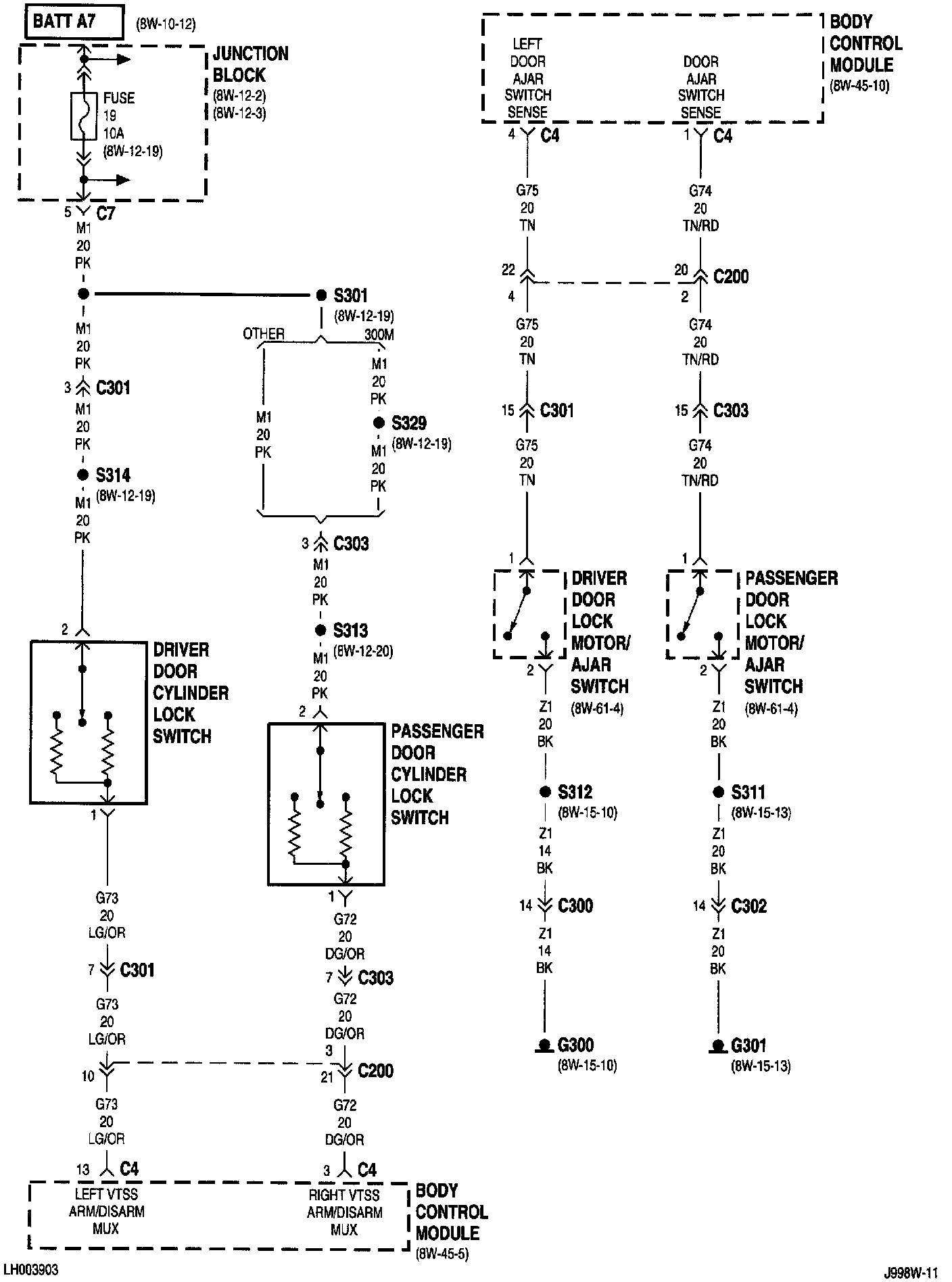

8w-39-3:

Body Control Module
Driver Door Cylinder Lock Switch
Driver Door Lock Motor/Ajar Switch
Fuse 19 (JB)
G300
G301
Junction Block
Passenger Door Cy11nder Lock Switch
Passenger Door Lock Motor/Ajar Switch

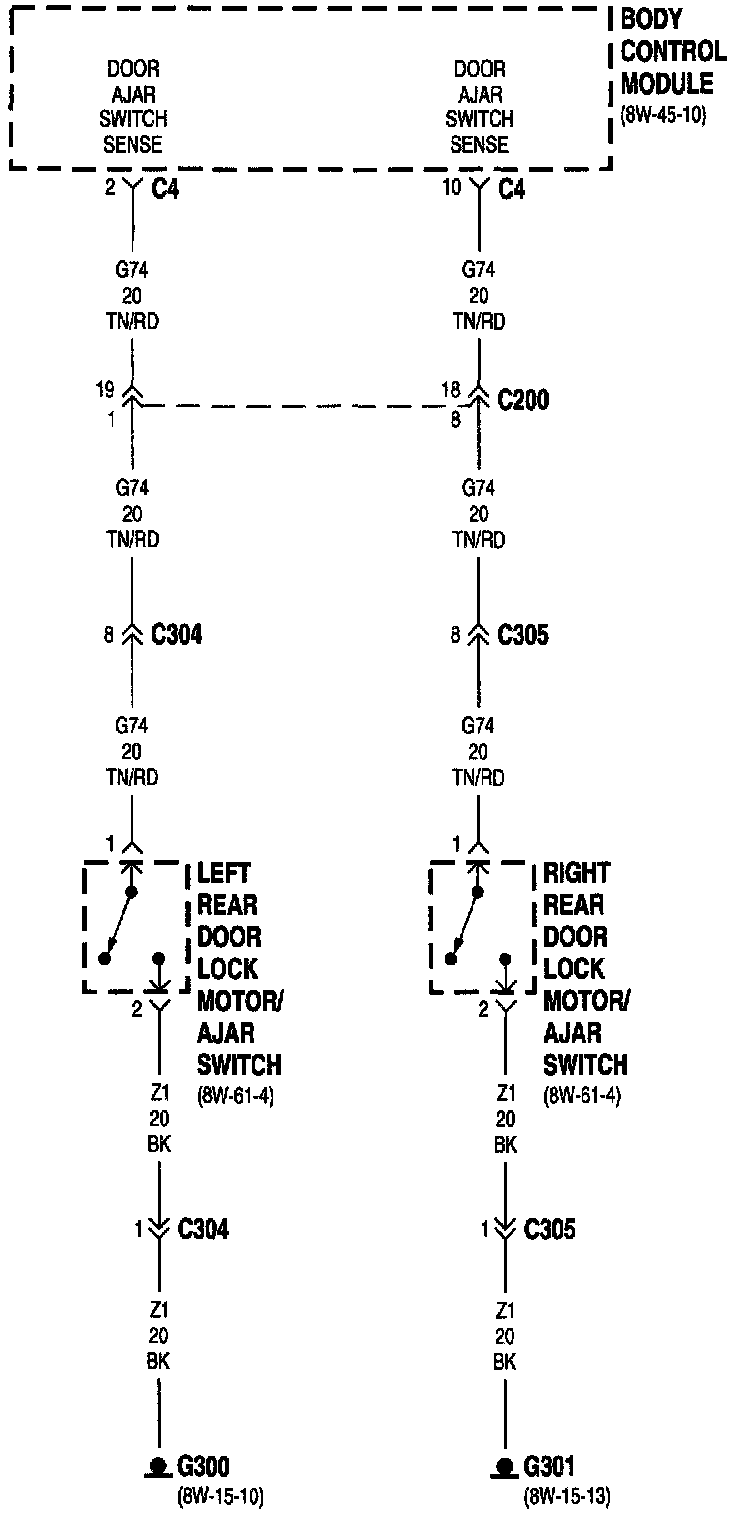

8w-39-4:

Body Control Module
G300
G301
Left Rear Door Lock Motor/Ajar Switch
Right Rear Door Lock Motor/Ajar Switch

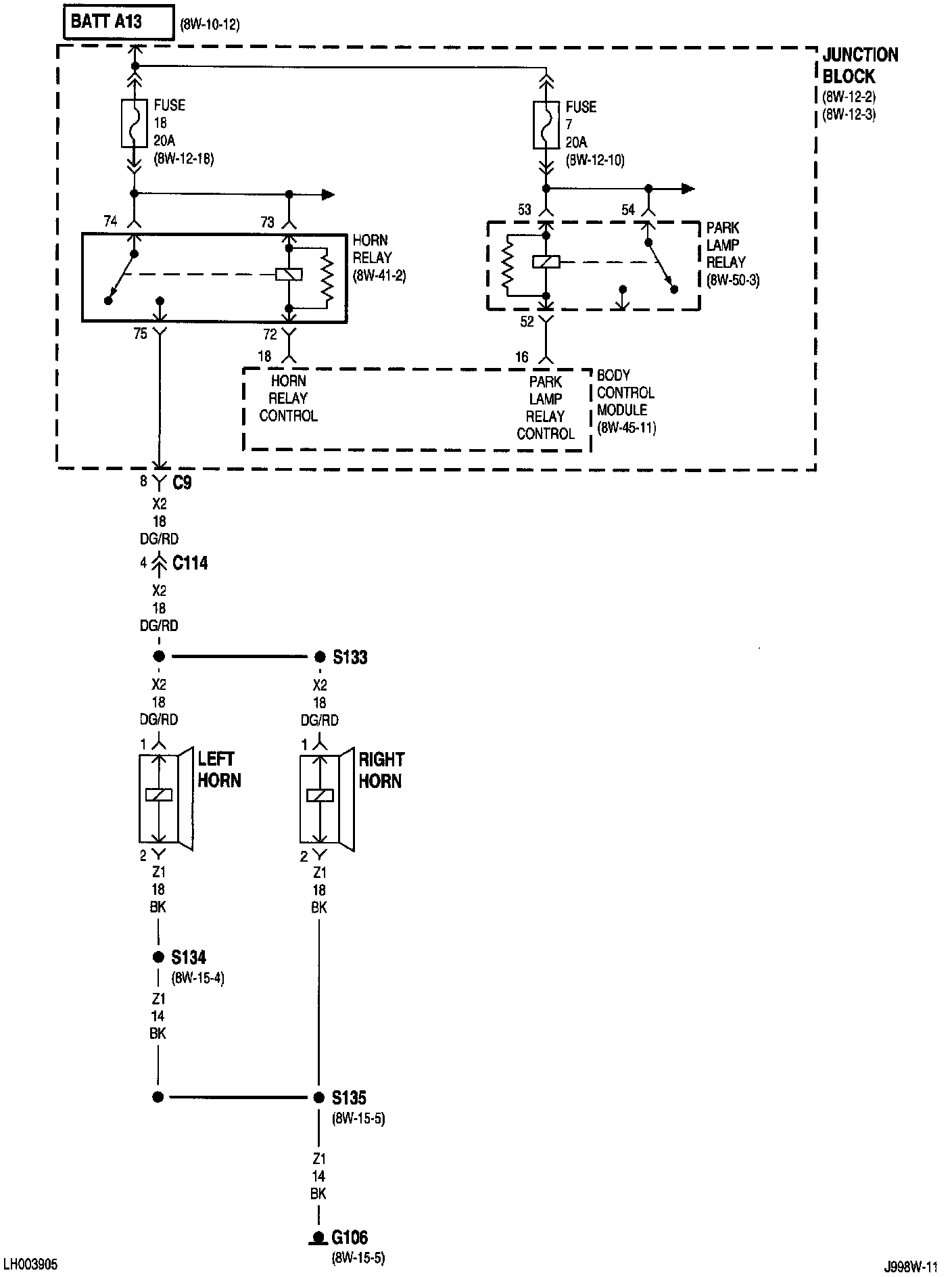

8w-39-5:

Body Control Module
Fuse 7 (JB)
Fuse 18 (JB)
G106
Horn Relay
Junction Block
Left Horn
Park Lamp Relay
Right Horn

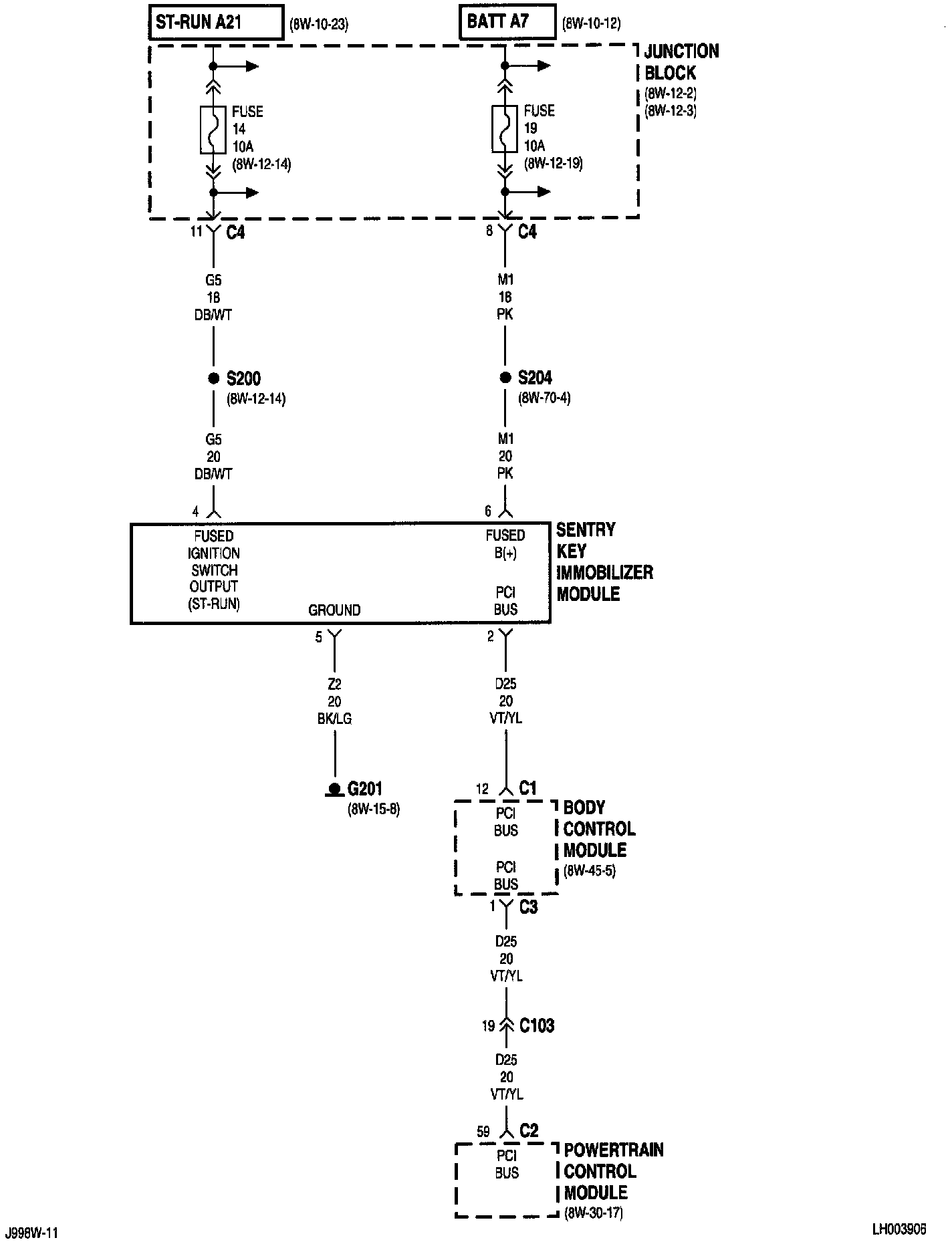

8w-39-6:

Body Control Module
Fuse 14 (JB)
Fuse 19 (JB)
G201
Junction Block
Powertrain Control Module
Sentry Key Immobilizer Module


NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams Diagrams By Group Number.
