Concorde V6-2.7L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Starter Relay
Starter Relay

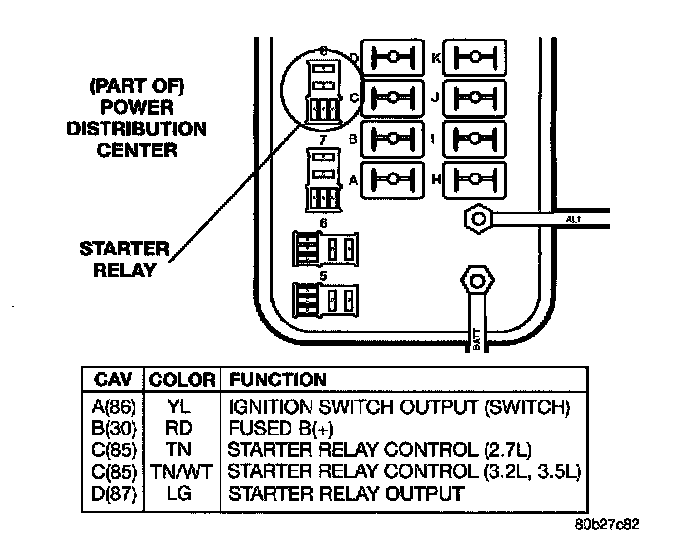

(Part Of) Power Distribution Center, Starter Relay:
