Body Control Module
Body Control Module

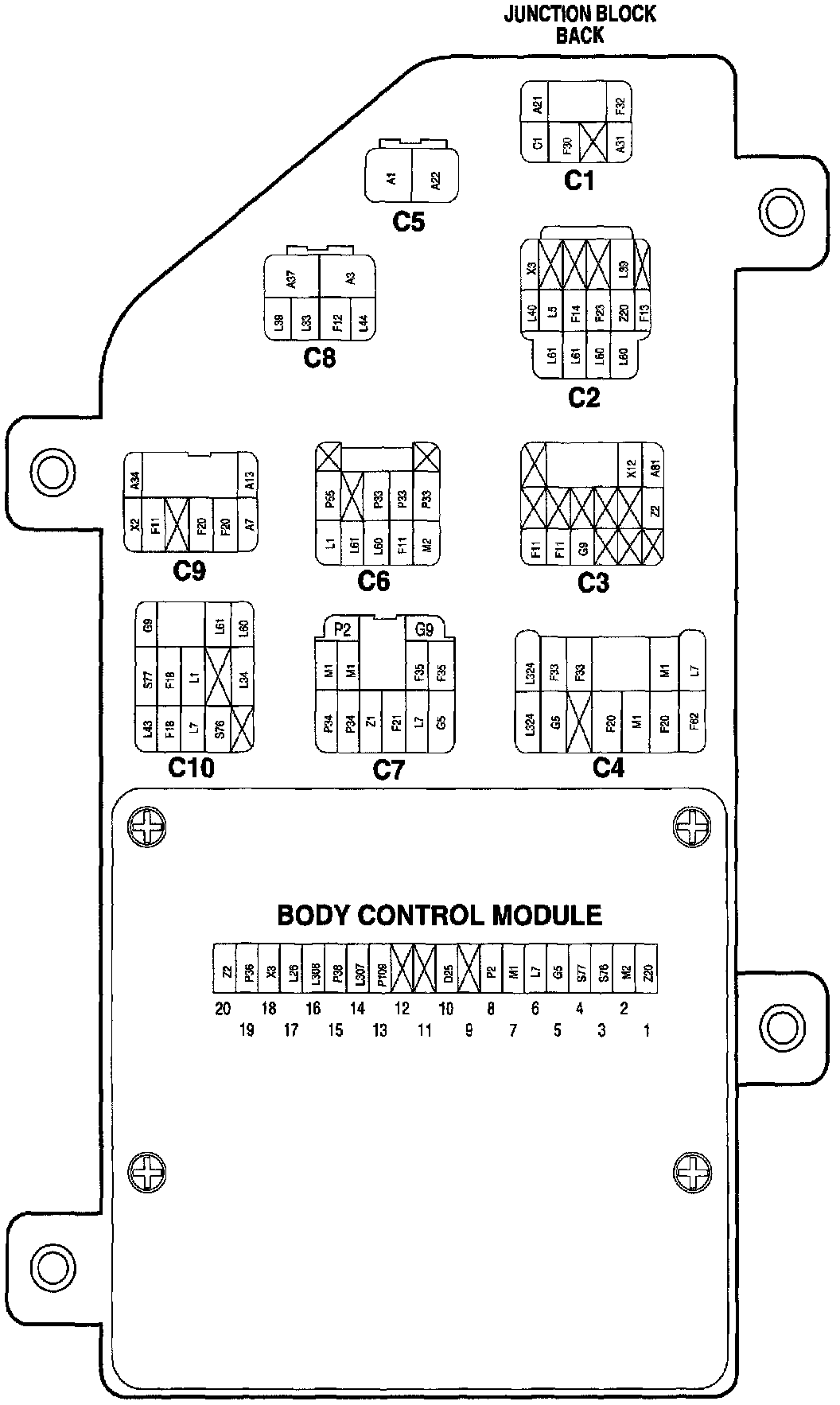

8w-12-2:

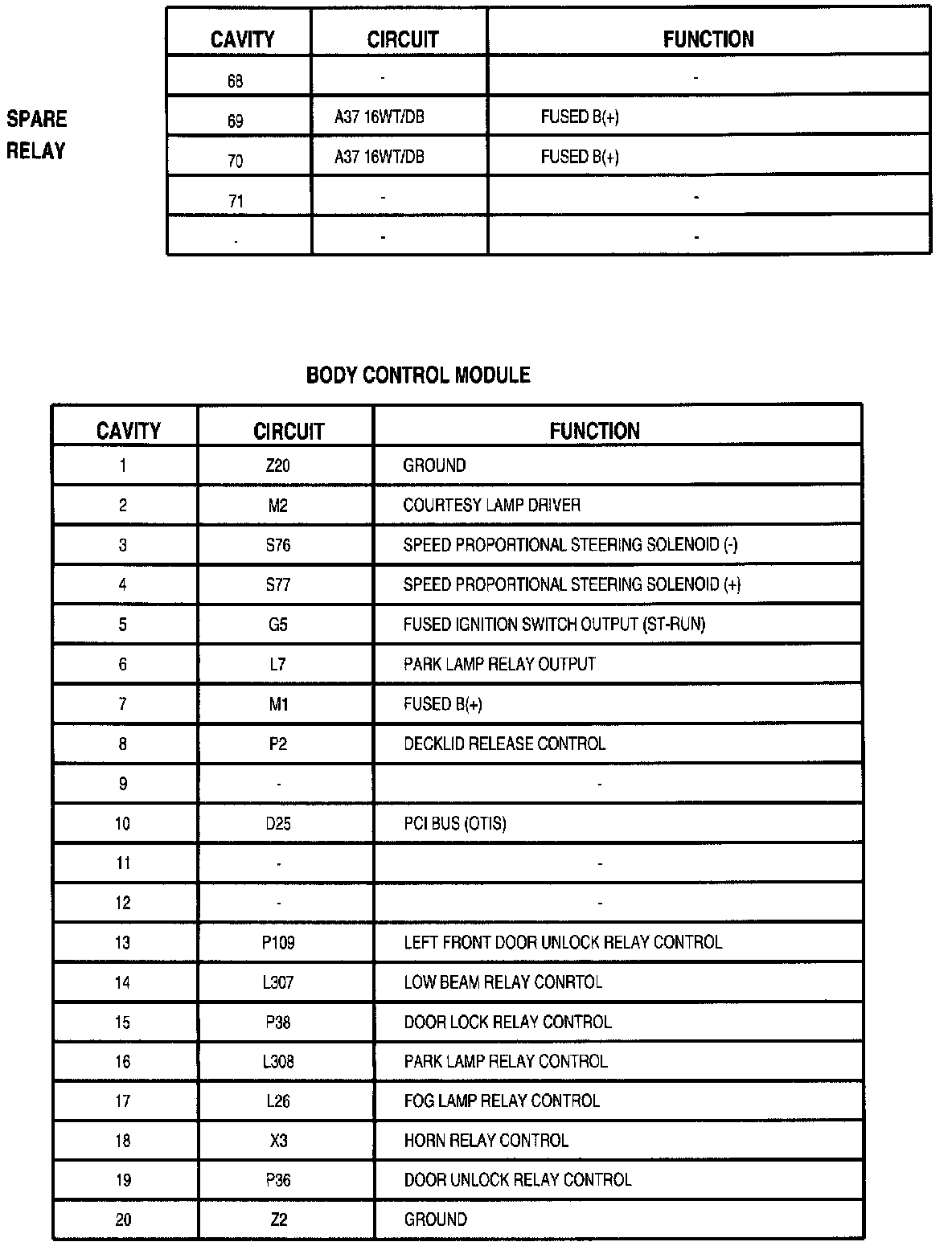

8w-12-3:

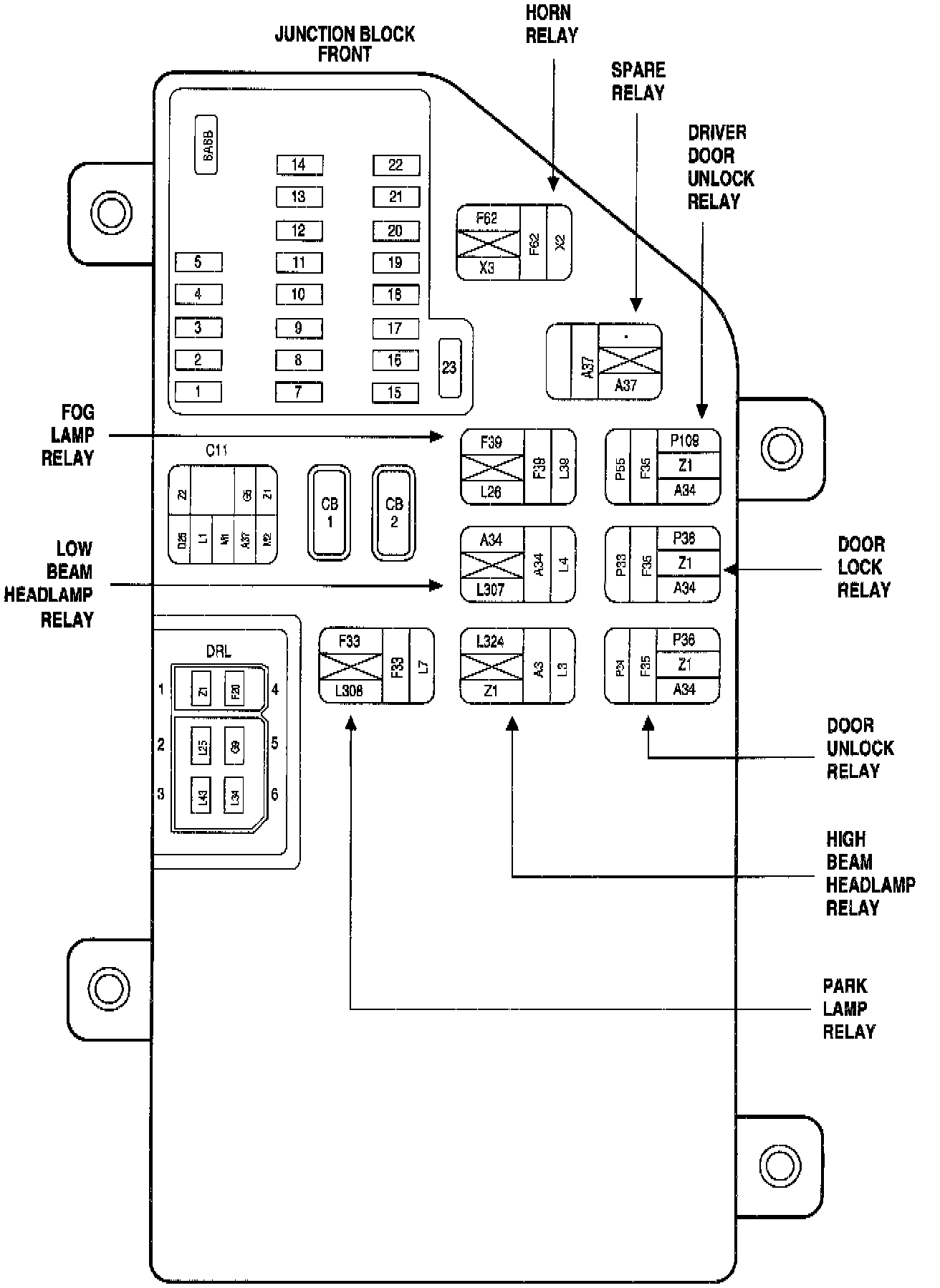

8w-12-7:

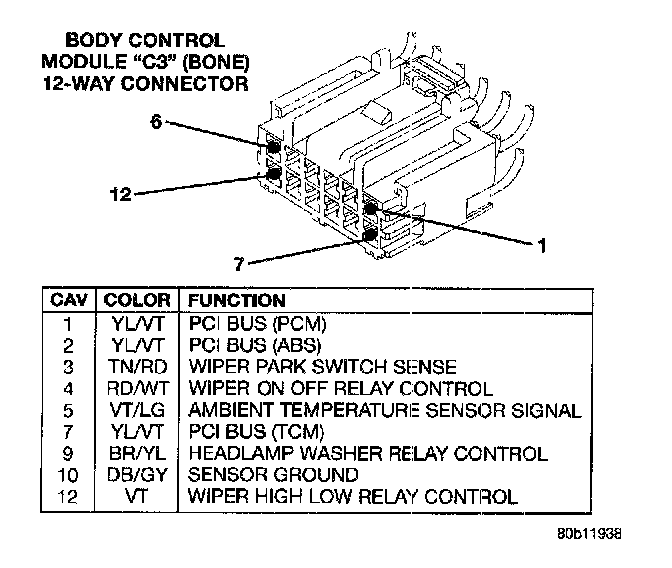

Body Control Module "C3" (Bone) 12-way Connector:
