Home >> Chrysler >> 1999 >> Concorde V6-2.7L VIN R >> Repair and Diagnosis >> Diagrams >> Connector Views >> Automatic Transmission/Transaxle >> Transmission Mode Switch, A/T >> Autostick

Autostick

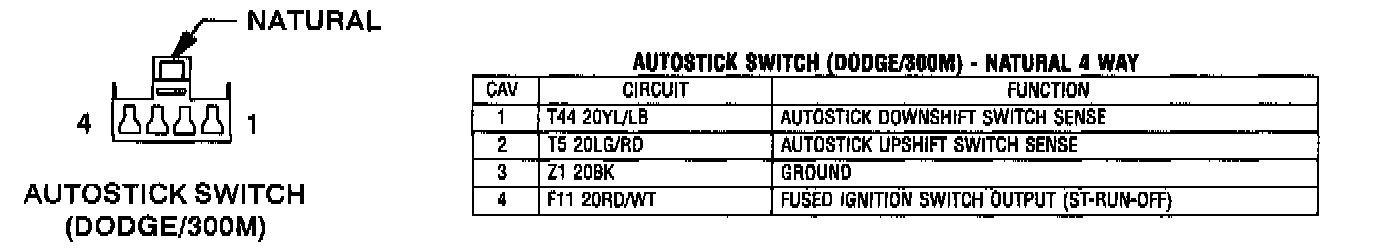

Automatic Switch (Dodge/300M) - Natural 4 Way:
