Power Mirror Motor: Testing and Inspection

1. Using a trim stick, remove power mirror switch from mounting position.
2. Disconnect wire harness connector.

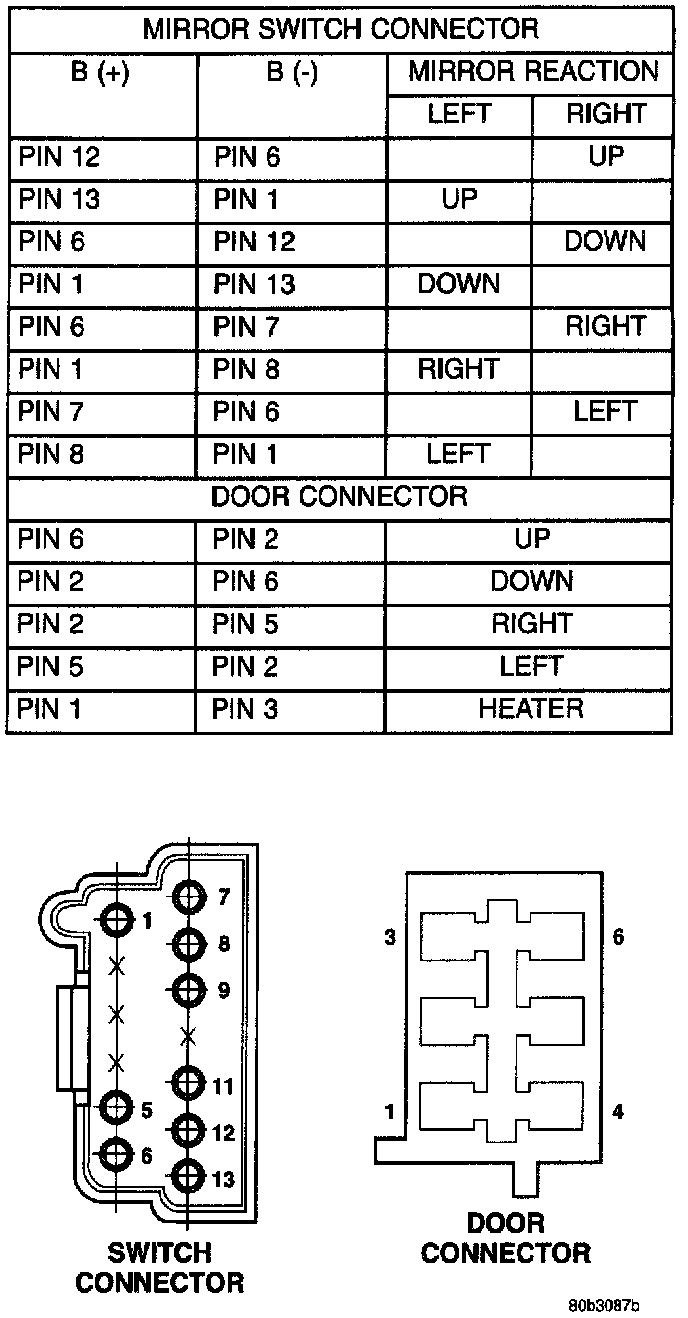

Mirror Test - Connector Pin Call-out:

3. Using two jumper wires, one connected to a 12 volt source, and the other connected to a good body ground. Jumpers are applied to the mating switch connector on the wire harness. Refer to the Mirror Test table for appropriate mirror response.
4. If test results are not obtained, check for open or shorted circuit, or replace mirror assembly as necessary.
