Center Console Shift Bezel Replacement

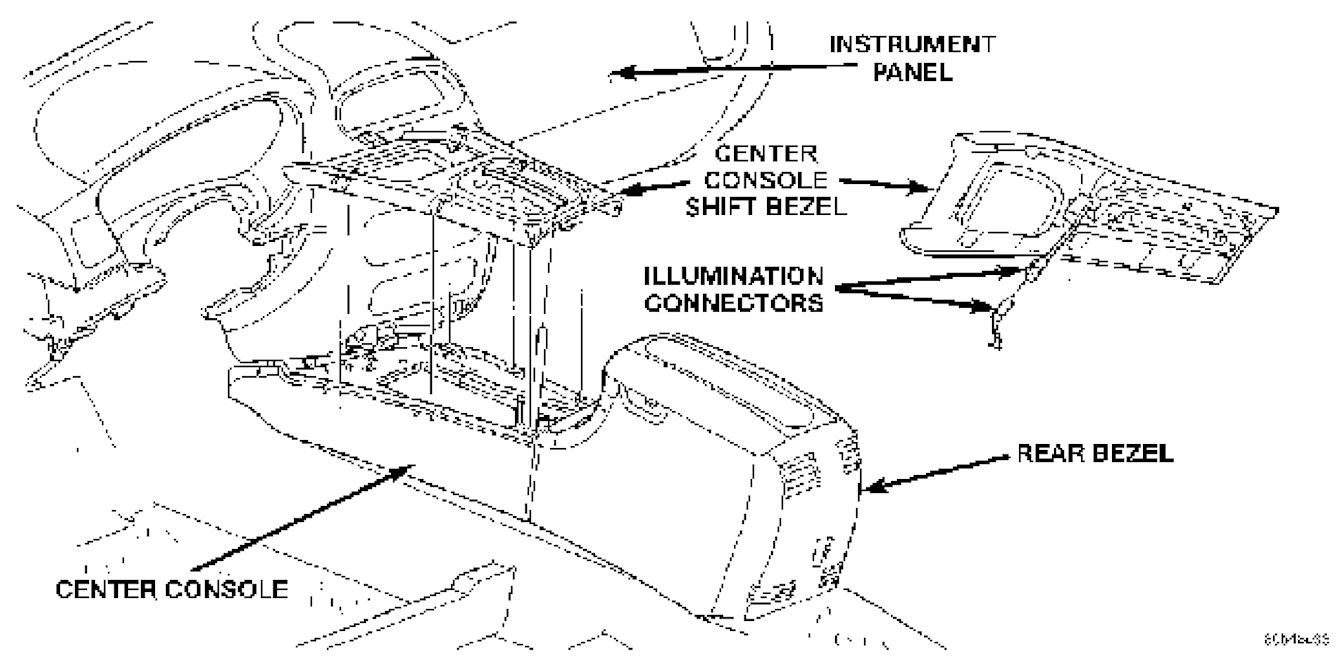

CENTER CONSOLE SHIFT BEZEL

REMOVAL

1. Place gear selector in neutral.
2. Loosen set screw attaching gear shift knob to gear shift.
3. Remove gear shift knob from gear shift.







4. Disengage clips attaching bezel to center console.
5. Disconnect the ash tray light and power outlet, if equipped.
6. Disconnect the transmission range indicator illumination connector.
7. Remove bezel from vehicle.

INSTALLATION

1. Connect the transmission range indicator illumination connector.
2. Connect the transmission indicator lamp. Connect ash tray light, if equipped.
3. Place bezel in position on vehicle.
4. Engage clips attaching bezel to center console.
5. Push gear shift knob onto gear shift.
6. Tighten set screw attaching gear shift knob to gear shift.
