Rear Window Antenna Module

REMOVAL

Negative Battery Cable Remote Terminal:

1. Open hood and disconnect the negative battery cable remote terminal from the remote battery post.
2. Remove right upper quarter trim panel.
3. Remove attaching screws from module.

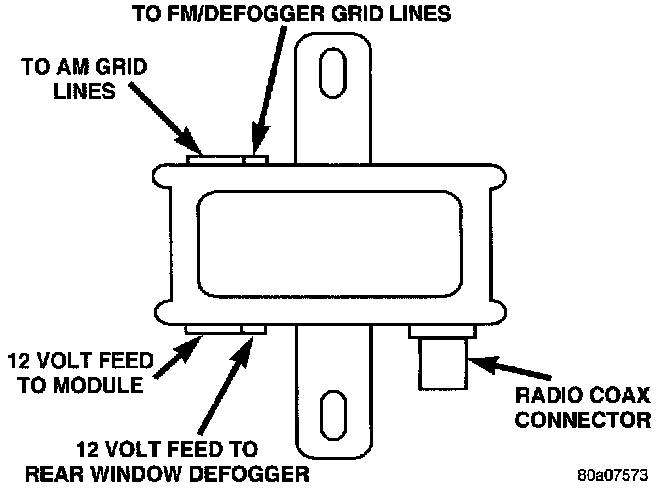

Rear Window Antenna Module:

4. Disconnect wire connectors and radio coaxial cable.
5. Remove module from vehicle.

INSTALLATION
For installation, reverse the above procedures.
