Antenna: Description and Operation

SYSTEM OPERATION

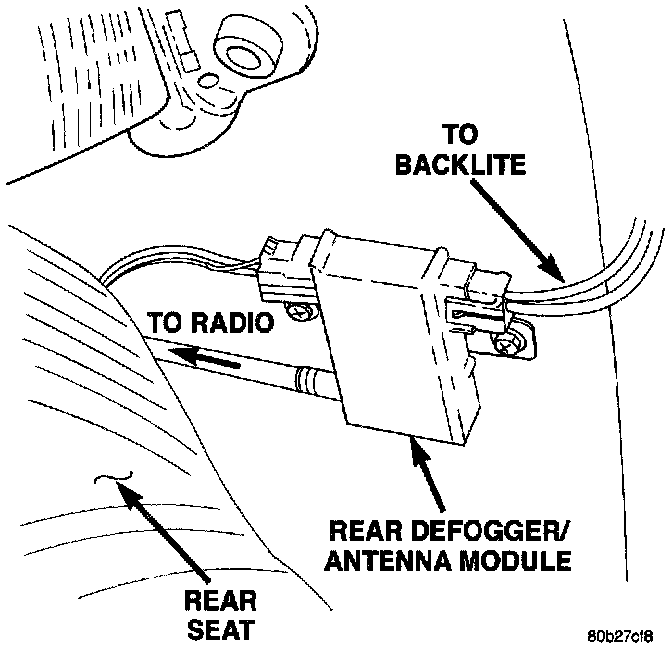

Rear Defogger / Antenna Module:

The integrated rear window antenna incorporates the rear window defogger and a electronic module to receive radio signals. The module is located in the right C-pillar behind the trim panel.

The AM and FM signals are received via isolated unheated lines along the top of the rear window.

NOTE:
- If aftermarket window shading is added, it cannot be of the metallic type. Metallic type window shading can cause poor radio reception.

- If an accessory cellular phone glass mount antenna is installed, it should only be along the center of the window, not touching any conductive lines in the area indicated.
