Performance Verification Test - Transmission Control System
Performance Verification Test - Transmission Control System

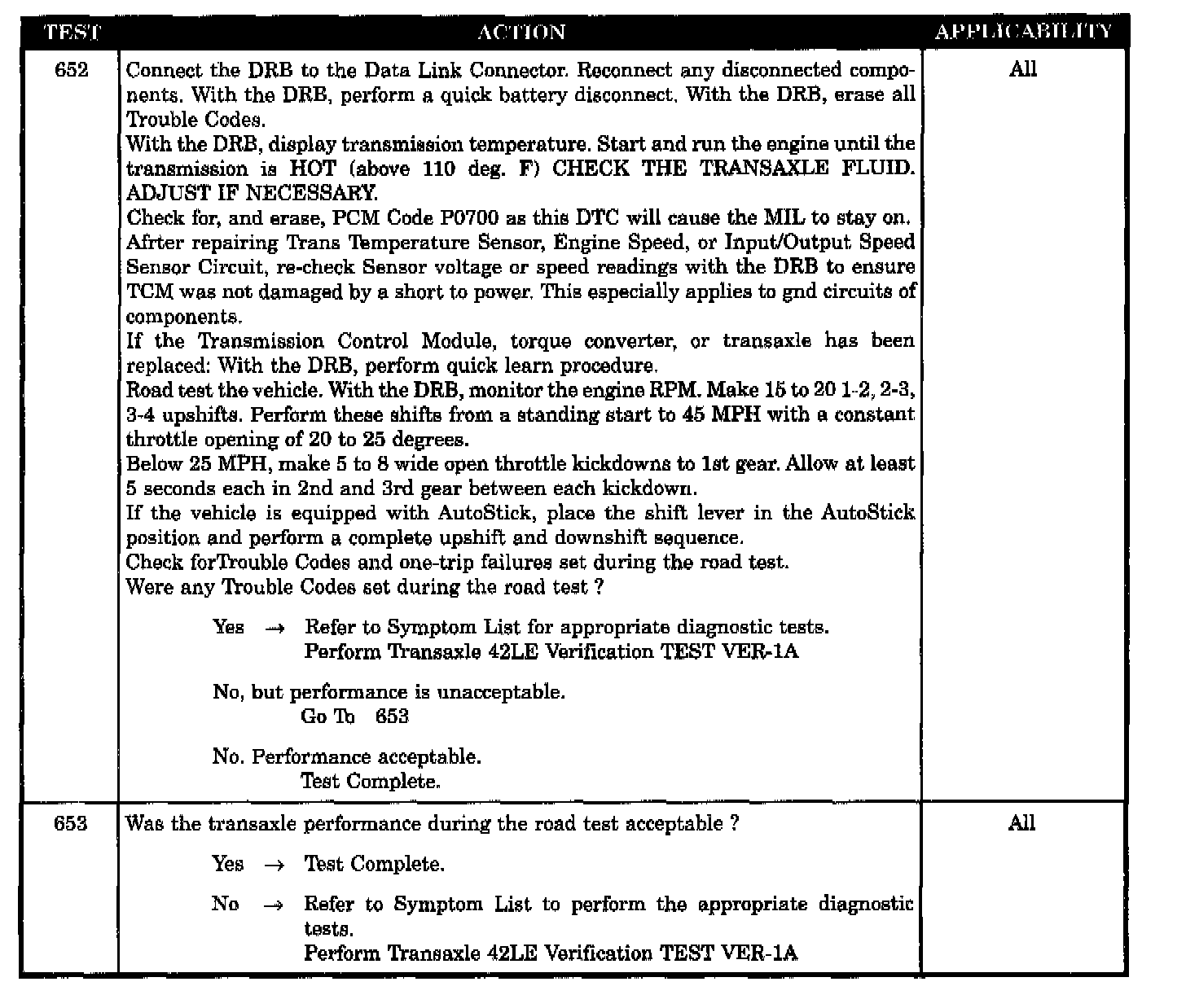

Test 652-653:
SYMPTOM:
PERFORMANCE VERIFICATION TEST
POSSIBLE CAUSES
-
VERIFICATION TEST
-
BAD ROAD TEST WITHOUT DTC'S
