P1798

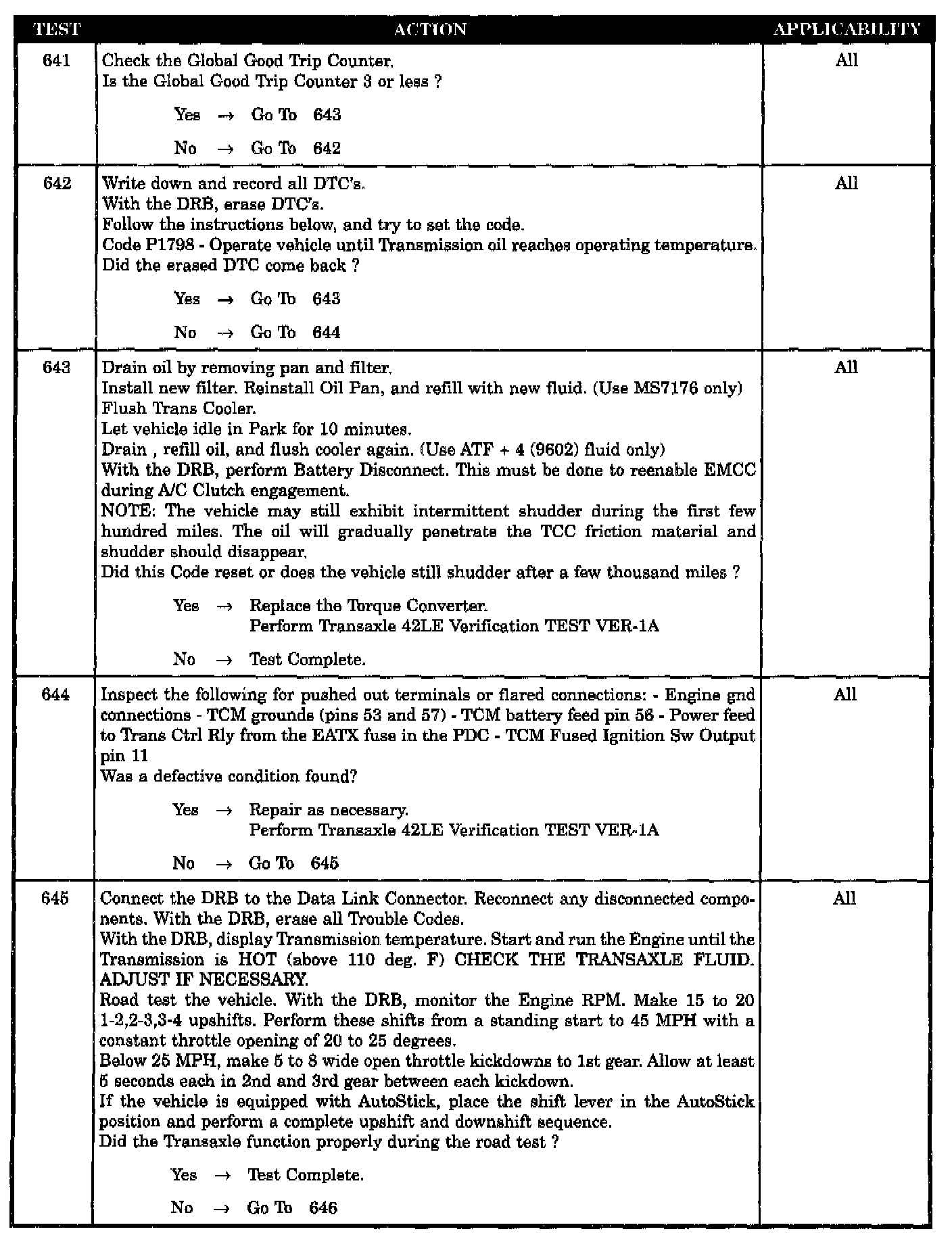

Test 641-645:

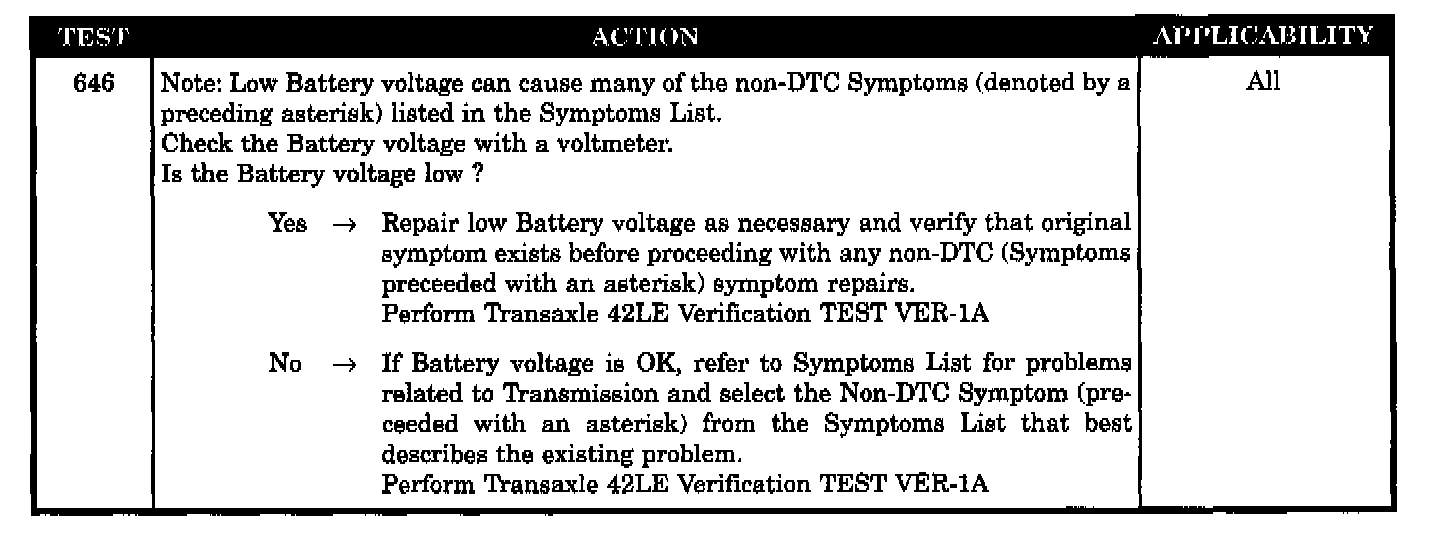

Test 646:

SYMPTOM:
P1798-WORN OUT/BURNT TRANSAXLE FLUID

When Monitored and Set Condition:
P1798-WORN OUT/BURNT TRANSAXLE FLUID
When Monitored: Each transition from full Torque Convertor to partial Torque Convertor lock for A/C bump prevention
Set Condition: When vehicle shudder detected during partial lockup

POSSIBLE CAUSES
- TORQUE CONVERTER CAUSES SHUDDER
- CHECKING SYMPTOMS AND POSSIBLE CAUSES
- LOW BATTERY VOLTAGE CAUSING SYMPTOM
- INTERMITTENT CODE P1798
