P1792

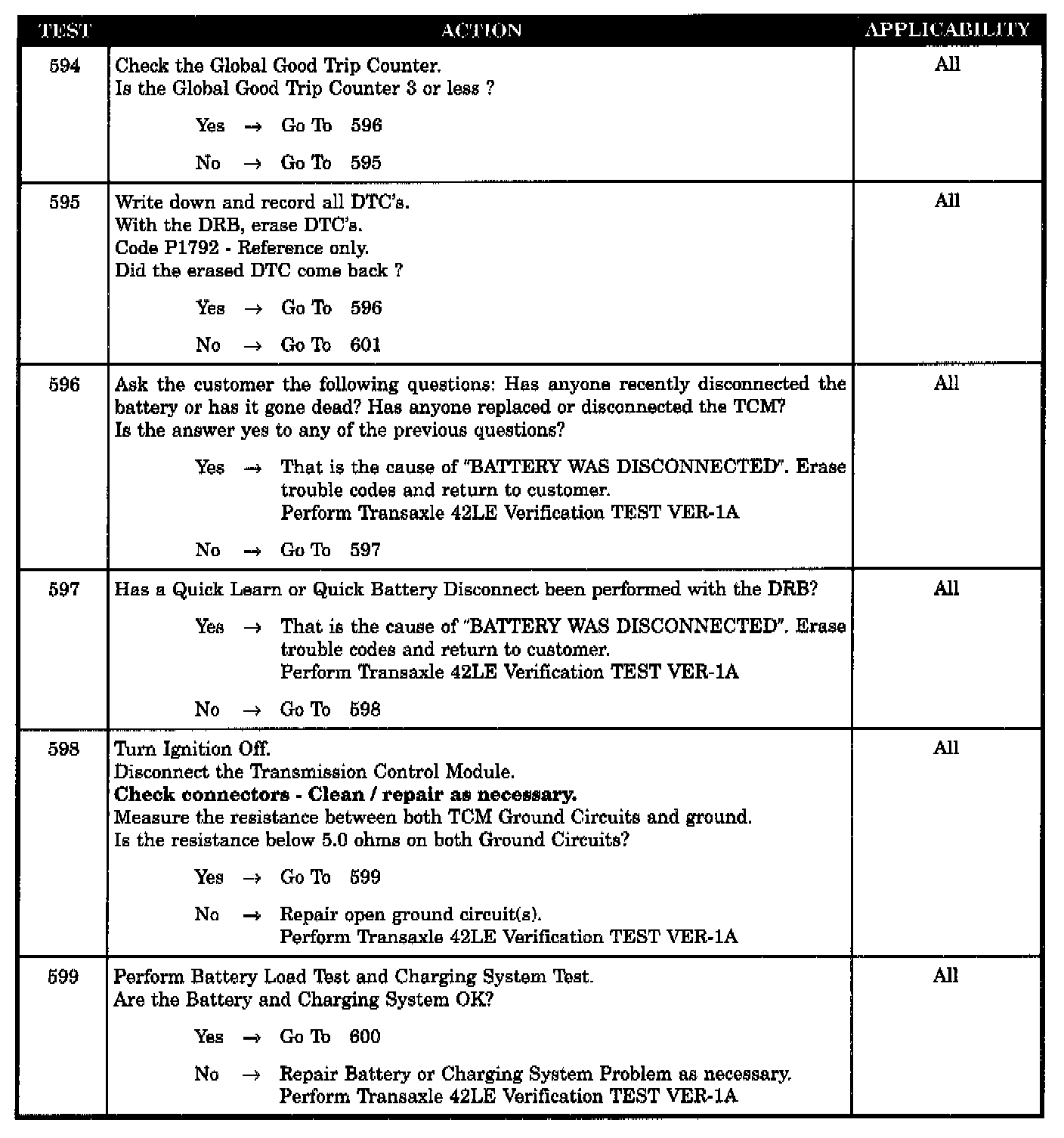

Test 594-599:

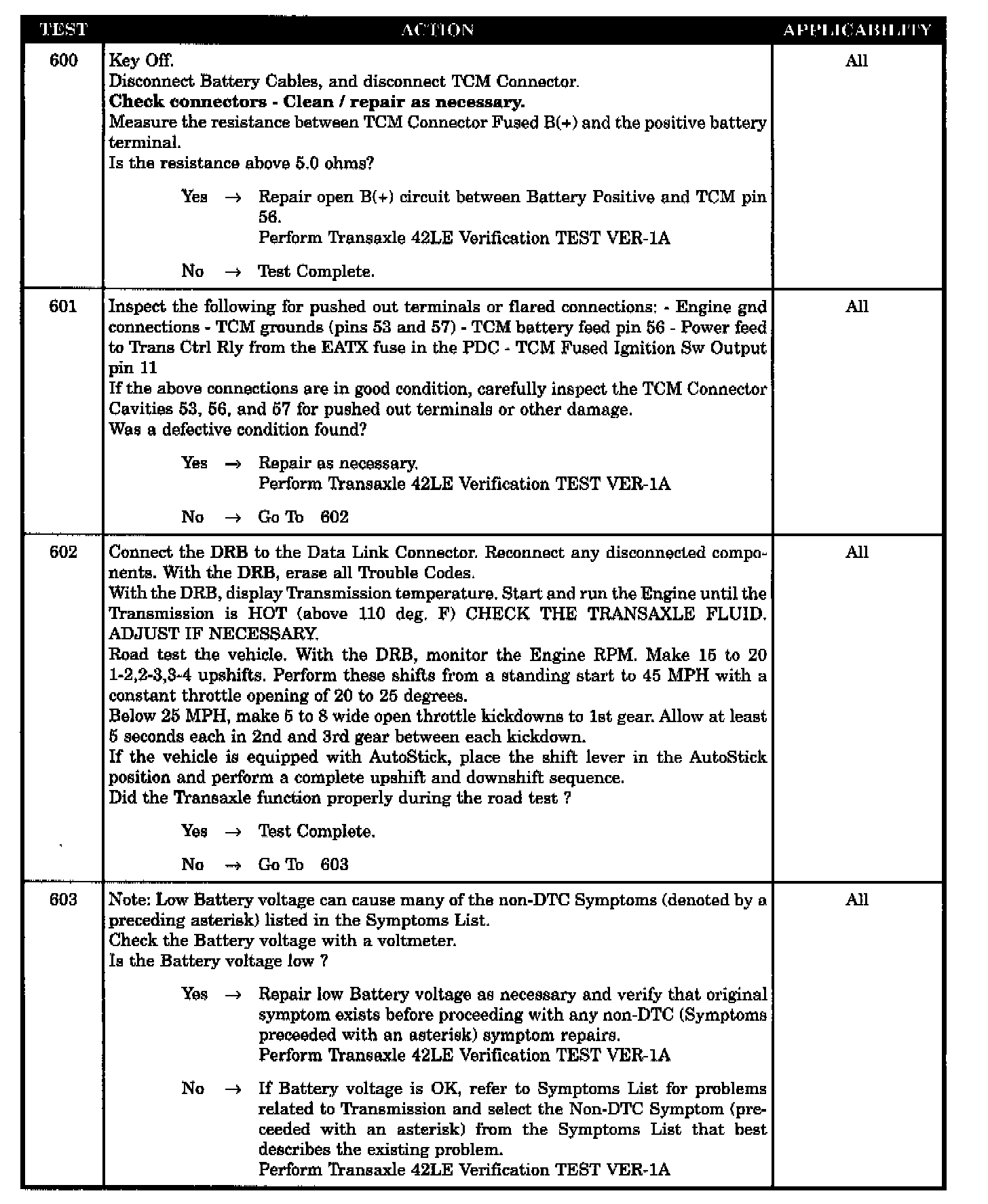

Test 600-603:

SYMPTOM:
P1792-BATTERY WAS DISCONNECTED

When Monitored and Set Condition:
P1792-BATTERY WAS DISCONNECTED
When Monitored: Whenever the key is in the Run/Start position.
Set Condition: Code sets whenever the Transmission Control Module (TCM) is disconnected from battery power B(+) or gnd. It will also be set during the DRB Quick Battery Disconnect procedure.

POSSIBLE CAUSES
- CHECKING SYMPTOMS AND POSSIBLE CAUSES
- LOW BATTERY VOLTAGE CAUSING SYMPTOM
- BATTERY OR CHARGING SYSTEM DEFECTIVE
- QUICK LEARN OR QUICK BATTERY DISCONNECT PERFORMED
- FUSED B(+) CKT TO TCM OPEN
- TCM GROUND CIRCUITS OPEN
- TCM HAS BEEN DISCONNECTED OR BATTERY DEAD
- INTERMITTENT CODE P1792
