P0755

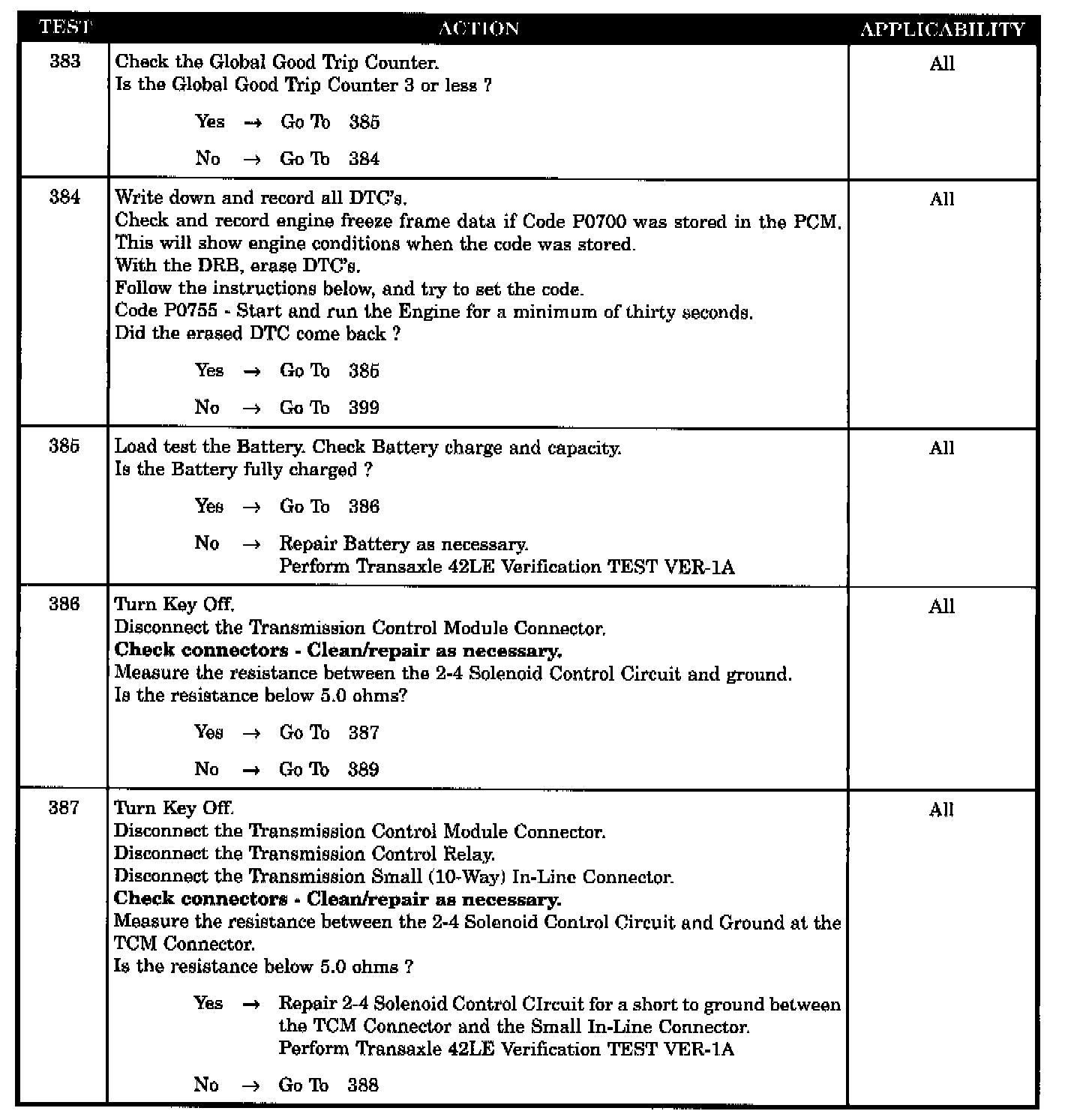

Test 383-387:

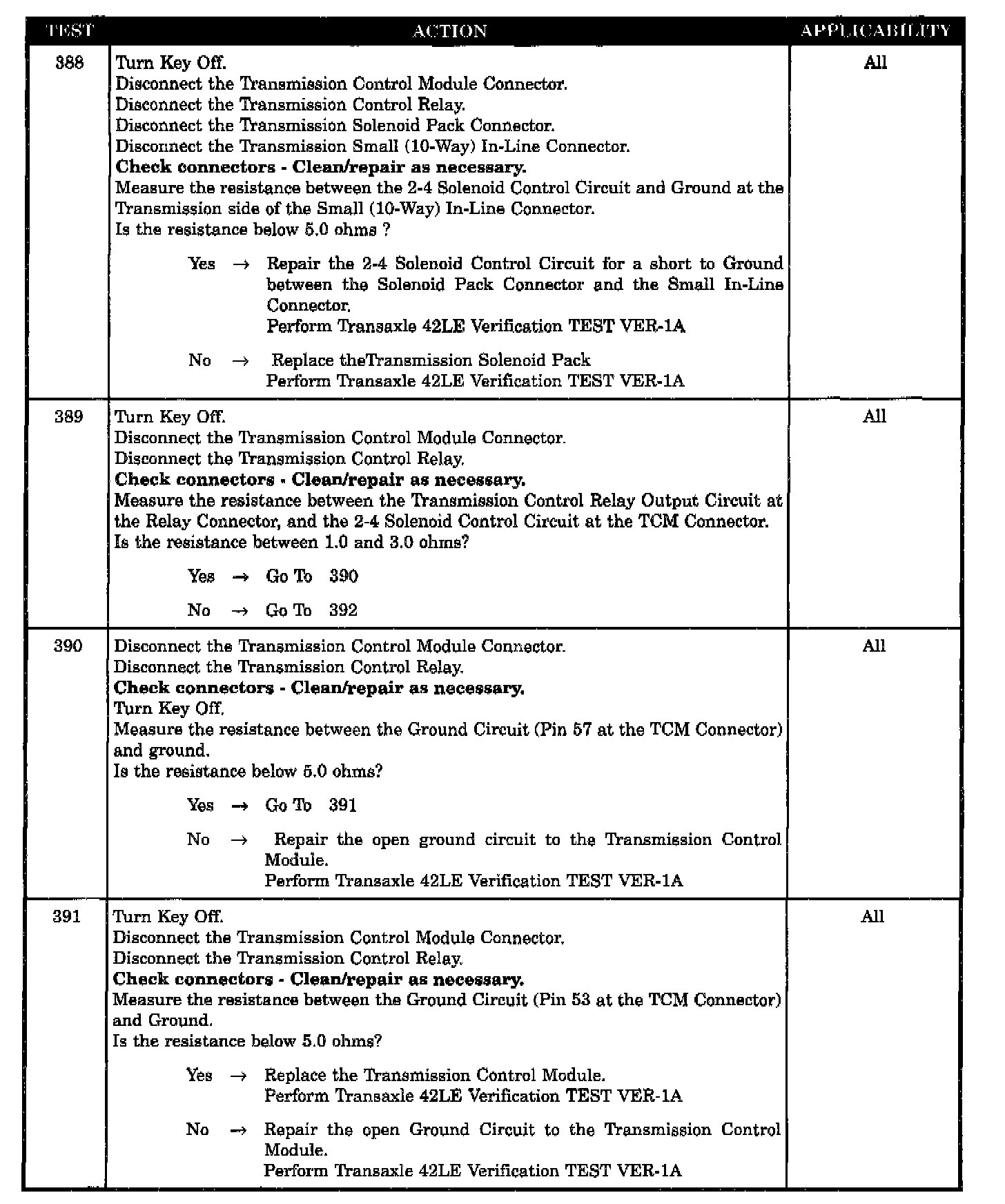

Test 388-391:

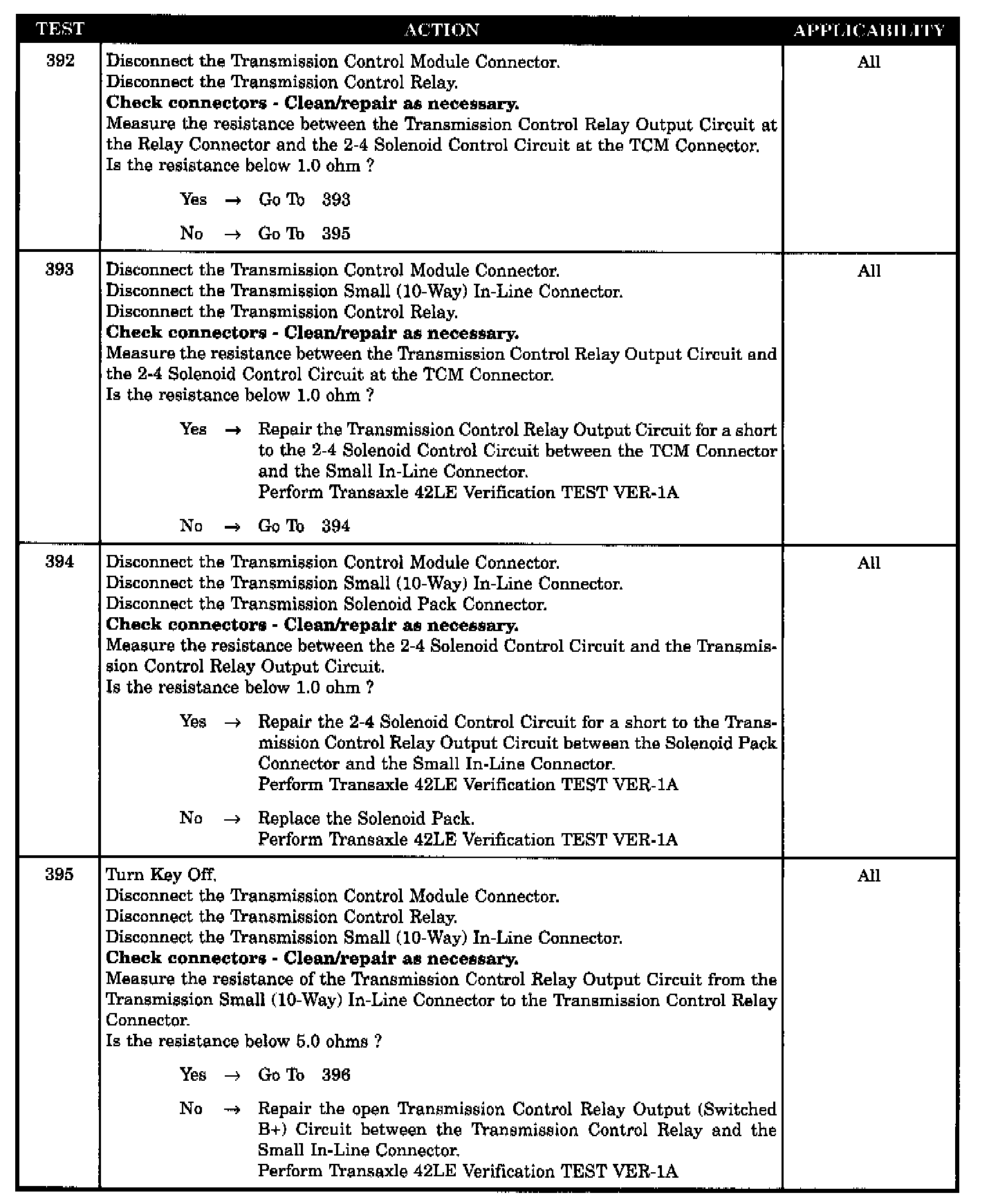

Test 392-395:

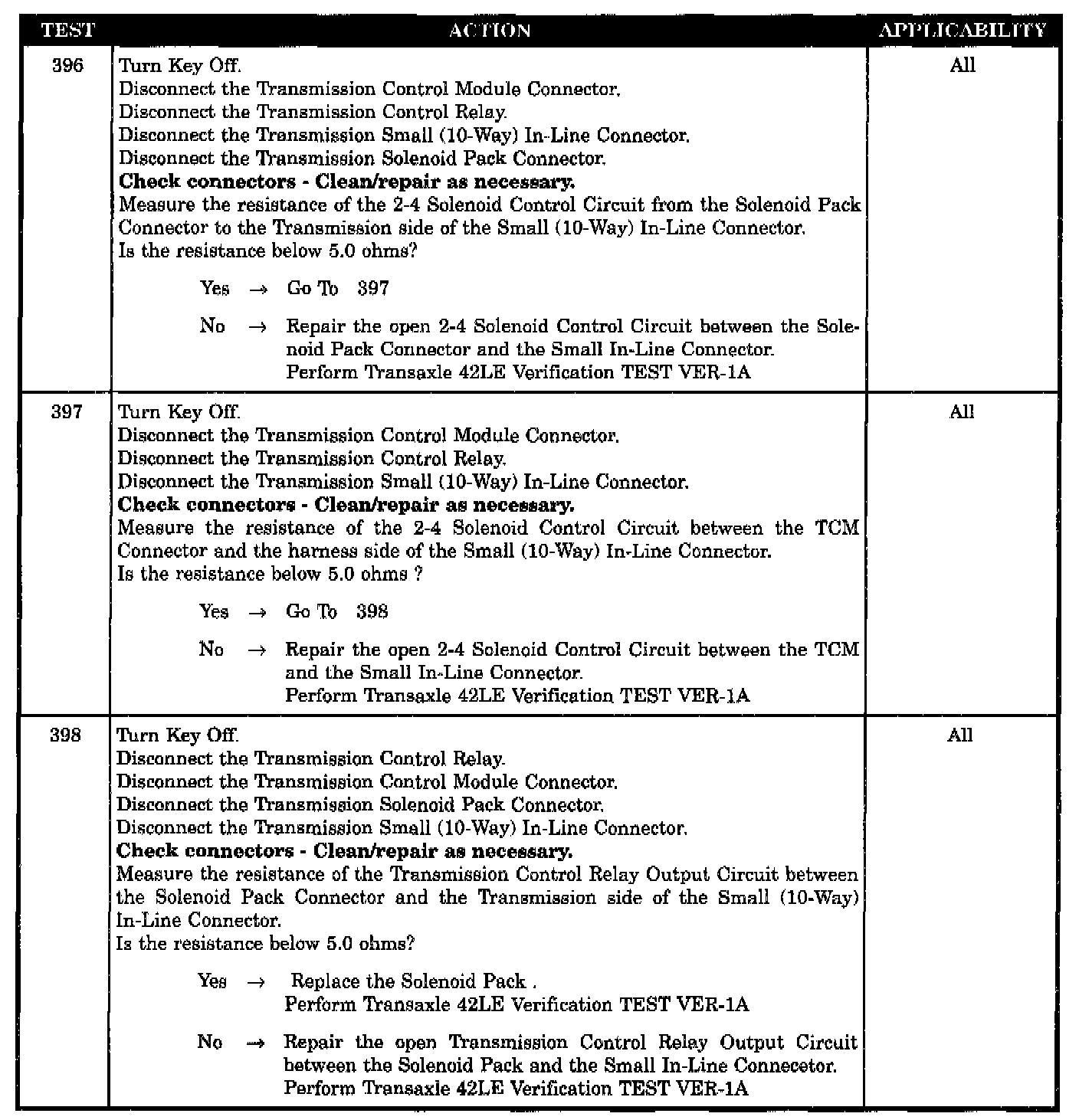

Test 396-398:

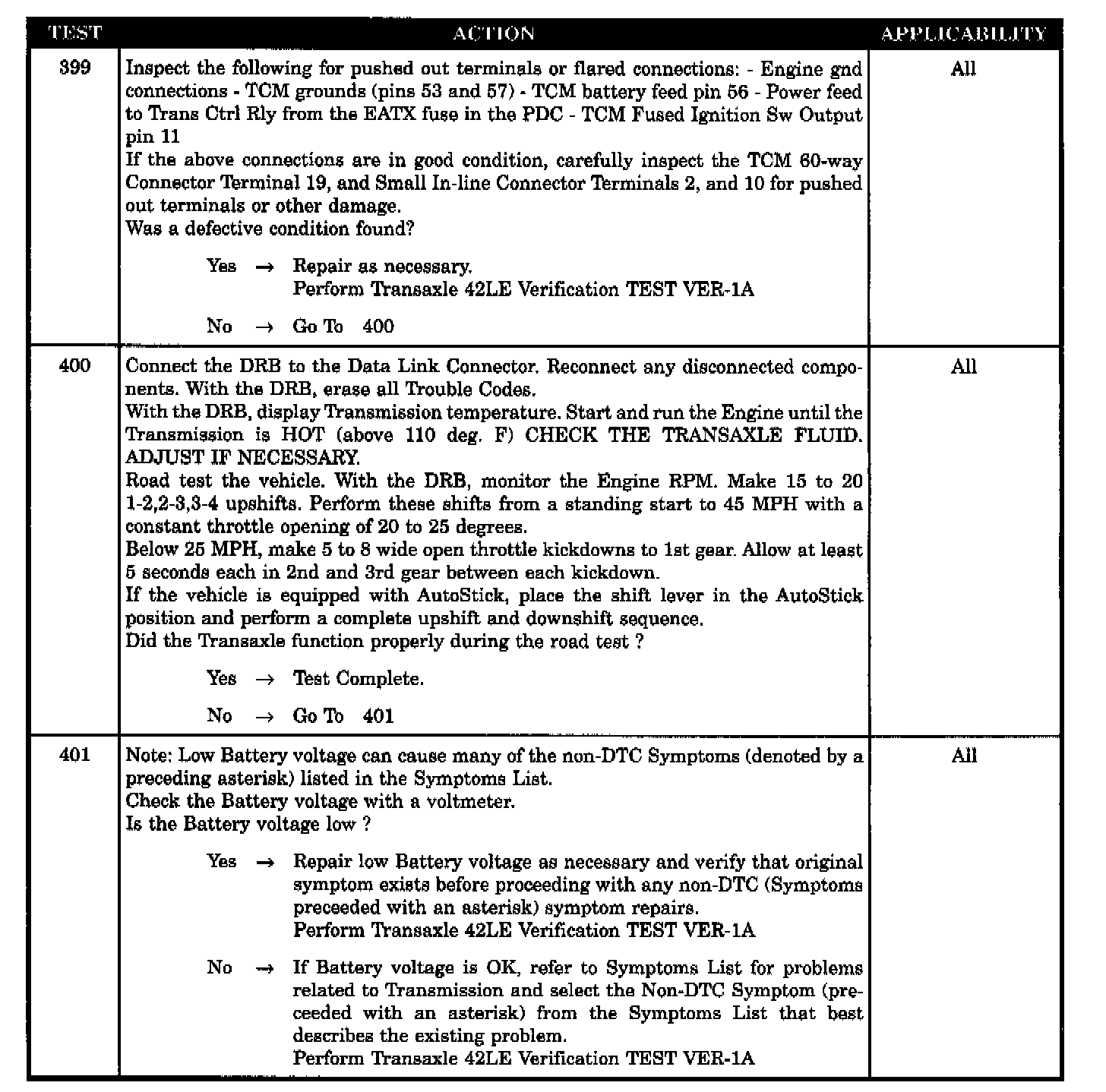

Test 399-401:

SYMPTOM:
P0755-2-4 SOLENOID CIRCUIT

When Monitored and Set Condition:
P0755-2-4 SOLENOID CIRCUIT
When Monitored: Ignition key is turned from off or crank position to run, then every 10 secs. thereafter, or when speed ratio or pressure sw error fault is detected. All 4 solenoids (sol) are tested for continuity during vehicle operation. For sol currently energize,
Set Condition: power is momentarily interrupted, then energized. For sol not currently energized sol is momentarily energized then deenergized. Under both situations, if an inductive spike is not sensed by TCM during the continuity check, it is retested again.

POSSIBLE CAUSES
- CHECKING SYMPTOMS AND POSSIBLE CAUSES
- LOW BATTERY VOLTAGE CAUSING SYMPTOM
- TCM CONNECTOR PIN 57 TO GROUND OPEN
- TCM PIN 53 TO GROUND OPEN
- TCR OUTPUT CIRCUIT SHORT TO 2-4 SOLENOID CIRCUIT
- TCM OPEN GRND DEFAULT
- TCR OUTPUT (SWITCHED B+) OPEN AT INLINE CONNECTOR
- TCR OUTPUT OPEN BETWEEN SOLENOID PACK AND INLINE CONNECTORS
- 2-4 SOLENOID SHORTED IN SOLENOID PACK
- DEFECTIVE SOLENOID PACK
- TRANSMISSION SOLENOID PACK OPEN (2-4 SOL)
- 2-4 SOLENOID CONTROL CIRCUIT SHORT TO GROUND
- 2-4 SOLENOID CONTROL CIRCUIT SHORT TO TCR OUTPUT CIRCUIT AT INLINE
- 2-4 SOLENOID CONTROL GROUND SHORT AT INLINE CONNECTOR
- SOLENOID CONTROL CIRCUIT TO SOLENOID CONNECTOR OPEN
- SOLENOID CNTRL CKT OPEN BTWN TCM AND INLINE CONNECTOR
- INTERMITTENT CODE P0755
- LOW OR DEFECTIVE BATTERY
