P0732

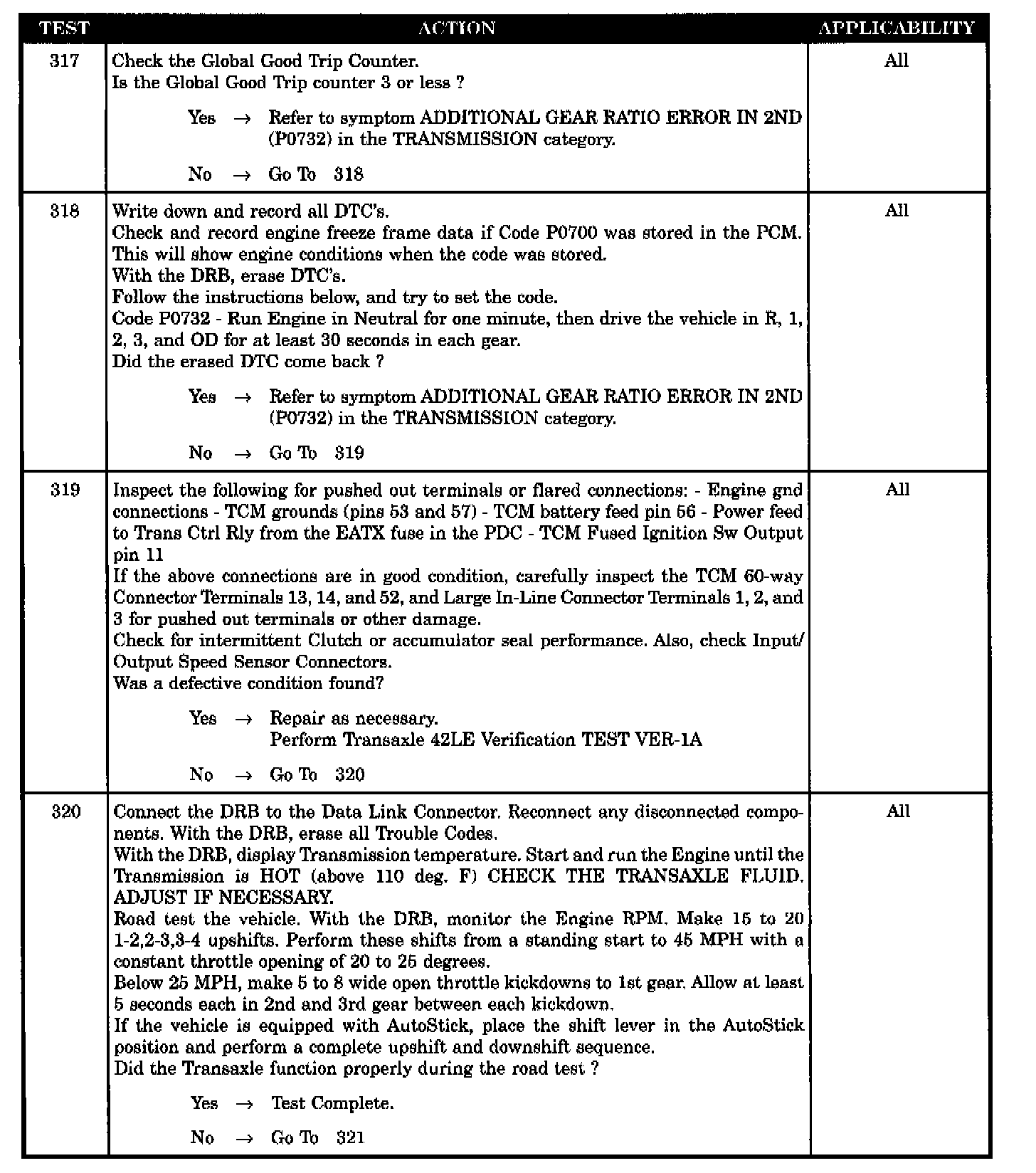

Test 317-320:

Test 321:

SYMPTOM:
P0732-GEAR RATIO ERROR IN 2ND

When Monitored and Set Condition:
P0732-GEAR RATIO ERROR IN 2ND
When Monitored: The transmission gear/speed ratio is monitored continuously while the transmission is in gear. This code is set if the gear/speed ratio is not correct for a period of time.
Set Condition: A hard code is set within 3 seconds, an intermittent code sets with 3 seconds, an intermittent code sets within 15 seconds. Codes P0731, P0732, P0733, P0734 set if the ratio of the input RPM (Nt) to output RPM (No) does not match the given gear ratio.

POSSIBLE CAUSES
- CHECKING SYMPTOMS AND POSSIBLE CAUSES
- LOW BATTERY VOLTAGE CAUSING SYMPTOM INTERMITTENT CODE P0732

Test 121-124:

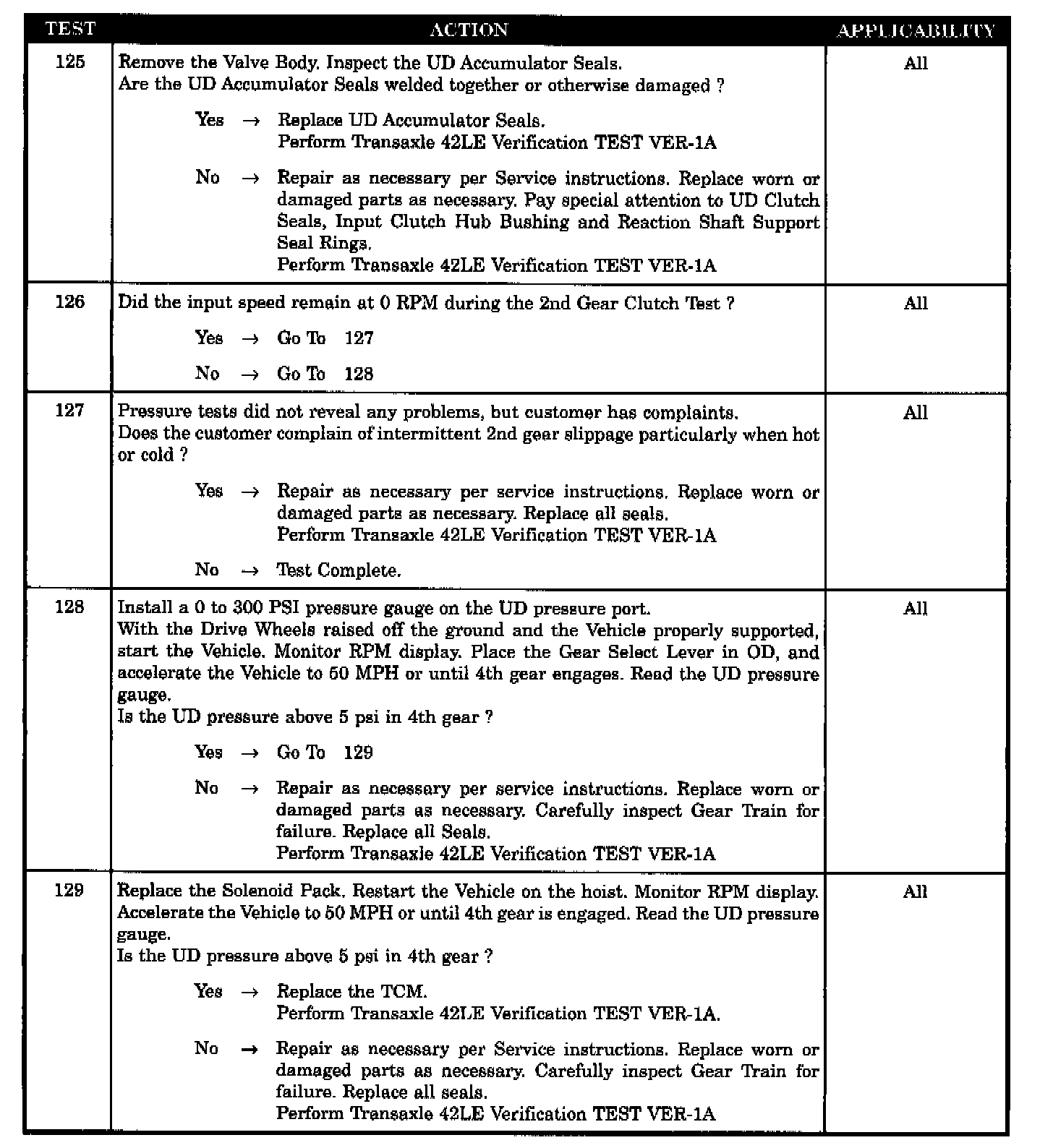

Test 125-129:

SYMPTOM:
ADDITIONAL GEAR RATIO ERROR IN 2ND (P0732)

POSSIBLE CAUSES
- CUST COMPLAINT INTERMITTENT 2ND GEAR SLIPPAGE
- UD AND 2-4 CVI'S OUT OF SPEC
- UD AND 2-4 PRESSURE LESS THAN 105 PSI
- 2-4 ACCUM SEALS WELDED TOGETHER
- UD ACCUMULATOR SEALS WELDED TOGETHER
- TRANSAXLE SEALS ARE DEFECTIVE
- TRANSAXLE SEALS ARE DEFECTIVE
- UD PRESSURE < 5 PSI IN 4TH GEAR
- TCM FAULT CAUSES LOW UD PRESSURE
- TRANSAXLE DEFECT
