P0720

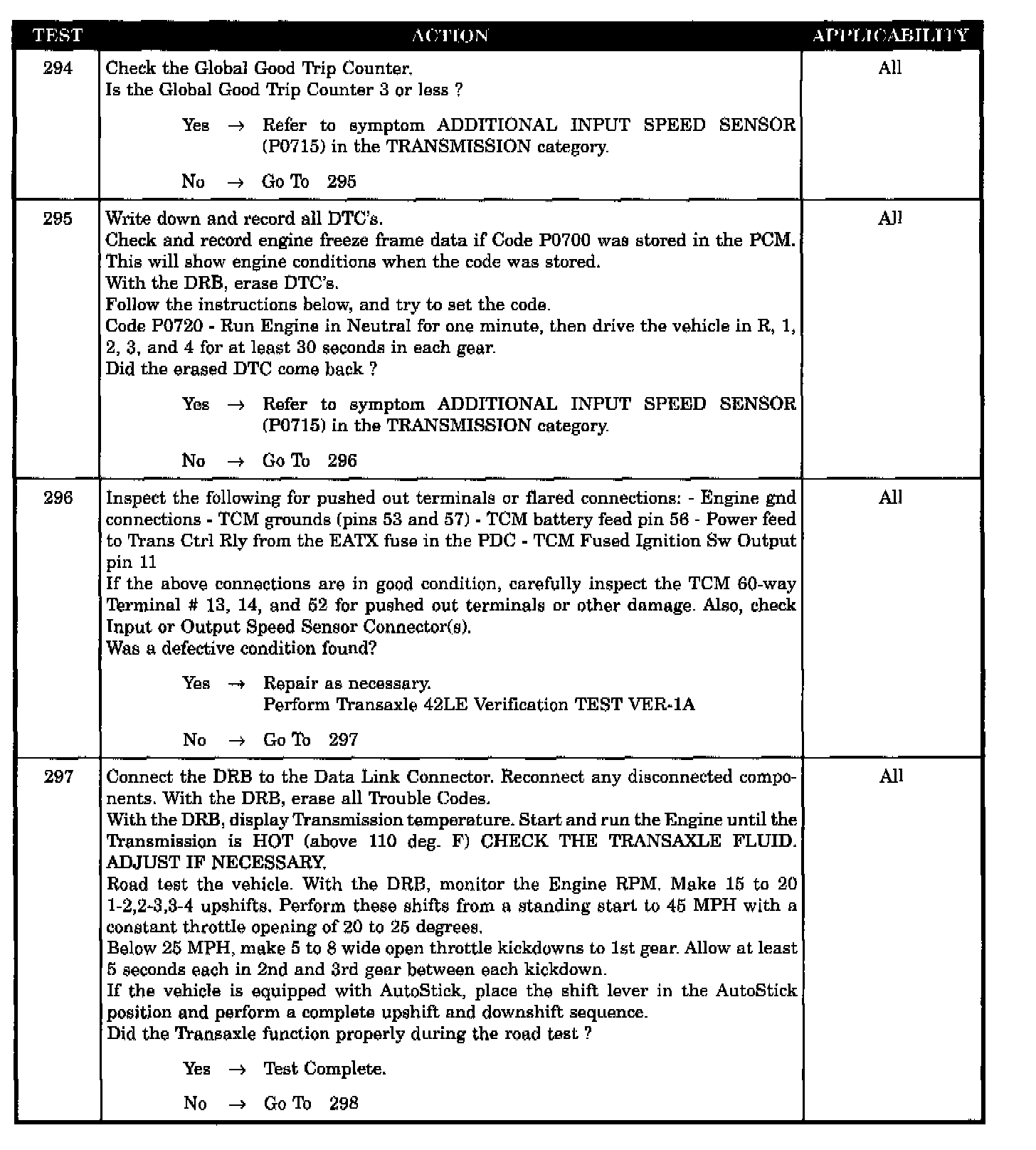

Test 294-297:

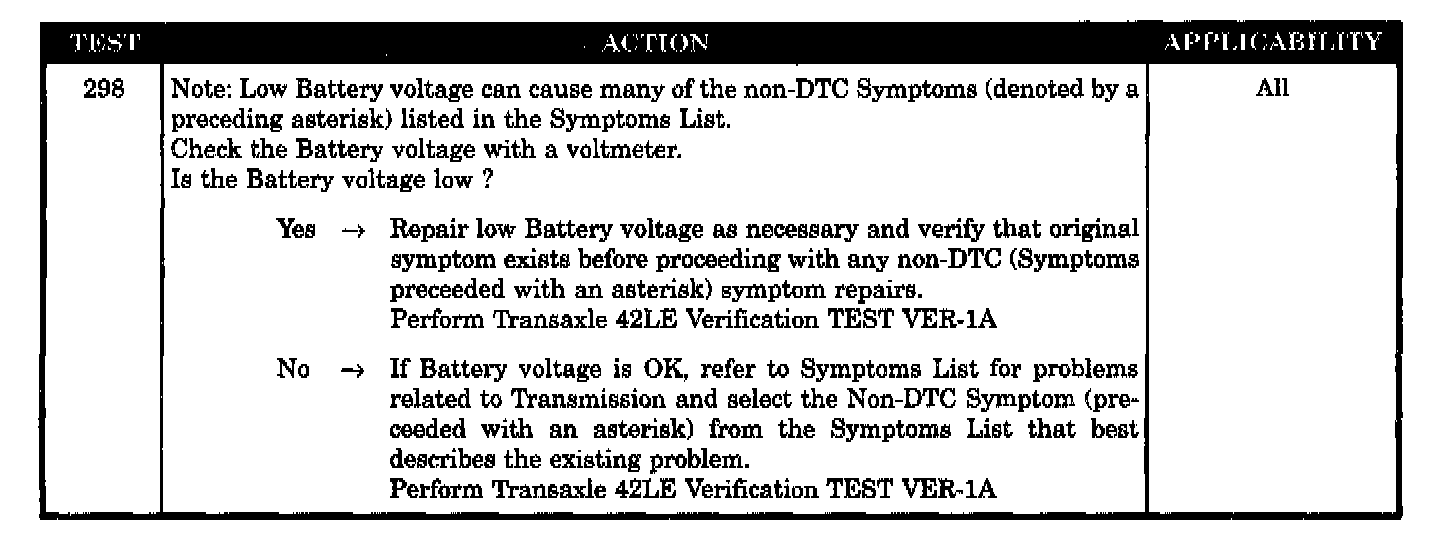

Test 298:

SYMPTOM:
P0720-OUTPUT SENSOR ERROR

When Monitored and Set Condition:
P0720-OUTPUT SENSOR ERROR
When Monitored: The transmission gear/speed ratio is monitored continuously while the transmission is in gear. This code is set if the gear/speed ratio is not correct for a period of time.
Set Condition: A hard code is set within 3 seconds, an intermittent code sets with 3 seconds, an intermittent code sets within 15 seconds. Code P0720 sets if there is an excessive change in input RPM in any gear.

POSSIBLE CAUSES
- CHECKING SYMPTOMS AND POSSIBLE CAUSES
- LOW BATTERY VOLTAGE CAUSING SYMPTOM
- INTERMITTENT CODE P0720

Test 144-148:

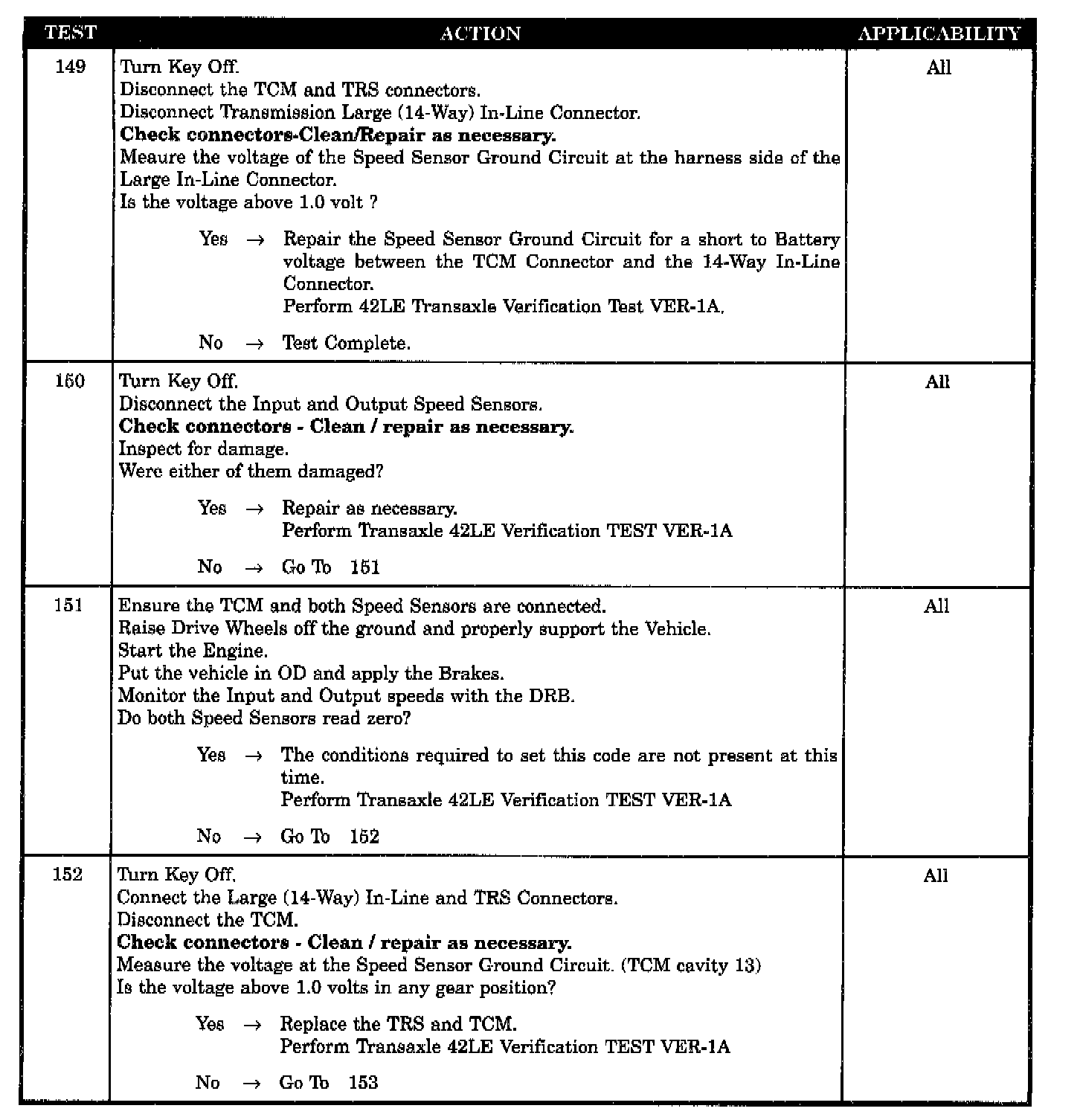

Test 149-152:

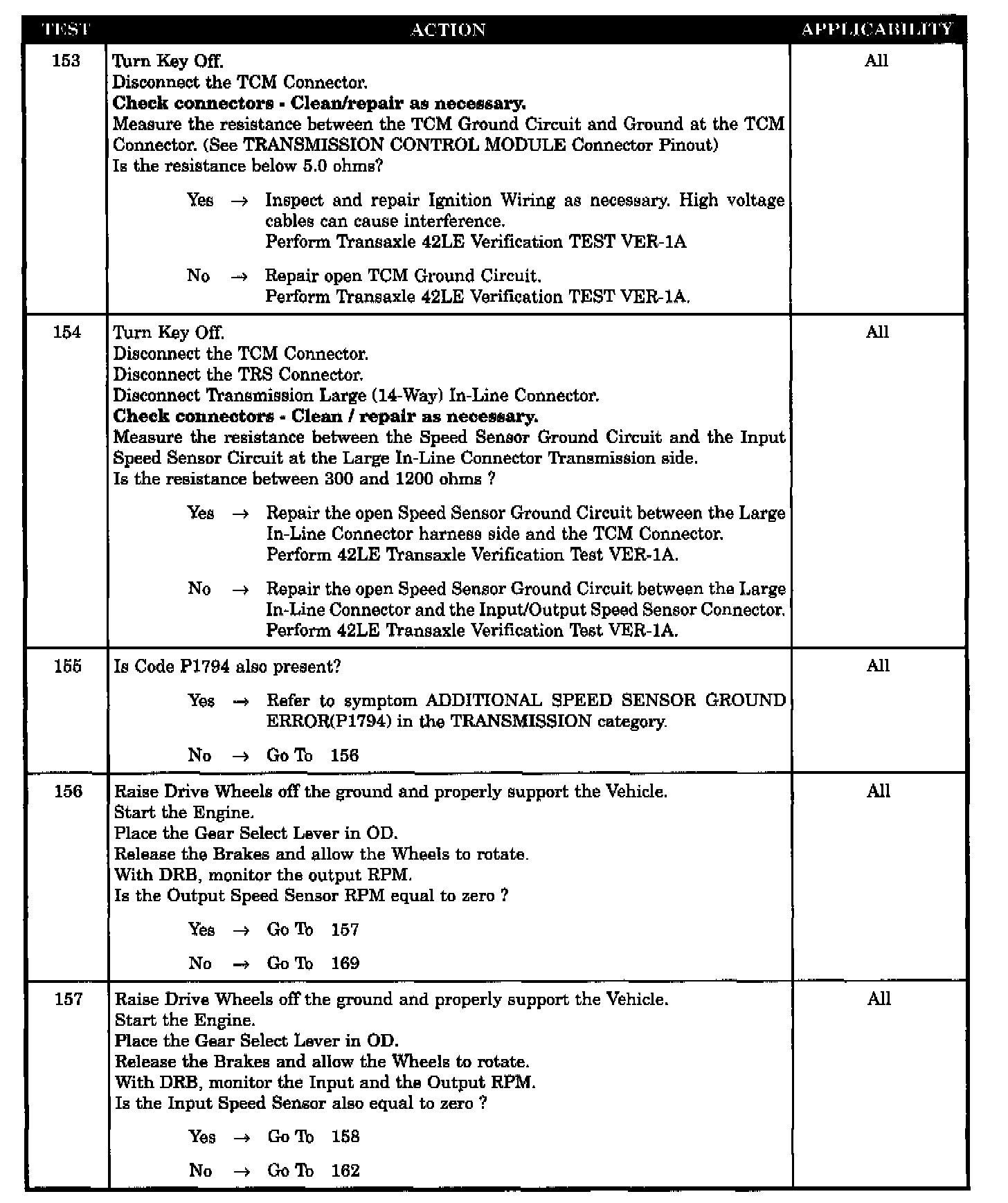

Test 153-157:

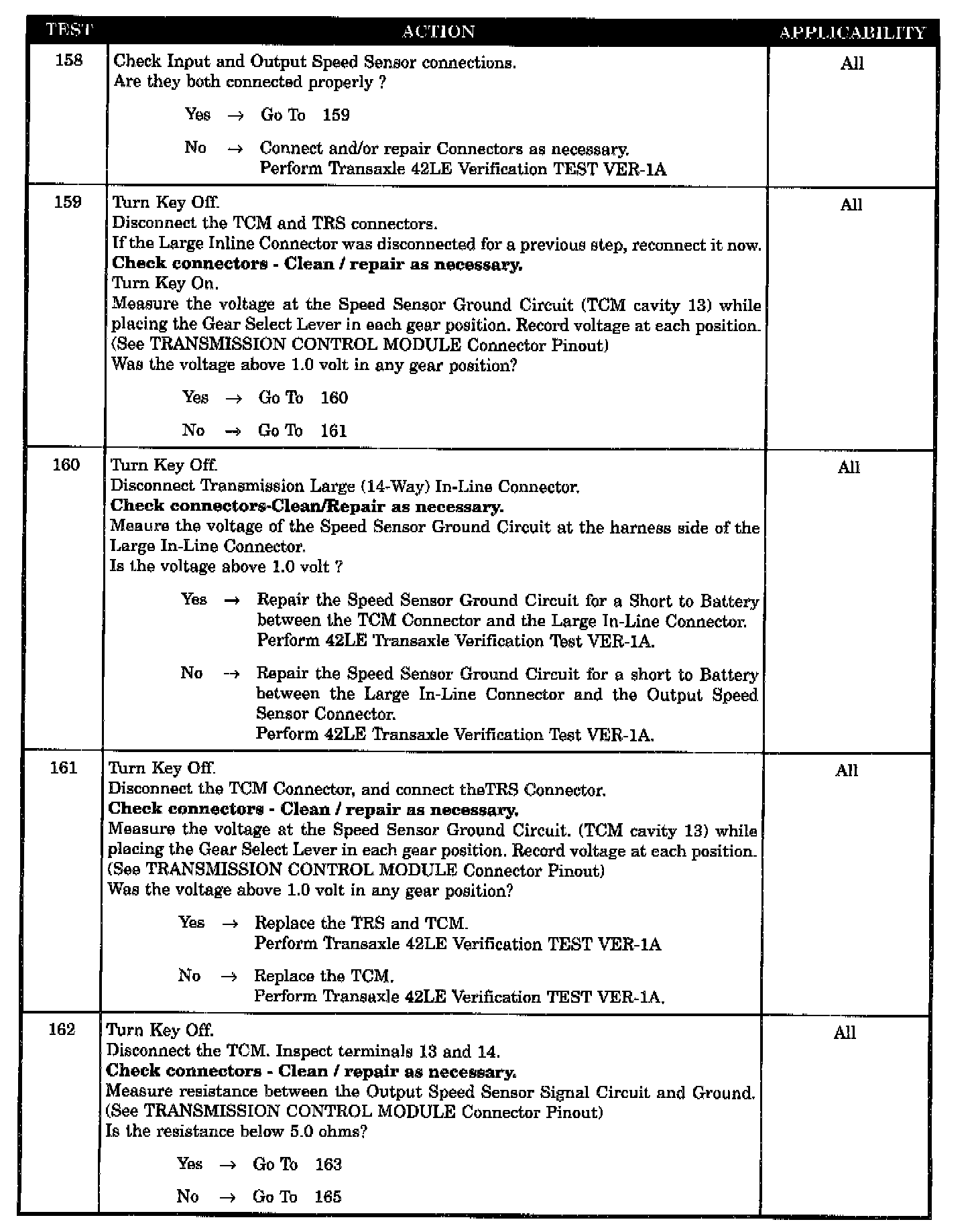

Test 158-162:

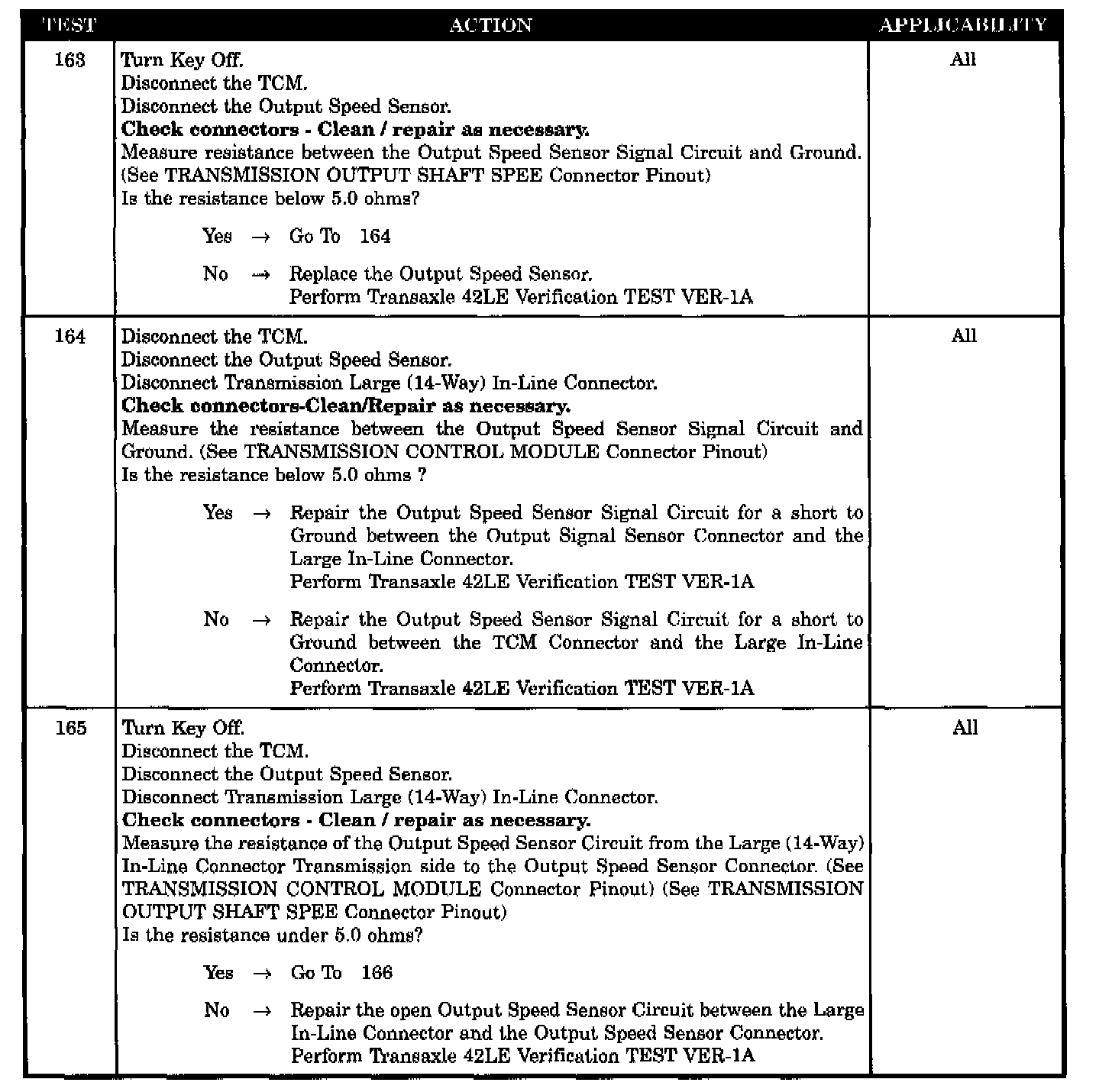

Test 163-165:

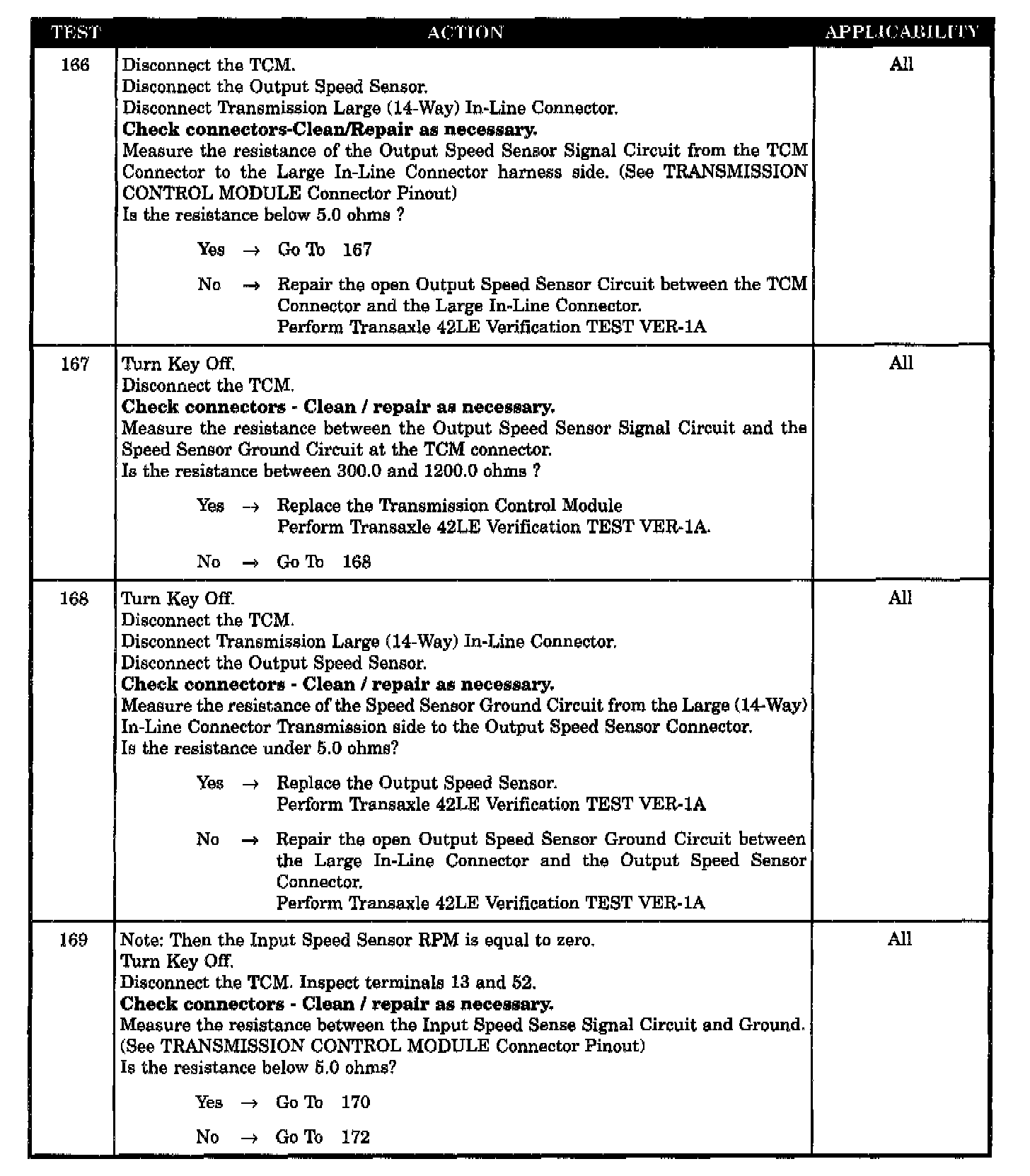

Test 166-169:

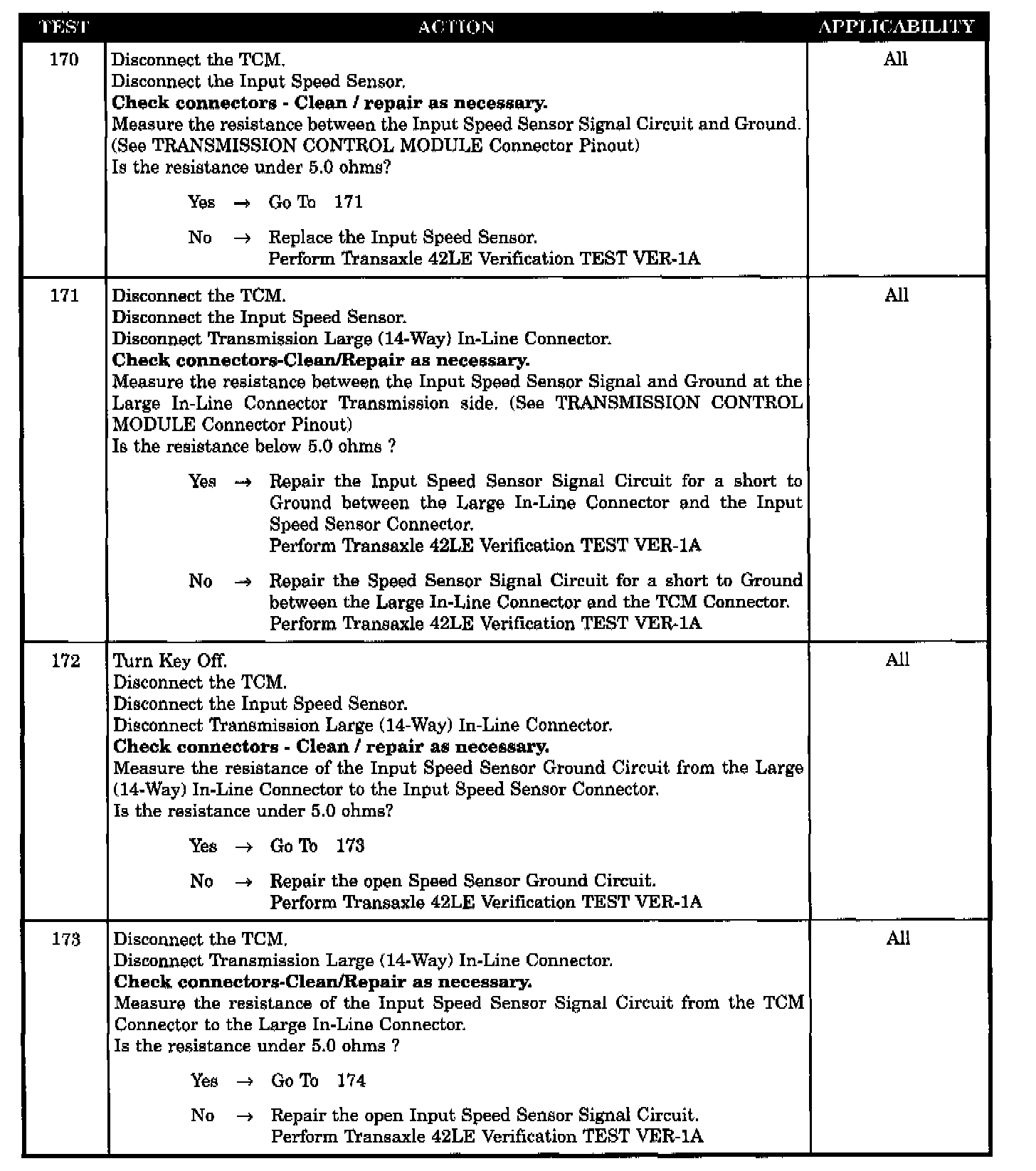

Test 170-173:

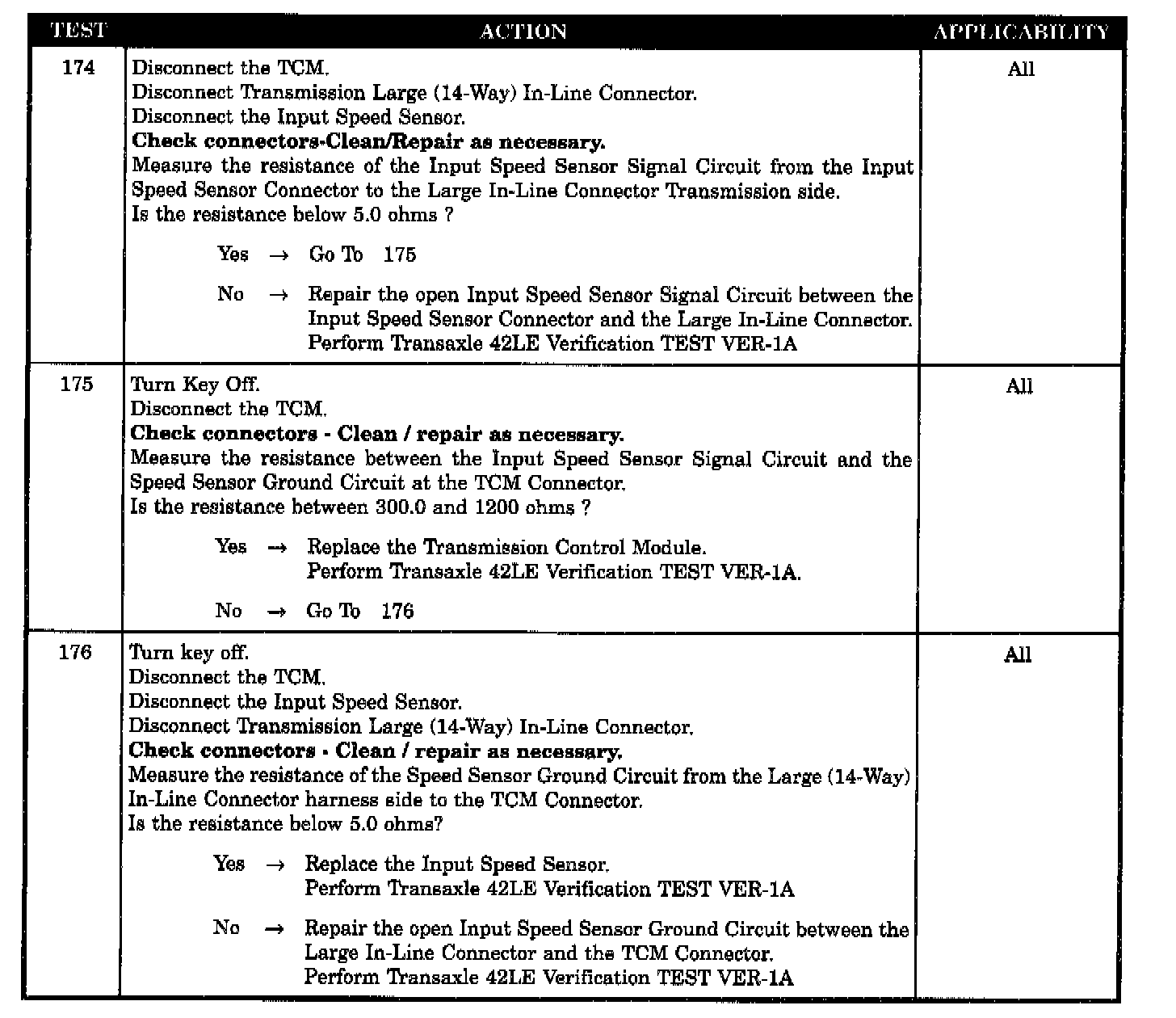

Test 174-176:

SYMPTOM LIST:
ADDITIONAL OUTPUT SPEED SENSOR (P0720)

TEST NOTE: All symptoms listed above are diagnosed using the same tests. The title for the tests will be ADDITIONAL INPUT SPEED SENSOR (P0715).

POSSIBLE CAUSES
- INPUT SPEED SENSOR GROUND CIRCUIT OPEN
- OUTPUT SPEED SENSOR GROUND CIRCUIT OPEN
- IGNITION WIRING DAMAGED
- BOTH INPUT AND OUTPUT SPEEDS=0 IN OD WITH BRAKES ON
- OUTPUT SPEED SENSOR SHORT TO GROUND AT TCM
- OUTPUT SPEED SENSOR SHORT TO GROUND AT TCM CONNECTOR
- OUTPUT SPEED SENSOR SIGNAL CIRCUIT SHORTED TO GND
- TRS SPEED SENSOR GND SHORTED TO BATTERY
- TRS SPEED SENSOR GROUND SHORTED TO BATTERY(INPUT)
- OUTPUT SPEED SENSOR CIRCUIT OPEN
- OUTPUT SPEED SENSOR CIRCUIT OPEN AT INLINE CONNECTOR
- INPUT SPEED SENSOR SHORT TO GROUND AT TCM/INLINE CONNECTOR
- INPUT SPEED SENSOR SHORT TO GROUND AT INLINE CONNECTOR
- INPUT SPEED SENSOR SIGNAL CIRCUIT OPEN
- INPUT SPEED SENSOR SIGNAL CIRCUIT SHORTED GND WITH ISS DISCONNECTED
- INPUT SPEED SENSOR SIGNAL OPEN AT INLINE CONNECTOR
- INPUT SPEED SENSOR SIGNAL OPEN BETWEEN INLINE AND SENSOR
- OUTPUT SPEED SENSOR SHORTED TO GND
- INPUT SPEED SENSOR RESISTANCE OUT OF TOLERANCE
- INPUT/OUTPUT SPEED SENSOR DAMAGED
- INPUT/OUTPUT SPEED SENSOR DISCONNECTED
- SENSOR GROUND CIRCUIT OPEN AT INLINE CONNECTOR
- SENSOR GROUND CIRCUIT OPEN AT INPUT/OUTPUT SPEED SENSOR CONNECTOR
- SPEED SENSOR GROUND CIRCUIT SHORT TO BATTERY AT INLINE CONNECTOR
- SPEED SENSE GROUND CIRCUIT SHORT TO BATTERY AT INLINE CONNECTOR
- SPEED SENSOR GND CKT SHORT TO BATTERY AT OUTPUT SPEED SENSOR CO
- TCM SPEED SENSOR GND SHORTED TO BATTERY
- TCM OUTPUT SPEED SENSE FAULTY
- TCM GROUND CIRCUIT OPEN
