FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Chrysler
>>
1999
>>
Concorde V6-2.7L VIN R
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Windshield Wiper and Washer System
>>

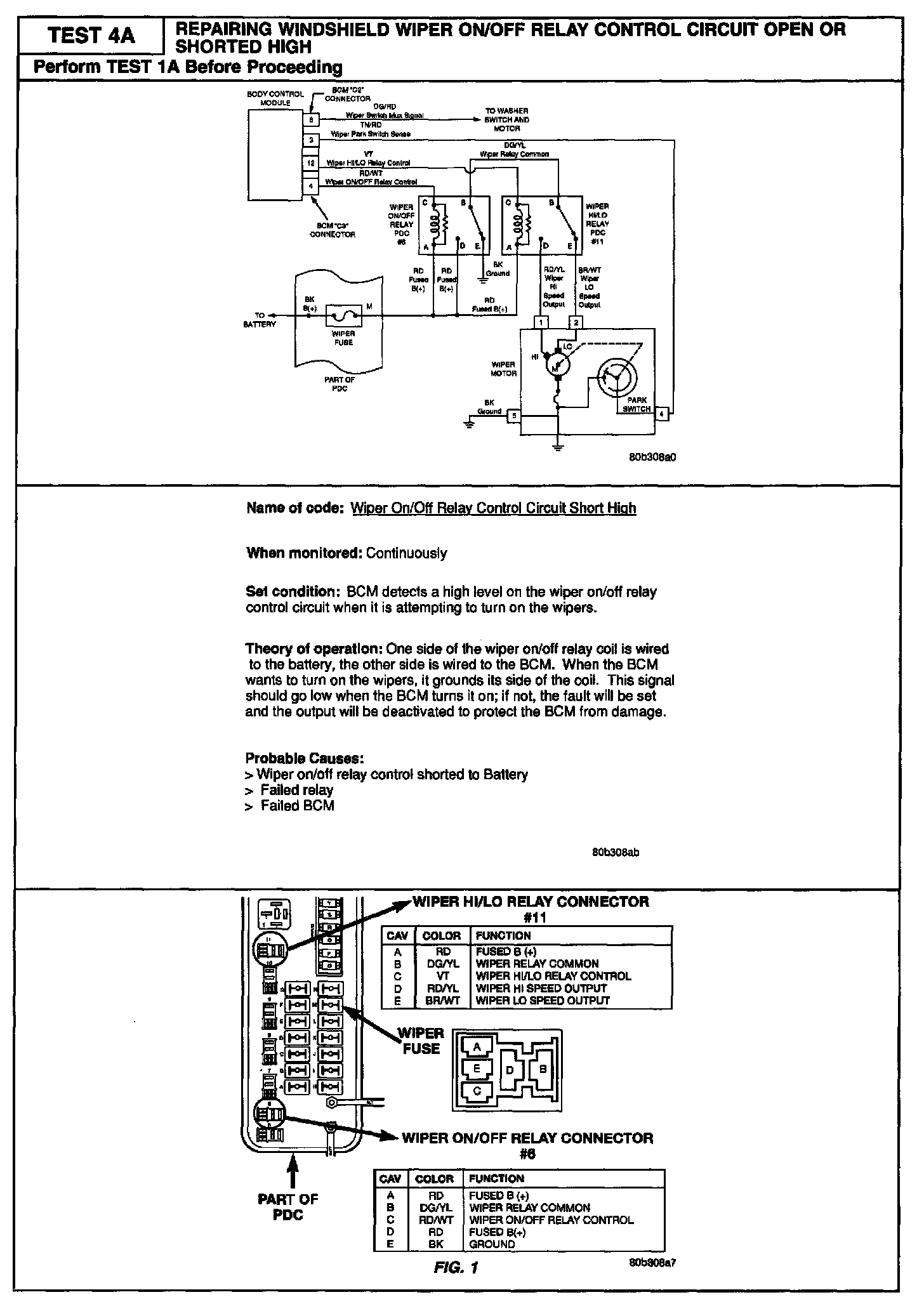

4A Wiper On/Off Relay Control Circuit Open/Shorted High
4A Wiper On/Off Relay Control Circuit Open/Shorted High
Related Images:

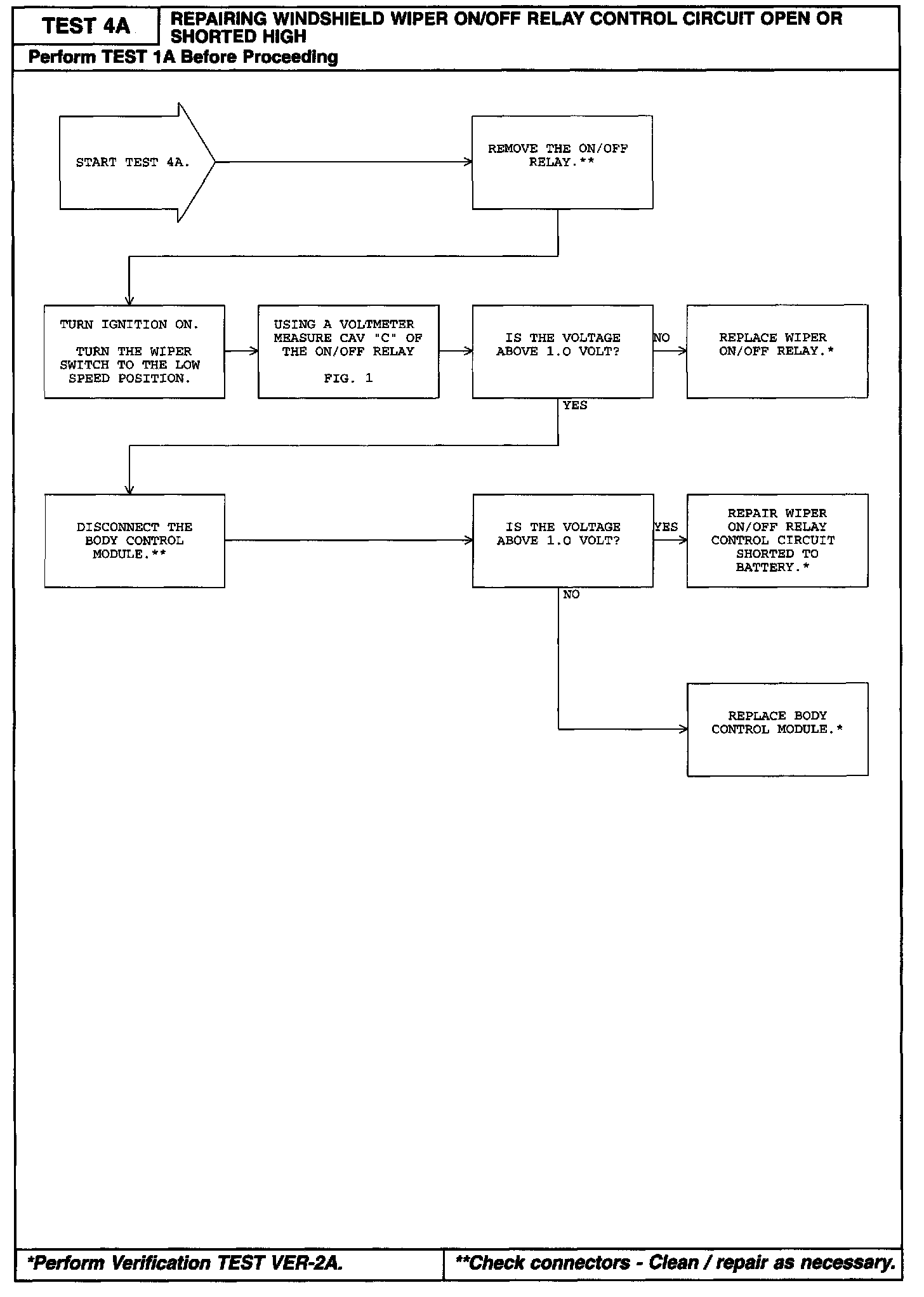

Diagnostic Chart:
