3A ATC Module No Response or ATC Messages Not Received
3A ATC Module No Response or ATC Messages Not Received
Related Images:

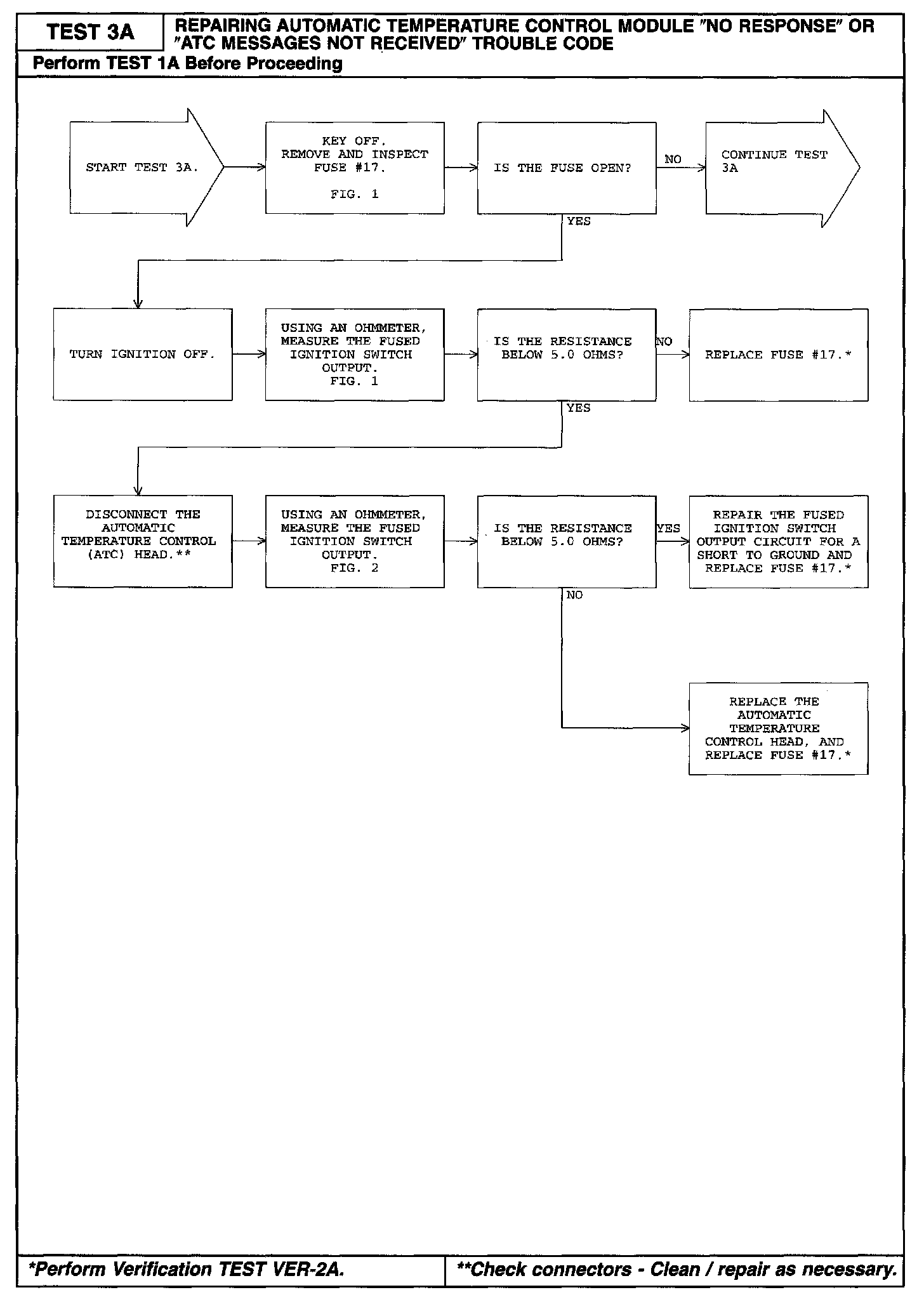

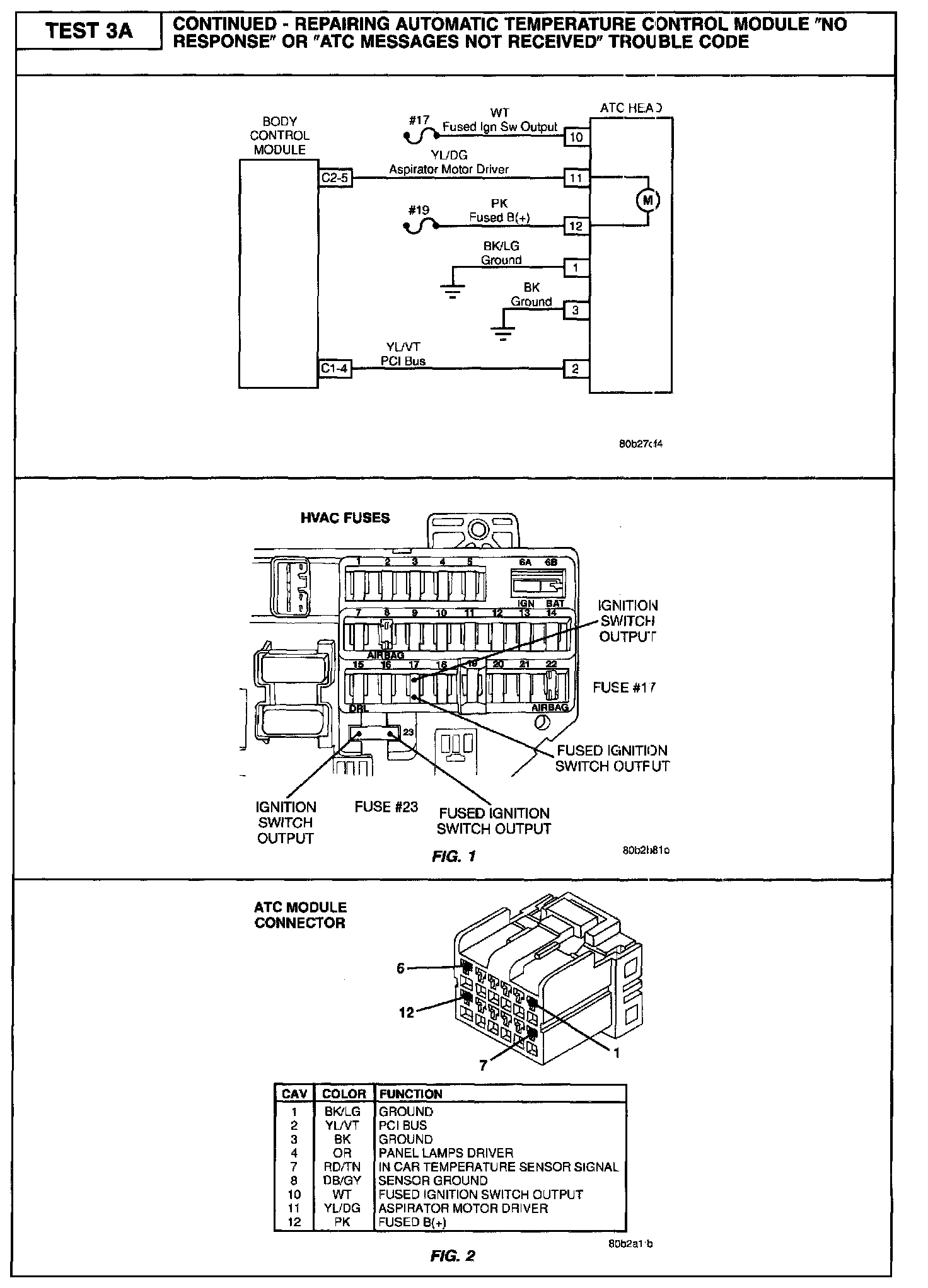

Diagnostic Chart:
Related Images:

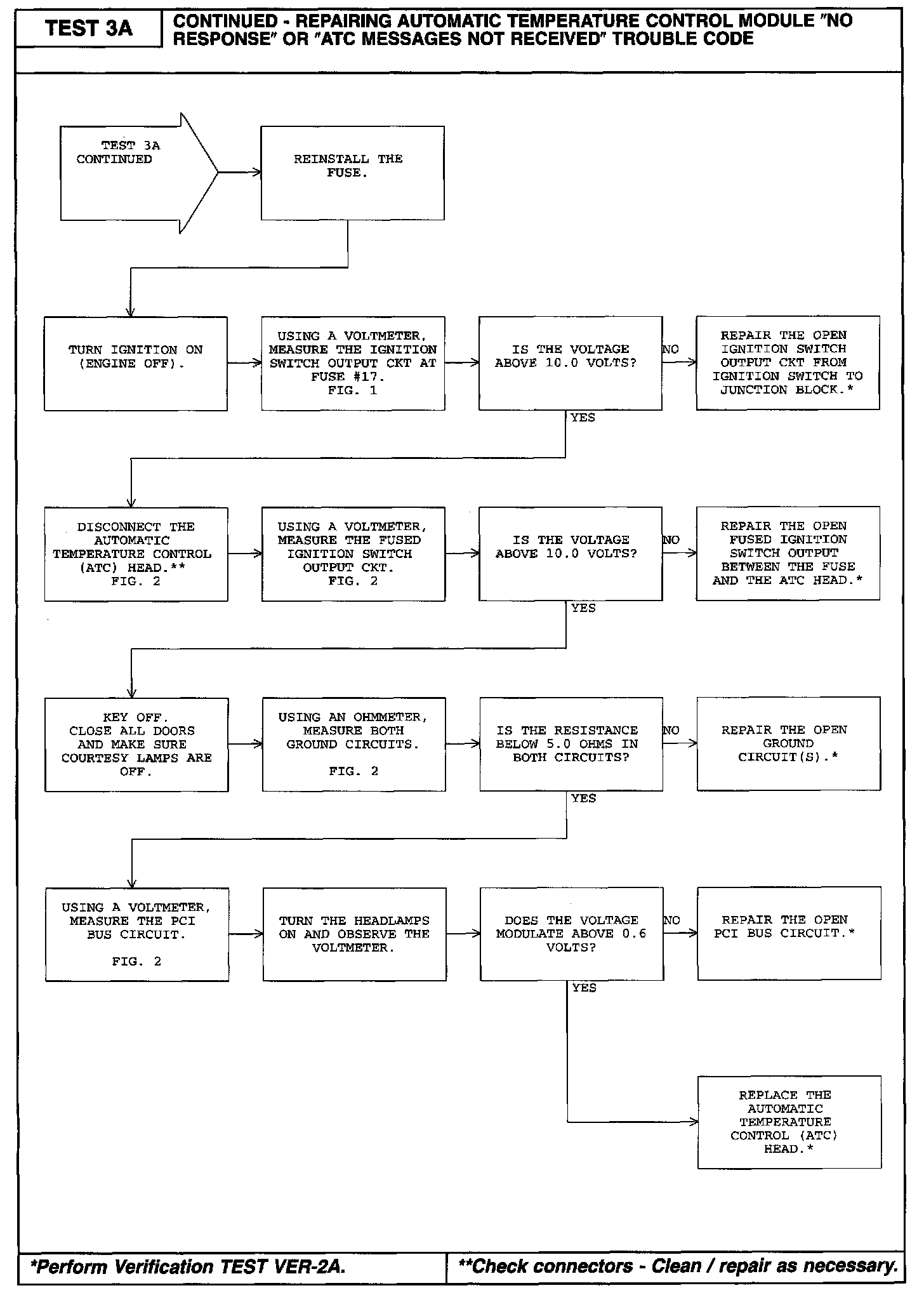

Diagnostic Chart:
