Home >> Chrysler >> 1999 >> Concorde V6-2.7L VIN R >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Vehicle Communication Tests >> 11A Sentry Key Immobilizer Module No Response

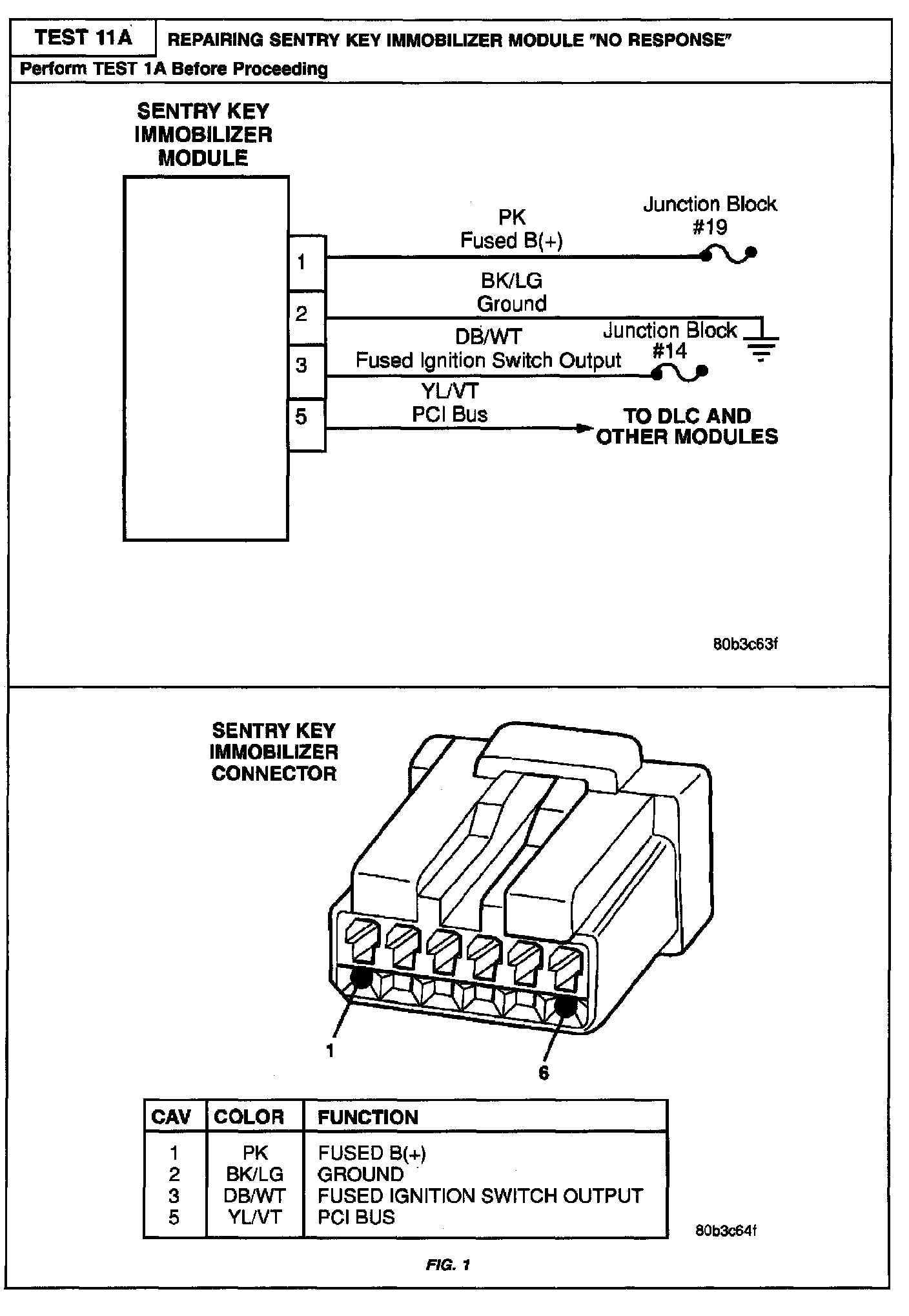

11A Sentry Key Immobilizer Module No Response

Related Images:

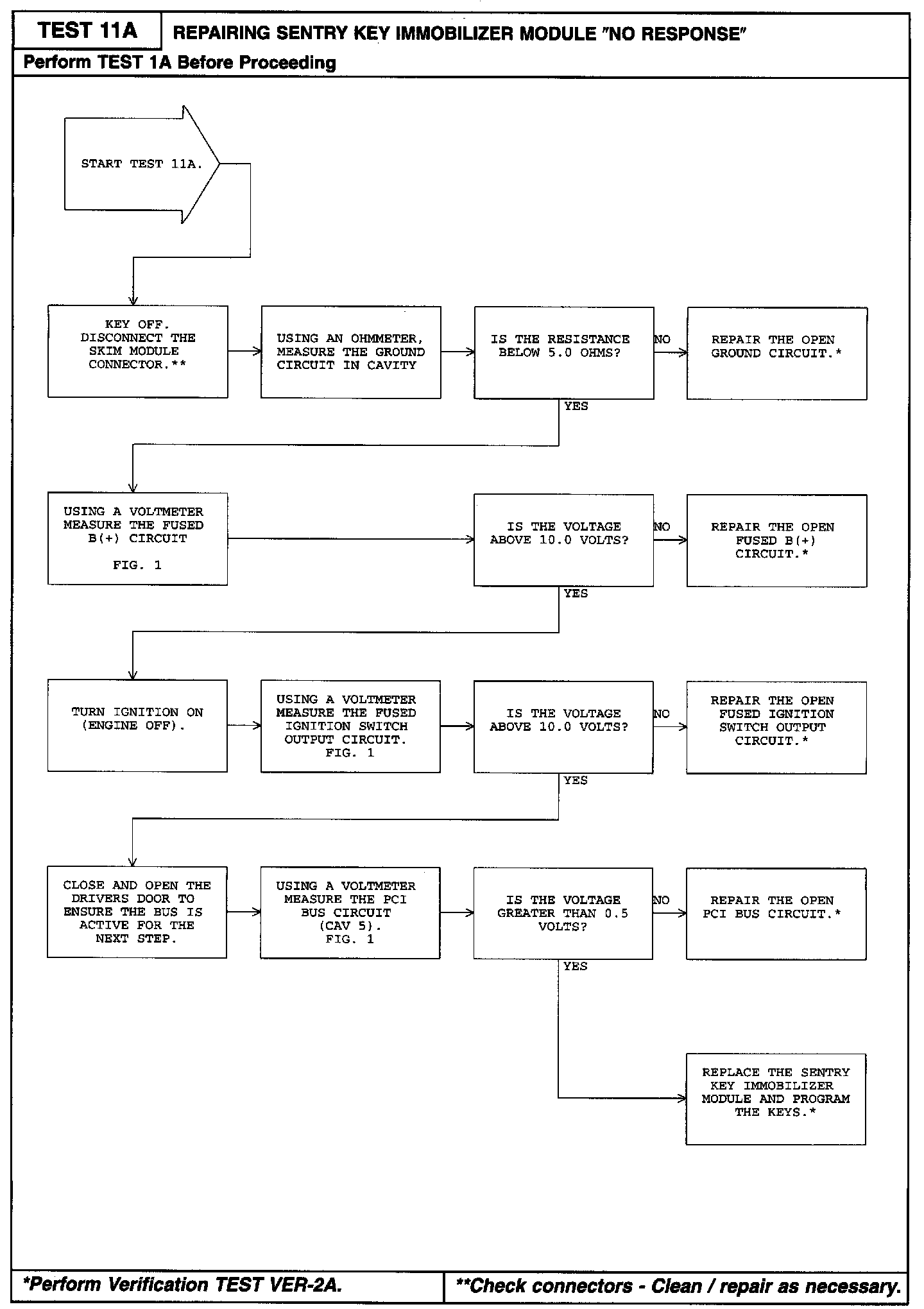

Diagnostic Chart:
