Home >> Chrysler >> 1999 >> Concorde V6-2.7L VIN R >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Speed Control (SC) Tests >> SC-3A Checking Speed Control Resume/Accel Switch

SC-3A Checking Speed Control Resume/Accel Switch

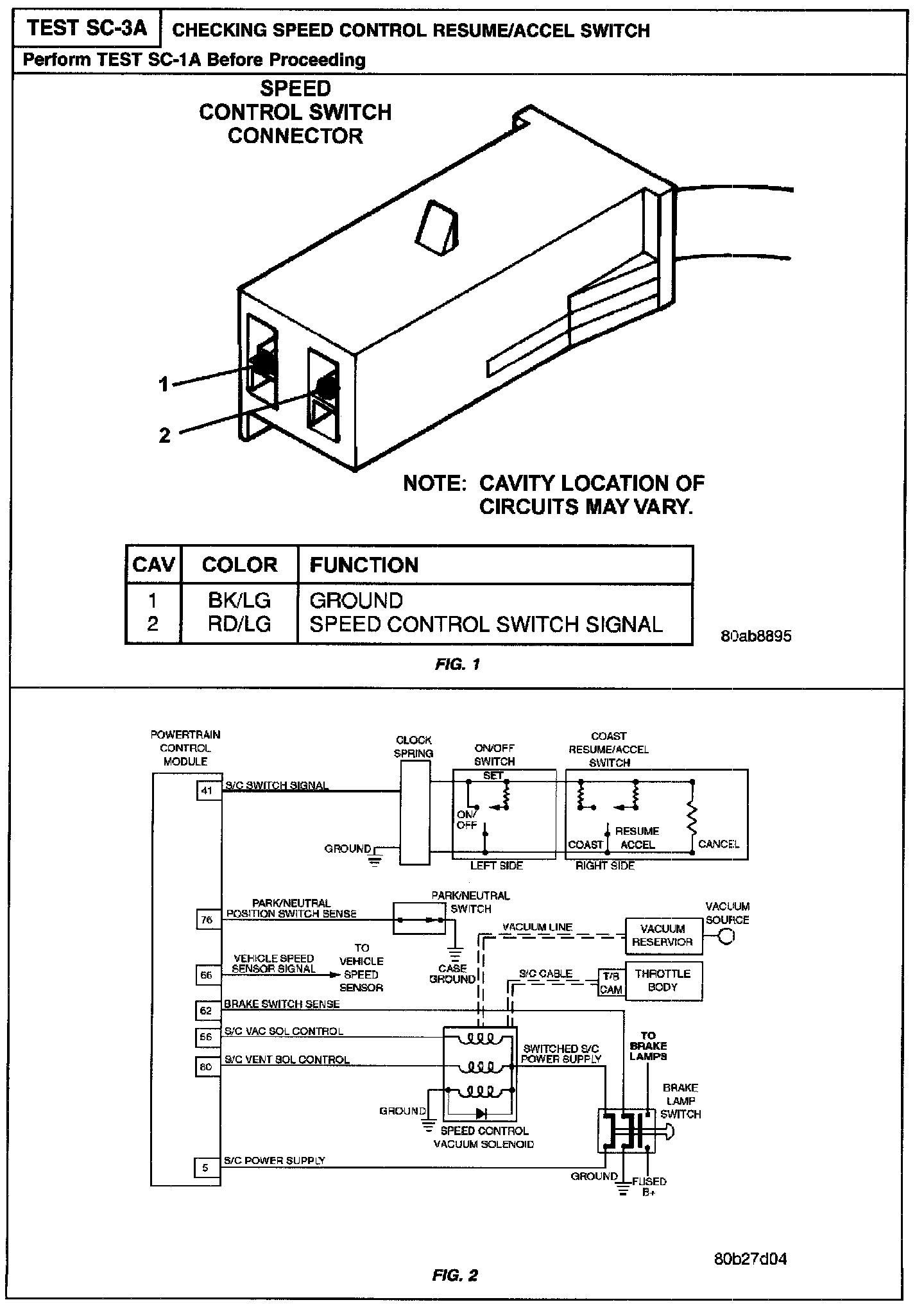

Related Image:

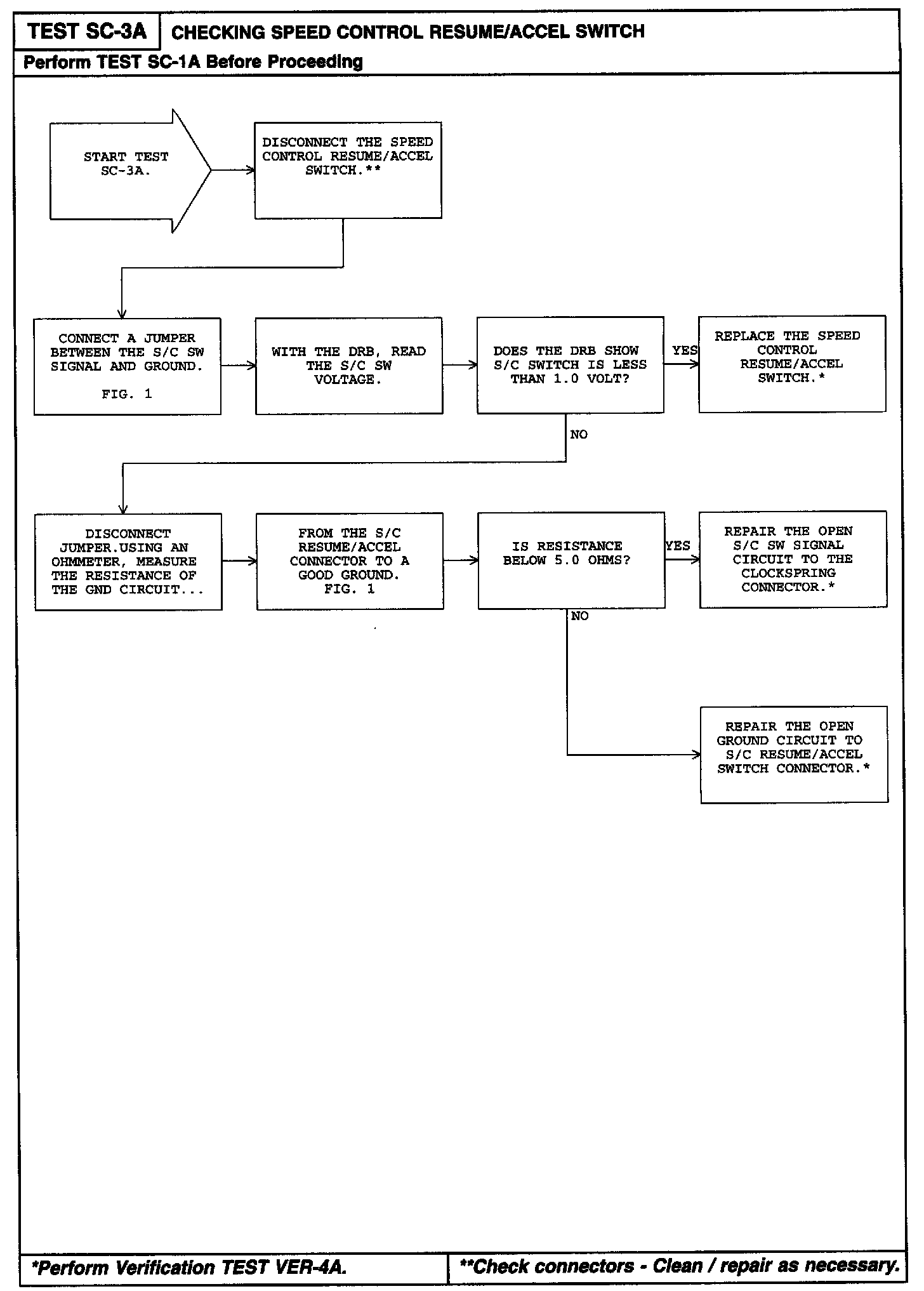

Diagnostic Chart:
