Home >> Chrysler >> 1999 >> Concorde V6-2.7L VIN R >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Smart/Sentry Key Immobilizer System (SKIS) >> 9A Serial Link External Fail When Sending Secret Key to PCM

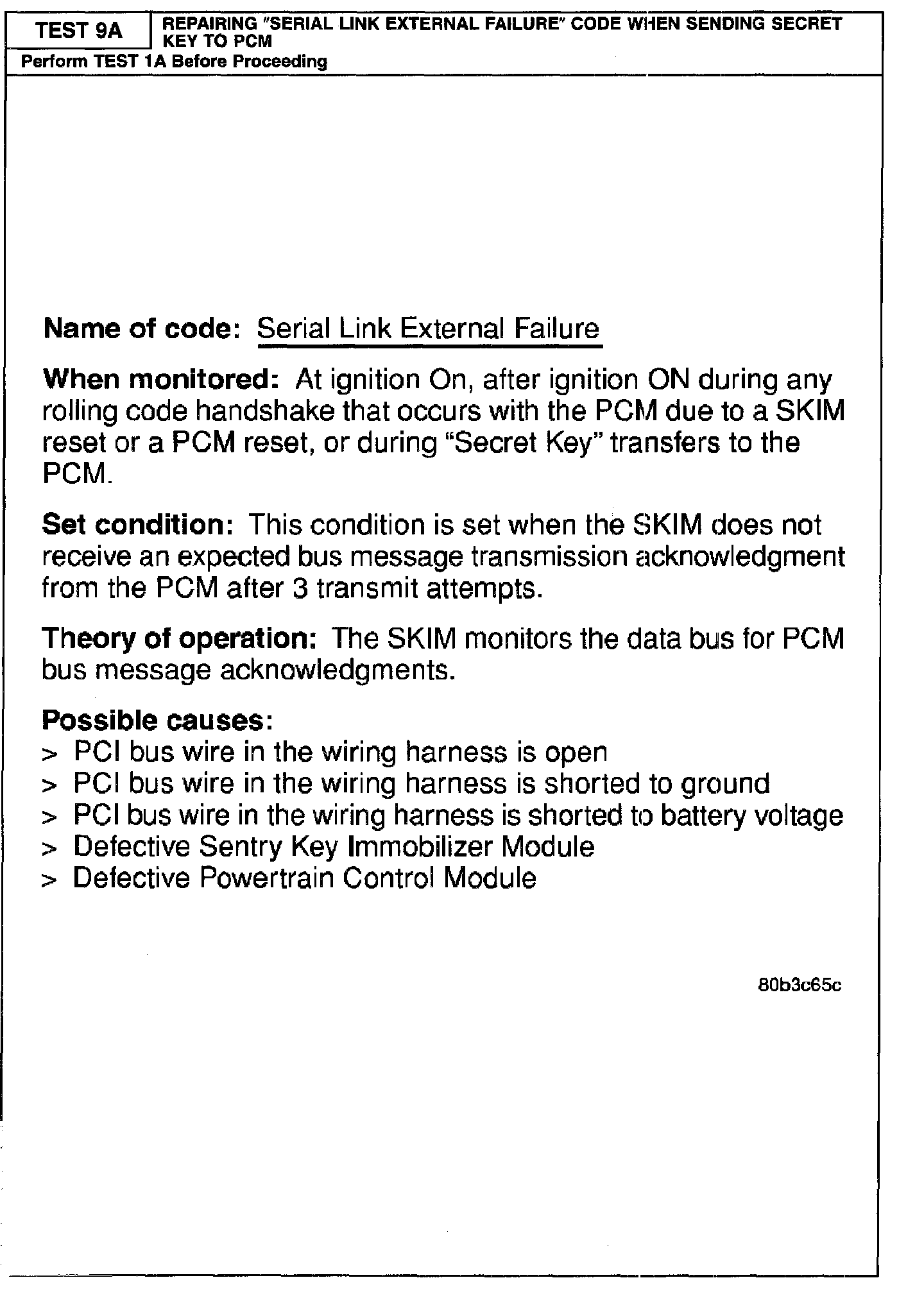

9A Serial Link External Fail When Sending Secret Key to PCM

Related Images:

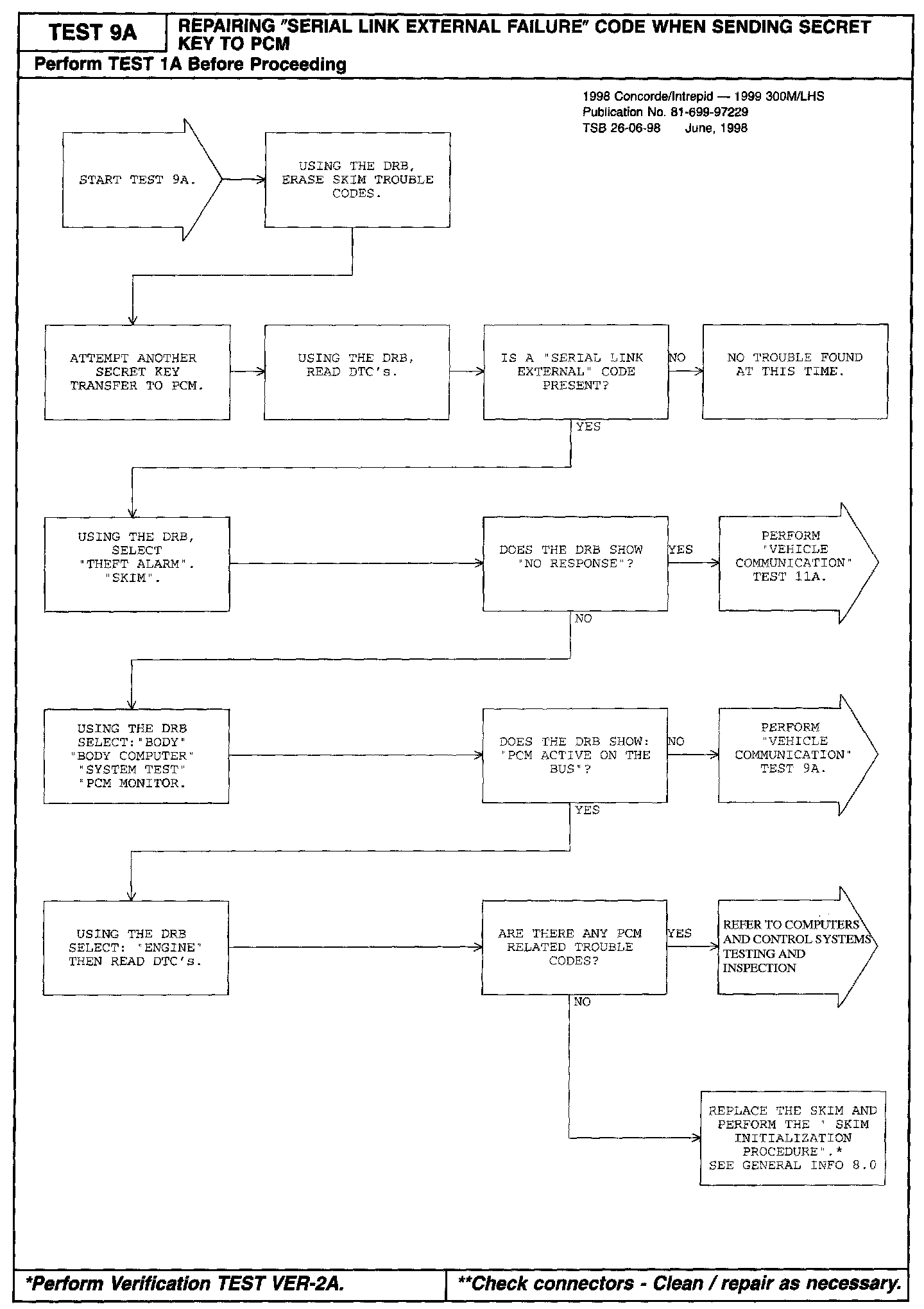

Diagnostic Chart:
