Concorde V6-2.7L VIN R
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Smart/Sentry Key Immobilizer System (SKIS)
>>

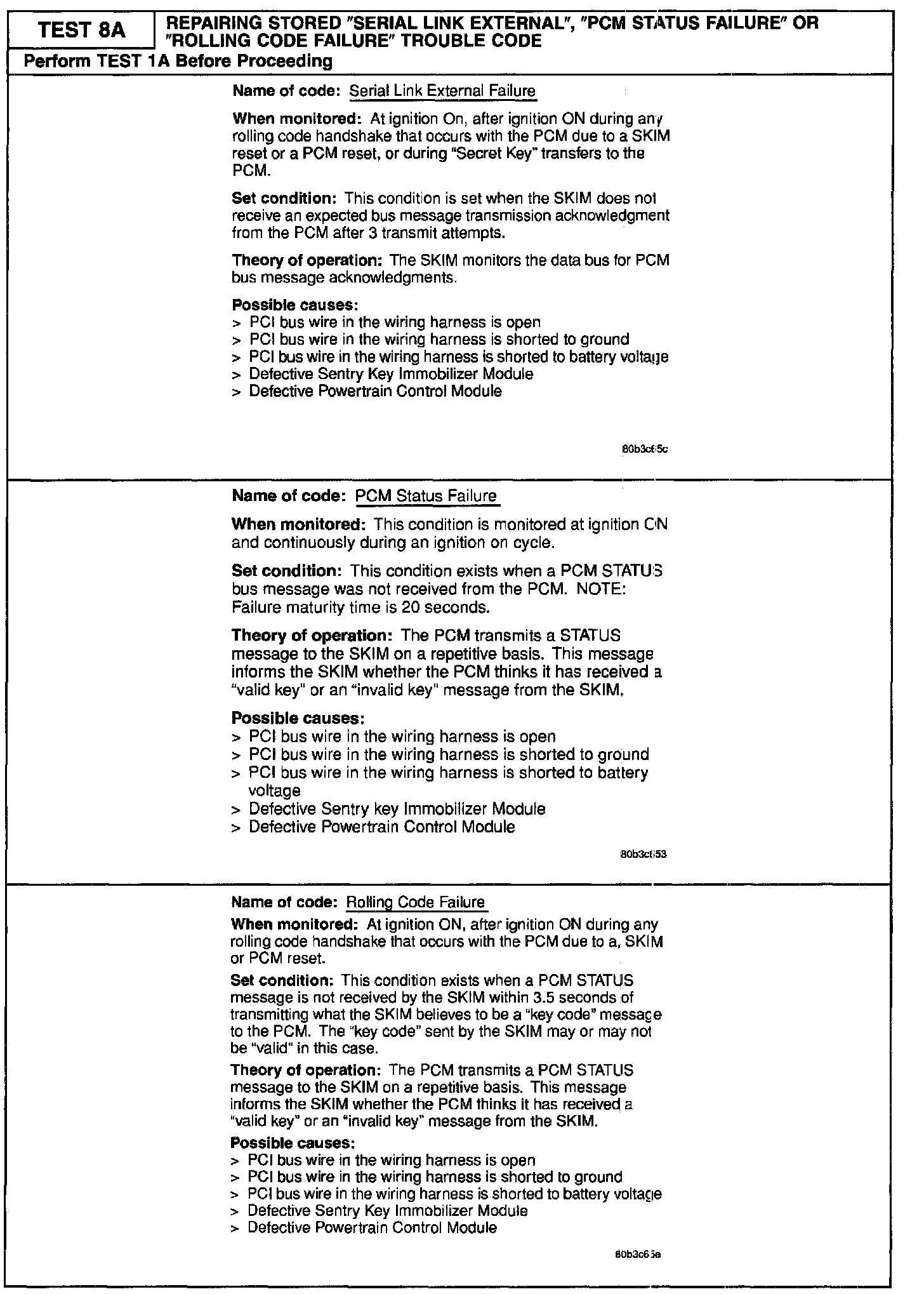

8A Serial Link External, PCM Status Fail,Rolling Code Fail
8A Serial Link External, PCM Status Fail,Rolling Code Fail
Related Images:
Diagnostic Chart:
