A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Smart/Sentry Key Immobilizer System (SKIS)
>>
6A EEPROM Failure Trouble Code

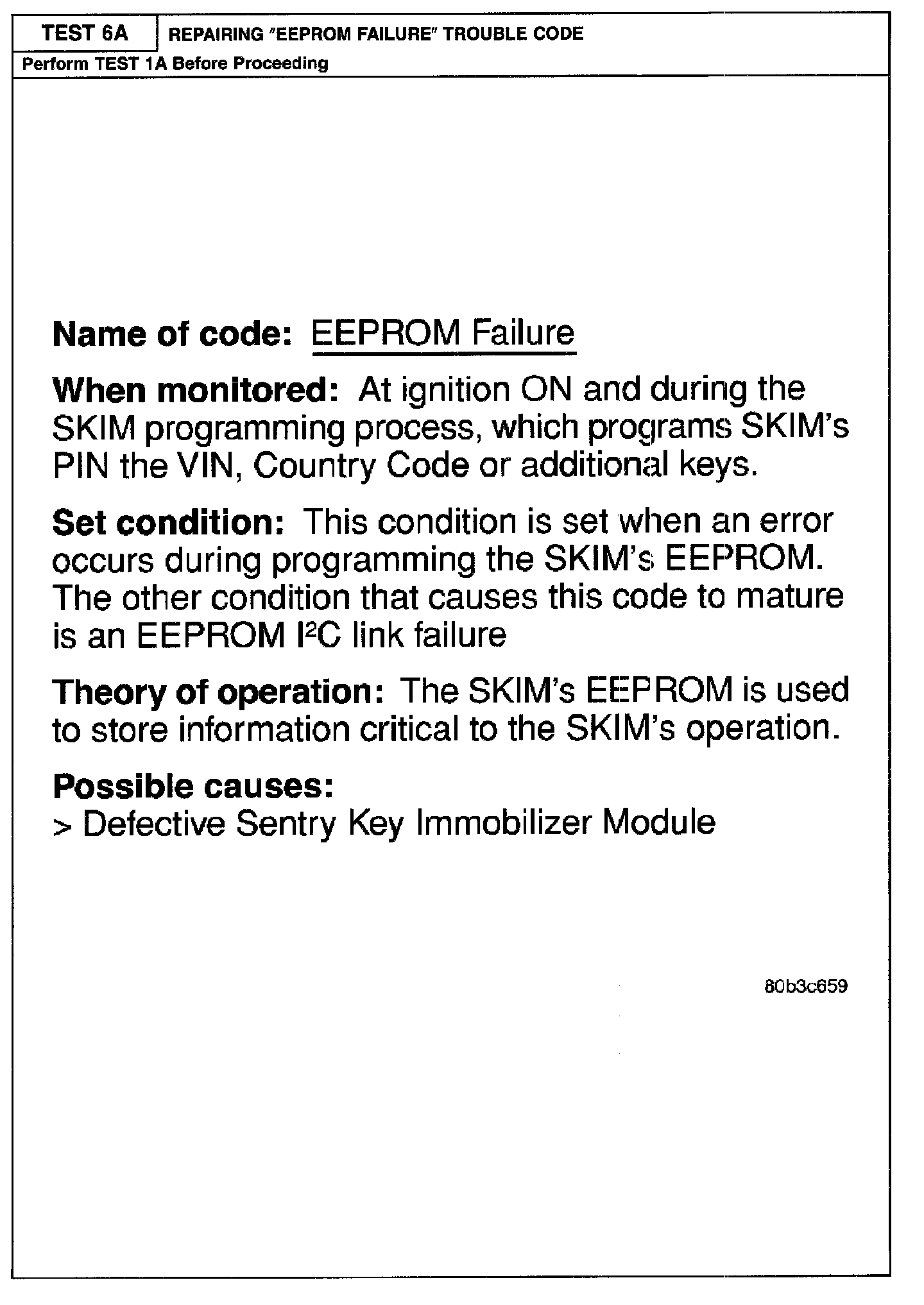

6A EEPROM Failure Trouble Code
Related Images:

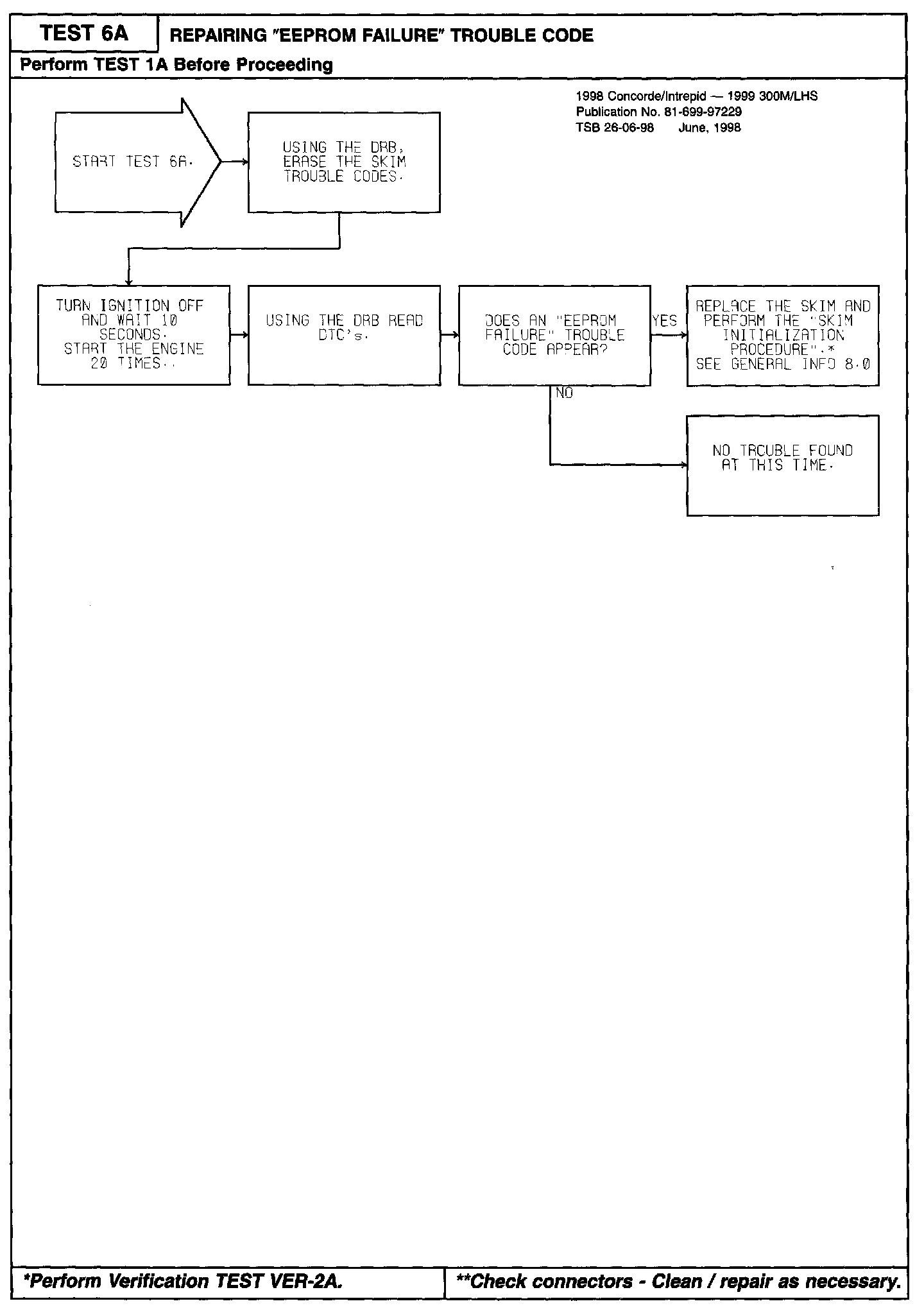

Diagnostic Chart:
