Smart/Sentry Key Immobilizer System (SKIS)
>>

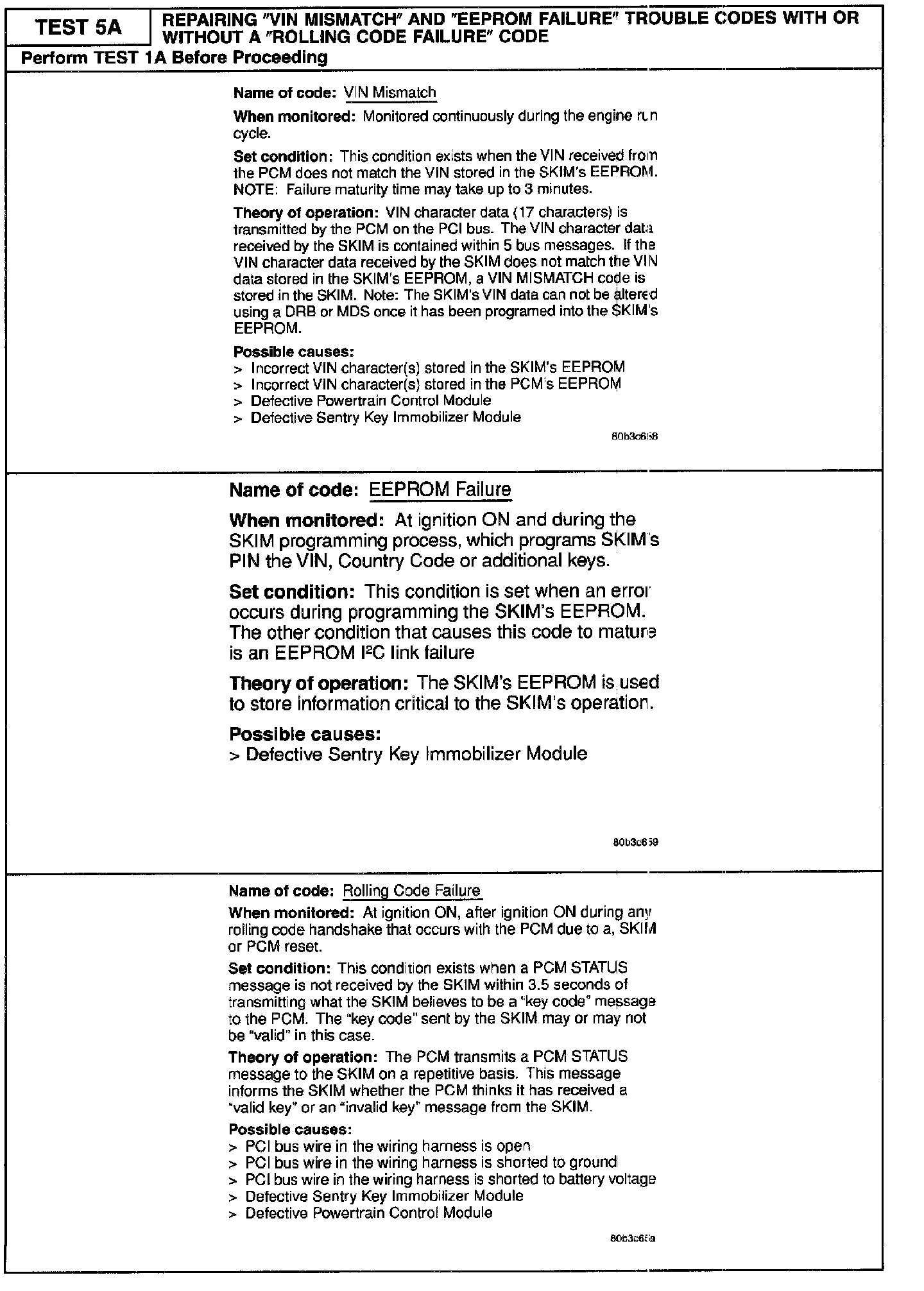

5A VIN Mismatch and EEPROM Failure/Rolling Code Failure
5A VIN Mismatch and EEPROM Failure/Rolling Code Failure
Related Images:

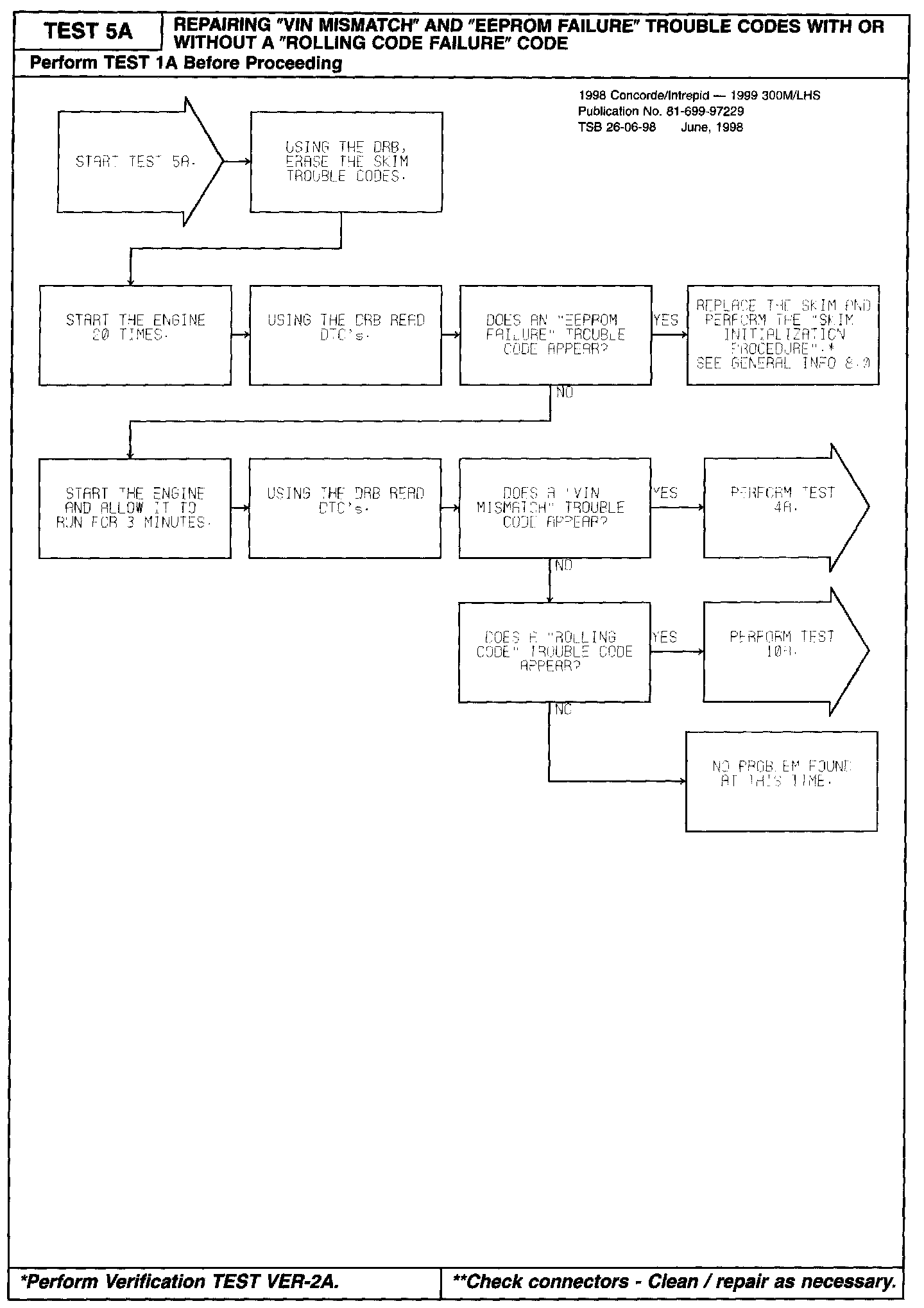

Diagnostic Chart:
