Concorde V6-2.7L VIN R
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Smart/Sentry Key Immobilizer System (SKIS)
>>

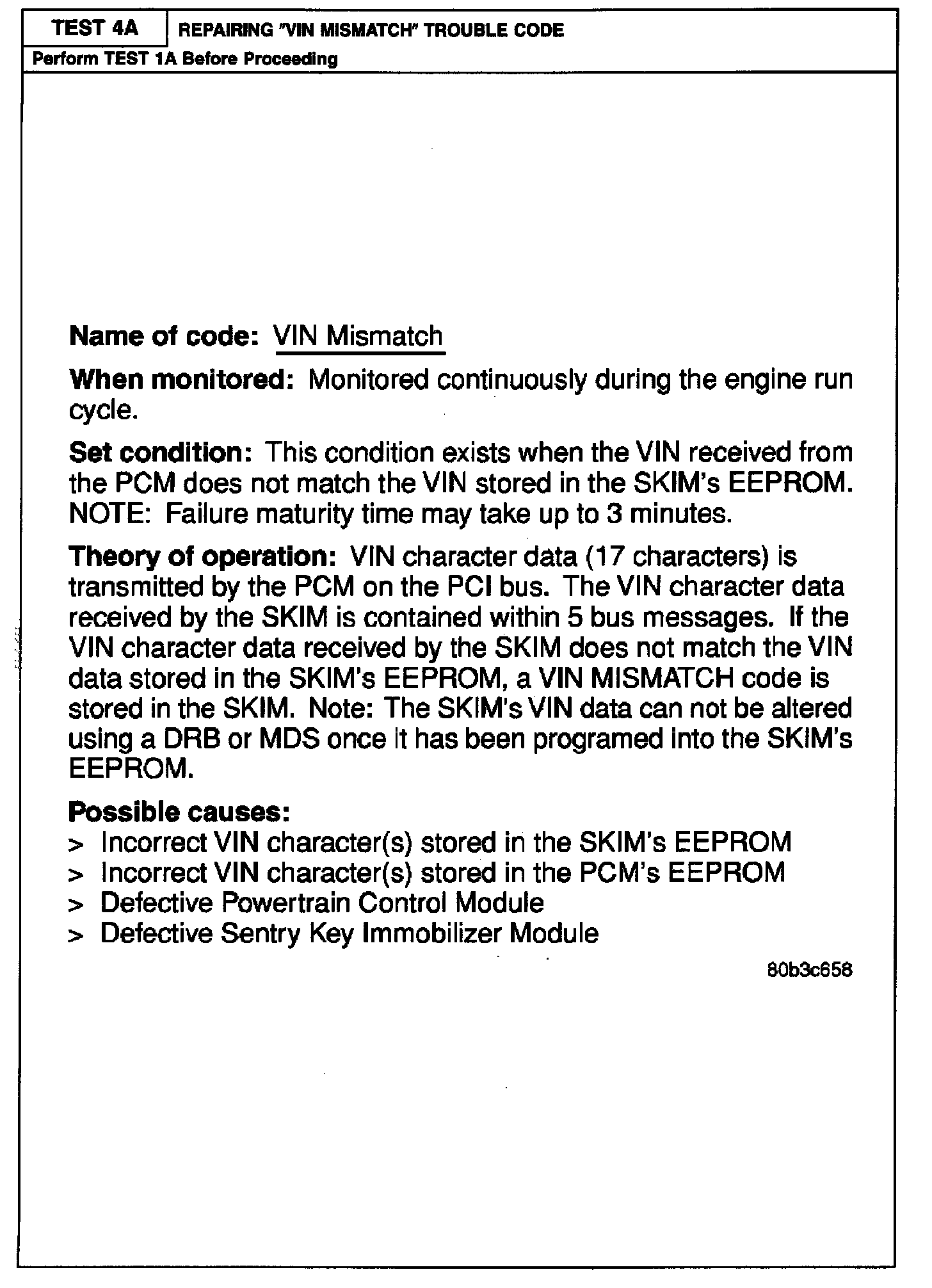

4A VIN Mismatch Trouble Code
4A VIN Mismatch Trouble Code

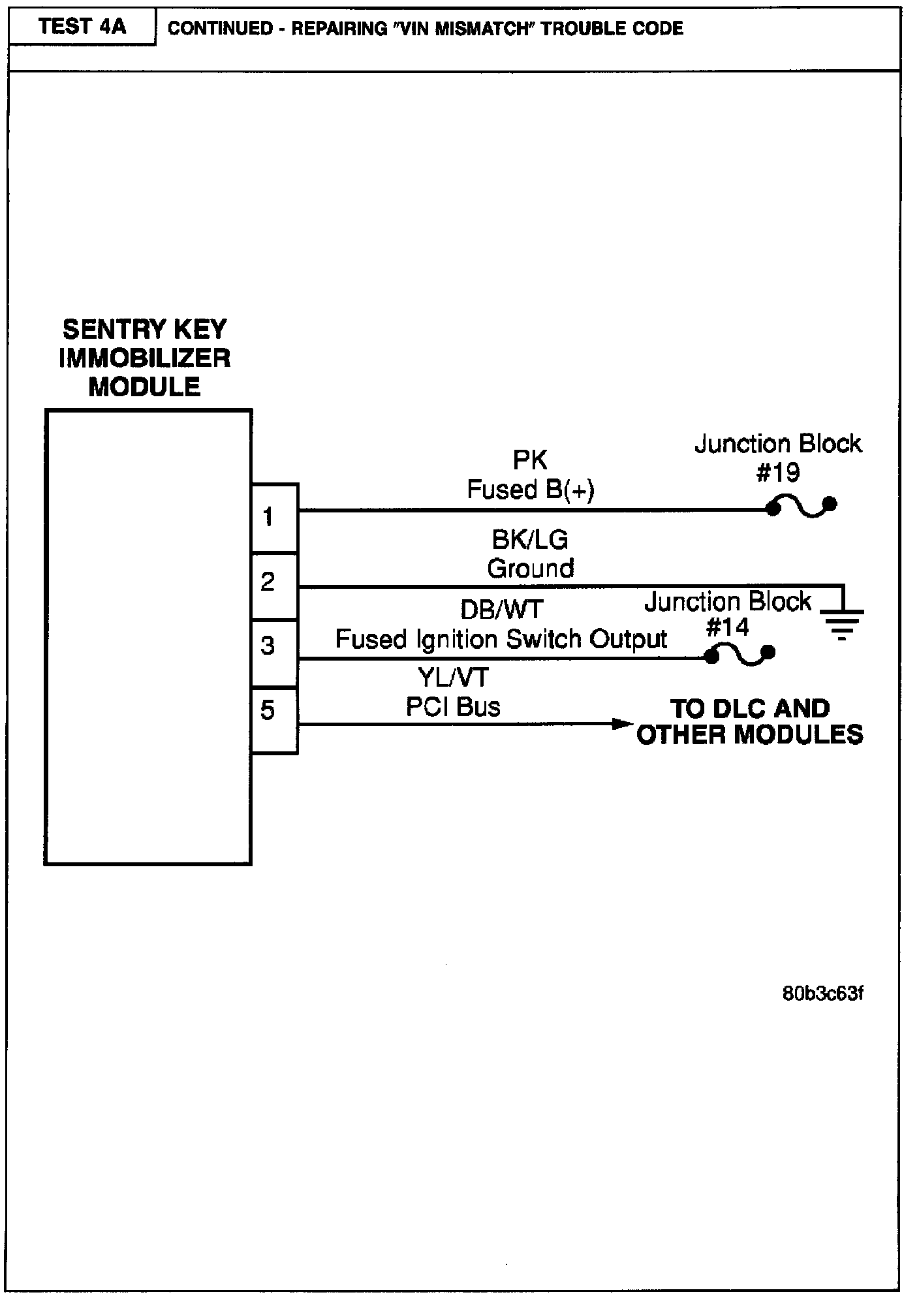

Related Images:

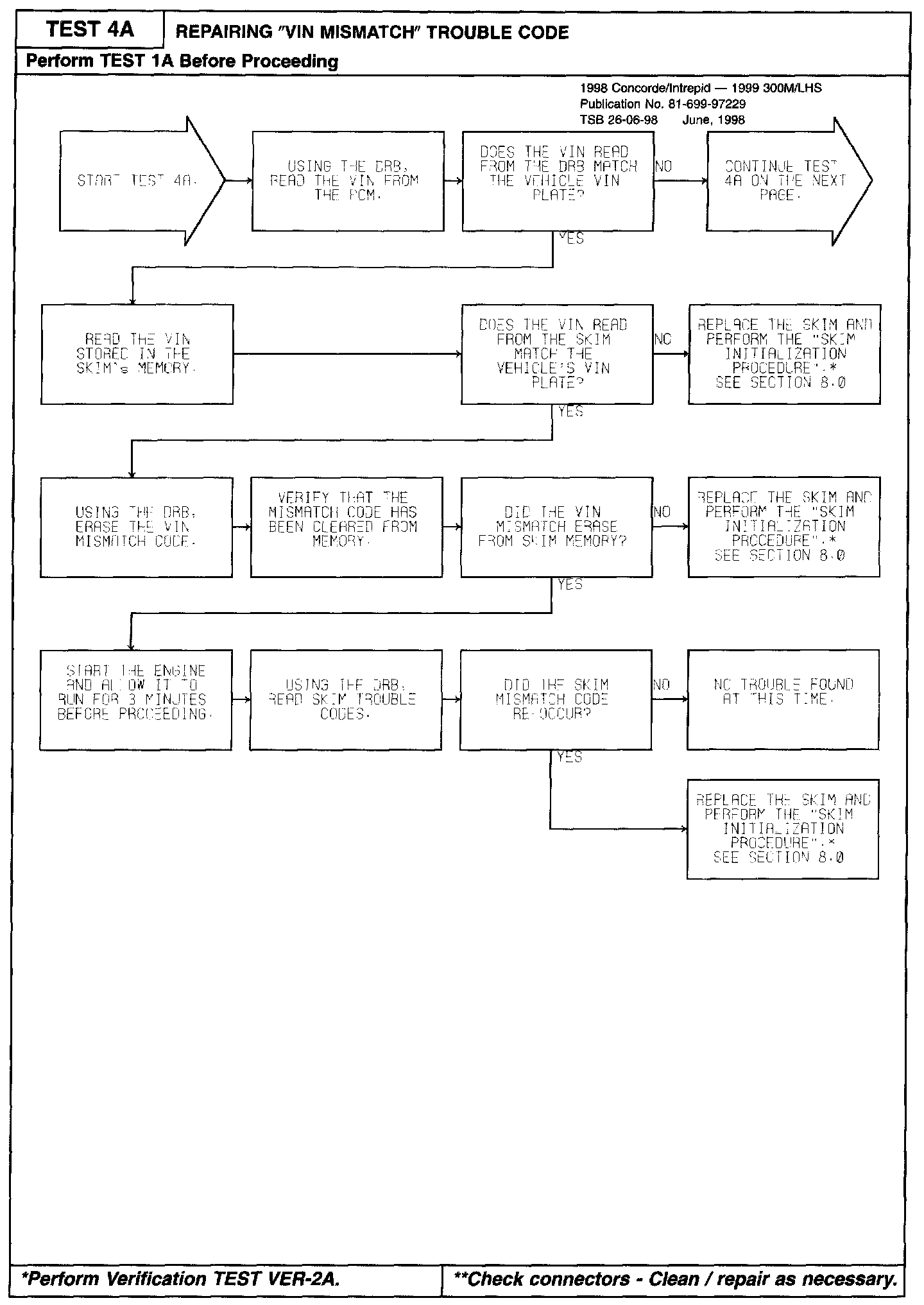

Diagnostic Chart:
Related Images:

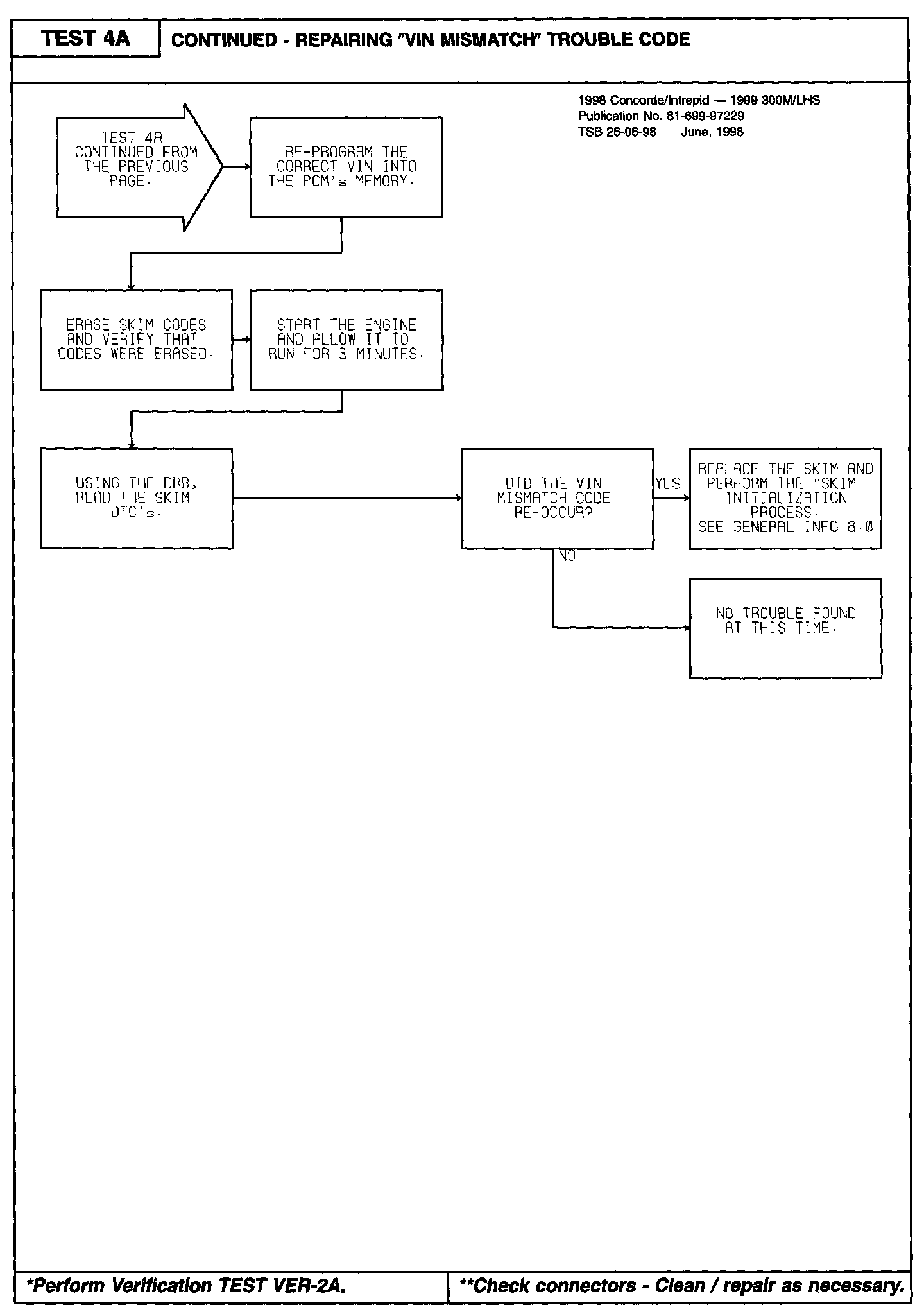

Diagnostic Chart:
