FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Chrysler
>>
1999
>>
Concorde V6-2.7L VIN R
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Smart/Sentry Key Immobilizer System (SKIS)
>>

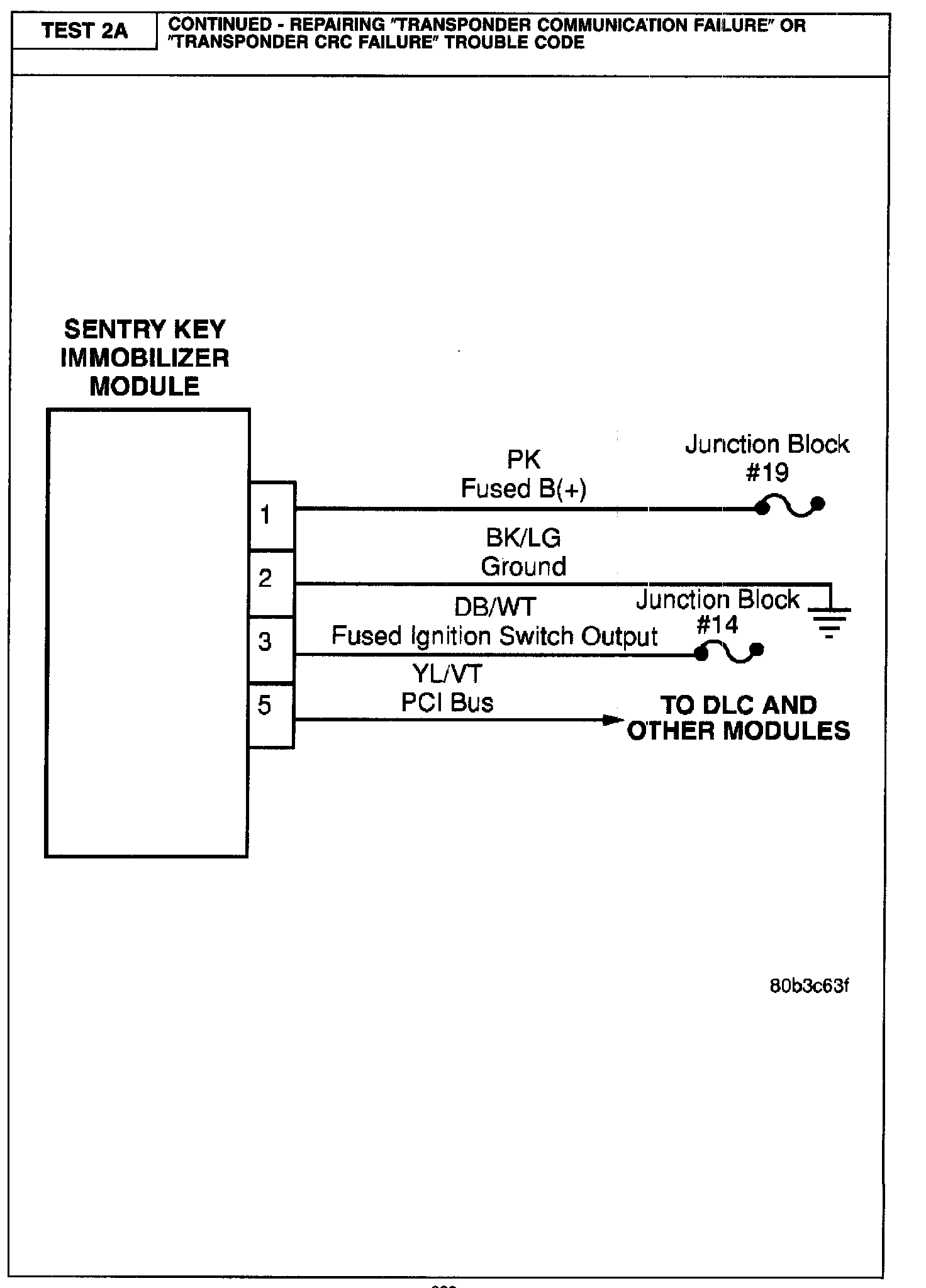

2A Transponder Communication Failure/Transponder CRC Failure
2A Transponder Communication Failure/Transponder CRC Failure
Related Images:

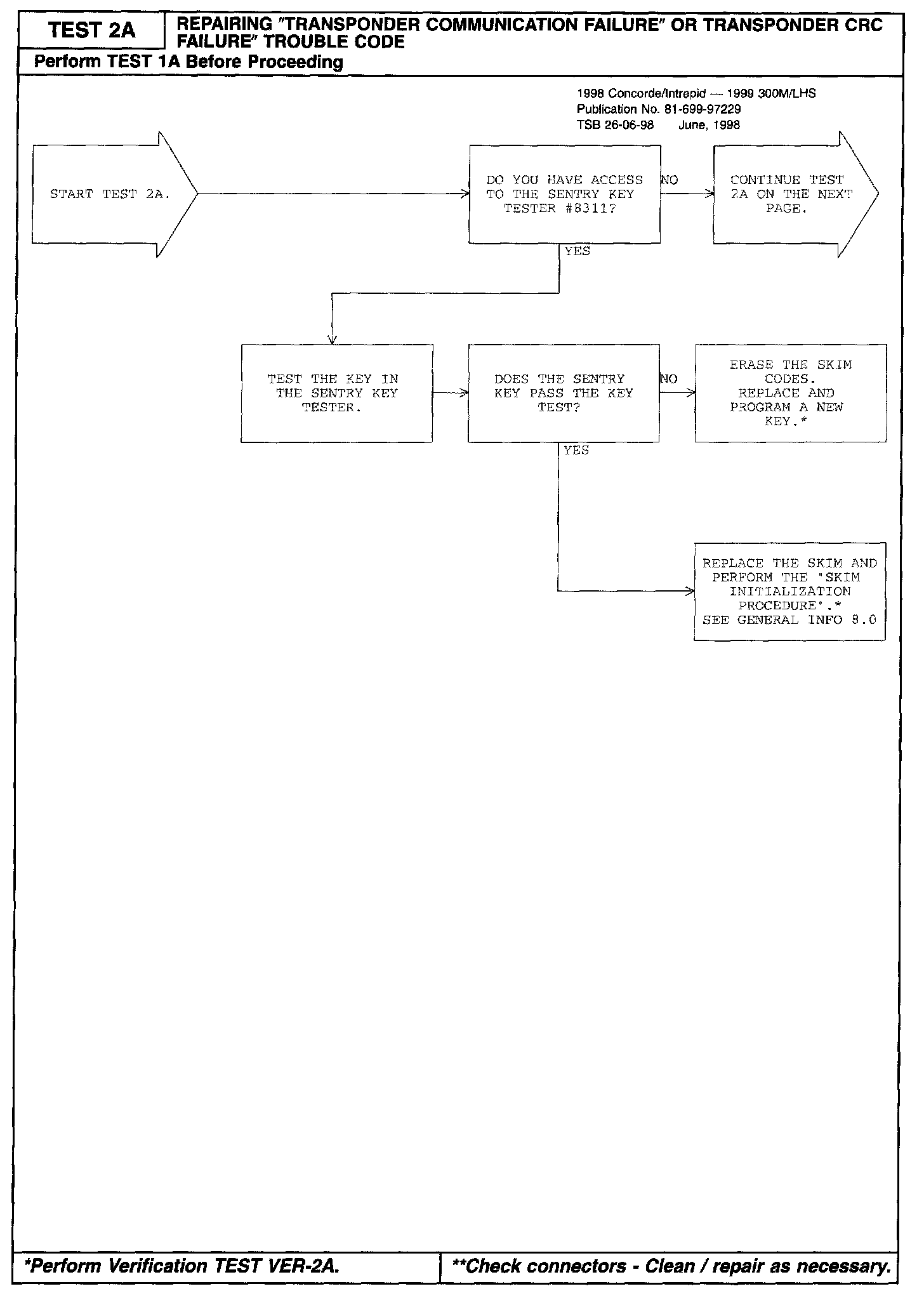

Diagnostic Chart:
Related Images:

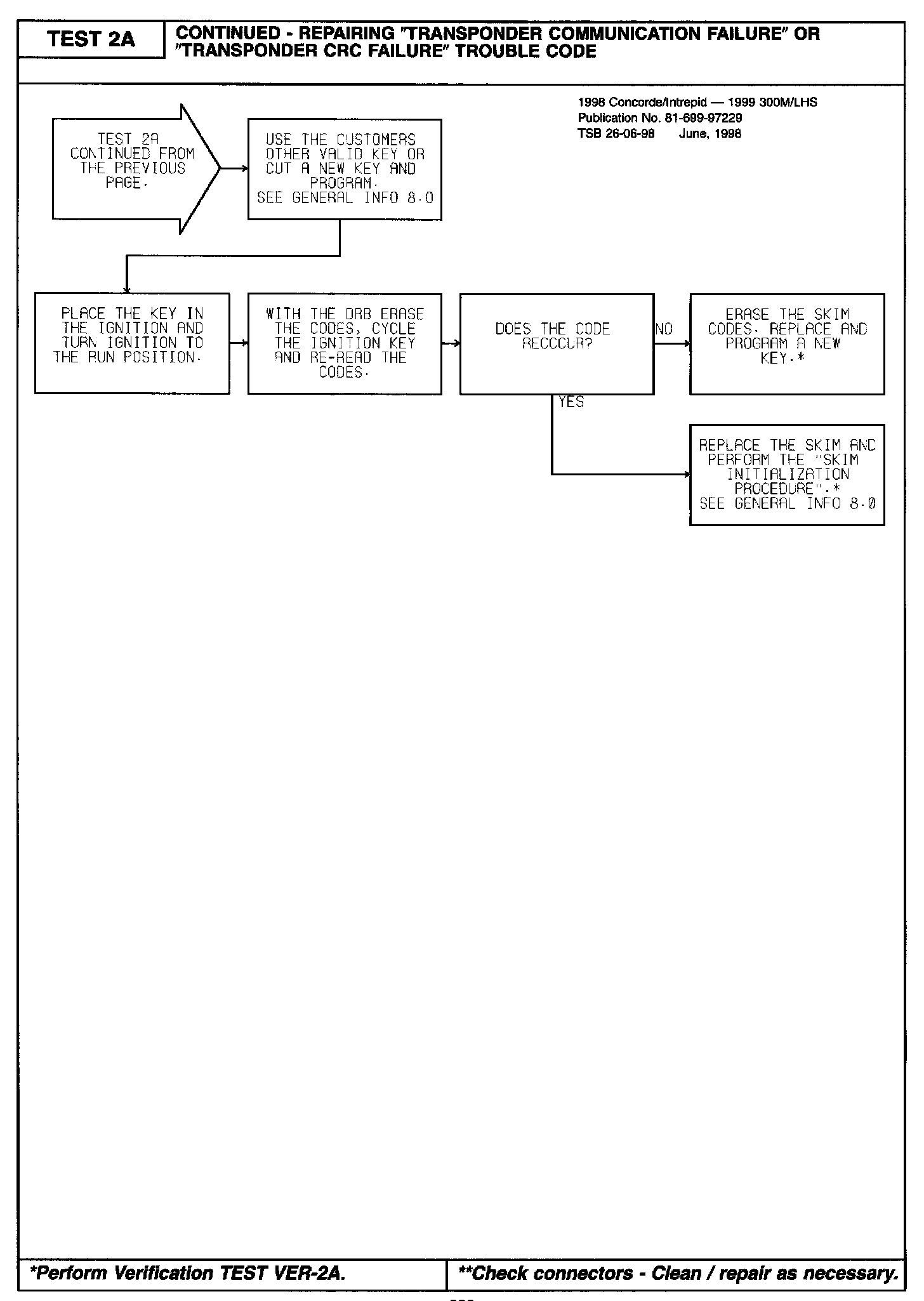

Diagnostic Chart:
